UniPlot As PostProcessor

Versión 1.6 (1,08 MB) por Adrien Laveau
Combine reporting and post-processing in one powerfull software : UniPlot
0.0
(0)
13 Descargas
Actualizado 14 oct 2024

Ver licencia

UniPlot is a state of the art software for data analysis and reporting.
This package will automatically add a callback function to the Simulink models of your choice to call UniPlot at the end of each run (if desired) to send the run data for further analysis, plotting, comparison.
How does it work ?

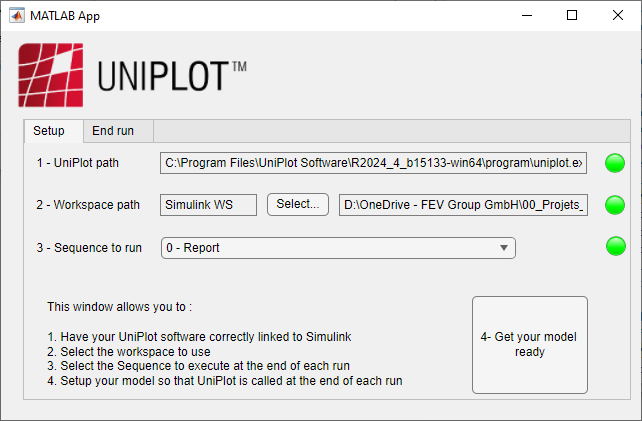

First usage (for each model)
  1. Open Simulink
  2. Run the app
  3. Click on "Get your model ready" -> your model is ready to export
  4. Select the signals to log by click & drag over the branch to record
Then
  1. Run the Simulation
  2. The UniPlot export window appear
  3. Provide a run name (ex : opti1...)
  4. [Optional : change the sequence]
  5. [Optional : add runtime value (variable to send to uniplot)]
  6. Click on "Send to UniPlot"
  7. UniPlot will be launched and your Sequence executed

Citar como

Adrien Laveau (2024). UniPlot As PostProcessor (https://www.mathworks.com/matlabcentral/fileexchange/173745-uniplot-as-postprocessor), MATLAB Central File Exchange. Recuperado .

Compatibilidad con la versión de MATLAB
Se creó con R2022b
Compatible con cualquier versión
Compatibilidad con las plataformas
Windows macOS Linux

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!
Versión Publicado Notas de la versión
1.6

Making the app less dependent on MATLAB path
Improved button enabled states
1.5

Clarifying diference between UniPlot Sequencer WorkSpace and MATLAB workspace
Add url for Sequencer help
Add url for UniPlot website
Improve validation lamps
Improve Simulink WS (basic workspace)
1.4

Removing error message on first startup if Simulink is not loaded
1.3

Basic workspace was not copied properly
Last Sequence used is offered on app restart
1.2

Update logo
Update Simulink WS
1.1

Updated workspace script
Message Box to inform that Simulink must run before running the app
1.0
