Using image3 the user can display an image with arbitrary position and orientation in Matlabs 3-D space. It is fast, exact and mimic the well known image and imagesc commands.

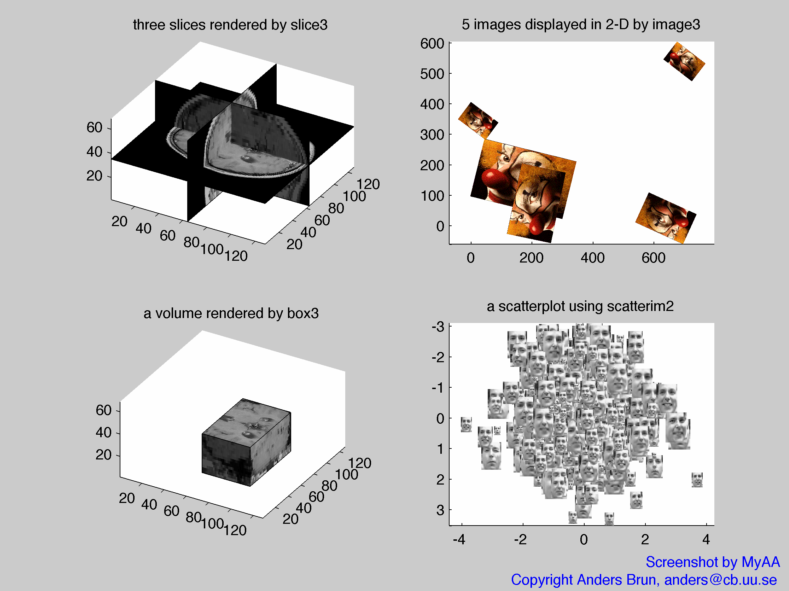

The package also includes:
imagesc3, a scaled version of image3
slice3, display slices fast from 3-D volume data
box3, display a box from 3-D volume data
scatterim2, make a 2-D scatter plot using images
I originally created this code to make slices of medical MRI data, to be able to rotate and change them really fast. Since then I have found many uses of them, since image and imagesc are strange and pcolor and surf are usually too slow without modification. I also prefer to control exactly what is plotted and where, without the extra intelligence from Matlab that switches the x- and y-axis from time to time.
Remark: A lot of the code is pixel/voxel centered, instead of vertex centered. And all indices are assumed to start at 1. If you are clever enough to be annoyed by that, I am sure you know also how to add the extra magic to the transformation matrices to make them work the way you want it. A hint is to have a look at the box3.m code.
Anders Brun (2021). image3 (https://www.mathworks.com/matlabcentral/fileexchange/21881-image3), MATLAB Central File Exchange. Retrieved .
