add

Perform Boolean unite operation on two shapes

collapse all in page

Syntax

add(shape1,shape2)
add(shape1,shape2,RetainShape=0)
c = add(shape1,shape2)
c = add(shape1,shape2,RetainShape=0)

Description

add(shape1,shape2) unites the 2-D or 3-D shape1 and shape2 using the add operation retaining the individual shape boundaries and plots the resultant 2-D or 3-D shape. Adjust the Transparency property of the shapes to view the retained individual shape portion in the resultant shape. Alternatively, you can also use the '+' operator to add the two shapes together.

example

add(shape1,shape2,RetainShape=0) unites the 3-D shape1 and shape2 using the add operation by merging boundaries of both the shapes and plots the resultant 3-D shape.

c = add(shape1,shape2) unites the 2-D or 3-D shape1 and shape2 using the add operation while retaining the individual shape boundaries and returns a polygon object for the resultant 2-D shape or a custom 3-D object for the resultant 3-D shape. Adjust the Transparency property of the shapes to view the retained individual shape portion in the resultant shape. Alternatively, you can also use the '+' operator to add the two shapes together.

example

c = add(shape1,shape2,RetainShape=0) unites the 3-D shape1 and shape2 using the add operation by merging boundaries of both the shapes and returns a custom 3-D object for the resultant 3-D shape.

Examples

collapse all

Open Live Script

Create and view a default circle.

circle1 = antenna.Circle;

Create a circle with a radius of 1 m. The center of the circle is at [1 0].

circle2 = antenna.Circle(Center=[1 0],Radius=1);

Add the two circles.

add(circle1,circle2)

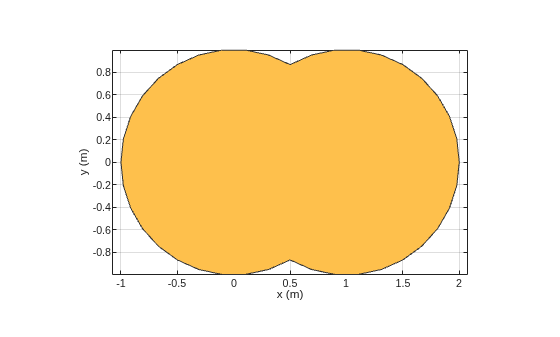

Figure contains an axes object. The axes object with xlabel x (m), ylabel y (m) contains 2 objects of type patch. These objects represent PEC, mypolygon.

Open Live Script

Create a circle with a radius of 1m. The center of the circle is at [1 0].

circle1 = antenna.Circle(Center=[1 0],Radius=1);

Create a rectangle with a length of 2m and a width of 4m centered at the origin.

rect1 = antenna.Rectangle(Length=2,Width=2);

Add the two shapes together using the + function.

polygon1 = circle1+rect1
polygon1 =
  Polygon with properties:

        Name: 'mypolygon'
    Vertices: [21×3 double]


show(polygon1)

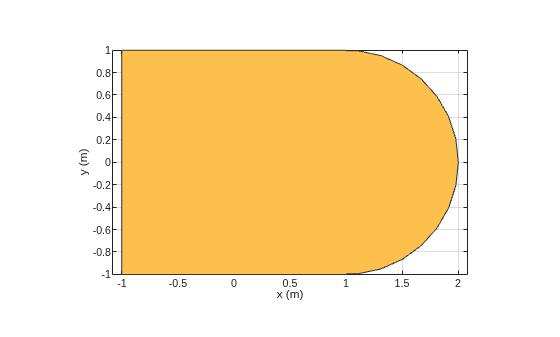

Figure contains an axes object. The axes object with xlabel x (m), ylabel y (m) contains 2 objects of type patch. These objects represent PEC, mypolygon.

Open Live Script

This example shows how to add two 3-D shapes and view the combined shape.

Create a box and a cylindrical shape.

b = shape.Box;
c = shape.Cylinder;
j = add(b,c)
j =
  Custom3D with properties:

              Name: 'custom3D'
          Vertices: [100×3 double]
             Metal: 'PEC'
        Dielectric: 'Air'
    FrequencyModel: 'Constant'
             Color: 'Individual'
      Transparency: 'Individual'
         EdgeColor: 'Individual'

Alternatively, you can use '+' operator to add these shapes.

b + c;

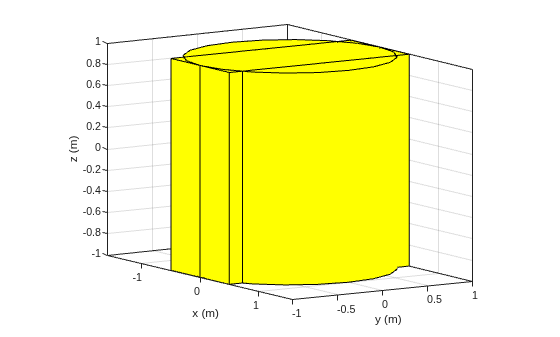

Figure contains an axes object. The axes object with xlabel x (m), ylabel y (m) contains 3 objects of type patch.

Input Arguments

collapse all

Shapes to unite, specified as objects from the following list:

Example: add(antenna.Rectangle,antenna.Circle)

Example: add(shape.Box,shape.Custom3D)

Output Arguments

collapse all

Resultant shape after the Boolean unite operation on two 2-D or 3-D shapes, returned as one of the following shape objects:

Example: antenna.Polygon

Example: shape.Polygon

Example: shape.Custom3D

Version History

Introduced in R2017a
