show
Display antenna, array structures, shapes, or platform
Syntax
Description
Examples
Display Antenna Structure

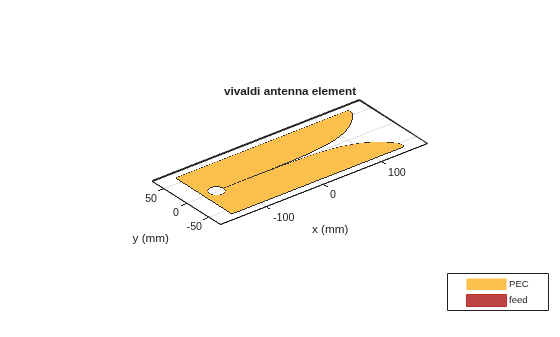

This example shows how to create a vivaldi antenna and display the antenna structure.
h = vivaldi
h = vivaldi with properties: TaperLength: 0.2430 ApertureWidth: 0.1050 OpeningRate: 25 SlotLineWidth: 5.0000e-04 CavityDiameter: 0.0240 CavityToTaperSpacing: 0.0230 GroundPlaneLength: 0.3000 GroundPlaneWidth: 0.1250 FeedOffset: -0.1045 Conductor: [1x1 metal] Tilt: 0 TiltAxis: [1 0 0] Load: [1x1 lumpedElement]
show(h)
Show Circular Shape with and Without Material Properties

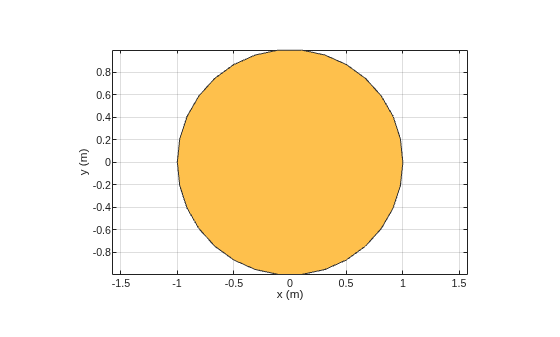

Create a circular shape without material properties and visualize the filled regions.
c1 = antenna.Circle
c1 = Circle with properties: Name: 'mycircle' Center: [0 0] Radius: 1 NumPoints: 30
show(c1)

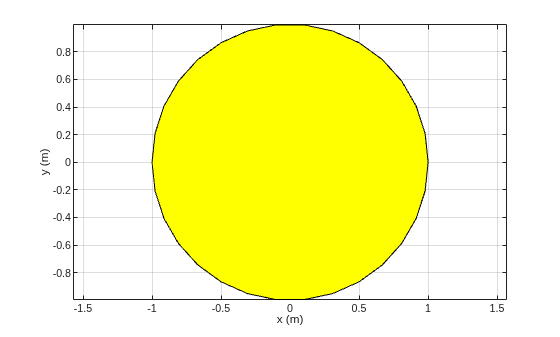

Create a circular shape with material properties and visualize the filled regions.
c2 = shape.Circle
c2 = Circle with properties: Name: 'mycircle' Center: [0 0] Radius: 1 NumPoints: 30 Metal: 'PEC' Color: 'y' Transparency: 1 EdgeColor: 'k'
show(c2)
Input Arguments
object
— Antenna or array to view
antenna object | array object | custom antenna | custom array | installedAntenna
object | platform
object | pcbStack
object | AIAntenna
object
Antenna or array from the catalog, custom antenna or array created using
2-D and 3-D objects from Custom 2-D and 3-D Antenna
catalog, installedAntenna
or large platform
, pcbStack
antenna or array,
or an AIAntenna
specified as an object.
Example: dipole
Example: conformalArray
Example: customAntenna
Example: installedAntenna
Example: pcbStack
Example: AIAntenna
shape
— Shape created using shape objects
shape object
2-D and 3-D geometric shapes created using shape objects in Custom 2-D and 3-D Antenna catalog.
Example: antenna.Rectangle
Example: shape.Box
Version History
Introduced in R2015a
See Also
layout
| mesh
| plot
| stlFileChecker
| polarpattern
