Analyze H-Notch Unit Element

This example shows how to perform vector and scalar frequency analysis on a 1-by-2 H-notch linear array.

In the Analysis tab, set the Center Frequency to 4.65 GHz and Frequency Range to 4:0.1:5 GHz . FrequencyChanged.PNG

Memory Estimate

Click the Memory Estimate button from the Mesh section to estimate the memory you will require to run the analysis.


You will need a memory of 750 MB (RAM) to analyze the antenna design. You can alter the memory requirements by changing the mesh parameters. Select Mesh on the toolbar to alter the mesh settings.

Analysis Settings

Click Analysis Settings from the Analysis section on the toolbar to set the the plot and mesh parameters to the following:

  • Ref Impedance(Z0) 50 ohms

  • Az Range 0:5:360 deg

  • El Range 0:5:360 deg

  • Meshing Mode auto


Click OK to save the settings.

Run Analysis

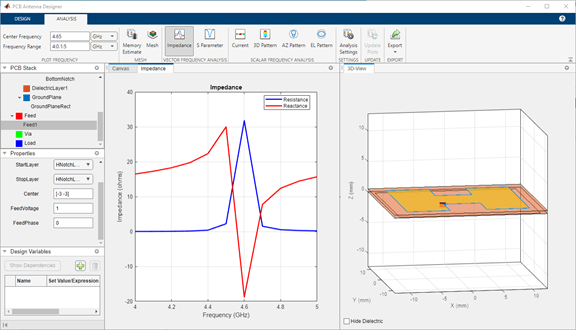

Select Impedance from the Vector Frequency Analysis section on the toolbar to plot the impedance plot. The impedance plot shows that the PCB stack antenna resonates at 4.6 GHz.

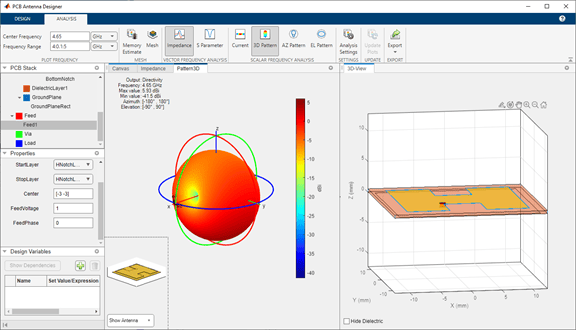

Click 3D Pattern from the Scalar Frequency Analysis section on the toolbar to plot the 3-D far-field radiation pattern of the antenna. The directivity of the H-notch patch unit element is 5.93 dBi.


Update Plots

Select DielectricLayer1 from the PCB Stack navigation tree navigation tree and set the DielectricType to TMM10i in the Properties pane.

DielectricLayerSelected.PNGDielectric options.PNG

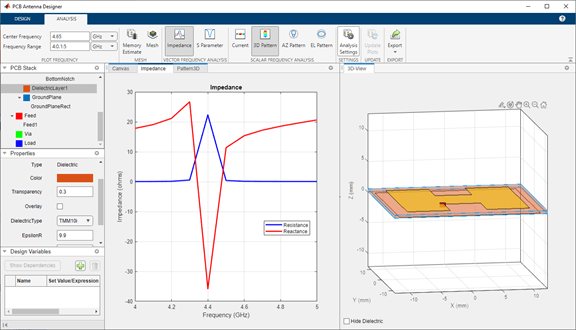

Click Update Plots from the Update section on the Analysis tab to update the analysis results. The impedance plot now shows that the PCB stack antenna resonates at 4.4 GHz.
