This example shows how to create tunable models of control systems for use with `systune`

or `looptune`

.

You can tune the gains and parameters of your control system with `systune`

or `looptune`

. To use these commands, you need to construct a tunable model of the control system that identifies and parameterizes its tunable elements. This is done by combining numeric LTI models of the fixed elements with parametric models of the tunable elements.

You can use one of the following "parametric" blocks to model commonly encountered tunable elements:

**tunableGain**: Tunable gain**tunablePID**: Tunable PID controller**tunablePID2**: Tunable two-degree-of-freedom PID controller**tunableTF**: Tunable transfer function**tunableSS**: Tunable state-space model.

For example, create a tunable model of the feedforward/feedback configuration of Figure 1 where $$C$$ is a tunable PID controller and $$F$$ is a tunable first-order transfer function.

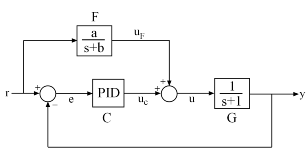

**Figure 1: Control System with Feedforward and Feedback Paths**

First model each block in the block diagram, using suitable parametric blocks for $$C$$ and $$F$$.

G = tf(1,[1 1]); C = tunablePID('C','pid'); % tunable PID block F = tunableTF('F',0,1); % tunable first-order transfer function

Then use `connect`

to build a model of the overall block diagram. To specify how the blocks are connected, label the inputs and outputs of each block and model the summing junctions using `sumblk`

.

G.u = 'u'; G.y = 'y'; C.u = 'e'; C.y = 'uC'; F.u = 'r'; F.y = 'uF'; % Summing junctions S1 = sumblk('e = r-y'); S2 = sumblk('u = uF + uC'); T = connect(G,C,F,S1,S2,'r','y')

T = Generalized continuous-time state-space model with 1 outputs, 1 inputs, 3 states, and the following blocks: C: Parametric PID controller, 1 occurrences. F: Parametric SISO transfer function, 0 zeros, 1 poles, 1 occurrences. Type "ss(T)" to see the current value, "get(T)" to see all properties, and "T.Blocks" to interact with the blocks.

This creates a generalized state-space model `T`

of the closed-loop transfer function from `r`

to `y`

. This model depends on the tunable blocks `C`

and `F`

. You can use `systune`

to automatically tune the PID gains and the feedforward coefficients `a,b`

subject to your performance requirements. Use `showTunable`

to see the current value of the tunable blocks.

showTunable(T)

C = 1 Ki * --- s with Ki = 0.001 Name: C Continuous-time I-only controller. ----------------------------------- F = 10 ------ s + 10 Name: F Continuous-time transfer function.

You can adjust the parameterization of the tunable elements $$C$$ and $$F$$ by interacting with the objects `C`

and `F`

. Use `get`

to see their list of properties.

get(C)

Kp: [1x1 param.Continuous] Ki: [1x1 param.Continuous] Kd: [1x1 param.Continuous] Tf: [1x1 param.Continuous] IFormula: '' DFormula: '' Name: 'C' Ts: 0 TimeUnit: 'seconds' InputName: {'e'} InputUnit: {''} InputGroup: [1x1 struct] OutputName: {'uC'} OutputUnit: {''} OutputGroup: [1x1 struct] Notes: [0x1 string] UserData: []

A PID controller has four tunable parameters `Kp,Ki,Kd,Tf`

. The tunable block `C`

contains a description of each of these parameters. Parameter attributes include current value, minimum and maximum values, and whether the parameter is free or fixed.

C.Kp

ans = Name: 'Kp' Value: 0 Minimum: -Inf Maximum: Inf Free: 1 Scale: 1 Info: [1x1 struct] 1x1 param.Continuous

Set the corresponding attributes to override defaults. For example, you can fix the time constant `Tf`

to the value 0.1 by

C.Tf.Value = 0.1; C.Tf.Free = false;

For tunable elements not covered by the pre-defined blocks listed above, you can create your own parameterization in terms of elementary real parameters (`realp`

). Consider the low-pass filter

$$F(s)=\frac{a}{s+a}$$

where the coefficient $$a$$ is tunable. To model this tunable element, create a real parameter $$a$$ and define $$F$$ as a transfer function whose numerator and denominator are functions of $$a$$. This creates a generalized state-space model `F`

of the low-pass filter parameterized by the tunable scalar `a`

.

a = realp('a',1); % real tunable parameter, initial value 1 F = tf(a,[1 a])

F = Generalized continuous-time state-space model with 1 outputs, 1 inputs, 1 states, and the following blocks: a: Scalar parameter, 2 occurrences. Type "ss(F)" to see the current value, "get(F)" to see all properties, and "F.Blocks" to interact with the blocks.

Similarly, you can use real parameters to model the notch filter

$$N(s)=\frac{{s}^{2}+2{\zeta}_{1}{\omega}_{n}s+{\omega}_{n}^{2}}{{s}^{2}+2{\zeta}_{2}{\omega}_{n}s+{\omega}_{n}^{2}}$$

with tunable coefficients $${\omega}_{n},{\zeta}_{1},{\zeta}_{2}$$.

wn = realp('wn',100); zeta1 = realp('zeta1',1); zeta1.Maximum = 1; % zeta1 <= 1 zeta2 = realp('zeta2',1); zeta2.Maximum = 1; % zeta2 <= 1 N = tf([1 2*zeta1*wn wn^2],[1 2*zeta2*wn wn^2]); % tunable notch filter

You can also create tunable elements with matrix-valued parameters. For example, model the observer-based controller $$C(s)$$ with equations

$$\frac{dx}{dt}=Ax+Bu+L(y-Cx),\phantom{\rule{0.2777777777777778em}{0ex}}\phantom{\rule{0.2777777777777778em}{0ex}}u=-Kx$$

and tunable gain matrices $$K$$ and $$L$$.

% Plant with 6 states, 2 controls, 3 measurements [A,B,C] = ssdata(rss(6,3,2)); K = realp('K',zeros(2,6)); L = realp('L',zeros(6,3)); C = ss(A-B*K-L*C,L,-K,0)

C = Generalized continuous-time state-space model with 2 outputs, 3 inputs, 6 states, and the following blocks: K: Parametric 2x6 matrix, 2 occurrences. L: Parametric 6x3 matrix, 2 occurrences. Type "ss(C)" to see the current value, "get(C)" to see all properties, and "C.Blocks" to interact with the blocks.

The `systune`

command takes a closed-loop model of the overall control system, like the tunable model `T`

built at the beginning of this example. Such models do not readily support open-loop analysis or open-loop specifications such as loop shapes and stability margins. To gain access to open-loop responses, insert an `AnalysisPoint`

block as shown in Figure 2.

**Figure 2: Analysis Point Block**

The `AnalysisPoint`

block can be used to mark internal signals of interest as well as locations where to open feedback loops and measure open-loop responses. This block evaluates to a unit gain and has no impact on the model responses. For example, construct a closed-loop model `T`

of the feedback loop of Figure 2 where $$C$$ is a tunable PID.

G = tf(1,[1 1]); C = tunablePID('C','pid'); AP = AnalysisPoint('X'); T = feedback(G*C,AP);

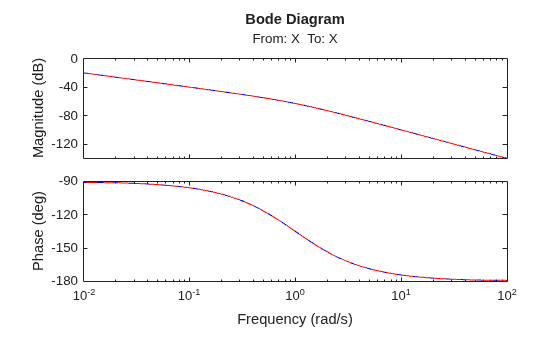

You can now use `getLoopTransfer`

to compute the (negative-feedback) loop transfer function measured at the location "X". Note that this loop transfer function is $$L=GC$$ for the feedback loop of Figure 2.

L = getLoopTransfer(T,'X',-1); % loop transfer at "X" clf, bode(L,'b',G*C,'r--')

You can also refer to the location "X" when specifying target loop shapes or stability margins for `systune`

. The requirement then applies to the loop transfer measured at this location.

% Target loop shape for loop transfer at "X" Req1 = TuningGoal.LoopShape('X',tf(5,[1 0])); % Target stability margins for loop transfer at "X" Req2 = TuningGoal.Margins('X',6,40);

In general, loop opening locations are specified in the `Location`

property of `AnalysisPoint`

blocks. For single-channel analysis points, the block name is used as default location name. For multi-channel analysis points, indices are appended to the block name to form the default location names.

AP = AnalysisPoint('Y',2); % two-channel analysis point AP.Location

`ans = `*2x1 cell array*
{'Y(1)'}
{'Y(2)'}

You can override the default location names and use more descriptive names by modifying the `Location`

property.

% Rename loop opening locations to "InnerLoop" and "OuterLoop". AP.Location = {'InnerLoop' ; 'OuterLoop'}; AP.Location

`ans = `*2x1 cell array*
{'InnerLoop'}
{'OuterLoop'}
