optimizeConfigurationForNetwork
Class: dlhdl.ProcessorConfig
Namespace: dlhdl
Update network-specific deep learning processor configuration with optimized deep learning processor configuration
Since R2021b
Syntax
Description
newprocessorConfigObject = optimizeConfigurationForNetwork(processorConfigObject,network)processorConfigObject with the optimized deep learning processor
configuration, optimized for the network and returns the updated
processor configuration object.
newprocessorConfigObject = optimizeConfigurationForNetwork(___,Name,Value)
The optimizeConfigurationForNetwork method optimizes the deep learning
processor configuration to achieve your target goal of performance or resource usage
optimization. To learn more about the deep learning processor configuration properties and
their affects on performance, see Effects of Custom Deep Learning Processor Parameters on Performance and Resource Utilization. You can manually adjust the
processor configuration or use the optimizeConfigurationForNetwork
method.
Input Arguments
Output Arguments
Examples
Generate Optimized Processor Configuration for MobileNetV2 Network
Retrieve an optimized MobileNetV2 network-specific
processor configuration, by using the optimizeConfigurationForNetwork
method.
Create a dlhdl.ProcessorConfig object.
net = mobilenetv2; hPC = dlhdl.ProcessorConfig;
To retrieve an optimized processor configuration, call the
optimizeConfigurationForNetwork method.
optimizeConfigurationForNetwork(hPC,net)
### Optimizing processor configuration for deep learning network...
### Note: Processing module "conv" property "InputMemorySize" changed from "[227 227 3]" to "[224 224 3]".
### Note: Processing module "conv" property "OutputMemorySize" changed from "[227 227 3]" to "[112 112 16]".
### Note: Processing module "conv" property "FeatureSizeLimit" changed from "2048" to "1280".
### Note: Processing module "conv" property "SegmentationBlockGeneration" changed from "true" to "false".
### Note: Processing module "fc" property "InputMemorySize" changed from "25088" to "1280".
### Note: Processing module "fc" property "OutputMemorySize" changed from "4096" to "1000".
### Note: Processing module "fc" property "SoftmaxBlockGeneration" changed from "false" to "true".
Processing Module "conv"
ModuleGeneration: 'on'
LRNBlockGeneration: 'off'
SegmentationBlockGeneration: 'off'
ConvThreadNumber: 16
InputMemorySize: [224 224 3]
OutputMemorySize: [112 112 16]
FeatureSizeLimit: 1280
Processing Module "fc"
ModuleGeneration: 'on'
SoftmaxBlockGeneration: 'on'
FCThreadNumber: 4
InputMemorySize: 1280
OutputMemorySize: 1000
Processing Module "custom"
ModuleGeneration: 'on'
Addition: 'on'
MishLayer: 'off'
Multiplication: 'on'
Resize2D: 'off'
Sigmoid: 'off'
SwishLayer: 'off'
TanhLayer: 'off'
InputMemorySize: 40
OutputMemorySize: 120
Processor Top Level Properties
RunTimeControl: 'register'
RunTimeStatus: 'register'
InputStreamControl: 'register'
OutputStreamControl: 'register'
SetupControl: 'register'
ProcessorDataType: 'single'
System Level Properties
TargetPlatform: 'Xilinx Zynq UltraScale+ MPSoC ZCU102 Evaluation Kit'
TargetFrequency: 200
SynthesisTool: 'Xilinx Vivado'
ReferenceDesign: 'AXI-Stream DDR Memory Access : 3-AXIM'
SynthesisToolChipFamily: 'Zynq UltraScale+'
SynthesisToolDeviceName: 'xczu9eg-ffvb1156-2-e'
SynthesisToolPackageName: ''
SynthesisToolSpeedValue: ''
### Optimizing processor configuration for deep learning network complete.
ans =
Processing Module "conv"
ModuleGeneration: 'on'
LRNBlockGeneration: 'off'
SegmentationBlockGeneration: 'off'
ConvThreadNumber: 16
InputMemorySize: [224 224 3]
OutputMemorySize: [112 112 16]
FeatureSizeLimit: 1280
Processing Module "fc"
ModuleGeneration: 'on'
SoftmaxBlockGeneration: 'on'
FCThreadNumber: 4
InputMemorySize: 1280
OutputMemorySize: 1000
Processing Module "custom"
ModuleGeneration: 'on'
Addition: 'on'
MishLayer: 'off'
Multiplication: 'on'
Resize2D: 'off'
Sigmoid: 'off'
SwishLayer: 'off'
TanhLayer: 'off'
InputMemorySize: 40
OutputMemorySize: 120
Processor Top Level Properties
RunTimeControl: 'register'
RunTimeStatus: 'register'
InputStreamControl: 'register'
OutputStreamControl: 'register'
SetupControl: 'register'
ProcessorDataType: 'single'
System Level Properties
TargetPlatform: 'Xilinx Zynq UltraScale+ MPSoC ZCU102 Evaluation Kit'
TargetFrequency: 200
SynthesisTool: 'Xilinx Vivado'
ReferenceDesign: 'AXI-Stream DDR Memory Access : 3-AXIM'
SynthesisToolChipFamily: 'Zynq UltraScale+'
SynthesisToolDeviceName: 'xczu9eg-ffvb1156-2-e'
SynthesisToolPackageName: ''
SynthesisToolSpeedValue: ''
Optimize Deep Learning Processor Configuration for Network Performance
This example shows how to generate a deep learning processor configuration and estimate the performance of a pretrained network. Generate a deep learning processor configuration optimized for the target frames-per-second value of the network, then generate a custom bitstream by using the optimized processor configuration.
Load Pretrained Network and Create Processor Configuration
To load a pretrained ResNet-18 network, enter:
net = resnet18;
Create a custom deep learning processor configuration. For more information, see dlhdl.ProcessorConfig.
hPC = dlhdl.ProcessorConfig;
Estimate Network Performance
Establish the baseline performance of the network, by estimating the performance of the ResNet-18 network. Estimate the performance, by using the estimatePerformance method of the dlhdl.ProcessorConfig object. The method returns the estimated layer latency, network latency, and network performance in frames per second.
estimatePerformance(hPC,net);
### Optimizing network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer'
### Notice: The layer 'data' of type 'ImageInputLayer' is split into an image input layer 'data', an addition layer 'data_norm_add', and a multiplication layer 'data_norm' for hardware normalization.
### The network includes the following layers:
1 'data' Image Input 224×224×3 images with 'zscore' normalization (SW Layer)
2 'conv1' 2-D Convolution 64 7×7×3 convolutions with stride [2 2] and padding [3 3 3 3] (HW Layer)
3 'conv1_relu' ReLU ReLU (HW Layer)
4 'pool1' 2-D Max Pooling 3×3 max pooling with stride [2 2] and padding [1 1 1 1] (HW Layer)
5 'res2a_branch2a' 2-D Convolution 64 3×3×64 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
6 'res2a_branch2a_relu' ReLU ReLU (HW Layer)
7 'res2a_branch2b' 2-D Convolution 64 3×3×64 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
8 'res2a' Addition Element-wise addition of 2 inputs (HW Layer)
9 'res2a_relu' ReLU ReLU (HW Layer)
10 'res2b_branch2a' 2-D Convolution 64 3×3×64 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
11 'res2b_branch2a_relu' ReLU ReLU (HW Layer)
12 'res2b_branch2b' 2-D Convolution 64 3×3×64 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
13 'res2b' Addition Element-wise addition of 2 inputs (HW Layer)
14 'res2b_relu' ReLU ReLU (HW Layer)
15 'res3a_branch2a' 2-D Convolution 128 3×3×64 convolutions with stride [2 2] and padding [1 1 1 1] (HW Layer)
16 'res3a_branch2a_relu' ReLU ReLU (HW Layer)
17 'res3a_branch2b' 2-D Convolution 128 3×3×128 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
18 'res3a_branch1' 2-D Convolution 128 1×1×64 convolutions with stride [2 2] and padding [0 0 0 0] (HW Layer)
19 'res3a' Addition Element-wise addition of 2 inputs (HW Layer)
20 'res3a_relu' ReLU ReLU (HW Layer)
21 'res3b_branch2a' 2-D Convolution 128 3×3×128 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
22 'res3b_branch2a_relu' ReLU ReLU (HW Layer)
23 'res3b_branch2b' 2-D Convolution 128 3×3×128 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
24 'res3b' Addition Element-wise addition of 2 inputs (HW Layer)
25 'res3b_relu' ReLU ReLU (HW Layer)
26 'res4a_branch2a' 2-D Convolution 256 3×3×128 convolutions with stride [2 2] and padding [1 1 1 1] (HW Layer)
27 'res4a_branch2a_relu' ReLU ReLU (HW Layer)
28 'res4a_branch2b' 2-D Convolution 256 3×3×256 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
29 'res4a_branch1' 2-D Convolution 256 1×1×128 convolutions with stride [2 2] and padding [0 0 0 0] (HW Layer)
30 'res4a' Addition Element-wise addition of 2 inputs (HW Layer)
31 'res4a_relu' ReLU ReLU (HW Layer)
32 'res4b_branch2a' 2-D Convolution 256 3×3×256 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
33 'res4b_branch2a_relu' ReLU ReLU (HW Layer)
34 'res4b_branch2b' 2-D Convolution 256 3×3×256 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
35 'res4b' Addition Element-wise addition of 2 inputs (HW Layer)
36 'res4b_relu' ReLU ReLU (HW Layer)
37 'res5a_branch2a' 2-D Convolution 512 3×3×256 convolutions with stride [2 2] and padding [1 1 1 1] (HW Layer)
38 'res5a_branch2a_relu' ReLU ReLU (HW Layer)
39 'res5a_branch2b' 2-D Convolution 512 3×3×512 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
40 'res5a_branch1' 2-D Convolution 512 1×1×256 convolutions with stride [2 2] and padding [0 0 0 0] (HW Layer)
41 'res5a' Addition Element-wise addition of 2 inputs (HW Layer)
42 'res5a_relu' ReLU ReLU (HW Layer)
43 'res5b_branch2a' 2-D Convolution 512 3×3×512 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
44 'res5b_branch2a_relu' ReLU ReLU (HW Layer)
45 'res5b_branch2b' 2-D Convolution 512 3×3×512 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
46 'res5b' Addition Element-wise addition of 2 inputs (HW Layer)
47 'res5b_relu' ReLU ReLU (HW Layer)
48 'pool5' 2-D Global Average Pooling 2-D global average pooling (HW Layer)
49 'fc1000' Fully Connected 1000 fully connected layer (HW Layer)
50 'prob' Softmax softmax (SW Layer)
51 'ClassificationLayer_predictions' Classification Output crossentropyex with 'tench' and 999 other classes (SW Layer)
### Notice: The layer 'prob' with type 'nnet.cnn.layer.SoftmaxLayer' is implemented in software.
### Notice: The layer 'ClassificationLayer_predictions' with type 'nnet.cnn.layer.ClassificationOutputLayer' is implemented in software.
Deep Learning Processor Estimator Performance Results
LastFrameLatency(cycles) LastFrameLatency(seconds) FramesNum Total Latency Frames/s
------------- ------------- --------- --------- ---------
Network 21328236 0.10664 1 21328236 9.4
____data_norm_add 210750 0.00105
____data_norm 210750 0.00105
____conv1 2164124 0.01082
____pool1 515064 0.00258
____res2a_branch2a 966221 0.00483
____res2a_branch2b 966221 0.00483
____res2a 210750 0.00105
____res2b_branch2a 966221 0.00483
____res2b_branch2b 966221 0.00483
____res2b 210750 0.00105
____res3a_branch1 540861 0.00270
____res3a_branch2a 540749 0.00270
____res3a_branch2b 919117 0.00460
____res3a 105404 0.00053
____res3b_branch2a 919117 0.00460
____res3b_branch2b 919117 0.00460
____res3b 105404 0.00053
____res4a_branch1 503405 0.00252
____res4a_branch2a 509261 0.00255
____res4a_branch2b 905421 0.00453
____res4a 52724 0.00026
____res4b_branch2a 905421 0.00453
____res4b_branch2b 905421 0.00453
____res4b 52724 0.00026
____res5a_branch1 744525 0.00372
____res5a_branch2a 751693 0.00376
____res5a_branch2b 1415373 0.00708
____res5a 26368 0.00013
____res5b_branch2a 1415373 0.00708
____res5b_branch2b 1415373 0.00708
____res5b 26368 0.00013
____pool5 54594 0.00027
____fc1000 207351 0.00104
* The clock frequency of the DL processor is: 200MHz
The estimated frames-per-second performance is 9.4 frames per second. To improve the network performance, you can modify the properties of the custom deep learning processor configuration hPC or use the optimizeConfigurationForNetwork method. In this example, you use the optimizeConfigurationForNetwork method. To learn about modifying the properties manually, see Effects of Custom Deep Learning Processor Parameters on Performance and Resource Utilization.
Generate Optimized Processor Configuration
Optimize the processor configuration by using the optimizeConfigurationForNetwork method. Use the optional FramesPerSecond name-value argument.
hPC_optimized = optimizeConfigurationForNetwork(hPC,net,FramesPerSecond=10);
### Optimizing processor configuration for deep learning network...
Deep Learning Processor Estimator Resource Results
DSPs Block RAM* LUTs(CLB/ALUT)
------------- ------------- -------------
Available 2520 912 274080
------------- ------------- -------------
Total 438( 18%) 600( 66%) 270396( 99%)
ReferenceDesign 3( 1%) 78( 9%) 35000( 13%)
DL_Processor 435( 18%) 522( 58%) 235396( 86%)
* Block RAM represents Block RAM tiles in Xilinx devices and Block RAM bits in Intel devices
### Note: Processing module "conv" property "InputMemorySize" changed from "[227 227 3]" to "[217 217 3]".
### Note: Processing module "conv" property "OutputMemorySize" changed from "[227 227 3]" to "[217 217 3]".
### Note: Processing module "conv" property "SegmentationBlockGeneration" changed from "true" to "false".
### Note: Processing module "fc" property "FCThreadNumber" changed from "4" to "8".
### Note: Processing module "fc" property "WeightAXIDataBitwidth" changed from "128" to "256".
### Note: Processing module "fc" property "SoftmaxBlockGeneration" changed from "false" to "true".

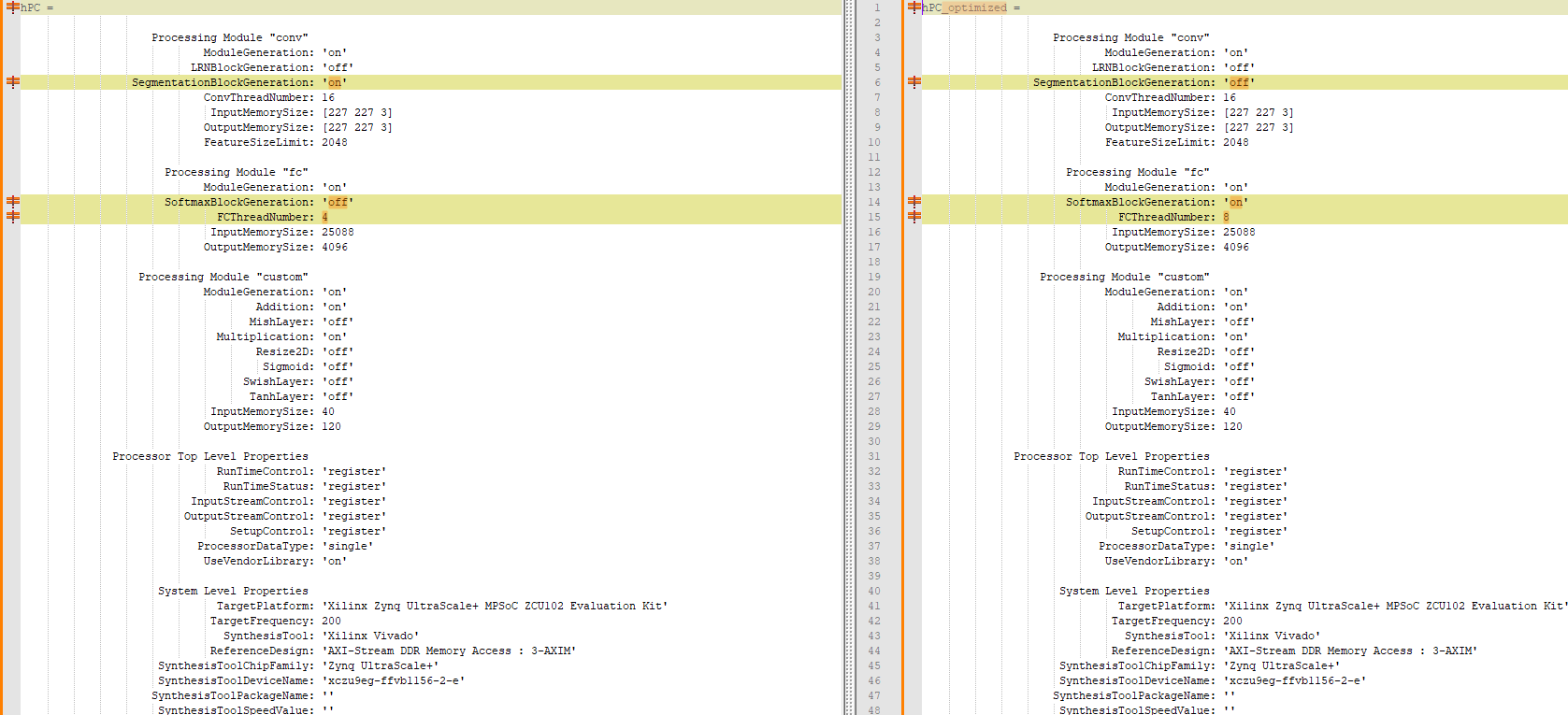

Processing Module "conv"
ModuleGeneration: 'on'
LRNBlockGeneration: 'off'
SegmentationBlockGeneration: 'off'
ConvThreadNumber: 16
InputMemorySize: [217 217 3]
OutputMemorySize: [217 217 3]
FeatureSizeLimit: 2048
Processing Module "fc"
ModuleGeneration: 'on'
SoftmaxBlockGeneration: 'on'
SigmoidBlockGeneration: 'off'
FCThreadNumber: 8
InputMemorySize: 25088
OutputMemorySize: 4096
Processing Module "custom"
ModuleGeneration: 'on'
Addition: 'on'
Multiplication: 'on'
Resize2D: 'off'
Sigmoid: 'off'
TanhLayer: 'off'
InputMemorySize: 40
OutputMemorySize: 120
Processor Top Level Properties
RunTimeControl: 'register'
RunTimeStatus: 'register'
InputStreamControl: 'register'
OutputStreamControl: 'register'
SetupControl: 'register'
ProcessorDataType: 'single'
System Level Properties
TargetPlatform: 'Xilinx Zynq UltraScale+ MPSoC ZCU102 Evaluation Kit'
TargetFrequency: 200
SynthesisTool: 'Xilinx Vivado'
ReferenceDesign: 'AXI-Stream DDR Memory Access : 3-AXIM'
SynthesisToolChipFamily: 'Zynq UltraScale+'
SynthesisToolDeviceName: 'xczu9eg-ffvb1156-2-e'
SynthesisToolPackageName: ''
SynthesisToolSpeedValue: ''
### Optimizing processor configuration for deep learning network complete.
Estimate performance of the ResNet-18 network by using the new optimized deep learning processor configuration.
estimatePerformance(hPC_optimized,net);
### Optimizing network: Fused 'nnet.cnn.layer.BatchNormalizationLayer' into 'nnet.cnn.layer.Convolution2DLayer'
### Notice: The layer 'data' of type 'ImageInputLayer' is split into an image input layer 'data', an addition layer 'data_norm_add', and a multiplication layer 'data_norm' for hardware normalization.
### The network includes the following layers:
1 'data' Image Input 224×224×3 images with 'zscore' normalization (SW Layer)
2 'conv1' 2-D Convolution 64 7×7×3 convolutions with stride [2 2] and padding [3 3 3 3] (HW Layer)
3 'conv1_relu' ReLU ReLU (HW Layer)
4 'pool1' 2-D Max Pooling 3×3 max pooling with stride [2 2] and padding [1 1 1 1] (HW Layer)
5 'res2a_branch2a' 2-D Convolution 64 3×3×64 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
6 'res2a_branch2a_relu' ReLU ReLU (HW Layer)
7 'res2a_branch2b' 2-D Convolution 64 3×3×64 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
8 'res2a' Addition Element-wise addition of 2 inputs (HW Layer)
9 'res2a_relu' ReLU ReLU (HW Layer)
10 'res2b_branch2a' 2-D Convolution 64 3×3×64 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
11 'res2b_branch2a_relu' ReLU ReLU (HW Layer)
12 'res2b_branch2b' 2-D Convolution 64 3×3×64 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
13 'res2b' Addition Element-wise addition of 2 inputs (HW Layer)
14 'res2b_relu' ReLU ReLU (HW Layer)
15 'res3a_branch2a' 2-D Convolution 128 3×3×64 convolutions with stride [2 2] and padding [1 1 1 1] (HW Layer)
16 'res3a_branch2a_relu' ReLU ReLU (HW Layer)
17 'res3a_branch2b' 2-D Convolution 128 3×3×128 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
18 'res3a_branch1' 2-D Convolution 128 1×1×64 convolutions with stride [2 2] and padding [0 0 0 0] (HW Layer)
19 'res3a' Addition Element-wise addition of 2 inputs (HW Layer)
20 'res3a_relu' ReLU ReLU (HW Layer)
21 'res3b_branch2a' 2-D Convolution 128 3×3×128 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
22 'res3b_branch2a_relu' ReLU ReLU (HW Layer)
23 'res3b_branch2b' 2-D Convolution 128 3×3×128 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
24 'res3b' Addition Element-wise addition of 2 inputs (HW Layer)
25 'res3b_relu' ReLU ReLU (HW Layer)
26 'res4a_branch2a' 2-D Convolution 256 3×3×128 convolutions with stride [2 2] and padding [1 1 1 1] (HW Layer)
27 'res4a_branch2a_relu' ReLU ReLU (HW Layer)
28 'res4a_branch2b' 2-D Convolution 256 3×3×256 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
29 'res4a_branch1' 2-D Convolution 256 1×1×128 convolutions with stride [2 2] and padding [0 0 0 0] (HW Layer)
30 'res4a' Addition Element-wise addition of 2 inputs (HW Layer)
31 'res4a_relu' ReLU ReLU (HW Layer)
32 'res4b_branch2a' 2-D Convolution 256 3×3×256 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
33 'res4b_branch2a_relu' ReLU ReLU (HW Layer)
34 'res4b_branch2b' 2-D Convolution 256 3×3×256 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
35 'res4b' Addition Element-wise addition of 2 inputs (HW Layer)
36 'res4b_relu' ReLU ReLU (HW Layer)
37 'res5a_branch2a' 2-D Convolution 512 3×3×256 convolutions with stride [2 2] and padding [1 1 1 1] (HW Layer)
38 'res5a_branch2a_relu' ReLU ReLU (HW Layer)
39 'res5a_branch2b' 2-D Convolution 512 3×3×512 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
40 'res5a_branch1' 2-D Convolution 512 1×1×256 convolutions with stride [2 2] and padding [0 0 0 0] (HW Layer)
41 'res5a' Addition Element-wise addition of 2 inputs (HW Layer)
42 'res5a_relu' ReLU ReLU (HW Layer)
43 'res5b_branch2a' 2-D Convolution 512 3×3×512 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
44 'res5b_branch2a_relu' ReLU ReLU (HW Layer)
45 'res5b_branch2b' 2-D Convolution 512 3×3×512 convolutions with stride [1 1] and padding [1 1 1 1] (HW Layer)
46 'res5b' Addition Element-wise addition of 2 inputs (HW Layer)
47 'res5b_relu' ReLU ReLU (HW Layer)
48 'pool5' 2-D Global Average Pooling 2-D global average pooling (HW Layer)
49 'fc1000' Fully Connected 1000 fully connected layer (HW Layer)
50 'prob' Softmax softmax (HW Layer)
51 'ClassificationLayer_predictions' Classification Output crossentropyex with 'tench' and 999 other classes (SW Layer)
### Notice: The layer 'ClassificationLayer_predictions' with type 'nnet.cnn.layer.ClassificationOutputLayer' is implemented in software.
Deep Learning Processor Estimator Performance Results
LastFrameLatency(cycles) LastFrameLatency(seconds) FramesNum Total Latency Frames/s
------------- ------------- --------- --------- ---------
Network 19966252 0.09983 1 19966252 10.0
____data_norm_add 210750 0.00105
____data_norm 210750 0.00105
____conv1 2224339 0.01112
____pool1 632402 0.00316
____res2a_branch2a 1038708 0.00519
____res2a_branch2b 1038708 0.00519
____res2a 210750 0.00105
____res2b_branch2a 1038708 0.00519
____res2b_branch2b 1038708 0.00519
____res2b 210750 0.00105
____res3a_branch1 630228 0.00315
____res3a_branch2a 625092 0.00313
____res3a_branch2b 919117 0.00460
____res3a 105404 0.00053
____res3b_branch2a 919117 0.00460
____res3b_branch2b 919117 0.00460
____res3b 105404 0.00053
____res4a_branch1 503405 0.00252
____res4a_branch2a 509261 0.00255
____res4a_branch2b 905421 0.00453
____res4a 52724 0.00026
____res4b_branch2a 905421 0.00453
____res4b_branch2b 905421 0.00453
____res4b 52724 0.00026
____res5a_branch1 506957 0.00253
____res5a_branch2a 514125 0.00257
____res5a_branch2b 940237 0.00470
____res5a 26368 0.00013
____res5b_branch2a 940237 0.00470
____res5b_branch2b 940237 0.00470
____res5b 26368 0.00013
____pool5 54594 0.00027
____fc1000 103438 0.00052
____prob 1262 0.00001
* The clock frequency of the DL processor is: 200MHz
The new estimated frames per second performance is 10 frames per second.
This image shows the comparison between the original processor configuration and the optimized processor configuration:
The optimized processor configuration has:
SegmentationBlockGenerationturned off.InputMemorySizeandOutputMemorySizereduced to [217 217 3].SoftMaxBlockGenerationturned on.FCThreadNumberincreased to 8.
Generate Optimized Custom Bitstream
Use the optimized custom deep learning processor configuration to build and generate a custom bitstream. Use the custom bitstream to deploy the pretrained ResNet-18 network to your target FPGA board.
hdlsetuptoolpath('ToolName', 'Xilinx Vivado', 'ToolPath', 'C:\Xilinx\Vivado\2023.1\bin\vivado.bat'); dlhdl.buildProcessor(hPC_optimized);
Algorithms
Version History
Introduced in R2021b
You can also select a web site from the following list:
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
