Verify Robustness of Deep Learning Neural Network

This example shows how to verify the adversarial robustness of a deep learning neural network.

Neural networks can be susceptible to a phenomenon known as adversarial examples [1], where very small changes to an input can cause the network predictions to significantly change. For example, making small changes to the pixels in an image can cause the image to be misclassified. These changes are often imperceptible to humans.

A network is adversarially robust if the output of the network does not change significantly when the input is perturbed. For classification tasks, adversarial robustness means that the output of the fully connected layer with the highest value does not change, and therefore the predicted class does not change [2].

In this example, you compare the robustness of a normal network and a network that is trained to be robust to adversarial examples.

This example requires the Deep Learning Toolbox™ Verification Library support package. If this support package is not installed, use the Add-On Explorer. To open the Add-On Explorer, go to the MATLAB® Toolstrip and click Add-Ons > Get Add-Ons.

Load Pretrained Network

Load a pretrained network. This network has been trained to classify images of digits.

load("digitsClassificationConvolutionNet.mat")

This network has a convolutional architecture with repeating sets of convolution, batch normalization and ReLU layers, followed by a global average pooling layer, and then a fully connected and softmax layer. The network is a dlnetwork object that has been trained using the first custom training loop from the Train Image Classification Network Robust to Adversarial Examples example with a learning rate of 0.1 and the max epochs set to 30.

Show the layers of the network.

net.Layers
ans =
  13×1 Layer array with layers:

     1   'imageinput'    Image Input                  28×28×1 images
     2   'conv_1'        2-D Convolution              10 3×3×1 convolutions with stride [2  2] and padding [0  0  0  0]
     3   'batchnorm_1'   Batch Normalization          Batch normalization with 10 channels
     4   'relu_1'        ReLU                         ReLU
     5   'conv_2'        2-D Convolution              20 3×3×10 convolutions with stride [2  2] and padding [0  0  0  0]
     6   'batchnorm_2'   Batch Normalization          Batch normalization with 20 channels
     7   'relu_2'        ReLU                         ReLU
     8   'conv_3'        2-D Convolution              40 3×3×20 convolutions with stride [2  2] and padding [0  0  0  0]
     9   'batchnorm_3'   Batch Normalization          Batch normalization with 40 channels
    10   'relu_3'        ReLU                         ReLU
    11   'gap'           2-D Global Average Pooling   2-D global average pooling
    12   'fc'            Fully Connected              10 fully connected layer
    13   'softmax'       Softmax                      softmax

You can use the verifyNetworkRobustness function to verify the adversarial robustness of the network. The function verifies the robustness with respect to the final layer. For most use cases, use the final fully connected layer for verification.

Prepare the network for verification by removing the softmax layer.

net = removeLayers(net,"softmax");

When you remove layers from a dlnetwork object, the software returns the network as an uninitialized dlnetwork object. To initialize the network, use the initialize function.

net = initialize(net);

Load Test Data

Load test images of digits with which to verify the network.

[XTest,TTest] = digitTest4DArrayData;

Verification of the whole test set can take a long time. Use a subset of the test data for verification.

numObservations = numel(TTest);
numToVerify = 200;

idx = randi(numObservations,numToVerify,1);
X = XTest(:,:,:,idx);
T = TTest(idx);

Convert the test images to a dlarray object with the data format "SSCB" (spatial, spatial, channel, batch), which represents image data.

X = dlarray(X,"SSCB");

Verify Network Robustness

To verify the adversarial robustness of a deep learning network, use the verifyNetworkRobustness function. The verifyNetworkRobustness function requires the Deep Learning Toolbox™ Verification Library support package.

To verify network robustness, the verifyNetworkRobustness function checks that, for all inputs between the specified input bounds, there does not exist an adversarial example. The absence of an adversarial example means that, for all images within the input set defined by the lower and upper input bounds, the predicted class label matches the specified label (usually the true class label).

For each set of input lower and upper bounds, the function returns one of these values:

  • "verified" — The network is robust to adversarial inputs between the specified bounds.

  • "violated" — The network is not robust to adversarial inputs between the specified bounds.

  • "unproven" — The function cannot prove whether the network is robust to adversarial inputs between the specified bounds.

Create lower and upper bounds for each of the test images. Verify the network robustness to an input perturbation between –0.05 and 0.05 for each pixel.

perturbation = 0.05;

XLower = X - perturbation;
XUpper = X + perturbation;

Verify the network robustness for the specified input bounds and true class labels.

result = verifyNetworkRobustness(net,XLower,XUpper,T);
summary(result)
     verified        0
     violated        0
     unproven      200
figure
bar(countcats(result))
xticklabels(categories(result))
ylabel("Number of Observations")

Figure contains an axes object. The axes object with ylabel Number of Observations contains an object of type bar.

Verify Adversarially Trained Network

Adversarial training is a technique for training a network so that it is robust to adversarial examples [3]. Load a pretrained network that has been trained to be robust to adversarial examples using the methods described in Train Image Classification Network Robust to Adversarial Examples. This network has the same layers as the normal network. The network has been trained to be robust to pixel perturbations in the range [–0.05, 0.05].

load("digitsRobustClassificationConvolutionNet.mat")
netRobust.Layers
ans =
  13×1 Layer array with layers:

     1   'imageinput'    Image Input                  28×28×1 images
     2   'conv_1'        2-D Convolution              10 3×3×1 convolutions with stride [2  2] and padding [0  0  0  0]
     3   'batchnorm_1'   Batch Normalization          Batch normalization with 10 channels
     4   'relu_1'        ReLU                         ReLU
     5   'conv_2'        2-D Convolution              20 3×3×10 convolutions with stride [2  2] and padding [0  0  0  0]
     6   'batchnorm_2'   Batch Normalization          Batch normalization with 20 channels
     7   'relu_2'        ReLU                         ReLU
     8   'conv_3'        2-D Convolution              40 3×3×20 convolutions with stride [2  2] and padding [0  0  0  0]
     9   'batchnorm_3'   Batch Normalization          Batch normalization with 40 channels
    10   'relu_3'        ReLU                         ReLU
    11   'gap'           2-D Global Average Pooling   2-D global average pooling
    12   'fc'            Fully Connected              10 fully connected layer
    13   'softmax'       Softmax                      softmax

Prepare the network for verification using the same steps as for the normal network.

netRobust = removeLayers(netRobust,"softmax");
netRobust = initialize(netRobust);

Verify the network robustness.

resultRobust = verifyNetworkRobustness(netRobust,XLower,XUpper,T);
summary(resultRobust)
     verified      154
     violated        0
     unproven       46

Compare the results from the two networks. The robust network has a greater number of observations that correspond to a verified result in comparison to the network without adversarial training.

combineResults = [countcats(result),countcats(resultRobust)];
figure
bar(combineResults)
xticklabels(categories(result))
ylabel("Number of Observations")
legend(["Normal Network","Robust Network"],Location="northwest")

Figure contains an axes object. The axes object with ylabel Number of Observations contains 2 objects of type bar. These objects represent Normal Network, Robust Network.

Compare Perturbation Values

Compare the number of verified results as the perturbation value changes. Create lower and upper bounds for each image for a range of perturbation values. To reduce computation time, specify multiple pairs of input bounds in a single call to the verifyNetworkRobustness function.

numToVerify = 50;
X = X(:,:,:,1:numToVerify);
T = T(1:numToVerify);

perturbationRange = 0:0.01:0.1;

XLower = [];
XUpper = [];
TRange = [];

j = 1;
for i = 1:numel(perturbationRange)
    idxRange = j:(j+numToVerify-1);

    perturbationRangeIdx(i,1) = idxRange(1);
    perturbationRangeIdx(i,2) = idxRange(end);

    XLower(:,:,:,idxRange) = X - perturbationRange(i);
    XUpper(:,:,:,idxRange) = X + perturbationRange(i);

    TRange(idxRange) = T;
    j = j + numToVerify;
end

XLower = dlarray(XLower,"SSCB");
XUpper = dlarray(XUpper,"SSCB");

Verify the robustness of both networks for each pair of input lower and upper bounds.

result = verifyNetworkRobustness(net,XLower,XUpper,TRange);
resultRobust = verifyNetworkRobustness(netRobust,XLower,XUpper,TRange);

Find the number of verified results for each perturbation value.

numVerified = [];
numVerifiedRobust = [];

for i = 1:numel(perturbationRange)
    range = perturbationRangeIdx(i,:);

    numVerified(i) = sum(result(range(1):range(2)) == "verified");
    numVerifiedRobust(i) = sum(resultRobust(range(1):range(2)) == "verified");
end

Plot the results. As the perturbation increases, the number of observations returning verified decreases for both networks.

figure
plot(perturbationRange,numVerified,"*-")
hold on
plot(perturbationRange,numVerifiedRobust,"*-")
hold off

legend(["Normal Network","Robust Network"])
xlabel("Perturbation")
ylabel("Number of verified Results")

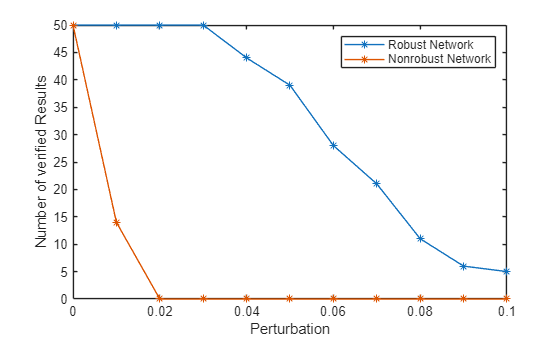

Figure contains an axes object. The axes object with xlabel Perturbation, ylabel Number of verified Results contains 2 objects of type line. These objects represent Normal Network, Robust Network.
