Verification of Neural Networks
This topic shows how to use Deep Learning Toolbox™ Verification Library to verify deep neural networks for safetycritical applications.
Engineers increasingly incorporate neural networks into safetycritical applications, including selfdriving cars, diagnostic tools evaluating medical scans, and therapeutic AI language models. As a result, regulators and industries are working together to develop new industryspecific safety standards including standards for AI models.
Neural networks must reliably give correct answers as well as recognize their own
uncertainty. Engineers must also be able to measure and confirm the reliability of their
networks. In MATLAB^{®}, you can verify properties of your neural network using Deep Learning Toolbox™ Verification Library. The toolbox includes
functionalities to test and improve the robustness of your neural network and to perform
outofdistribution detection. Use the drise
function
to generate saliency maps that explain the predictions of an object detector.
The full verification workflow can include a variety of tools. The following two links provide examples of the endtoend workflow.
For a video showing how to verify a medical imaging classification model, see Understanding and Verifying Your AI Models.
The Runway Sign Classifier: Certify an Airborne Deep Learning System (DO Qualification Kit) example shows how to approach the certification of an airborne deep learning system that must comply with aviation industry standards such as DO178C and ARP4754.
Neural Network Robustness
Robustness measures how much the predictions of a neural network change with perturbations to the input data.
Neural networks can be susceptible to a phenomenon called adversarial examples [1]. You can generate adversarial examples by applying small perturbations to examples from the training data such that the model output is incorrect. These perturbations can be small enough to be imperceptible to a human. The Generate Untargeted and Targeted Adversarial Examples for Image Classification example demonstrates how to calculate perturbations that result either in a random wrong answer, or a particular wrong answer for an image classification algorithm.
This behavior can have obvious safety ramifications, both intentionally (through a targeted attack) and unintentionally (through random chance). The Generate Adversarial Examples for Semantic Segmentation example demonstrates how to generate adversarial examples for a network that uses semantic segmentation to identify different elements in images of road traffic. In the example, you trick a neural network into not recognizing a cyclist on an image of a road by adding an imperceptible perturbation.
Measure Robustness
The Verify Robustness of Deep Learning Neural Network example shows how to verify the adversarial robustness of a deep learning neural network.
Deep Learning Toolbox Verification Library includes two functions to measure the robustness of a neural network.
For classification models, use verifyNetworkRobustness
. For regression models, use estimateNetworkOutputBounds
.
Both functions calculate an upper bound to the range of outputs of a neural network given a range of inputs. They are both based on the DeepPoly algorithm [2]. DeepPoly uses a mix of interval arithmetic and propagation of constraint polyhedra to rigorously compute the output bounds of a network. Statistical techniques, based on sampling a random subset of inputs within a given input perturbation size, can strictly disprove robustness only for a given bound. DeepPoly, by contrast, can strictly prove robustness as well. The computations DeepPoly performs are different for different layers of a neural network. For some layers, the algorithm finds exact bounds. For other layers, the algorithm finds only upper limits to the bounds. If those upper limits are within the desired maximum output, then the network is robust. However, if those upper limits are larger than the desired maximum output, then robustness is unproven.
The verifyNetworkRobustness
function checks whether the network
classifies all outputs for a given input range as the same class. The function has
three possible outputs.
"verified"
— The network is robust to adversarial inputs between the specified bounds."violated"
— The network is not robust to adversarial inputs between the specified bounds."unproven"
— The function cannot prove whether the network is robust to adversarial inputs between the specified bounds.
The function verifies the network using the final layer. For most applications, use the final fully connected layer for verification. If your network has a different layer as its final layer (for example, softmax), remove the layer before calling the function.
The estimateNetworkOutputBounds
function estimates the range of output
values that a network returns when the input is between the specified lower and
upper bounds.
Measure Robustness of Pretrained Image Classification Network
Use the verifyNetworkRobustness
function to test the robustness of a pretrained image classification network.
load("digitsRobustClassificationMLPNetwork.mat"); netRobust = removeLayers(netRobust,"softmax"); netRobust = initialize(netRobust); [XTest,TTest] = digitTest4DArrayData; X = XTest(:,:,:,1:10); label = TTest(1:10); X = dlarray(X,"SSCB"); perturbation = 0.01; XLower = X  perturbation; XUpper = X + perturbation; result = verifyNetworkRobustness(netRobust,XLower,XUpper,label); summary(result)
result: 10x1 categorical verified 10 violated 0 unproven 0 <undefined> 0
Use the estimateNetworkOutputBounds
function to estimate the output bounds of a pretrained regression network.
load("digitsRegressionMLPNetwork.mat"); [XTest,~,TTest] = digitTest4DArrayData; X = dlarray(XTest(:,:,:,1:10),"SSCB"); T = TTest(1:10); perturbation = 0.01; XLower = X  perturbation; XUpper = X + perturbation; [YLower,YUpper] = estimateNetworkOutputBounds(net,XLower,XUpper);

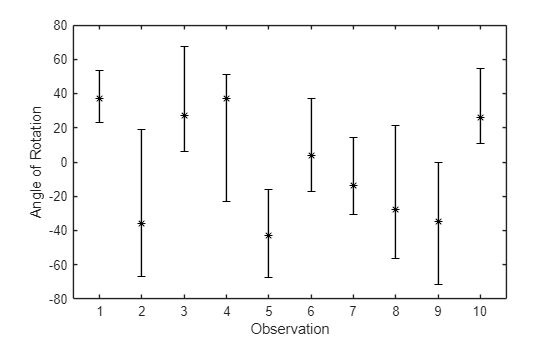

Plot the resulting estimates.
YLower = extractdata(YLower); YUpper = extractdata(YUpper); figure errorbar(1:10,T,TYLower',YUpper'T,"k*") axis padded xlabel("Observation") ylabel("Angle of Rotation")
Improve Robustness
You can use several methods to improve the robustness of your neural network.
The Train Image Classification Network Robust to Adversarial Examples example shows how to train a neural network that is robust to adversarial examples using fast gradient sign method (FGSM) adversarial training. In adversarial training, you apply adversarial perturbations to the training data during the training process. The network learns how to classify the perturbed images correctly and therefore is more robust to adversarial examples.
The Train Robust Deep Learning Network with Jacobian Regularization example shows how to train a neural network that is robust to adversarial examples using a Jacobian regularization scheme in a custom training loop. In this example, you augment the training data by adding random noise. Then you add a term to the loss function that penalizes the network for large changes in the prediction with respect to small changes in the input.
OutofDistribution Detection
A trained neural network is a function that takes inputs of a given format and produces an output of a given format. Input data that is qualitatively different from training data still results in an output, as long as the format is correct. For example, consider a classification network that classifies images as "cat" or "cucumber." If you ask the network to classify an image of a dog, the network is likely to classify it as "cat," since a dog is in most ways much more similar to a cat than a cucumber.
To determine whether the output of your neural network is meaningful for a given input, you can classify the input data into indistribution and outofdistribution data.
Indistribution (ID) data is any data that you use to construct and train your model. Additionally, any data that is sufficiently similar to the training data is also said to be ID.
Outofdistribution (OOD) data is data that is sufficiently different from the training data, for example, data collected in a different way, at a different time, under different conditions, or for a different task than the data on which the model was originally trained. Models can receive OOD data when you deploy them in an environment other than the one in which you train them. For example, suppose you train a model on clear Xray images but then deploy the model on images taken with a lower quality camera.
Outofdistribution detection algorithms work by calculating a confidence score and
comparing it to a threshold. You can manually choose this threshold. You can also use
Deep Learning Toolbox Verification Library to calculate the threshold based on one of several statistical techniques.
To do so, use the networkDistributionDiscriminator
function. The function returns a
discriminator object that contains information about the network, the algorithm used to
calculate the confidence scores, and the threshold used to separate data into ID and
OOD.
The OutofDistribution Detection for Deep Neural Networks example uses a pretrained classification network and softmax scores to determine if data is ID or OOD. The example also compares different ways of determining the distribution threshold.
The OutofDistribution Data Discriminator for YOLO v4 Object Detector example trains an object detector and creates a distribution discriminator object using the histogrambased outlier scores (HBOS) method for the confidence scores and a true positive goal for the threshold determination.
The OutofDistribution Detection for LSTM Document Classifier example trains a document classifier and compares different distribution discrimination algorithms to determine whether text data is ID or OOD.
Calculate Confidence Scores
You can use several types of metrics for computing distribution confidence scores. Two such metrics are softmaxbased and densitybased methods.
Softmaxbased methods use the softmax preactivations, that is, the inputs to the softmax layer, to compute the scores. You can use this class of methods only for classification networks. Deep Learning Toolbox Verification Library provides the baseline method, ODIN method, and energy method.
Densitybased methods use the probability density functions or layer activations to compute the scores. You can use this class of methods on different types of network architectures. Deep Learning Toolbox Verification Library provides the HBOS method.
For more information on softmaxbased methods and densitybased methods, see Distribution Confidence Scores.
The following diagrams show examples of softmaxbased and densitybased discriminators.
Example of SoftmaxBased Discriminator  Example of DensityBased Discriminator



Compare Different Distribution Detection Algorithms
Deep Learning Toolbox Verification Library provides four distribution confidence score algorithms: the baseline method, energy method, ODIN method, and HBOS method. Compare the behavior of the four methods by using them on the same data. First, load the ID data, a set of images of handwritten digits. Modify the ID training data to create an OOD set.
XID = digitTrain4DArrayData; XOOD = XID.*0.3 + 0.1;

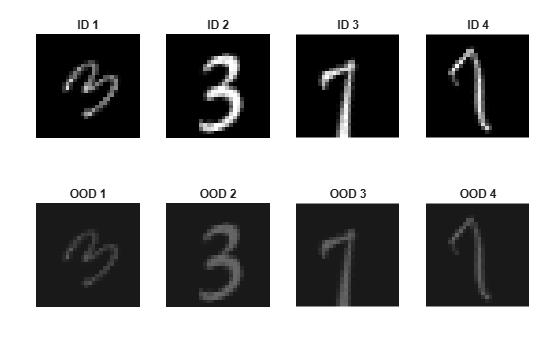

Compare the ID and OOD data.
figure tiledlayout(2,4,Padding="compact") for i = 1:4 nexttile(i) imshow(XID(:,:,:,i)) title("ID "+i) nexttile(4+i) imshow(XOOD(:,:,:,i)) title("OOD "+i) end
Convert XID
and XOOD
into dlarray
objects.
XID = dlarray(XID,"SSCB"); XOOD = dlarray(XOOD,"SSCB");
Next, load a network pretrained on the XID
data set and create the discriminator object using the networkDistributionDiscriminator
function. To determine whether your data is ID or OOD, pass the discriminator object to the isInNetworkDistribution
function. To calculate the distribution scores of your data, pass the discriminator object to the distributionScores
function. The function uses the algorithm specified by the "Method"
property of the discriminator.
Baseline Distribution Discriminator
The BaselineDistributionDiscriminator
object uses the baseline method to compute distribution confidence scores. The baseline method uses the softmax scores to compute the confidence scores. Predictions with high softmax scores have high baselineconfidence scores.
Load a classification network pretrained on the ID data set. Create the discriminator.
load("digitsClassificationMLPNetwork.mat"); discriminatorBaseline = networkDistributionDiscriminator(net,XID,XOOD,"baseline")
discriminatorBaseline = BaselineDistributionDiscriminator with properties: Method: "baseline" Network: [1×1 dlnetwork] Threshold: 0.9743
To assess the performance of the discriminator on the OOD data, calculate the TPR and FPR.
tfOODBaseline = isInNetworkDistribution(discriminatorBaseline,XOOD); tfIDBaseline = isInNetworkDistribution(discriminatorBaseline,XID); TPRBaseline = nnz(tfIDBaseline)/numel(tfIDBaseline)
TPRBaseline = 0.9856
FPRBaseline = nnz(tfOODBaseline)/numel(tfOODBaseline)
FPRBaseline = 0.0598

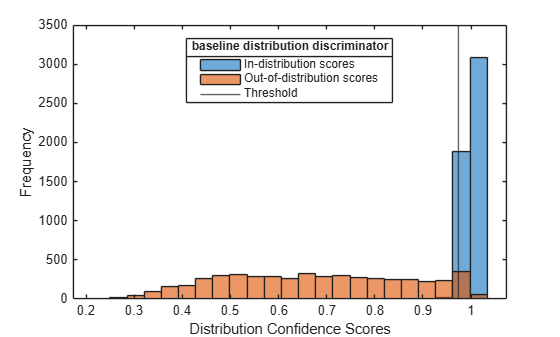

To compare the distribution scores of the ID and OOD data, use the plotDistributionScores
function, defined at the end of this example.
scoresIDBaseline = distributionScores(discriminatorBaseline,XID); scoresOODBaseline = distributionScores(discriminatorBaseline,XOOD); figure plotDistributionScores(discriminatorBaseline,scoresIDBaseline,scoresOODBaseline)
Energy Distribution Discriminator
The EnergyDistributionDiscriminator
object is a distribution discriminator that uses the energy method to compute distribution confidence scores. It is a softmaxbased method. To tune the algorithm, use the Temperature
namevalue argument.
Load a classification network pretrained on the ID data set. Create the discriminator. Set Temperature
to 0.1
.
load("digitsClassificationMLPNetwork.mat"); discriminatorEnergy = networkDistributionDiscriminator(net,XID,XOOD,"energy", ... Temperature=0.1)
discriminatorEnergy = EnergyDistributionDiscriminator with properties: Method: "energy" Network: [1×1 dlnetwork] Temperature: 0.1000 Threshold: 8.7246
To assess the performance of the discriminator on the OOD data, calculate the TPR and FPR.
tfOODEnergy = isInNetworkDistribution(discriminatorEnergy,XOOD); tfIDEnergy = isInNetworkDistribution(discriminatorEnergy,XID); TPREnergy = nnz(tfIDEnergy)/numel(tfIDEnergy)
TPREnergy = 0.9106
FPREnergy = nnz(tfOODEnergy)/numel(tfOODEnergy)
FPREnergy = 0.0934

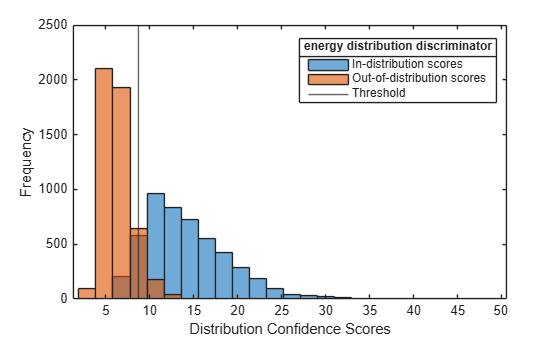

To compare the distribution scores of the ID and OOD data, use the plotDistributionScores
function, defined at the end of this example.
scoresIDEnergy = distributionScores(discriminatorEnergy,XID); scoresOODEnergy = distributionScores(discriminatorEnergy,XOOD); figure plotDistributionScores(discriminatorEnergy,scoresIDEnergy,scoresOODEnergy)
ODIN Distribution Discriminator
The ODINDistributionDiscriminator
object enables you to compute distribution confidence scores by using the outofdistribution detector for neural networks (ODIN) method. It is a softmaxbased method. Similar to the energy distribution discriminator, the method is based on a rescaling of the softmax scores parameterized by the Temperature
namevalue argument. When the Temperature
parameter is 1
, the ODIN distribution discriminator is equal to the baseline distribution discriminator.
Load a classification network pretrained on the ID data set. Create the discriminator. Set Temperature
to 2
.
load("digitsClassificationMLPNetwork.mat"); discriminatorODIN = networkDistributionDiscriminator(net,XID,XOOD,"odin", ... Temperature=2)
discriminatorODIN = ODINDistributionDiscriminator with properties: Method: "odin" Network: [1×1 dlnetwork] Temperature: 2 Threshold: 0.7687
To assess the performance of the discriminator on the OOD data, calculate the TPR and FPR.
tfOODODIN = isInNetworkDistribution(discriminatorODIN,XOOD); tfIDODIN = isInNetworkDistribution(discriminatorODIN,XID); TPRODIN = nnz(tfIDODIN)/numel(tfIDODIN)
TPRODIN = 0.9766
FPRODIN = nnz(tfOODODIN)/numel(tfOODODIN)
FPRODIN = 0.0558

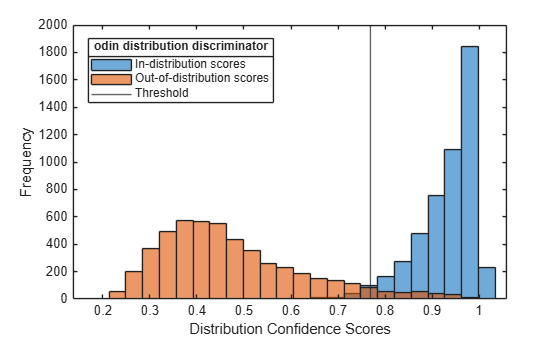

To compare the distribution scores of the ID and OOD data, use the plotDistributionScores
function, defined at the end of this example.
scoresIDODIN = distributionScores(discriminatorODIN,XID); scoresOODODIN = distributionScores(discriminatorODIN,XOOD); figure plotDistributionScores(discriminatorODIN,scoresIDODIN,scoresOODODIN)
HBOS Distribution Discriminator
The HBOSDistributionDiscriminator
object uses the histogram based outlier scores (HBOS) method to compute distribution confidence scores and is a densitybased method. Densitybased methods compute distribution scores by describing the underlying features learned by the network as probabilistic models. Observations falling into areas of low density correspond to OOD observations.
The HBOS algorithm assumes that the features are statistically independent. The principal component features are pairwise linearly independent but they can have nonlinear dependencies. To investigate feature dependencies, you can use functions such as corr
(Statistics and Machine Learning Toolbox) (Statistics and Machine Learning Toolbox). For an example showing how to investigate feature dependence, see OutofDistribution Data Discriminator for YOLO v4 Object Detector. If the features are not statistically independent, then the algorithm can return poor results. Using multiple layers to compute the distribution scores can increase the number of statistically dependent features.
You can use the HBOS distribution discriminator on different types of network architectures, including regression networks.
Load a regression network pretrained on the ID data set. Create the discriminator. Use the penultimate layer to compute the HBOS distribution scores. Set the VarianceCutoff
value to 0.05
.
load("digitsRegressionMLPNetwork.mat"); discriminatorHBOS = networkDistributionDiscriminator(net,XID,XOOD,"hbos", ... VarianceCutoff=0.05, ... LayerNames="relu_2")
discriminatorHBOS = HBOSDistributionDiscriminator with properties: Method: "hbos" Network: [1×1 dlnetwork] LayerNames: "relu_2" VarianceCutoff: 0.0500 Threshold: 6.2918
To assess the performance of the discriminator on the OOD data, calculate the TPR and FPR.
tfOODHBOS = isInNetworkDistribution(discriminatorHBOS,XOOD); tfIDHBOS = isInNetworkDistribution(discriminatorHBOS,XID); TPRHBOS = nnz(tfIDHBOS)/numel(tfIDHBOS)
TPRHBOS = 0.7334
FPRHBOS = nnz(tfOODHBOS)/numel(tfOODHBOS)
FPRHBOS = 0.0508

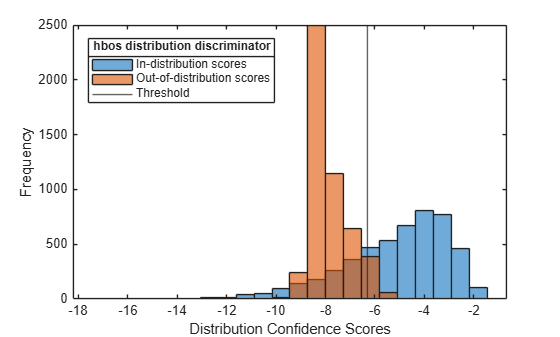

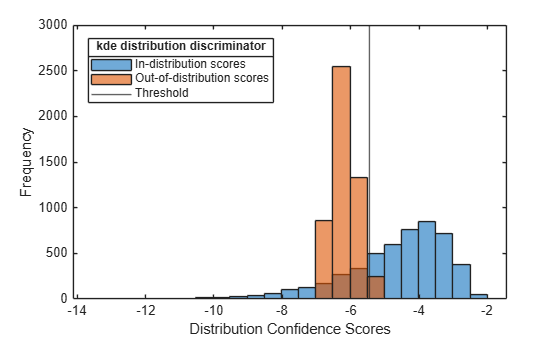

To compare the distribution scores of the ID and OOD data, use the plotDistributionScores
function, defined at the end of this example.
scoresIDHBOS = distributionScores(discriminatorHBOS,XID); scoresOODHBOS = distributionScores(discriminatorHBOS,XOOD); figure plotDistributionScores(discriminatorHBOS,scoresIDHBOS,scoresOODHBOS)
Supporting Function
This function plots a histogram of ID distribution scores and OOD distribution scores.
function plotDistributionScores(discriminator,scoresID,scoresOOD) hID = histogram(scoresID); hold on hOOD = histogram(scoresOOD); xl = xlim; hID.BinWidth = (xl(2)xl(1))/25; hOOD.BinWidth = (xl(2)xl(1))/25; xline(discriminator.Threshold) l = legend(["Indistribution scores","Outofdistribution scores","Threshold"],Location="best"); title(l,discriminator.Method+" distribution discriminator") xlabel("Distribution Confidence Scores") ylabel("Frequency") hold off end
Calculate OutofDistribution Threshold
After you calculate the distribution scores of your data, compare them to a threshold to decide whether your data is indistribution or outofdistribution.
Manual Threshold
One option is to choose a threshold manually. For the baseline scores, you can use
the isInNetworkDistribution
function and pass the network, the data, and
the threshold as input arguments. In this case, the function normalizes the
threshold to lie between 0 and 1.
Optimal Threshold
You can also measure the quality of a threshold by the TPR and FPR. A good discriminator has a TPR close to 1 and an FPR close to 0.
The networkDistributionDiscriminator
function calculates an optimal
threshold. The optimization metric depends on the inputs.
If you provide only ID data to the networkDistributionDiscriminator
function, or if you set the
TruePositiveGoal
namevalue argument, then the function
returns the threshold that correctly classifies at least this proportion of the ID
data as ID, while keeping the false positive rate as low as possible. The default
true positive goal is 0.95
.
discriminatorOnlyID = networkDistributionDiscriminator(net,XID,[],"baseline"); discriminatorTPG = networkDistributionDiscriminator(net,XID,XOOD,"baseline",TruePositiveGoal=0.95); discriminatorOnlyID.Threshold discriminatorTPG.Threshold
If you provide only OOD data to the networkDistributionDiscriminator
function, or if you set the
FalsePositiveGoal
namevalue argument in the input, then the
function returns the threshold that incorrectly classifies at most this proportion
of the OOD data as ID, while keeping the true positive rate as high as possible. The
default false positive goal is 0.05
.
discriminatorOnlyOOD = networkDistributionDiscriminator(net,[],XOOD,"baseline"); discriminatorFPG = networkDistributionDiscriminator(net,XID,XOOD,"baseline",FalsePositiveGoal=0.05); discriminatorOnlyOOD.Threshold discriminatorFPG.Threshold
If you provide both ID and OOD data and do not specify a true or false positive
goal, then networkDistributionDiscriminator
maximizes the TPR while minimizing
the FPR by maximizing the following expression: $$\frac{1}{2}(TPR+(1FPR))$$.
discriminatorIDAndOOD = networkDistributionDiscriminator(net,XID,XOOD,"baseline");
discriminatorIDAndOOD.Threshold
This figure illustrates the different thresholds that the discriminator chooses if you optimize over both the true positive rate and false positive rate, just the true positive rate, or just the false positive rate.
Other Techniques
You can use other techniques to verify the behavior of your neural network in MATLAB beyond the robustness and OOD detection methods included in Deep Learning Toolbox Verification Library.
Interpretability and Visualization
One way of verifying the behavior of your network is to understand its decisionmaking process by using interpretability techniques.
Deep Learning Toolbox Verification Library includes the drise
function. Use this function to calculate the saliency map to explain the predictions
of an object detection network by using the detector randomized input sampling for
explanation (DRISE) algorithm.
For more information about interpreting machine learning models, see Interpret Machine Learning Models (Statistics and Machine Learning Toolbox).
For an overview of deep learning visualization methods in particular, see Deep Learning Visualization Methods
Anomaly Detection
OOD detection typically takes advantage of the features of your trained neural network to determine whether input data is ID or OOD. You can also use statistical anomaly detection techniques directly on your input data to determine whether your data is significantly dissimilar to your training data. For more information on anomaly detection in MATLAB, see Anomaly Detection.
You can also use the HBOS distribution detector to determine whether your data is
ID or OOD based only on the data. To do this, set the LayerNames
namevalue argument in the networkDistributionDiscriminator
function to the input layer of your
network.
References
[1] Goodfellow, Ian J., Jonathon Shlens, and Christian Szegedy. “Explaining and Harnessing Adversarial Examples.” Preprint, submitted March 20, 2015. https://doi.org/10.48550/arXiv.1412.6572.
[2] Singh, Gagandeep, Timon Gehr, Markus Püschel, and Martin Vechev. “An Abstract Domain for Certifying Neural Networks”. Proceedings of the ACM on Programming Languages 3, no. POPL (January 2, 2019): 1–30. https://doi.org/10.1145/3290354.
See Also
estimateNetworkOutputBounds
 verifyNetworkRobustness
 networkDistributionDiscriminator
 isInNetworkDistribution
 distributionScores
 drise
 BaselineDistributionDiscriminator
 ODINDistributionDiscriminator
 EnergyDistributionDiscriminator
 HBOSDistributionDiscriminator
Related Topics
 Verify an Airborne Deep Learning System
 Verify Robustness of Deep Learning Neural Network
 OutofDistribution Detection for Deep Neural Networks
 OutofDistribution Data Discriminator for YOLO v4 Object Detector
 OutofDistribution Detection for LSTM Document Classifier
 OutofDistribution Detection for BERT Document Classifier
