# cubicLaneBoundary

Cubic lane boundary model

## Description

The `cubicLaneBoundary` object contains information about a cubic lane boundary model.

## Creation

To generate cubic lane boundary models that fit a set of boundary points and an approximate width, use the `findCubicLaneBoundaries` function. If you already know your cubic parameters, create lane boundary models by using the `cubicLaneBoundary` function (described here).

### Syntax

``boundaries = cubicLaneBoundary(cubicParameters)``

### Description

example

````boundaries = cubicLaneBoundary(cubicParameters)` creates an array of cubic lane boundary models from an array of ```[A B C D]``` parameters for the cubic equation y = Ax3 + Bx2 + Cx + D. Points within the lane boundary models are in world coordinates.```

### Input Arguments

expand all

Parameters for cubic models of the form y = Ax3 + Bx2 + Cx + D, specified as an `[A B C D]` real-valued vector or as a matrix of `[A B C D]` values. Each row of `cubicParameters` describes a separate cubic lane boundary model.

## Properties

expand all

Coefficients for a cubic model of the form y = Ax3 + Bx2 + Cx + D, specified as a real-valued vector of the form `[A B C D]`.

Type of lane boundary, specified as a `LaneBoundaryType` enumeration. Supported lane boundary types are:

• `Unmarked`

• `Solid`

• `Dashed`

• `BottsDots`

• `DoubleSolid`

Lane boundary objects always return `BoundaryType` as type `Solid`. Update these types to match the types of the lanes that are being fitted. To update a lane boundary type, use the `LaneBoundaryType.BoundaryType` syntax. For example, this code sample shows how to update the first output lane boundary to type `BottsDots`:

```boundaries(1) = LaneBoundaryType.BottsDots; ```

Strength of the boundary model, specified as a real scalar. `Strength` is the ratio of the number of unique x-axis locations on the boundary to the length of the boundary specified by the `XExtent` property. A solid line without any breaks has a higher strength than a dotted line that has breaks along the full length of the boundary.

Length of the boundary along the x-axis, specified as a real-valued vector of the form `[minX maxX]` that describes the minimum and maximum x-axis locations.

## Object Functions

 `computeBoundaryModel` Obtain y-coordinates of lane boundaries given x-coordinates

## Examples

collapse all

Create left-lane and right-lane cubic boundary models.

```llane = cubicLaneBoundary([-0.0001 0.0 0.003 1.6]); rlane = cubicLaneBoundary([-0.0001 0.0 0.003 -1.8]);```

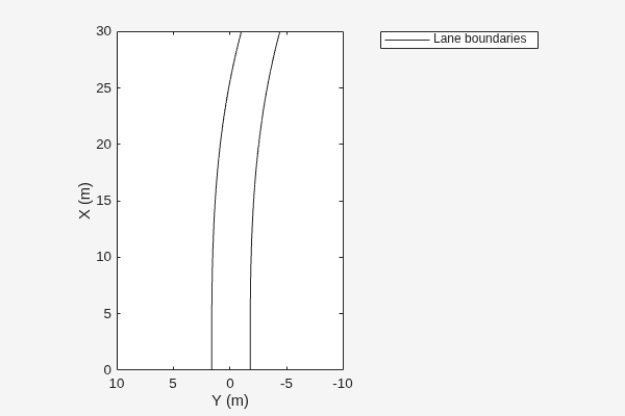

Create a bird's-eye plot and lane boundary plotter. Plot the lane boundaries.

```bep = birdsEyePlot('XLimits',[0 30],'YLimits',[-10 10]); lbPlotter = laneBoundaryPlotter(bep,'DisplayName','Lane boundaries'); plotLaneBoundary(lbPlotter, [llane rlane]);``` Find lanes in an image by using cubic lane boundary models. Overlay the identified lanes on the original image and on a bird's-eye-view transformation of the image.

Load an image of a road with lanes. The image was obtained from a camera sensor mounted on the front of a vehicle.

`I = imread('road.png');`

Transform the image into a bird's-eye-view image by using a preconfigured sensor object. This object models the sensor that captured the original image.

```bevSensor = load('birdsEyeConfig'); birdsEyeImage = transformImage(bevSensor.birdsEyeConfig,I); imshow(birdsEyeImage)``` Set the approximate lane marker width in world units (meters).

`approxBoundaryWidth = 0.25;`

Detect lane features and display them as a black-and-white image.

```birdsEyeBW = segmentLaneMarkerRidge(im2gray(birdsEyeImage), ... bevSensor.birdsEyeConfig,approxBoundaryWidth); imshow(birdsEyeBW)``` Obtain lane candidate points in world coordinates.

```[imageX,imageY] = find(birdsEyeBW); xyBoundaryPoints = imageToVehicle(bevSensor.birdsEyeConfig,[imageY,imageX]);```

Find lane boundaries in the image by using the `findCubicLaneBoundaries` function. By default, the function returns a maximum of two lane boundaries. The boundaries are stored in an array of `cubicLaneBoundary` objects.

`boundaries = findCubicLaneBoundaries(xyBoundaryPoints,approxBoundaryWidth);`

Use `insertLaneBoundary` to overlay the lanes on the original image. The `XPoints` vector represents the lane points, in meters, that are within range of the ego vehicle's sensor. Specify the lanes in different colors. By default, lanes are yellow.

```XPoints = 3:30; figure sensor = bevSensor.birdsEyeConfig.Sensor; lanesI = insertLaneBoundary(I,boundaries(1),sensor,XPoints); lanesI = insertLaneBoundary(lanesI,boundaries(2),sensor,XPoints,'Color','green'); imshow(lanesI)``` View the lanes in the bird's-eye-view image.

```figure BEconfig = bevSensor.birdsEyeConfig; lanesBEI = insertLaneBoundary(birdsEyeImage,boundaries(1),BEconfig,XPoints); lanesBEI = insertLaneBoundary(lanesBEI,boundaries(2),BEconfig,XPoints,'Color','green'); imshow(lanesBEI)``` ## Extended Capabilities

### Functions

Introduced in R2018a
