Return true if
geoplayer figure is visible
tf = isOpen(player)
Load a sequence of latitude and longitude coordinates.
data = load('geoRoute.mat');
Create a geographic player with a zoom level of 12. Configure the player to display all points in its history.
player = geoplayer(data.latitude(1),data.longitude(1),12,'HistoryDepth',Inf);

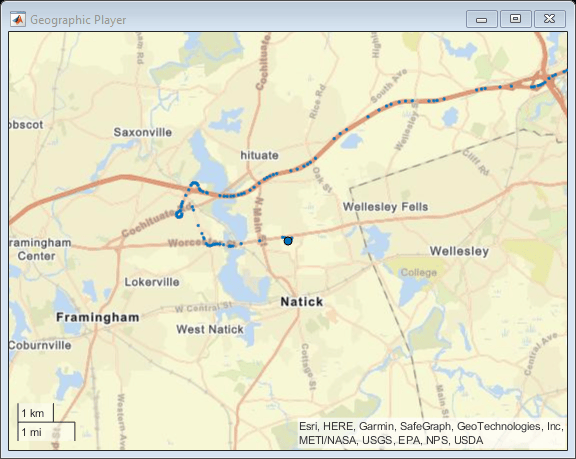

Display the geographic coordinates in a sequence by using the
plotPosition function. Put the call to
plotPosition inside a
while loop, so that the player plots points only while the figure is open. You can exit the loop by closing the figure. If you do not close the figure, then the loop automatically exits when all points are plotted.
i = 1; numPoints = length(data.latitude); while isOpen(player) && i<=numPoints plotPosition(player,data.latitude(i),data.longitude(i)) pause(0.1) i=i+1; end
To make the figure visible again, use the
tf— Visibility of geographic player
Visibility of geographic player, returned as logical
(true) when the
geoplayer figure is open, and logical
0 (false) otherwise.
