Simulink^{®} models can process both discrete-time and continuous-time signals. Models built with the DSP System Toolbox™ are intended to process discrete-time signals only. A discrete-time signal is a sequence of values that correspond to particular instants in time. The time instants at which the signal is defined are the signal's sample times, and the associated signal values are the signal's samples. Traditionally, a discrete-time signal is considered to be undefined at points in time between the sample times. For a periodically sampled signal, the equal interval between any pairs of consecutive sample times is the signal's sample period T_{s}. The sample rate F_{s} is the reciprocal of the sample period, or 1/T_{s}. The sample rate is the number of samples in the signal per second.
This 7.5-second triangle wave segment has a sample period of 0.5 seconds, and sample times of 0.0, 0.5, 1.0, 1.5, ...,7.5. The sample rate of the sequence is therefore 1/0.5, or 2 Hz.
A number of different terms are used to describe the characteristics of discrete-time signals found in Simulink models. This table lists terms that are frequently used to describe how various blocks operate on sample-based and frame-based signals.
Term | Symbol | Units | Notes |
---|---|---|---|
Sample period | T_{s }T_{si }T_{so} | Seconds | The time interval between consecutive samples in a sequence, as the input to a block (T_{si}) or the output from a block (T_{so}). |
Frame period | T_{f }T_{fi }T_{fo} | Seconds | The time interval between consecutive frames in a sequence, as the input to a block (T_{fi}) or the output from a block (T_{fo}). |
Signal period | T | Seconds | The time elapsed during a single repetition of a periodic signal. |
Sample frequency | F_{s} | Hz (samples per second) | The number of samples per unit time, F_{s = }1/T_{s}. |
Frequency | f | Hz (cycles per second) | The number of repetitions per unit time of a periodic signal or signal component, f = 1/T. |
Nyquist rate | Hz (cycles per second) | The minimum sample rate that avoids aliasing, usually twice the highest frequency in the signal being sampled. | |
Nyquist frequency | f_{nyq} | Hz (cycles per second) | Twice the highest frequency present in the signal. |
Normalized frequency | f_{n} | Two cycles per sample | Frequency (linear) of a periodic signal normalized to half the sample rate, f_{n} = ω/π = 2f/F_{s}. |
Angular frequency | Ω | Radians per second | Frequency of a periodic signal in angular units, Ω = 2πf. |
Digital (normalized angular) frequency | ω | Radians per sample | Frequency (angular) of a periodic signal normalized to the sample rate, ω = Ω/F_{s} = πf_{n}. |
Note
In the block dialogs, the term sample time is used to refer to the sample period T_{s}. For example, the Sample time parameter in the Signal From Workspace block specifies the imported signal's sample period.
Simulink allows you to select from several different simulation solver algorithms. You can access these solver algorithms from a Simulink model:
On the Modeling tab, click Model Settings. The Configuration Parameters dialog box opens.
The selections you make in the Solver pane determine how discrete-time signals are processed in Simulink. The recommended Solver settings for signal processing simulations are:
Type: Fixed-step
Solver: Discrete (no
continuous states)
Fixed-step size (fundamental sample
time):
auto
Treat each discrete rate as a separate
task: Off
You can automatically set these solver options for all new models by using the DSP Simulink model templates. For more information, see Configure the Simulink Environment for Signal Processing Models.
When the solver type is set to Fixed-step
,
Simulink operates in two tasking modes:
Single-tasking mode
Multitasking mode
On the Modeling tab, click Model
Settings. The Configuration
Parameters dialog box opens. In the
Solver pane, select Type >
Fixed-step
. Expand Solver
details. To specify the multitasking mode, select
Treat each discrete rate as a separate task. To
specify the single-tasking mode, clear Treat each discrete rate as a
separate task.
If you select the Treat each discrete rate as a separate task parameter, the single-tasking mode is still used in these cases:
If your model contains one sample time
If your model contains a continuous and a discrete sample time, and the fixed-step size is equal to the discrete sample time
For a typical model that operates on a single rate, Simulink selects the single-tasking mode.
In the fixed-step, single-tasking mode, discrete-time signals differ from the prototype described in Time and Frequency Terminology by remaining defined between sample times. For example, the representation of the discrete-time triangle wave looks like this.
This signal's value at t = 3.112
seconds is the same as the signal's value at t =
3
seconds. In the fixed-step, single-tasking mode,
a signal's sample times are the instants where the signal is allowed to
change values rather than where the signal is defined. Between sample
times, the signal takes on the value at the previous sample time.
As a result, in the fixed-step, single-tasking mode, Simulink permits cross-rate operations such as the addition of two signals of different rates. This is explained further in Cross-Rate Operations.
It is useful to know how the other solver options available in Simulink affect discrete-time signals. In particular, you should be aware of the properties of discrete-time signals under these settings:
Type: Fixed-step
,
select Treat each discrete rate as a separate
task to enable the multitasking mode.
When the fixed-step, multitasking solver is selected, discrete signals in Simulink are undefined between sample times. Simulink generates an error when operations attempt to reference the undefined region of a signal, as, for example, when signals with different sample rates are added.
Type:
Variable-step
(the Simulink default solver)
When the Variable-step
solver is selected,
discrete-time signals remain defined between sample times, just as in
the fixed-step, single-tasking case described in Recommended Settings for Discrete-Time Simulations. When
the Variable-step
solver is selected,
cross-rate operations are allowed by Simulink.
For a typical model containing multiple rates, Simulink selects the multitasking mode.
When the fixed-step, multitasking solver is selected, discrete signals in Simulink are undefined between sample times. Therefore, to perform cross-rate operations like the addition of two signals with different sample rates, you must convert the two signals to a common sample rate. Several blocks in the Signal Operations and Multirate Filters libraries can accomplish this task. See Convert Sample and Frame Rates in Simulink Using Rate Conversion Blocks for more information. Rate change can occur implicitly depending on the diagnostic settings. However, this is not recommended. See Multitask data transfer (Simulink), Single task data transfer (Simulink). By requiring explicit rate conversions for cross-rate operations in discrete mode, Simulink helps you identify sample rate conversion issues early in the design process.
When the Variable-step
solver or fixed-step,
single-tasking solver is selected, discrete-time signals remain defined between
sample times. Therefore, if you sample the signal with a rate or phase that is
different from the signal's own rate and phase, you will still measure
meaningful values:
At the MATLAB^{®} command line, type ex_sum_tut1
.

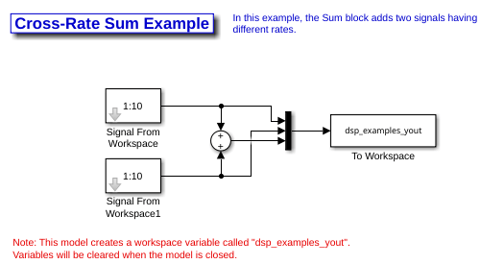

The Cross-Rate Sum Example model opens. This model adds two signals with different sample periods.
Double-click the upper Signal From Workspace block. The Block Parameters: Signal From Workspace dialog box opens.
Set the Sample time
parameter to 1
.
This creates a fast signal (T_{s}=1) with sample times 1, 2, 3, ...
Double-click the lower Signal From Workspace block.
Set the Sample time
parameter to 2
.
This creates a slow signal (T_{s}=2) with sample times 1, 3, 5, ...
On the Debug tab, select Information Overlays > Colors.
Selecting Colors allows you to see the different sampling rates in action. For more information about the color coding of the sample times, see View Sample Time Information (Simulink).
Run the model.
Note
Using the DSP Simulink model templates with cross-rate operations
generates errors even though a fixed-step, single-tasking solver
is selected. This is due to the fact that Single task
data transfer is set to
error
in the Sample
Time pane of the
Diagnostics section of the
Configuration Parameters dialog
box.
At the MATLAB command line, type
dsp_examples_yout
.
The following output is displayed:
dsp_examples_yout = 1 1 2 2 1 3 3 2 5 4 2 6 5 3 8 6 3 9 7 4 11 8 4 12 9 5 14 10 5 15 0 6 6
The first column of the matrix is the fast signal (T_{s}=1). The second column of the matrix is the slow signal (T_{s}=2). The third column is the sum of the two signals. As expected, the slow signal changes once every 2 seconds, half as often as the fast signal. Nevertheless, the slow signal is defined at every moment because Simulink holds the previous value of the slower signal during time instances that the block doesn't run.
In general, for Variable-step
and the fixed-step,
single-tasking modes, when you measure the value of a discrete signal between
sample times, you are observing the value of the signal at the previous sample
time.
