dsp.AsyncBufferObject Give a Dimension Mismatch Error in the MATLAB Function Block?
If you are reading data from an asynchronous buffer inside a MATLAB Function (Simulink) block, the block throws
a dimension mismatch error if the output of the
read method is not specified to be a variable-size signal.

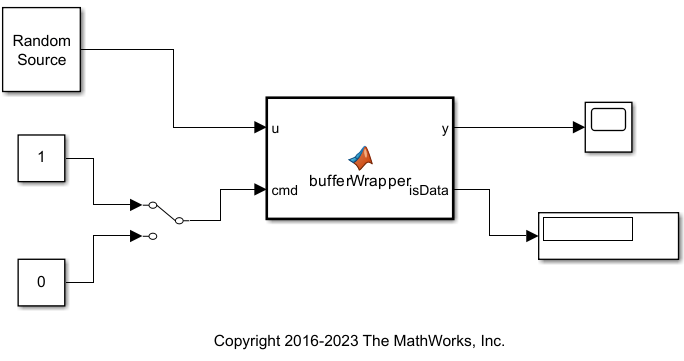

Here is the
bufferWrapper function that contains the algorithm
inside the MATLAB Function block. When input on the
cmd port is
dsp.AsyncBuffer object writes the data input,
u, to the
buffer. When input on the
cmd port is
object reads data from the buffer.
function [y,isData] = bufferWrapper(u,cmd) persistent asyncBuff if isempty(asyncBuff) asyncBuff = dsp.AsyncBuffer; setup(asyncBuff,u); end if cmd % write write(asyncBuff,u); y = zeros(3,1); isData = false; else % read y = read(asyncBuff,3); isData = true; end
During the write operation, the first output,
zeros(3,1) and the second output,
0. During the read operation,
y is the data in the buffer and
isData is 1.

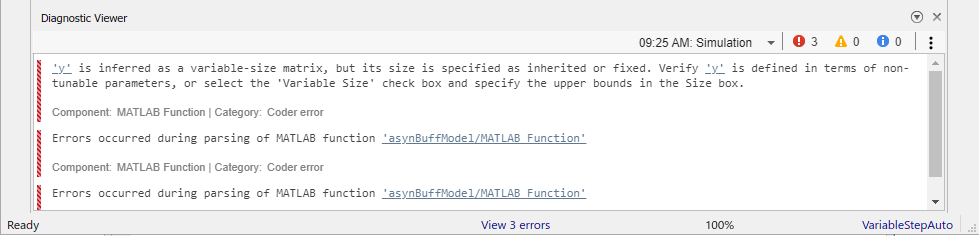

Run the model and the following error occurs.
The output of
read(asyncBuff,3) on line 14 is variable sized. The
output is variable sized because the size of the signal output by the
read function depends on the input arguments to
read. To resolve this error, specify
as a variable-size signal.

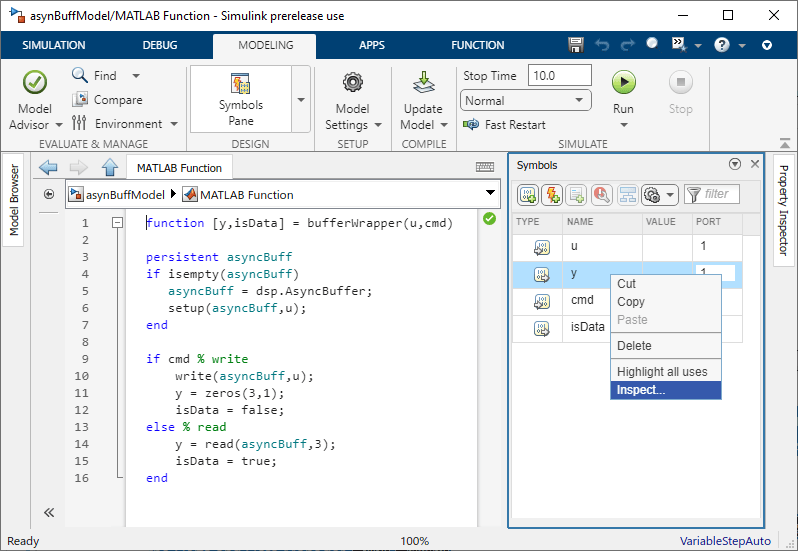

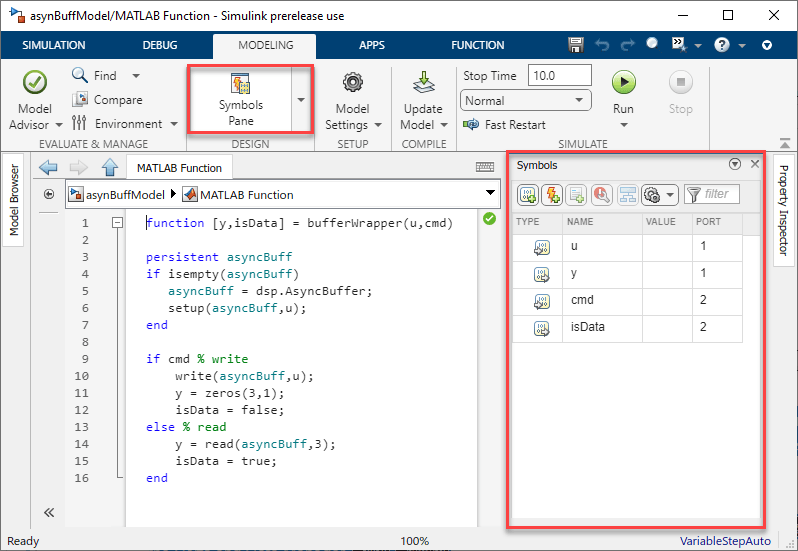

In the MATLAB Function block Editor, click Edit Data to open the Ports and Data Manager.
For the output

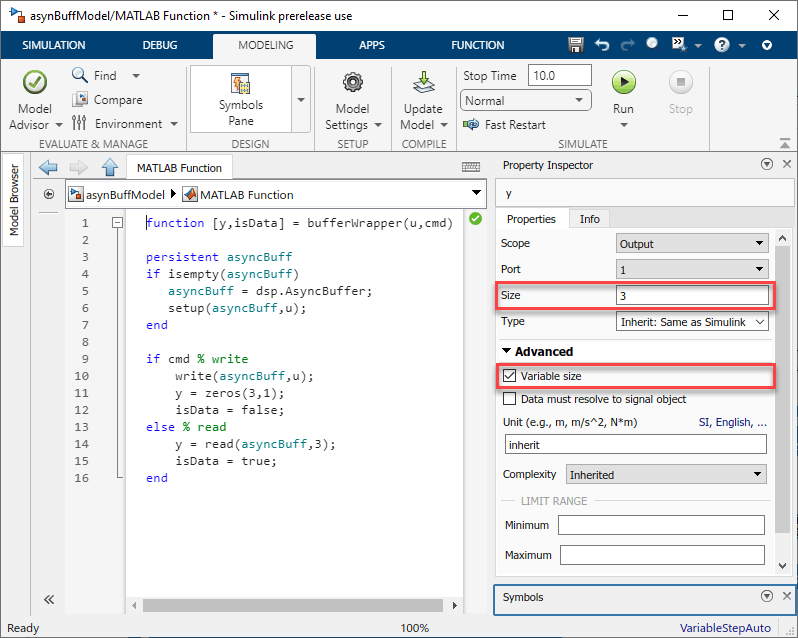

y, select the Variable
size check box.
Run the model and view the output
y in the Time

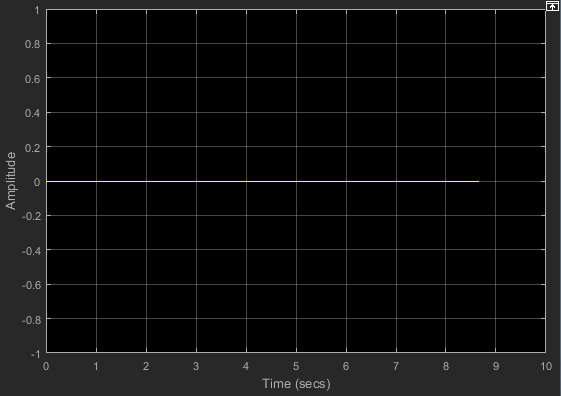

cmd = 0, no data is written into the buffer. Therefore, the
output is 0. To write the input data
u to the buffer, set

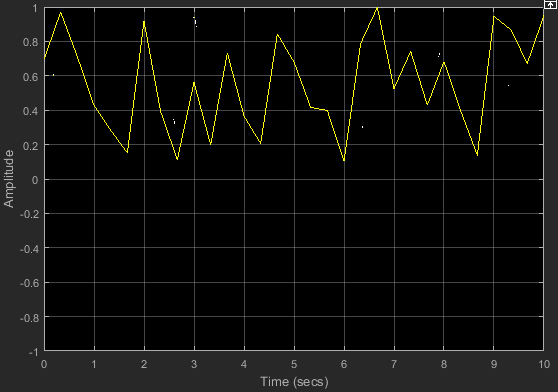

cmd = 1. After you write some data, if you change
cmd back to 0, the Time Scope output changes to
