MATLAB Function

R2026b

Include MATLAB code in Simulink models

•

MATLAB Function block

To add a block to a model, double-click the canvas and start typing the block name. Then, select the block from the list.

Libraries:
Simulink
HDL Coder / User-Defined Functions

Description

The MATLAB Function block enables you to write MATLAB^® functions that execute in Simulink^® models. The MATLAB function executes during simulation at each time step. For more information about integrating MATLAB code into your Simulink models, see Implement MATLAB Functions in Simulink with MATLAB Function Blocks. If you have a Simulink Coder™ license, you can also generate C/C++ code from a MATLAB Function block for a Simulink Coder target.

Double-click the MATLAB Function block to open the MATLAB Function Block Editor, where you write the MATLAB function. You can also define variables, add an input trigger, and create function call outputs by using the Model Explorer or the Symbols pane. For more information, see Create MATLAB Function Block Variables, Manage the Input Trigger of a MATLAB Function Block, and Manage Function Call Outputs of a MATLAB Function Block.

In the Symbols pane, you can declare a block input to be a Simulink parameter instead of a port. The MATLAB Function block also supports inheritance of types and size for inputs, outputs, and parameters. You can specify these properties explicitly. See Specify Data Types of Variables in MATLAB Function Blocks, Specify Size of MATLAB Function Block Variables, and Access Workspace Data in MATLAB Function Blocks by Using Parameter Variables.

When you simulate a model that contains a MATLAB Function block, the software generates binary code or C/C++ MATLAB executable (MEX) code from the block and integrates this code with the model. The MATLAB Function block uses the same infrastructure as MATLAB Coder, which you use to generate C/C++ code from MATLAB code outside of Simulink. Consequently, the MATLAB Function block code must use MATLAB conventions that are supported for code generation. See Code and Integration Limitations for MATLAB Function Blocks.

To support visualization of data, the MATLAB Function block supports calls to MATLAB functions for simulation only. See Using Extrinsic Functions (MATLAB Coder). If you generate code using Simulink Coder, the calls do not appear in the generated code if the function calls do not directly affect the Simulink inputs or outputs.

Examples

Multiply Input Signal by Two

Add a MATLAB Function to your model to modify an input signal.

1. In the Simulation tab, click Library Browser. Select Simulink > User-Defined Functions. Drag a MATLAB Function block to the Simulink canvas.

2. Double-click the block to open the MATLAB Function Block Editor. Replace the function body code with the following:

   y = 2*u;

3. Return to the model by clicking the Up to Parent button . Add a Sine Wave block as the input signal and add a Scope block to capture the input and output of the MATLAB Function block.



4. Run the simulation and open the Scope block to see the effects of the code.

Extended Examples

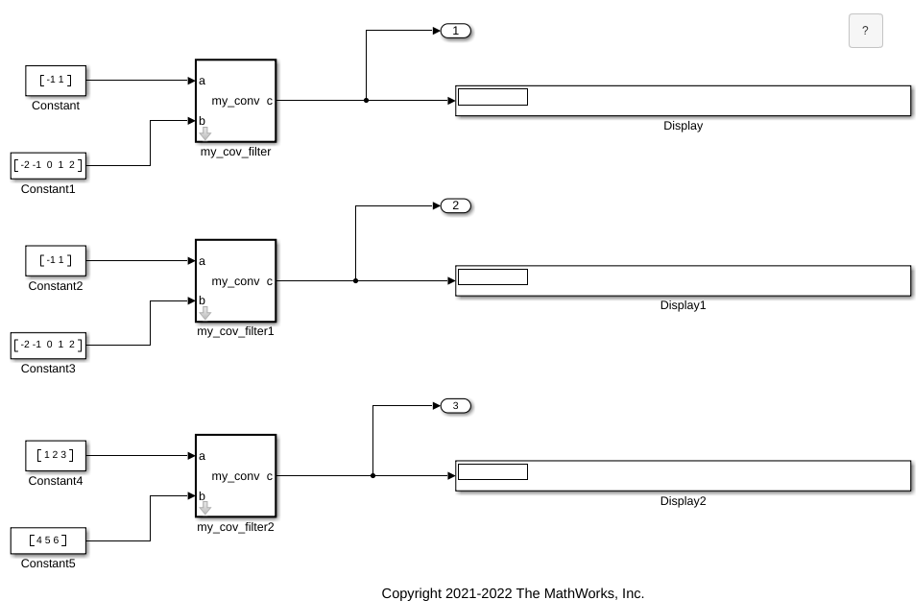

Run Simulations and Generate Code with Masked Library Subsystems Containing MATLAB Function Blocks

Run simulations and generate code with models using custom MATLAB Function blocks in a library.

• Open Model

Call MATLAB Function Files in MATLAB Function Blocks

Use MATLAB Function blocks to call and execute code written in MATLAB function files.

• Open Model

Spiral Galaxy Formation Simulation Using MATLAB Function Blocks

Use MATLAB Function blocks to simulate and plot galaxy interactions.

• Open Model

Limitations

• Although the code for this block attempts to produce exactly the same results as MATLAB, differences might occur due to rounding errors. These numeric differences, which might be a few eps initially, can magnify after repeated operations. Reliance on the behavior of nan is not recommended. Different C compilers can yield different results for the same computation.

• Recursive calls are not allowed in MATLAB Function blocks.

Ports

Input

Port_1 — Input variable

scalar | vector | matrix

Input variable in the MATLAB function, specified as a real-valued scalar, vector, or matrix. Each input variable has an associated port that uses the name of the variable.

You cannot pass data types supported by MATLAB but not supported by Simulink between the Simulink model and the function in the MATLAB Function block. You can use these data types in the MATLAB Function block.

For more information on fixed-point data type support for this block, see Fixed-Point Data Types with MATLAB Function Block (Fixed-Point Designer) and Data Type Override with MATLAB Function Block (Fixed-Point Designer).

Dependencies

To create input ports, open the block and create input variables in the Symbols pane. See Create MATLAB Function Block Variables.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | string | fixed point | enumerated | bus

Output

Port_1 — Output variable

scalar | vector | matrix

Output variable in the MATLAB function, specified as a real-valued scalar, vector, or matrix. Each output variable has an associated port that uses the name of the variable.

Dependencies

To create output ports, open the block and create output variables in the Symbols pane. See Create MATLAB Function Block Variables.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | string | fixed point | enumerated | bus

Parameters

To edit block parameters interactively, use the Property Inspector. From the Simulink Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.

Note

MATLAB Function blocks also have Subsystem block parameters that you can access by right-clicking the block and clicking the Block Parameters button . Use these parameters to specify block code generation parameters. Updating the other block parameters is not recommended.

Update method — Method used for activating block

Inherited (default) | Discrete | Continuous

Specify the method for activating the MATLAB Function block as one of these values:

• Inherited — Input from the Simulink model activates the MATLAB Function block.

  If you define an input trigger, the MATLAB Function block executes in response to a Simulink signal or function-call event on the trigger port. If you do not define an input trigger, the MATLAB Function block implicitly inherits triggers from the model. These implicit events are the discrete or continuous sample times of the signals that provide inputs to the block.

  If you define data inputs, the MATLAB Function block samples at the rate of the fastest data input. If you do not define data inputs, the MATLAB Function block samples at the rate defined by the execution behavior of the parent subsystem.

• Discrete — The MATLAB Function block activates by using the rate you specify in the Sample time parameter of the block. The block generates an implicit event at regular time intervals that correspond to the specified rate. Other blocks in the model can have different sample times.

• Continuous — The MATLAB Function block activates during major time steps only, and computes outputs and local continuous variables during major and minor time steps. The block can register zero crossings, which allows Simulink models to sample the block whenever state changes occur. The block computes derivatives for local continuous variables.

Programmatic Use

To set the block parameter value programmatically, access the MATLABFunctionConfiguration or Stateflow.EMChart object of the block and change the object property by using dot notation.

If you use the MATLABFunctionConfiguration object, specify the property using these options:

Parameter:	UpdateMethod
Values:	"Inherited" (default) | "Continuous" | "Discrete"

If you use the Stateflow.EMChart object, specify the property using these options:

Parameter:	ChartUpdate
Values:	"INHERITED" (default) | "CONTINUOUS" | "DISCRETE"

Sample time — Time interval at which block activates during simulation

-1 (default) | scalar | vector

Specify the time interval at which the MATLAB Function block activates during simulation. The default value indicates that the block inherits the sample time from Simulink. For more information on specifying sample time, see Specify Sample Time.

Do not use the Sample Time parameter in the Subsystem block parameters. Instead, use the Property Inspector.

Dependencies

To enable this parameter, set Update method to Discrete.

Programmatic Use

To set the block parameter value programmatically, access the MATLABFunctionConfiguration or Stateflow.EMChart object of the block and change the object property by using dot notation.

Parameter:	SampleTime
Values:	"-1" (default) | scalar | vector
Data Types:	string | char

Advanced

Saturate on integer overflow — Whether data saturates on integer overflow

on (default) | off

Specify whether the data in the MATLAB Function block saturates on integer overflow as one of these values:

• on — The block saturates an integer by setting it to the maximum positive or negative value allowed by the word size. This setting matches MATLAB behavior.

• off — The block generates a run-time error in simulation mode when an overflow condition occurs. When you use Simulink Coder to generate code, the behavior depends on your C language compiler.

Tips

• When this parameter is on, MATLAB adds additional checks during simulation to detect integer overflow or underflow. If integer overflow does not occur in the MATLAB Function block code, it is more efficient to disable this option.

• Code generated by Simulink Coder does not check for integer overflow or underflow and so might produce unpredictable results when this parameter is off. In this situation, simulate your model to test for overflow and underflow before generating code.

• This parameter setting is relevant only for integer arithmetic. It has no effect on fixed-point or double-precision arithmetic.

Programmatic Use

To set the block parameter value programmatically, access the MATLABFunctionConfiguration or Stateflow.EMChart object of the block and change the object property by using dot notation.

Parameter:	SaturateOnIntegerOverflow
Values:	true or 1 (default) | false or 0
Data Types:	logical

Support variable-size arrays — Whether block supports variable-size data

on (default) | off

Specify whether the MATLAB Function block supports input and output data that varies in dimension during simulation. When this parameter is on, you can define variable-size outputs by enabling the Variable size property on output variables. For more information, see Declare Variable-Size MATLAB Function Block Variables and Variable size.

Programmatic Use

To set the block parameter value programmatically, access the MATLABFunctionConfiguration or Stateflow.EMChart object of the block and change the object property by using dot notation.

Parameter:	SupportVariableSizing
Values:	true or 1 (default) | false or 0
Data Types:	logical

Allow direct feedthrough — Whether block supports direct feedthrough semantics

on (default) | off

Specify whether the MATLAB Function block supports direct feedthrough semantics, so that the value of an input directly controls the output of the block. When this parameter is off, the block outputs rely only on the current state of the block. Using nondirect feedthrough enables you to use MATLAB Function blocks in a feedback loop and prevent algebraic loops. For more information, see Use Nondirect Feedthrough in a MATLAB Function Block.

Dependencies

To disable this parameter, you must set Update method to Inherited or Discrete.

Programmatic Use

To set the block parameter value programmatically, access the MATLABFunctionConfiguration or Stateflow.EMChart object of the block and change the object property by using dot notation.

Parameter:	AllowDirectFeedthrough
Values:	true or 1 (default) | false or 0
Data Types:	logical

Interpret output column vectors as one-dimensional data — Whether block outputs N-by-1 matrices as one-dimensional signals

off (default) | on

Specify whether the MATLAB Function block converts output N-by-1 matrices to one-dimensional vector signals as one of these values:

• off — The block outputs matrices of size N-by-1 as N-by-1 matrix signals.

• on — The block outputs matrices of size N-by-1 as N-element vector signals.

Although the MATLAB code that you write in MATLAB Function blocks evaluates array dimensions like ordinary MATLAB code, Simulink distinguishes N-element vectors from 1-by-N and N-by-1 matrices. For more information on Simulink signal dimensions, see Determine Signal Dimensions.

Programmatic Use

To set the block parameter value programmatically, access the MATLABFunctionConfiguration or Stateflow.EMChart object of the block and change the object property by using dot notation.

Parameter:	VectorOutputs1D
Values:	false or 0 (default) | true or 1
Data Types:	logical

Treat dimensions of length 1 as fixed size — Whether the block treats output variable dimensions as fixed size

on (default) | off

Since R2023a

Specify whether the block treats output variable dimensions as fixed size as one of these values:

• on — The block treats each block variable dimension that has a length of 1 as fixed size. For other dimensions that exceed 1, the block treats these dimensions as variable size if the Variable size property of the block variable is enabled.

• off — Block output variables that have the Variable size property enabled are always variable size.

For more information, see Variable size.

Programmatic Use

To set the block parameter value programmatically, access the MATLABFunctionConfiguration or Stateflow.EMChart object of the block and change the object property by using dot notation.

Parameter:	TreatDimensionOfLengthOneAsFixedSize
Values:	true or 1 (default) | false or 0
Data Types:	logical

Fixed-Point Properties

Treat these inherited Simulink signal types as fi objects — How the block treats input integers and fi objects

Fixed-point (default) | Fixed-point & Integer

Choose whether to treat fixed-point and integer inputs as fi (Fixed-Point Designer) objects.

• Fixed-point — The MATLAB Function block treats fixed-point inputs as Fixed-Point Designer™ fi objects.

• Fixed-point & Integer — The MATLAB Function block treats fixed-point and integer inputs as Fixed-Point Designer fi objects.

For more information, see Ways to Construct fi Objects (Fixed-Point Designer).

Programmatic Use

To set the block parameter value programmatically, access the MATLABFunctionConfiguration or Stateflow.EMChart object of the block and change the object property by using dot notation.

Parameter:	TreatAsFi
Values:	"Fixed-point" (default) | "Fixed-point & Integer"

MATLAB function fimath — Default fimath properties

Same as MATLAB (default) | Specify Other

Specify the default fimath (Fixed-Point Designer) object properties for the MATLAB Function block as one of these values:

• Same as MATLAB — The block uses the same fimath object properties as the current default fimath object. The text box is dimmed and displays the current global fimath object in read-only form.

• Specify other — Specify your own fimath object in the text box one of two ways:

  • Constructing the fimath object inside the text box.

  • Constructing the fimath object in the MATLAB or model workspace and then entering its variable name in the text box. If you use this option and plan to share your model with others, define the variable in the model workspace.

For more information, see fimath Object Construction (Fixed-Point Designer) and Fixed-Point Data Types with MATLAB Function Block (Fixed-Point Designer).

Tips

• The fimath object of a MATLAB Function block behaves as a globalfimath (Fixed-Point Designer) object for the contents of the block. The block associates the fimath object properties in this parameter with all fixed-point and integer input signals to the MATLAB Function block that you choose to treat as fi objects. Constructing fi objects in the MATLAB Function block introduces additional considerations.

  • If no fimath object is associated with a fi object when it is constructed, then the fi constructor uses the default fimath object settings regardless of the properties in MATLAB function fimath. If you perform operations on the fi object after it is constructed, the object adopts the properties in MATLAB function fimath.

  • If you specify a fimath object in the fi constructor, then the fi constructor obeys that fimath object when quantizing the value. Any fimath object settings not specified in the fi constructor use the specified properties in MATLAB function fimath.

Programmatic Use

To set the block parameter value programmatically, access the MATLABFunctionConfiguration or the Stateflow.EMChart object of the block and change the associated object property by using dot notation.

If you use the MATLABFunctionConfiguration object, specify the property using these options:

Parameter:	FimathMode
Values:	"SameAsMATLAB" (default) | "UserSpecified"

If you use the Stateflow.EMChart object, specify the property using these options:

Parameter:	EmlDefaultFimath
Values:	"Same as MATLAB Default" (default) | "Other:UserSpecified"

Block Characteristics

Data Types	Booleana | busa | doublea | enumerateda | fixed pointa | halfa | integera | singlea | stringa
Direct Feedthrough	yesa
Multidimensional Signals	yesa
Variable-Size Signals	yesa
Zero-Crossing Detection	no
a Actual data type or capability support depends on block implementation.

Programmatic Use: Add Block

To add the block programmatically, use the add_block function with one of these library block paths as the source.

"simulink/User-Defined Functions/MATLAB Function"

"hdlsllib/User-Defined Functions/MATLAB Function"

Example: add_block("simulink/User-Defined Functions/MATLAB Function","myModel/myBlock",MakeNameUnique="on")

For information about programmatic access to individual block parameters, see the Programmatic Use section of parameter descriptions on this page.

Tips

• You can call functions defined in:

  • Simulink Function blocks.

  • Stateflow^® functions in charts. To call functions in charts, enable the Export Chart Level Functions and Treat exported functions as globally visible properties.

• By default, MATLAB Function blocks do not include the %#codegen (MATLAB Coder) directive, but check for errors as if it is included. Adding the %#codegen directive to a MATLAB Function block does not affect error checking.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

Actual data type or capability support depends on block implementation.

You can generate Halide code if you have Embedded Coder^® license. For more information, see Speed Up Generated Code Execution with Halide Code (Embedded Coder).

HDL Code Generation

Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic. Data type and capability support depend on the block implementation. For best practices of using the MATLAB Function block, see:

• Use hdlfimath Setting and Specify fi Objects inside MATLAB Function Block (HDL Coder)

• Design Guidelines for the MATLAB Function Block (HDL Coder)

• Generate Instantiable Code for Functions (HDL Coder)

• Optimize MATLAB Loops (HDL Coder)

• Pipeline MATLAB Expressions (HDL Coder)

HDL Architecture

MATLAB Function (Default)

This architecture is the default architecture for MATLAB Function blocks that use fixed-point data types. When you use this architecture, you can use speed and area optimizations for blocks that surround the MATLAB Function block. HDL Coder does not optimize the code inside the MATLAB Function block.

MATLAB Datapath

This architecture is the default for MATLAB Function blocks that use floating-point data types. When you use this architecture, HDL Coder treats the MATLAB Function block like a Subsystem block. For fixed-point data types, use this architecture to apply speed and area optimizations inside the MATLAB Function block and across the MATLAB Function block boundary with other Simulink blocks. This capability enables you to specify additional properties for the MATLAB Function block that you would specify for a Subsystem such as ClockRatePipelining and FlattenHierarchy.

HDL Block Properties

AdaptivePipelining	Automatic pipeline insertion based on the synthesis tool, target frequency, and multiplier word-lengths. The default is inherit. To specify this property, set Architecture to MATLAB Datapath. See also AdaptivePipelining (HDL Coder).
BalanceDelays	Detects introduction of new delays along one path and inserts matching delays on the other paths. The default is inherit. To specify this property, set Architecture to MATLAB Datapath. See also BalanceDelays (HDL Coder).
ClockRatePipelining	Insert pipeline registers at a faster clock rate instead of the slower data rate. The default is inherit. To specify this property, set Architecture to MATLAB Datapath. See also ClockRatePipelining (HDL Coder).
ConstMultiplierOptimization	Canonical signed digit (CSD) or factored CSD optimization. The default is none. See also ConstMultiplierOptimization (HDL Coder).
ConstrainedOutputPipeline	Number of registers to place at the outputs by moving existing delays in the design. Distributed pipelining does not redistribute these registers. The default value is 0. For more details, see ConstrainedOutputPipeline (HDL Coder).
DistributedPipelining	Pipeline register distribution, or register retiming. The default is inherit. See also DistributedPipelining (HDL Coder).
FlattenHierarchy	Remove MATLAB Function block hierarchy from generated HDL code. The default is inherit. To specify this property, set Architecture to MATLAB Datapath. See also FlattenHierarchy (HDL Coder).
GuardIndexVariables	Choose whether to lift matrix accesses out of conditional MATLAB statements. The default is off. To specify this property, set Architecture to MATLAB Function. See also GuardIndexVariables (HDL Coder).
InputPipeline	Number of input pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default value is 0. For more details, see InputPipeline (HDL Coder).
InstantiateFunctions	Generate a VHDL® entity or Verilog® module for each function. The default is off. See also InstantiateFunctions (HDL Coder).
LoopOptimization	Unroll, stream, or do not optimize loops. The default is none. If you set Architecture to MATLAB Datapath, you can only unroll loops. If you want to use loop streaming with the MATLAB Datapath architecture, you can use the streaming optimization by specifying a StreamingFactor. See also LoopOptimization (HDL Coder).
MapPersistentVarsToRAM	Map persistent arrays to RAM. The default is off. See also MapPersistentVarsToRAM (HDL Coder).
OutputPipeline	Number of output pipeline stages to insert in the generated code. Distributed pipelining and constrained output pipelining can move these registers. The default value is 0. For more details, see OutputPipeline (HDL Coder).
ResetType	Suppress reset logic generation. The default is default, which generates reset logic. See also ResetType (HDL Coder).
SharingFactor	Number of functionally equivalent resources to map to a single shared resource. The default is 0. See also Resource Sharing (HDL Coder).
StreamingFactor	Number of parallel data paths, or vectors, that are time multiplexed to transform into serial, scalar data paths. The default is 0, which implements fully parallel data paths. To specify this property, set Architecture to MATLAB Datapath. See also Streaming (HDL Coder).
VariablesToPipeline	Warning VariablesToPipeline is not recommended. Use coder.hdl.pipeline (HDL Coder) instead. Insert a pipeline register at the output of the specified variable or variables. Specify the list of variables as a character vector, with spaces separating the variables. To specify this property, set Architecture to MATLAB Function.
SynthesisAttributes	Specifies the synthesis attributes for the blocks and block output signals in the model. The generated HDL code contains these attributes. For more information, see SynthesisAttributes (HDL Coder).

Data Type Support

HDL code generation supports half-precision data types for these functions in MATLAB Function blocks:

all	and, &	any	cast	conj	ctranspose
end	=	eq	==	ge, >=	gt, >
half	inf	int8	int16	int32	int64
isa	iscolumn	isempty	isequal	isfinite	isfloat
isinf	isinteger	islogical	isnan	isnumeric	isreal
isrow	isscalar	isvector	le, <=	length	logical
lt, <	max	min	minus, -	NaN	ndims
ne, ~=	not	numel	or, |	plus, +	prod
reshape	single	size	sqrt	sum	times, .*
transpose	typecast	uint8	uint16	uint32	uint64
uminus	uplus	vertconcat	-	-	-

Complex Data Support

This block supports code generation for complex signals.

See also Complex Data Type Support (HDL Coder).

Use hdlfimath Setting

The hdlfimath function defines fimath properties optimized for HDL code generation. For more information, see Use hdlfimath Setting and Specify fi Objects inside MATLAB Function Block (HDL Coder).

Tunable Parameter Support

HDL Coder supports both tunable and non-tunable parameters with these data types:

• Scalar

• Vector

• Complex

• Structure

• Enumeration

For more information, see Generate DUT Ports for Tunable Parameters (HDL Coder) and Design Guidelines for the MATLAB Function Block (HDL Coder).

Generate HDL Code with Atomic Subsystems and Algebraic Loops

To generate HDL code for models that contain MATLAB Function blocks with atomic subsystems and algebraic loops:

• In the Configuration Parameters dialog box, on the Diagnostics pane, set the Algebraic loop and Artificial algebraic loop occurrences not eliminated parameters to none or warning.

• In the Block Parameters dialog box of the MATLAB Function block, select the Treat as atomic unit and Minimize artificial algebraic loop occurrences parameters.

Restrictions

• If the block contains a System object™, block inputs cannot have a constant or Inf sample time.

• HDL Coder does not support a MATLAB Function block that uses same variable as both an input and an output argument. For example, this MATLAB code is not supported:

  function y = myFun(y)
  %#codegen
  y = 3 * y;

• The block supports floating-point data types only in the Native Floating Point mode.

• The typecast function supports HDL code generation only when the source and target data types have equal bit widths. Logical data types are not supported. Supported type pairs are:

  • uint32, single

  • int32, single

  • uint64, double

  • int64, double

  • uint16, half

  • int16, half

For the MATLAB language subset supported for HDL code generation from a MATLAB Function block, see Supported MATLAB Data Types, Operators, and Control Flow Statements (HDL Coder).

PLC Code Generation

Generate Structured Text code using Simulink® PLC Coder™.

PLC Block Properties

UseExternalDefinition

Suppress block definition in generated code. The default is Off. See also UseExternalDefinition (Simulink PLC Coder).

Fixed-Point Conversion

Design and simulate fixed-point systems using Fixed-Point Designer™.

Actual data type or capability support depends on block implementation.

Version History

Introduced in R2011a

R2026b: Generate HDL code for nested bus array inputs and outputs

You can now generate HDL code for MATLAB Function blocks that use nested arrays of buses as inputs or outputs, including bus elements that contain matrix-typed signals.

R2026a: Specify synthesis attributes for blocks and block output signals

Use the SynthesisAttributes HDL block property to specify the synthesis attributes for the block and its output signals. HDL Coder includes these attributes in the generated HDL code.

R2026a: DSPStyle HDL block property has been removed

The DSPStyle HDL block property has been removed. To specify synthesis attributes for multiplier mapping, use the SynthesisAttributes HDL block property instead.

R2023a: Specify how to treat output variables with dimension of length 1

With the new Treat dimensions of length 1 as fixed size parameter, you can specify how MATLAB Function blocks treat output variables when at least one dimension has length 1. Prior to R2023a, MATLAB Function blocks treat output variables with a dimension of length 1 as fixed size, regardless of whether you specify the variables as having variable size.

R2021b: Output column vectors as two-dimensional or one-dimensional data

You can output column vectors in MATLAB Function blocks as two-dimensional or one-dimensional data with the Interpret output column vectors as one-dimensional data parameter.

R2021a: Report runtime errors for MATLAB Function blocks in rapid accelerator mode

Report runtime errors for MATLAB Function blocks when simulating in rapid accelerator mode by setting the Enable memory integrity checks configuration parameter to Always on.

R2020a: 64-bit integer type support for MATLAB Function block

MATLAB Function blocks now support 64-bit integer data. The block implements int64 and uint64 data types as fixed-point numbers with a word length of 64 bits and a fraction length of 0.

R2019b: String support for MATLAB Function block

Simulink strings are now supported in MATLAB Function blocks.
