Embedded Coder Support Package for Linux Applications

Support package to deploy, interface with, manage, and calibrate service-oriented architecture (SOA) applications that run on a Linux^® platform

Embedded Coder^® Support Package for Linux Applications supports generating code, creating an executable, running and stopping the executable in the target execution environment, and instrumenting the running application. The support package enables you to interact with multiple target computers at the same time.

The Embedded Coder Support Package for Linux Applications supports:

Packaging and deployment
Linux Runtime Manager app
Log viewer
Instrumentation

Linux Runtime Manager application that runs on your development computer enables you to manage applications on multiple target computers. You apply most of the support package functionality from the Linux Runtime Manager app.

Best practices to reduce the security risks while using the support package:

Restrict the access to host and target computer to trusted IP addresses.
Use dedicated router private network between host and target computer.
Restrict privileges to deployment location to the necessary users.

Objects

`linux.Targets`	Interface for managing target computers (Since R2022b)
`linuxTarget`	Interface for managing target computer (Since R2024a)

Apps

Linux Runtime Manager

Deploy and prototype service-oriented architecture (SOA) application components (Since R2022b)

Functions

expand all

Convert DDS Blockset Model to AUTOSAR Adaptive

linux.utils.migrateDds2Adaptive Convert DDS blockset model to AUTOSAR Adaptive model (Since R2022b)

Target Specific

`addTarget`	Add target computer to target computers object (Since R2022b)
`connect`	Connect Simulink to selected target computer (Since R2022b)
`disconnect`	Disconnect Simulink from selected target computer (Since R2022b)
`getIPAddress`	Get IP address of target computer (Since R2022b)
`getSSHPort`	Get port number connected to target computer (Since R2023b)
`getTarget`	Get handle of target computer (Since R2022b)
`getTargetName`	Get target computer name (Since R2022b)
`getUserName`	Get user name of target computer (Since R2022b)
`isConnected`	Get Boolean value representing target computer connection status (Since R2022b)
`removeApplicationPackage`	Remove application package from selected target computer (Since R2022b)
`removeTarget`	Delete target computer (Since R2022b)
`renameTarget`	Rename target computer (Since R2022b)
`restartContainer`	Restart or recreate docker container (Since R2024a)
`setIPAddress`	Set IP address for target computer (Since R2022b)
`setPassword`	Set password for target computer (Since R2022b)
`setSSHPort`	Set SSH port number (Since R2023b)
`setTargetConnectionStatusCallback`	Set callback function to trigger when status of connection to target computer changes (Since R2022b)
`setUserName`	Set user name for target computer (Since R2022b)
`uninstallTarget`	Delete docker image on target computer (Since R2022b)
`updateTarget`	Update docker image on target computer if there is a version mismatch (Since R2022b)

Application Specific

`deployApplicationPackage`	Deploy application package to selected target computer (Since R2022b)
`getAllTargets`	Get list of available target computers (Since R2022b)
`getApplications`	Get applications deployed to target computer and application states (Since R2022b)
`getApplicationState`	Get state of application deployed to target computer (Since R2022b)
`getDeploymentLocation`	Get deployment location for selected target computer (Since R2022b)
`linux.createApplicationPackage`	Create application package for model (Since R2022b)
`linux.utils.getApplicationPackageDescription`	Get application package description (Since R2024a)
`pauseApplication`	Pause application running on target computer (Since R2022b)
`resumeApplication`	Resume application on target computer (Since R2022b)
`setApplicationStateCallback`	Trigger a function when state of application changes (Since R2022b)
`setDeploymentLocation`	Set location for deployed application on target computer (Since R2022b)
`startApplication`	Launch application (Since R2022b)
`stopApplication`	Terminate application that is running on target computer (Since R2022b)

Instrumentation

`getMeasurements`	Get list of measurable signals (Since R2022b)
`getParameters`	Get list of tunable parameters (Since R2022b)
`getSignalsUnderInstrument`	View signals selected to measure (Since R2022b)
`linux.LogMessages`	Create object that contains target log messages (Since R2022b)
`linux.LogMessages.get`	Filter and get log messages (Since R2022b)
`readParameter`	Get value of parameter (Since R2022b)
`readParameters`	Get values of tunable parameters (Since R2022b)
`removeSignalsFromInstrument`	Remove signals for which visualization is not required (Since R2022b)
`restartStreaming`	Restart streaming of signals (Since R2022b)
`selectSignalsToInstrument`	Add signals of interest to visualize application behavior (Since R2022b)
`startMonitorAndTune`	Start parameter tuning and signal monitoring (Since R2022b)
`startStreaming`	Start streaming of signals and visualize results (Since R2022b)
`stopMonitorAndTune`	Stop parameter tuning of the application (Since R2022b)
`stopStreaming`	Stop streaming signal data (Since R2022b)
`writeParameter`	Write or tune application parameter (Since R2022b)

Topics

Support Package Installation
Steps to install support package.
Setup Linux Target Computer
Setting up target computer.
Build Simulink Model and Deploy Application
Build Simulink model and deploy application onto Linux target computer.
Start and Stop Deployed Applications
Start, pause, resume, and terminate deployed applications.
Tune Parameters and Measure Signal Data for Deployed Applications
Tune parameters and measure signal data as application runs on target computer.
Calibrate AUTOSAR Adaptive Application
Calibrate an AUTOSAR adaptive application.
Analyze Logged Messages
View, filter, and analyze log messages by using Runtime Manager application.
External Mode Simulation of Deployed Applications
Perform external model simulation for the deployed applications.
Troubleshooting
Troubleshoot problems that you encounter while using the Embedded Coder Support Package for Linux Applications.

Related Information

Featured Examples

Get Started with Embedded Coder Support Package for Linux Applications

Deploy an application on a Linux target using Embedded Coder® Support Package For Linux® Applications.

Open Live Script

Event Communication Between AUTOSAR Adaptive Applications Using Message Polling

Deploy two AUTOSAR adaptive applications that use events to communicate with each other in message polling mode.

Open Live Script

Event Communication Between AUTOSAR Adaptive Applications Using Message Triggering

Deploy two AUTOSAR adaptive applications that use events to communicate with each other in message triggering mode.

Open Live Script

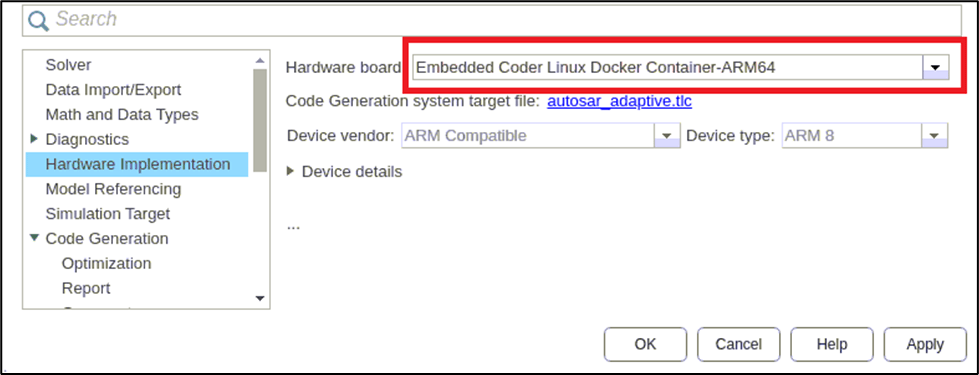

Deploy AUTOSAR Adaptive Application on Linux ARM64 Machine

Deploy an AUTOSAR adaptive model on a Linux ARM64 target machine using the Embedded Coder® Support Package for Linux Applications.

Open Live Script

Deploy AUTOSAR Adaptive Architecture Model

Deploy a Simulink® System Composer™ (architecture) model as an AUTOSAR adaptive application using Embedded Coder® Support Package for Linux Applications. This example demonstrates adaptive communication using events and methods.

Open Live Script

Over-the-Air Updates Demo

Demonstrates how to use over-the-air (OTA) updates with the Embedded Coder® Support Package for Linux® Applications to update deployed applications on the target machine. OTA updates are crucial for deploying software updates remotely to devices running embedded Linux, ensuring that they are up to date with the latest features, security patches, and bug fixes without requiring physical access to the device. Embedded Coder Support Package for Linux Applications uses Eclipse[tm] hawkBit server to roll out the software updates to the target machines over the air.

Open Live Script
