fevd
Generate forecast error variance decomposition (FEVD) of state-space model
Since R2021a
Syntax
Description
The fevd
function returns the forecast error variance decomposition (FEVD) of the measurement variables in a state-space model attributable to component-wise shocks to each state disturbance. The FEVD provides information about the relative importance of each state disturbance in affecting the forecast error variance of all measurement variables in the system. Other state-space model tools to characterize the dynamics of a specified system include the following:
The impulse response function (IRF), computed by
irf
and plotted byirfplot
, traces the effects of a shock to a state disturbance on the state and measurement variables in the system.Model-implied temporal correlations, computed by
corr
for a standard state-space model, measure the association between current and lagged state or measurement variables, as prescribed by the form of the model.
Fully Specified State-Space Model
returns the FEVD of each measurement variable Decomposition
= fevd(Mdl
)Decomposition
of the fully specified state-space model Mdl
.
uses additional options specified by one or more name-value arguments. For example, Decomposition
= fevd(Mdl
,Name,Value
)'NumPeriods',10
specifies estimating the FEVD for periods 1 through 10.
Partially Specified State-Space Model and Confidence Interval Estimation
returns the FEVD of all measurement variables of the partially specified state-space model Decomposition
= fevd(___,'Params'
,estParams)Mdl
. estParams
specifies estimates of all unknown parameters in the model, using any of the input argument combinations in the previous syntaxes.
[
also returns the lower and upper 95% Monte Carlo confidence bounds Decomposition
,Lower
,Upper
] = fevd(___,'Params'
,estParams,'EstParamCov'
,EstParamCov)Lower
and Upper
of each measurement variable FEVD. EstParamCov
specifies the estimated covariance matrix of the parameter estimates, as returned by the estimate
function, and is required for confidence interval estimation.
Examples
FEVD of Measurement Variables
Compute the model-implied FEVD of two state-space models: one with measurement error and one without measurement error.
Model Without Measurement Error
Explicitly create the state-space model without measurement error
A = [1 0; 1 0.3];
B = [0.2 0; 0 1];
C = [1 0; 1 1];
Mdl1 = ssm(A,B,C,'StateType',[2 2])
Mdl1 = State-space model type: ssm State vector length: 2 Observation vector length: 2 State disturbance vector length: 2 Observation innovation vector length: 0 Sample size supported by model: Unlimited State variables: x1, x2,... State disturbances: u1, u2,... Observation series: y1, y2,... Observation innovations: e1, e2,... State equations: x1(t) = x1(t-1) + (0.20)u1(t) x2(t) = x1(t-1) + (0.30)x2(t-1) + u2(t) Observation equations: y1(t) = x1(t) y2(t) = x1(t) + x2(t) Initial state distribution: Initial state means x1 x2 0 0 Initial state covariance matrix x1 x2 x1 1e+07 0 x2 0 1e+07 State types x1 x2 Diffuse Diffuse
Mdl1
is an ssm
model object. Because all parameters have known values, the object is fully specified.
Compute the 20-period FEVD of the measurement variables.
Decomposition1 = fevd(Mdl1); size(Decomposition1)
ans = 1×3
20 2 2
Decomposition
is a 20-by-2-by-2 array representing the 20-period FEVD of the two measurement variables. Display Decomposition(5,1,2)
.
Decomposition1(5,1,2)
ans = 0.4429
In this case, 44.29% of the volatility of is attributed to the shock applied to .
Plot the FEVD of for each state disturbance.

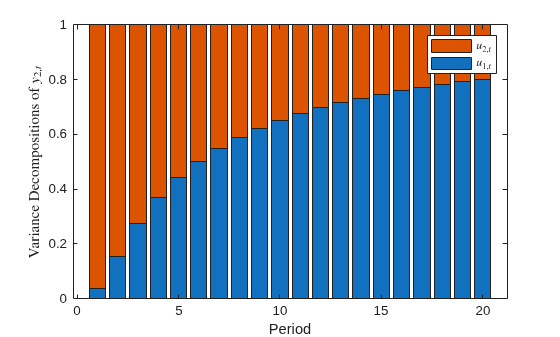

bar(Decomposition1(:,:,2),'stacked') xlabel('Period') ylabel('Variance Decompositions of $y_{2,t}$','Interpreter','latex') legend('$u_{1,t}$','$u_{2,t}$','Interpreter','latex')
Because the state-space model is free of measurement error ( = 0), the variance decompositions of each period sum to 1. The volatility attributable to increases with each period.
Model with Measurement Error
Explicitly create the state-space model
D = eye(2);
Mdl2 = ssm(A,B,C,D,'StateType',[2 2])
Mdl2 = State-space model type: ssm State vector length: 2 Observation vector length: 2 State disturbance vector length: 2 Observation innovation vector length: 2 Sample size supported by model: Unlimited State variables: x1, x2,... State disturbances: u1, u2,... Observation series: y1, y2,... Observation innovations: e1, e2,... State equations: x1(t) = x1(t-1) + (0.20)u1(t) x2(t) = x1(t-1) + (0.30)x2(t-1) + u2(t) Observation equations: y1(t) = x1(t) + e1(t) y2(t) = x1(t) + x2(t) + e2(t) Initial state distribution: Initial state means x1 x2 0 0 Initial state covariance matrix x1 x2 x1 1e+07 0 x2 0 1e+07 State types x1 x2 Diffuse Diffuse
Compute the 20-period FEVD of the measurement variables.
Decomposition2 = fevd(Mdl2);
Plot the FEVD of for each state disturbance.

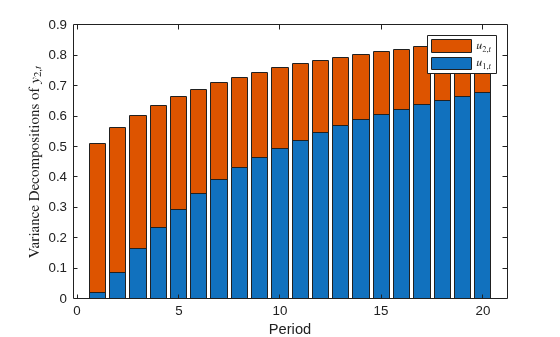

bar(Decomposition2(:,:,2),'stacked') xlabel('Period') ylabel('Variance Decompositions of $y_{2,t}$','Interpreter','latex') legend('$u_{1,t}$','$u_{2,t}$','Interpreter','latex')
Because the model contains measurement error, the variance proportions do not sum to 1 during each period.
Specify Number of Periods
Explicitly create the multivariate diffuse state-space model
A = [1 0; 1 0.3];
B = [0.2 0; 0 1];
C = [1 0; 1 1];
Mdl = dssm(A,B,C,'StateType',[2 2])
Mdl = State-space model type: dssm State vector length: 2 Observation vector length: 2 State disturbance vector length: 2 Observation innovation vector length: 0 Sample size supported by model: Unlimited State variables: x1, x2,... State disturbances: u1, u2,... Observation series: y1, y2,... Observation innovations: e1, e2,... State equations: x1(t) = x1(t-1) + (0.20)u1(t) x2(t) = x1(t-1) + (0.30)x2(t-1) + u2(t) Observation equations: y1(t) = x1(t) y2(t) = x1(t) + x2(t) Initial state distribution: Initial state means x1 x2 0 0 Initial state covariance matrix x1 x2 x1 Inf 0 x2 0 Inf State types x1 x2 Diffuse Diffuse
Mdl
is a dssm
model object.
Compute the 50-period FEVD of the measurement variables.
Decomposition = fevd(Mdl,'NumPeriods',50);
size(Decomposition)
ans = 1×3
50 2 2
Plot the FEVD of for each state disturbance.

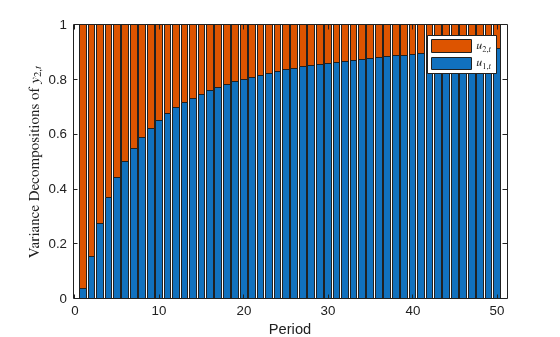

bar(Decomposition(:,:,2),'stacked') xlabel('Period') ylabel('Variance Decompositions of $y_{2,t}$','Interpreter','latex') legend('$u_{1,t}$','$u_{2,t}$','Interpreter','latex')
The contribution of to the volatility of approaches 90%.
FEVD of Estimated Model
Simulate data from a known model, fit the data to a state-space model, and then estimate the FEVD of the measurement variables.
Consider the time series decomposition , where is a random walk with drift representing the trend component, and is an AR(1) model representing the cycle component.
The model in state-space notation is
where is a dummy state representing the drift parameter, which is 1 for all .
Simulate 500 observations from the true model.
rng(1); % For reproducibility ADGP = [1 3 0; 0 1 0; 0 0 0.5]; BDGP = [1 0; 0 0; 0 2]; CDGP = [1 0 1]; DGP = ssm(ADGP,BDGP,CDGP,'StateType',[2 1 0]); y = simulate(DGP,500);
Assume that the drift constant, disturbance variances, and AR coefficient are unknown. Explicitly create a state-space model template for estimation that represents the model by replacing the unknown parameters in the model with NaN
.
A = [1 NaN 0; 0 1 0; 0 0 NaN];
B = [NaN 0; 0 0; 0 NaN];
C = CDGP;
Mdl = ssm(A,B,C,'StateType',[2 1 0]);
Fit the model template to the data. Specify a set of positive, random standard Gaussian starting values for the four model parameters. Return the estimated model and vector of parameter estimates.
[EstMdl,estParams] = estimate(Mdl,y,abs(randn(4,1)),'Display','off')
EstMdl = State-space model type: ssm State vector length: 3 Observation vector length: 1 State disturbance vector length: 2 Observation innovation vector length: 0 Sample size supported by model: Unlimited State variables: x1, x2,... State disturbances: u1, u2,... Observation series: y1, y2,... Observation innovations: e1, e2,... State equations: x1(t) = x1(t-1) + (2.91)x2(t-1) + (0.92)u1(t) x2(t) = x2(t-1) x3(t) = (0.52)x3(t-1) + (2.13)u2(t) Observation equation: y1(t) = x1(t) + x3(t) Initial state distribution: Initial state means x1 x2 x3 0 1 0 Initial state covariance matrix x1 x2 x3 x1 1.00e+07 0 0 x2 0 0 0 x3 0 0 6.20 State types x1 x2 x3 Diffuse Constant Stationary
estParams = 4×1
2.9115
0.5189
0.9200
2.1278
EstMdl
is a fully specified ssm
model object. Model estimates are close to their true values.
Compute and plot the FEVD of the measurement variable. Specify the model template Mdl
and the vector of estimated parameters estParams
.

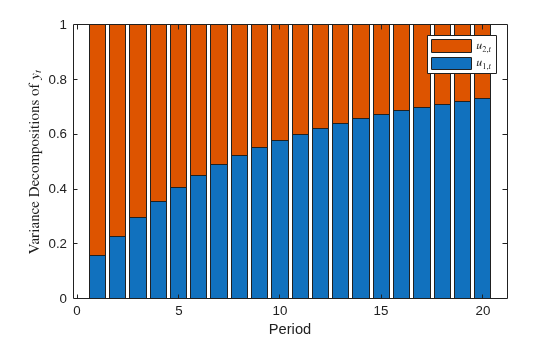

Decomposition = fevd(Mdl,'Params',estParams); bar(Decomposition,'stacked') xlabel('Period') ylabel('Variance Decompositions of $y_{t}$','Interpreter','latex') legend('$u_{1,t}$','$u_{2,t}$','Interpreter','latex')
Noise in the cyclical component dominates the volatility of the measurement variable in low lags, with increasing contribution from the trend component noise as the lag increases.
Time-Varying FEVD
Simulate data from a time-varying state-space model, fit a model to the data, and then estimate the time-varying FEVD of the measurement variable.
Consider the time series decomposition , where is a random walk with drift representing the trend component, and is an AR(1) model representing the cyclical component. Suppose that the cyclical component changes during period 26 over a 50-period time span.
Write a function that specifies how the parameters params
map to the state-space model matrices, the initial state moments, and the state types. Save this code as a file named timeVariantTrendCycleParamMap.m
on your MATLAB® path. Alternatively, open the example to access the function.
type timeVariantTrendCycleParamMap.m
% Copyright 2021 The MathWorks, Inc. function [A,B,C,D,Mean0,Cov0,StateType] = timeVariantTrendCycleParamMap(params) % Time-varying state-space model parameter mapping function example. This % function maps the vector params to the state-space matrices (A, B, C, and % D). The measurement equation is a times series decomposed into trend and % cyclical components, with a structural break in the cycle during period % 26. % % The trend component is tau_t = drift + tau_{t-1} + s_1u1_t. % % The cyclical component is: % * c_t = phi_1*c_{t-1} + s_2*u2_t; t = 1 through 25 % * c_t = phi_2*c_{t-1} + s_3*u2_t; t = 11 through 26. % % The measurement equation is y_t = tau_t + c_t. A1 = {[1 params(1) 0; 0 1 0; 0 0 params(2)]}; A2 = {[1 params(1) 0; 0 1 0; 0 0 params(3)]}; varu1 = exp(params(4)); % Positive variance constraints varu21 = exp(params(5)); varu22 = exp(params(6)); B1 = {[sqrt(varu1) 0; 0 0; 0 sqrt(varu21)]}; B2 = {[sqrt(varu1) 0; 0 0; 0 sqrt(varu22)]}; C = [1 0 1]; D = 0; sc = 25; A = [repmat(A1,sc,1); repmat(A2,sc,1)]; B = [repmat(B1,sc,1); repmat(B2,sc,1)]; Mean0 = []; Cov0 = []; StateType = [2 1 0]; end
Implicitly create a partially specified state-space model representing the data generating process (DGP).
ParamMap = @timeVariantTrendCycleParamMap; DGP = ssm(ParamMap);
Simulate 50 observations from the DGP. Because DGP
is partially specified, pass the true parameter values to simulate
by using the 'Params'
name-value argument.
rng(5) % For reproducibility trueParams = [1 0.5 -0.2 2*log(1) 2*log(2) 2*log(0.5)]; % Transform variances for parameter map y = simulate(DGP,50,'Params',trueParams);
y
is a 50-by-1 vector of simulated measurements from the DGP.
Because DGP
is a partially specified, implicit model object, its parameters are unknown. Therefore, it can serve as a model template for estimation.
Fit the model to the simulated data. Specify random standard Gaussian draws for the initial parameter values, and turn off the estimation display. Return the parameter estimates.
[~,estParams] = estimate(DGP,y,randn(1,6),'Display','off')
estParams = 1×6
0.8510 0.0118 0.6309 -0.3227 1.3778 -0.2200
estParams
is a 1-by-6 vector of parameter estimates. The output argument list of the parameter mapping function determines the order of the estimates.
Estimate the FEVD of the measurement variable by supplying DGP
(not the estimated model) and the estimated parameters using the 'Params'
name-value argument.

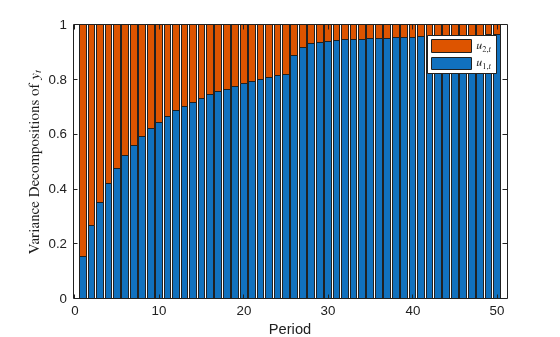

Decomposition = fevd(DGP,'Params',estParams,'NumPeriods',50); bar(Decomposition,'stacked') xlabel('Period') ylabel('Variance Decompositions of $y_{t}$','Interpreter','latex') legend('$u_{1,t}$','$u_{2,t}$','Interpreter','latex')
The FEVD jumps at period 26, when the structural break occurs.
Estimate FEVD Confidence Bounds
Simulate data from a known model, fit the data to a state-space model, and then estimate the FEVD of the measurement variables with 90% Monte Carlo confidence bounds.
Consider the time series decomposition , where is a random walk with drift representing the trend component, and is an AR(1) model representing the cycle component.
The model in state-space notation is
where is a dummy state representing the drift parameter, which is 1 for all t.
Simulate 500 observations from the true model.
rng(1); % For reproducibility ADGP = [1 3 0; 0 1 0; 0 0 0.5]; BDGP = [1 0; 0 0; 0 2]; CDGP = [1 0 1]; DGP = ssm(ADGP,BDGP,CDGP,'StateType',[2 1 0]); y = simulate(DGP,500);
Assume that the drift constant, disturbance variances, and AR coefficient are unknown. Explicitly create a state-space model template for estimation that represents the model by replacing the unknown parameters in the model with NaN
.
A = [1 NaN 0; 0 1 0; 0 0 NaN];
B = [NaN 0; 0 0; 0 NaN];
C = CDGP;
Mdl = ssm(A,B,C,'StateType',[2 1 0]);
Fit the model template to the data. Specify a set of positive, random standard Gaussian starting values for the four model parameters, and turn off the estimation display. Return the estimated model and vector of parameter estimates and their estimated covariance matrix.
[EstMdl,estParams,EstParamCov] = estimate(Mdl,y,abs(randn(4,1)),'Display','off');
EstMdl
is a fully specified ssm
model object. Model estimates are close to their true values.
Compute the FEVD of the measurement variable with period-wise 90% Monte Carlo confidence bounds. Specify the model template Mdl
, vector of estimated parameters estParams
, and their estimated covariance matrix EstParamCov
.
[Decomposition,Lower,Upper] = fevd(Mdl,'Params',estParams,'EstParamCov',EstParamCov,... 'Confidence',0.9);

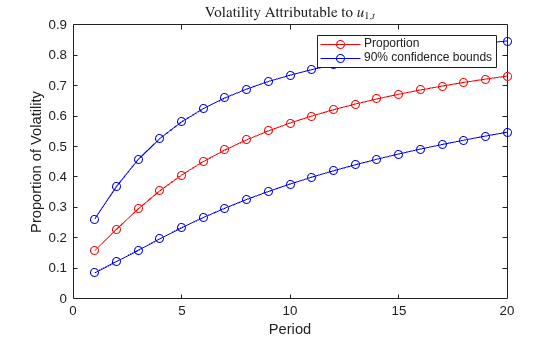

Plot the proportion of volatility of attributable to with corresponding 90% confidence bounds.
plot(Decomposition(:,1),'r-o') hold on plot([Lower(:,1) Upper(:,1)],'b-o') hold off xlabel('Period') ylabel('Proportion of Volatility') title('Volatility Attributable to $u_{1,t}$','Interpreter','latex') legend('Proportion','90% confidence bounds')
The confidence bounds are initially relatively tight, but widen as the lag and volatility increase.
Input Arguments
Mdl
— State-space model
ssm
model object | dssm
model object
State-space model, specified as an ssm
model object returned by ssm
or its estimate
function, or a dssm
model object returned by dssm
or its estimate
function.
If Mdl
is partially specified (that is, it contains unknown parameters), specify estimates of the unknown parameters by using the 'Params'
name-value argument. Otherwise, fevd
issues an error.
fevd
issues an error when Mdl
is a
dimension-varying model, which is a time-varying model
containing at least one variable that changes dimension during the sampling period (for
example, a state variable drops out of the model; see Decide on Model Structure).
Tip
If Mdl
is fully specified, you cannot estimate confidence bounds. To estimate confidence bounds:
Create a partially specified state-space model template for estimation
Mdl
.Estimate the model by using the
estimate
function and data. Return the estimated parametersestParams
and estimated parameter covariance matrixEstParamCov
.Pass the model template for estimation
Mdl
tofevd
, and specify the parameter estimates and covariance matrix by using the'Params'
and'EstParamCov'
name-value arguments.For the
fevd
function, return the appropriate output arguments for lower and upper confidence bounds.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: 'NumPeriods',10
estimating the FEVD for specifies estimating the FEVD for periods 1 through 10.
NumPeriods
— Number of periods
20
(default) | positive integer
Number of periods for which fevd
computes the FEVD, specified as a positive integer. Periods in the FEVD start at time 1 and end at time NumPeriods
.
Example:
'NumPeriods',10
specifies the inclusion of 10 consecutive time points in the FEVD, starting at time 1 and ending at time 10.
Data Types: double
Params
— Estimates of unknown parameters
numeric vector
Estimates of the unknown parameters in the partially specified state-space model Mdl
, specified as a numeric vector.
If Mdl
is partially specified (contains unknown parameters specified by NaN
s), you must specify Params
. The estimate
function returns parameter estimates of Mdl
in the appropriate form. However, you can supply custom estimates by arranging the elements of Params
as follows:
If
Mdl
is an explicitly created model (Mdl.ParamMap
is empty[]
), arrange the elements ofParams
to correspond to hits of a column-wise search ofNaN
s in the state-space model coefficient matrices, initial state mean vector, and covariance matrix.If
Mdl
is time invariant, the order isA
,B
,C
,D
,Mean0
, andCov0
.If
Mdl
is time varying, the order isA{1}
throughA{end}
,B{1}
throughB{end}
,C{1}
throughC{end}
,D{1}
throughD{end}
,Mean0
, andCov0
.
If
Mdl
is an implicitly created model (Mdl.ParamMap
is a function handle), the first input argument of the parameter-to-matrix mapping function determines the order of the elements ofParams
.
If Mdl
is fully specified, fevd
ignores Params
.
Example: Consider the state-space model Mdl
with A = B = [NaN 0; 0 NaN]
, C = [1; 1]
, D = 0
, and initial state means of 0 with covariance eye(2)
. Mdl
is partially specified and explicitly created. Because the model parameters contain a total of four NaN
s, Params
must be a 4-by-1 vector, where Params(1)
is the estimate of A(1,1)
, Params(2)
is the estimate of A(2,2)
, Params(3)
is the estimate of B(1,1)
, and Params(4)
is the estimate of B(2,2)
.
Data Types: double
EstParamCov
— Estimated covariance matrix of unknown parameters
positive semidefinite numeric matrix
Estimated covariance matrix of unknown parameters in the partially specified state-space model Mdl
, specified as a positive semidefinite numeric matrix.
estimate
returns the estimated parameter covariance matrix of Mdl
in the appropriate form. However, you can supply custom estimates by setting EstParamCov(
to the estimated covariance of the estimated parameters i
,j
)Params(
and i
)Params(
, regardless of whether j
)Mdl
is time invariant or time varying.
If Mdl
is fully specified, fevd
ignores EstParamCov
.
By default, fevd
does not estimate confidence bounds.
Data Types: double
NumPaths
— Number of Monte Carlo sample paths
1000
(default) | positive integer
Number of Monte Carlo sample paths (trials) to generate to estimate confidence bounds, specified as a positive integer.
Example: 'NumPaths',5000
Data Types: double
Confidence
— Confidence level
0.95
(default) | numeric scalar in [0,1]
Confidence level for the confidence bounds, specified as a numeric scalar in the interval [0,1].
For each period, randomly drawn confidence intervals cover the true response 100*Confidence
% of the time.
The default value is 0.95
, which implies that the confidence bounds represent 95% confidence intervals.
Example: Confidence=0.9
specifies 90% confidence
intervals.
Data Types: double
Output Arguments
Decomposition
— FEVD
numeric array
FEVD of the measurement variables yt, returned as a NumPeriods
-by-k-by-n numeric array.
Decomposition(
is the FEVD of measurement variable t
,i
,j
)
at period j
, when a unit shock is applied to state-disturbance variable t
during period 1, for i
= 1,2,...,t
NumPeriods
,
= 1,2,...,k, and i
= 1,2,...,n.j
Lower
— Pointwise lower confidence bounds of FEVD
numeric array
Pointwise lower confidence bounds of the FEVD of the measurement variables, returned as a NumPeriods
-by-k-by-n numeric array.
Lower(
is the lower bound of the t
,i
,j
)100*Confidence
% percentile interval on the true FEVD of measurement variable
at period j
, when a unit shock is applied to state-disturbance variable t
during period 1.i
Upper
— Pointwise upper confidence bounds of FEVD
numeric array
Pointwise upper confidence bounds of the FEVD of the measurement variables, returned as a NumPeriods
-by-k-by-n numeric array.
Upper(
is the upper confidence bound corresponding to the lower confidence bound t
,i
,j
)Lower
(
.t
,i
,j
)
More About
Forecast Error Variance Decomposition
The forecast error variance decomposition (FEVD) of a state-space model measures the volatility in each measurement variable yt as a result of a unit impulse to each state disturbance ut at period 1. The FEVD tracks the volatility as the impulses propagate the system for each period t ≥ 1. The FEVD provides information about the relative importance of each state disturbance in affecting the forecast error variance of all measurement variables in the system.
Consider the time-invariant state-space model at time t
and consider unit shocks to all state disturbances ut during period t – s, where s < t.
The state equation, expressed as a function of ut – s is The corresponding measurement equation is
Therefore, the total volatility of yt, attributed to shocks from periods t – s through t, is
This result implies that noise in both the transition and measurement equations contributes to the forecast error variance.
The volatility attributed to state disturbance j uj,t is
where:
Ik(j) is a k-by-k selection matrix, a matrix of zeros except for the value 1 in element (j,j).
As a result, the s-step ahead forecast error variance of yi,t, attributable to a unit shock to uj,t, is
If D is zero, the FEVD of a measurement variable at period t sums to one (in other words, the sum of each row is one). Otherwise, the FEVD of a measurement variable at period t does not necessarily sum to one; the remaining portion is attributable to DD'.
The FEVD of a time-varying, dimension-invariant state-space model is also time varying. In this case, fevd
always applies the unit shock during period 1. For an s-period-ahead FEVD, the measurement equation is
The total volatility of ys is
As with time-invariant models, the s-period-ahead volatility attributed to state disturbance j shocked during period 1 uj,1 is
As a result, the s-step-ahead forecast error variance of yi,s, attributable to a unit shock to uj,1, is
Because time-invariant and time-varying FEVDs do not include initial state distribution terms, the formulas apply to standard and diffuse state-space models.
Algorithms
If you do not supply the
EstParamCov
name-value argument, confidence bounds of each period overlap.fevd
uses Monte Carlo simulation to compute confidence intervals.fevd
randomly drawsNumPaths
variates from the asymptotic sampling distribution of the unknown parameters inMdl
, which is Np(Params
,EstParamCov
), where p is the number of unknown parameters.For each randomly drawn parameter set j,
fevd
does the following:Create a state-space model that is equal to
Mdl
, but substitute in parameter set j.Compute the random FEVD of the resulting model γj(t), where t = 1 through
NumPaths
.
For each time t, the lower bound of the confidence interval is the
(1 –
quantile of the simulated FEVD at period t γ(t), wherec
)/2
=c
Confidence
. Similarly, the upper bound of the confidence interval at time t is the(1 –
upper quantile of γ(t).c
)/2
Version History
Introduced in R2021a
Comando de MATLAB
Ha hecho clic en un enlace que corresponde a este comando de MATLAB:
Ejecute el comando introduciéndolo en la ventana de comandos de MATLAB. Los navegadores web no admiten comandos de MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
