clearPlotterData

Clear plotter data from theater plot

Description

example

clearPlotterData(tp) clears data shown in the plot from all the plotters used in the theater plot, tp. Legend entries and coverage areas are not cleared from the plot.

Examples

collapse all

Create a theater plot and a detection plotter.

tp = theaterPlot('XLim',[0, 90],'YLim',[-35, 35],'ZLim',[0, 10]);
detectionPlotter(tp,'DisplayName','Radar Detections');

Figure contains an axes object. The axes object contains an object of type line. This object represents Radar Detections.

Use findPlotter to locate the plotter by its display name.

radarPlotter = findPlotter(tp,'DisplayName','Radar Detections');

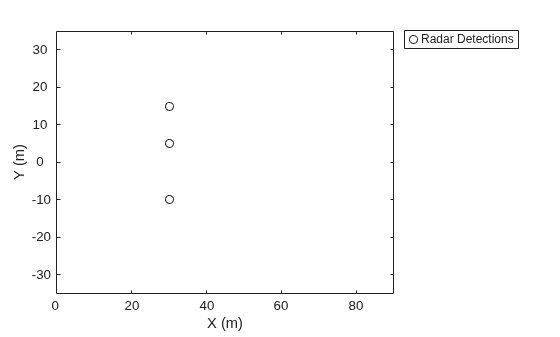

Plot three detections.

plotDetection(radarPlotter, [30, 5, 1; 30, -10, 2; 30, 15, 1]);

Figure contains an axes object. The axes object contains an object of type line. This object represents Radar Detections.

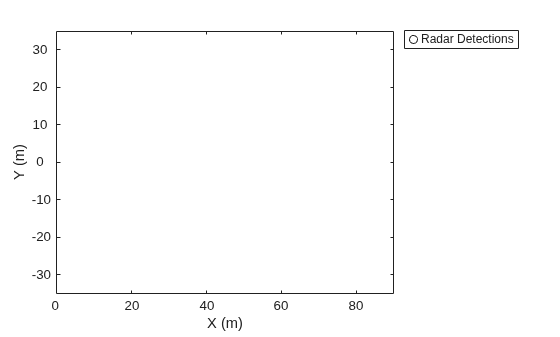

Clear data from the plot.

clearPlotterData(tp);

Figure contains an axes object. The axes object contains an object of type line. This object represents Radar Detections.

Input Arguments

collapse all

Theater plot, specified as a theaterPlot object.

Introduced in R2018b
