Tracking Data Importer

Import, convert, and visualize tracking data

Since R2025a

Description

The Tracking Data Importer app enables you to import tracking data, convert the tracking data to a standardized format supported by Sensor Fusion and Tracking Toolbox™, visualize the tracking data on a globe, and export your converted data to the MATLAB® workspace. You can also create an importer object for batch conversion of tracking data belonging to the same format.

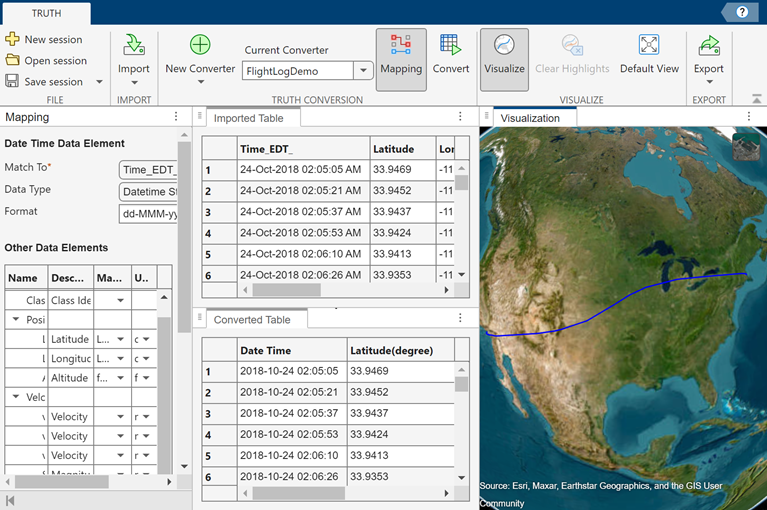

Tracking Data Importer app

Open the Tracking Data Importer App

  • MATLAB Toolstrip: On the Apps tab, under Signal processing and communications, click the app icon .

  • MATLAB command prompt: Enter trackingDataImporter.

Examples

expand all

The Tracking Data Importer enables you to import truth data, convert data units, formats and coordinate systems, visualize the data on a map, and exporting the data in formats compatible with the Sensor Fusion and Tracking Toolbox™.

Launch Tracking Data Importer

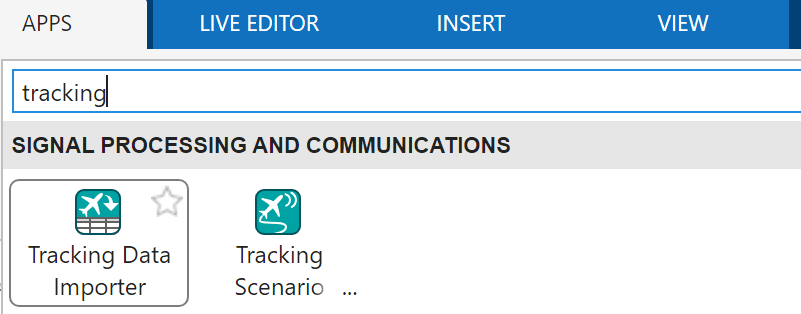

To launch the application, either select it from the app gallery:

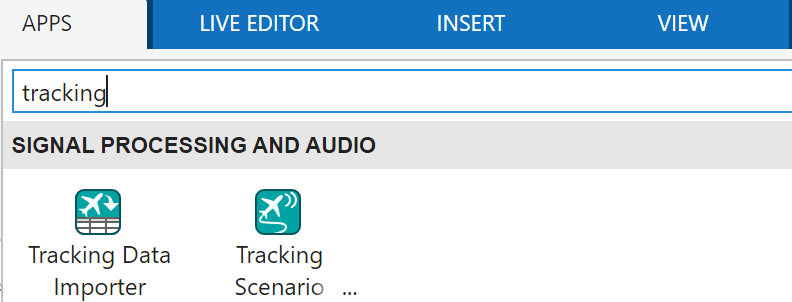

App gallery

or, use the command:

>> trackingDataImporter

The app opens and prompts you to import truth data to start.

Import Flight Log File

Import a flight log file named IncheonToNewYorkFlight.xlsx. The file has seven columns:

  • time — Flight time, written in the dd-MMM-yyyy HH:mm:ss format.

  • latitude — Flight latitude in degrees.

  • longitude — Flight longitude in degrees.

  • altitude — Flight altitude in feet.

  • speed — Flight speed in miles per hour.

  • course — Flight course in degrees.

  • climbrate: Flight climbrate in feet per minute.

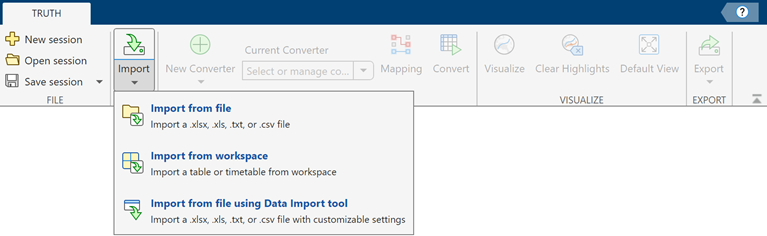

Click the Import button and select Import from file. For more information on the import options, see Import. Then, follow the prompts to import the XLSX file from the example folder.

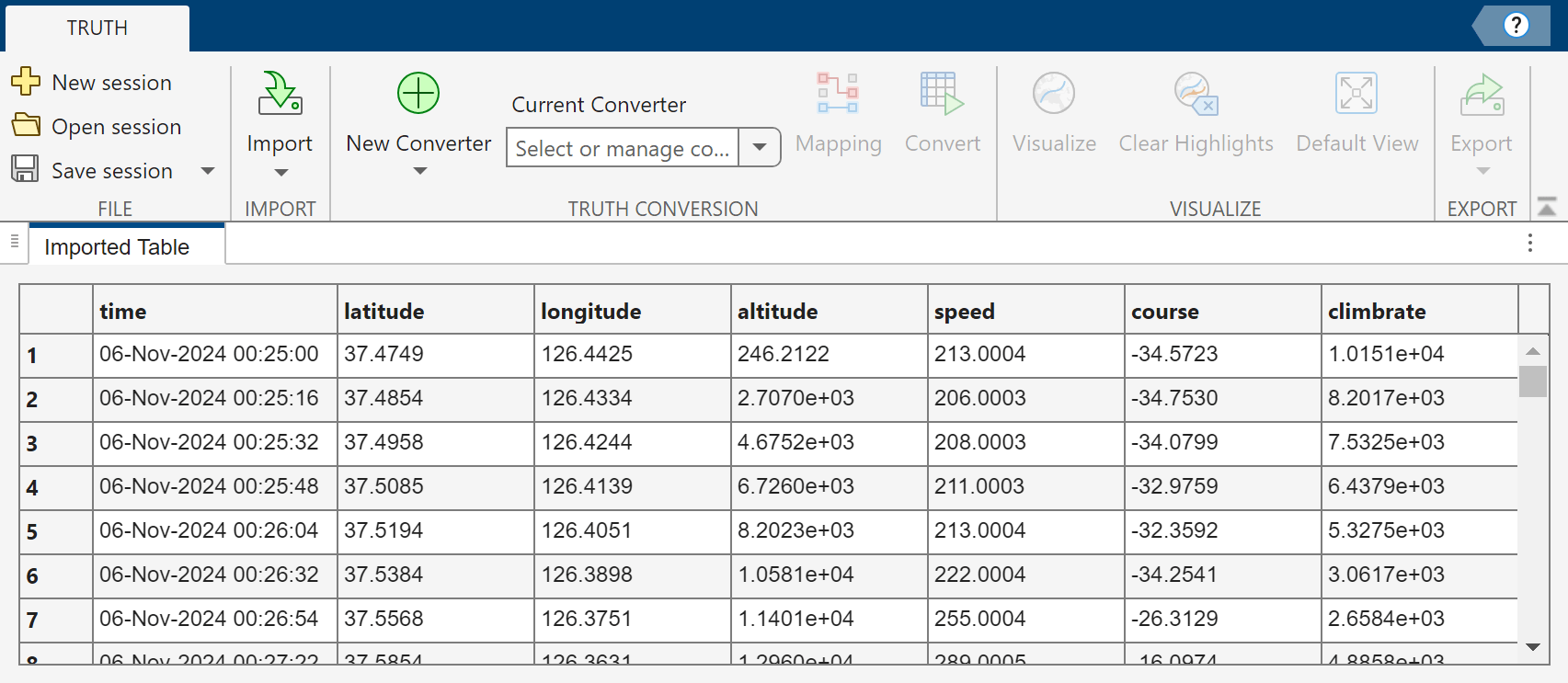

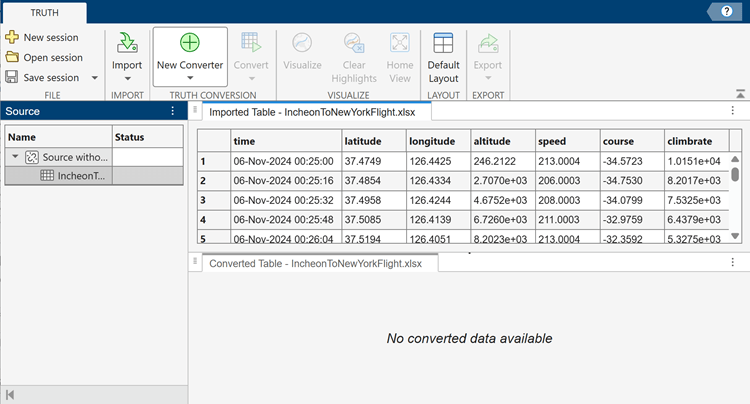

Imported Table

Create New Converter and Convert

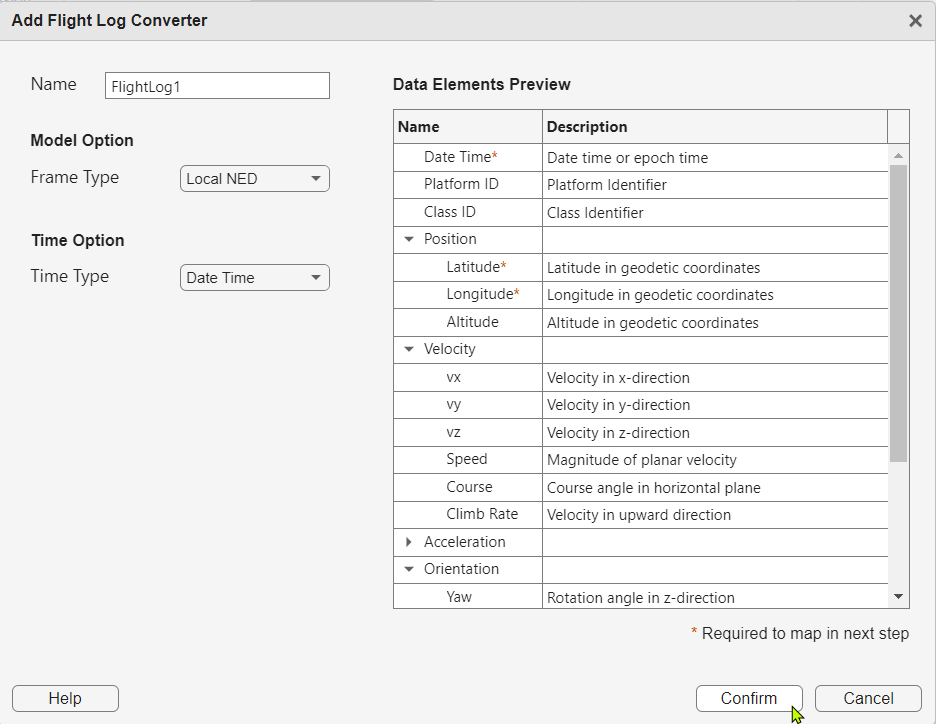

Click New Converter and then select Flight Log. For more information on different pre-built converters, see New Converter and Converter Options. You can modify the Name, Model Option, and Time Option for the converter.

Flight Converter

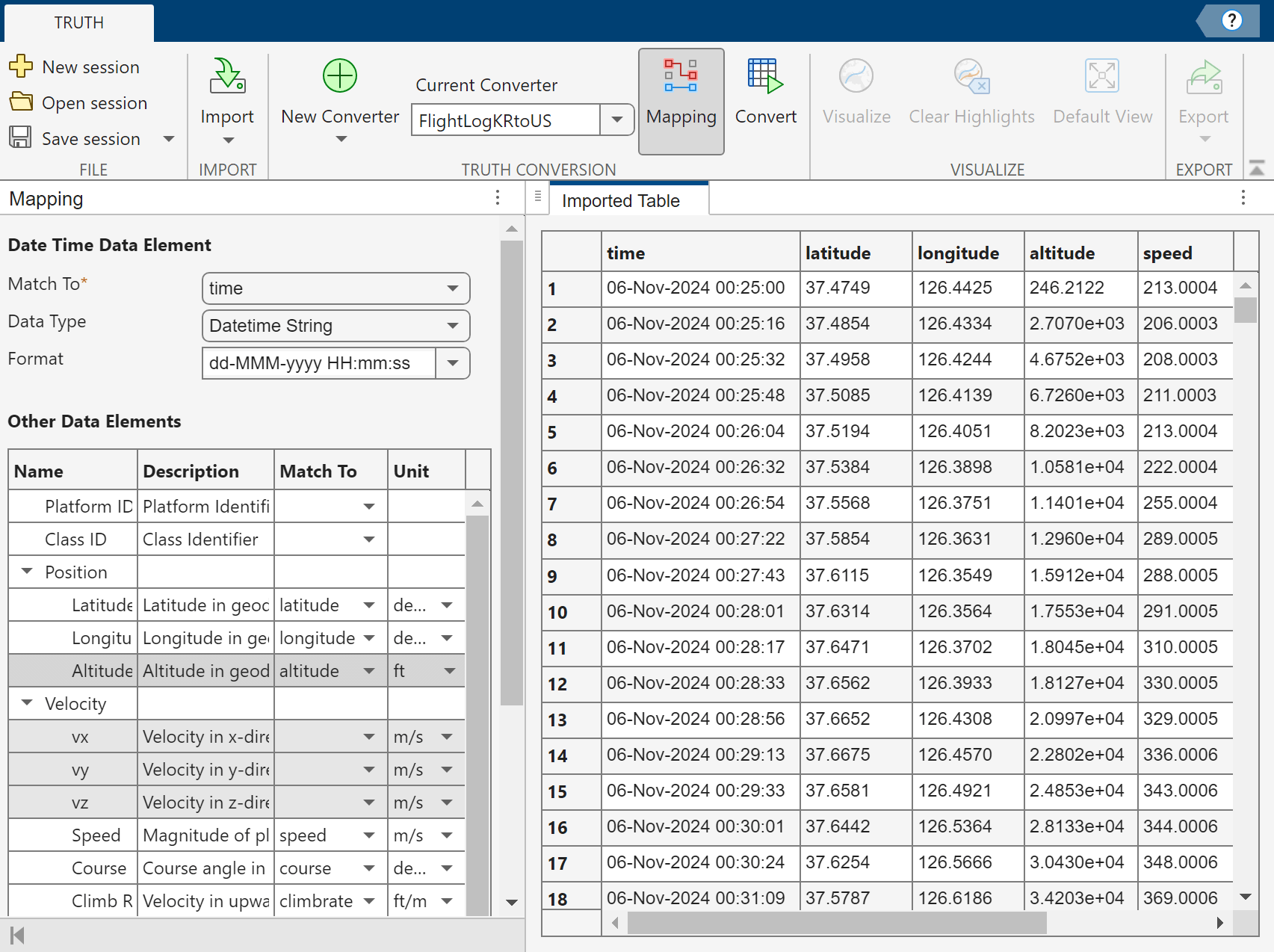

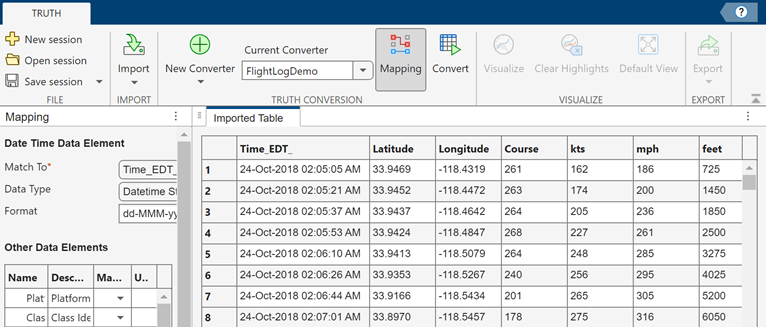

Map the imported Table to the data elements and select appropriate units.

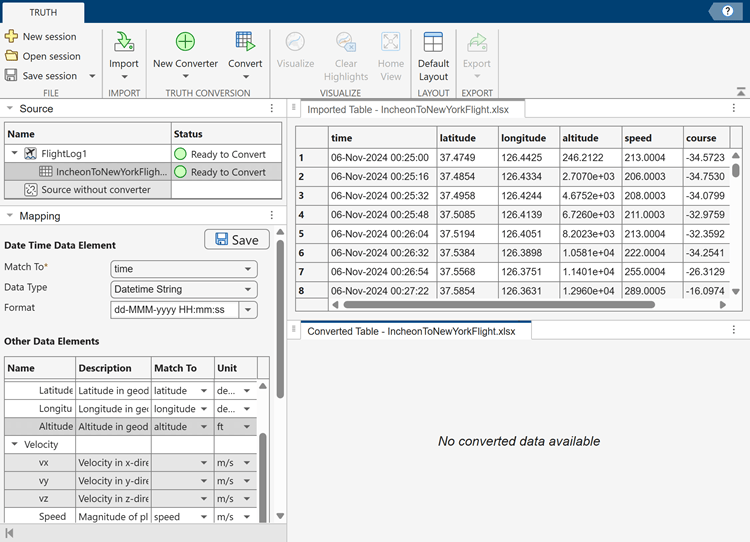

Data Mapping

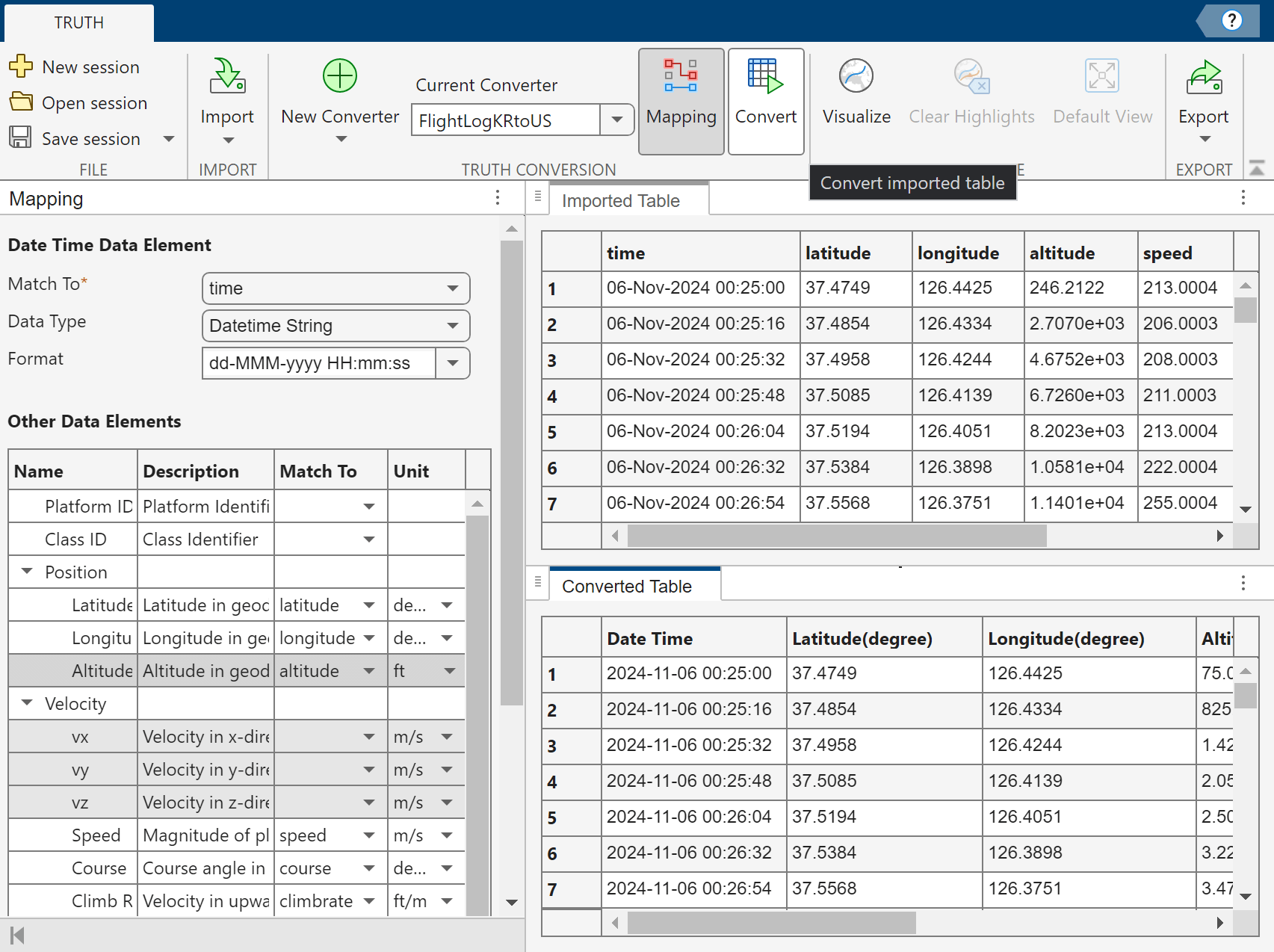

Click Convert, and the app converts the Imported Table to a Converted Table based on the current converter.

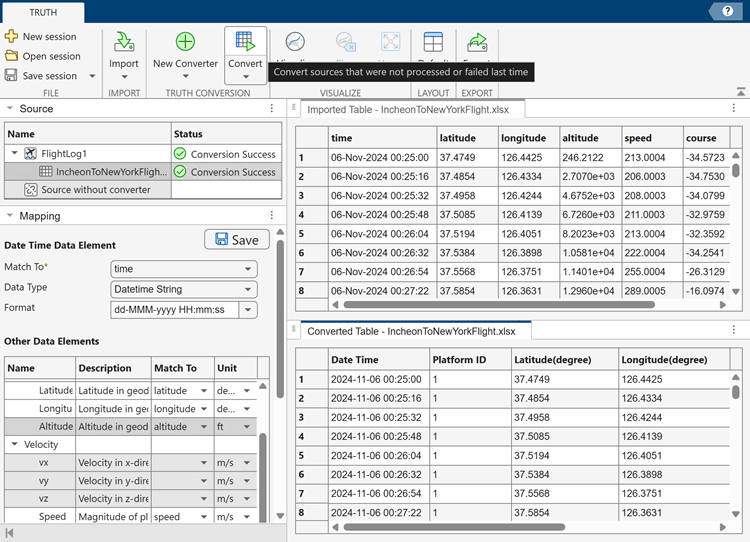

Converted Table

Visualize Data on Globe

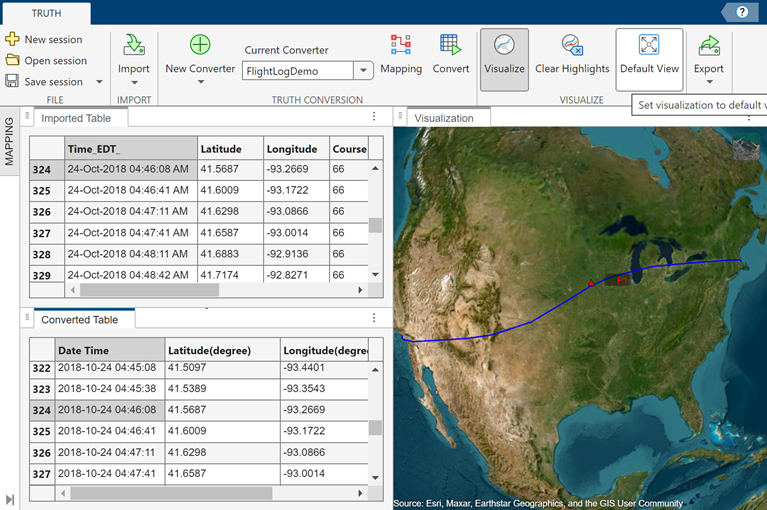

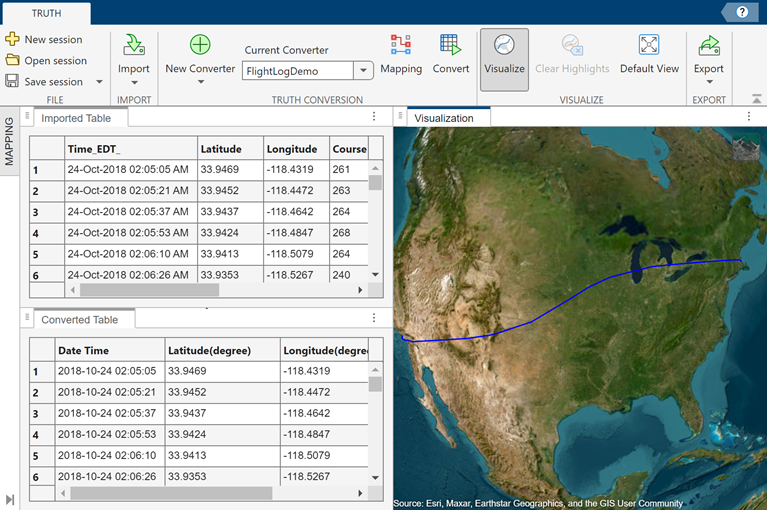

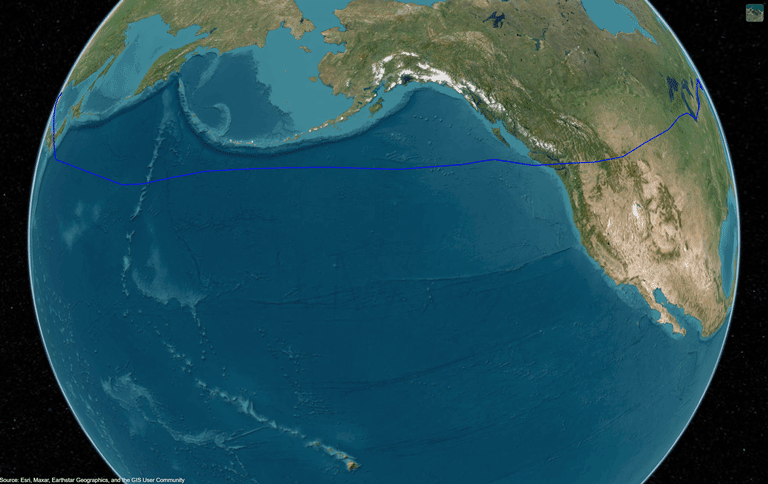

You can optionally visualize the converted table data on a globe. Click Visualize and the app displays the trajectory of interest. You can change the camera direction and height of the view by using your mouse. You can highlight data points by clicking any row in either the Imported Table or Converted Table.

Export Truth Data

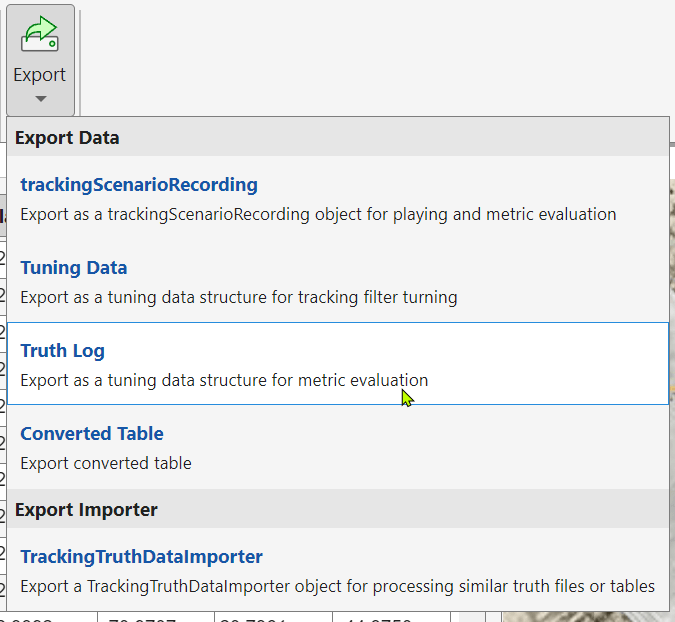

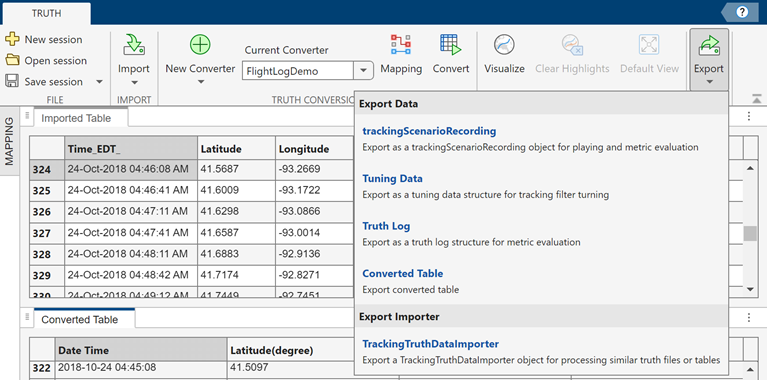

Once the data conversion is complete, the app enables the Export button on the toolstrip. Click the button and then select Truth Log. Follow the prompts to export the truth log to the workspace. For more information on the export options, see Export and Export Options.

Export TrackingTruthDataImporter Object

In addition, you can export a TrackingTruthDataImporter object that holds the core algorithms of the converter and mapping for processing tracking data belonging to the same format.

Loads a saved TrackingTruthDataImporter object and displays the object properties.

load truthImporterFile.mat;
truthImporter
truthImporter =
TrackingTruthDataImporter with configurations:

Converter Name: FlightLog1
Input File Format: spreadsheet
Input Data Information:
        Category:  Flight Log
      Frame Type:  Local NED

Elements and Mapping:
     State Element     Unit       Original Column     Unit(Format)
     -------------     ------     ---------------     -------------------------------------
     Date Time         sec        time                datetime string(dd-MMM-yyyy HH:mm:ss)
     Latitude          degree     latitude            degree
     Longitude         degree     longitude           degree
     Altitude          m          altitude            ft
     Speed             m/s        speed               mi/h
     Course            degree     course              degree
     Climb Rate        m/s        climbrate           ft/m

Output Data Information:
      Coordinate Type:  Cartesian
           Frame Type:  ECEF

Usage:
      trackingScenarioRecording:  Export as a trackingScenarioRecording object for playing and metric evaluation
                       truthlog:  Export as a tuning data structure for metric evaluation
                     tuningData:  Export as a tuning data structure for tracking filter turning
                 convertedTable:  Export converted table

Apply the truthImporter object to a different file, LAToBostonFlightLog.xlsx, to get a trackingScenarioRecording.

trackingScenarioRecording(truthImporter,"LAToBostonFlightLog.xlsx")
ans =
  trackingScenarioRecording with properties:

    RecordedData: [592×1 struct]
     CurrentTime: 0
     CurrentStep: 0

Related Examples

Parameters

Toolstrip Buttons

Import options

Import tracking data using one of these options:

  • Import from file — Use this option to import truth data directly from a XLSX, XLS, TXT, or CSV file.

  • Import from workspace — Use this option to import truth data from a table or timetable.

  • Import from file using MATLAB Import tool — Use the Import Tool to import custom data.

New converter options

Create new converter using one of these options:

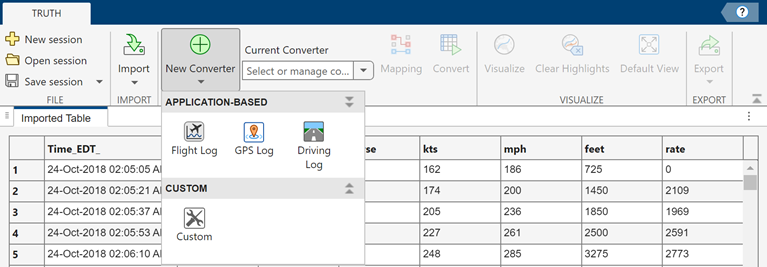

  • Flight Log — Create a converter to interpret a common flight log.

  • GPS Log — Create a converter to interpret a common GPS log.

  • Driving Log — Create a converter to interpret a driving log recorded from an ego vehicle.

  • Custom — Customize a converter by specifying the reference frame information of the imported truth data.

For more information on the converter options, see Converter Options.

Current converter options

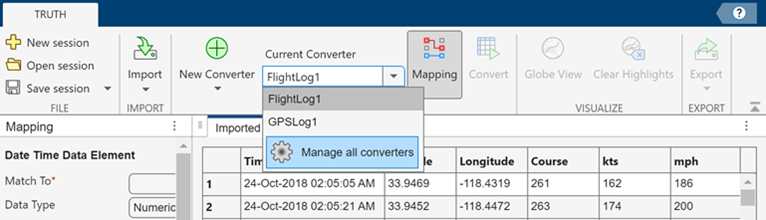

Switch between saved converters or manage all converters. Manage converters using one of these options:

  • Edit — Edit the Name, Model Option, or Time Option of an saved converter.

  • Duplicate — Duplicate a saved converter.

  • Delete — Delete a saved converter.

Mapping button

Display or close the Mapping pane.

Convert Button

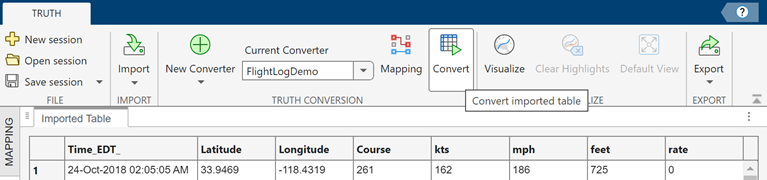

Convert imported data using the current converter.

Visualize button

Visualize truth data on a globe. The default view displays all trajectories. You can highlight specific data in three ways:

  • Clicking on any row in the Imported or Converted table highlights the corresponding data point by displaying a triangle or a mesh box for its position and its Platform ID on the trajectory.

  • Right-click any cell in the Date Time column of the converted table and choose Highlight all platform poses at this time. This action highlights all platforms at this time by displaying their positions and Platform IDs.

  • Right-click any cell in the Platform ID column of the converted table and choose Highlight trajectory for this platform. This action highlights the data points of this platform at all times by displaying its position and Platform ID.

Note

To visualize truth data, the data must be Earth referenced. For more information, see Reference frame.

Clear Highlights button

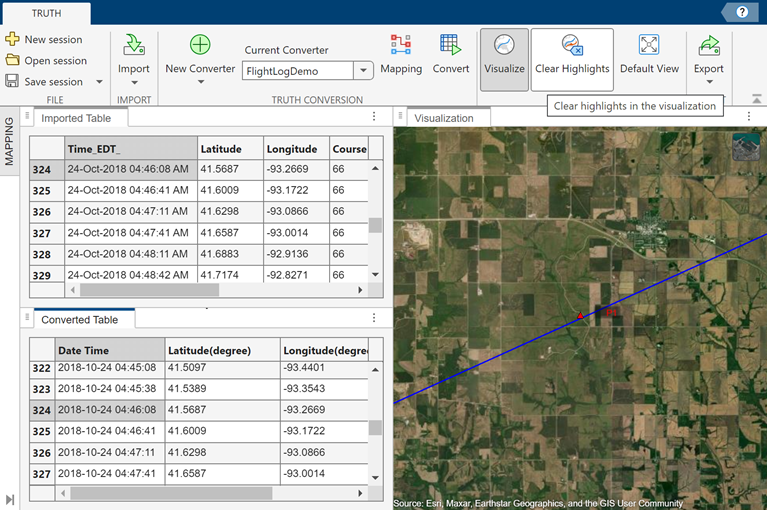

Clear highlights in the visualization by removing the position-indicating triangles or mesh boxes and the platform ID from the globe.

Default View button

Restore the default view that displays all trajectories on the globe.

Export button

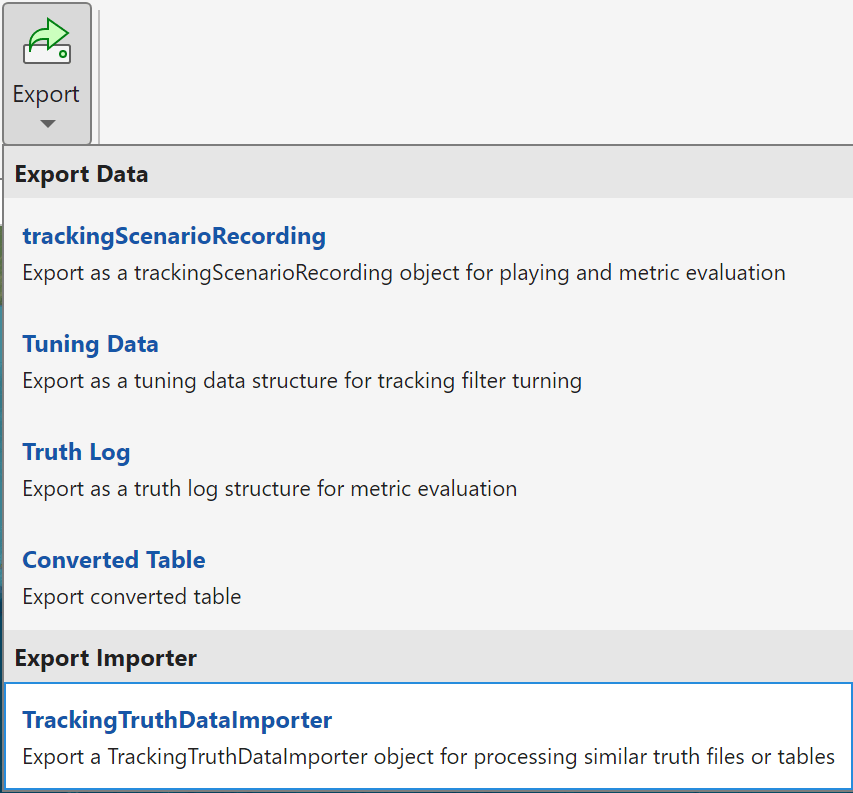

Export converted data or a TrackingTruthDataImporter object using one of these options:
