Compare Surrogate Optimization with Other Solvers

R2026b

This example compares surrogateopt to two other solvers: fmincon, the recommended solver for smooth problems, and patternsearch, the recommended solver for nonsmooth problems. The example uses a nonsmooth function on a two-dimensional region.

function [f, g] = nonSmoothFcn(x)
%NONSMOOTHFCN is a non-smooth objective function

%   Copyright 2005 The MathWorks, Inc.

for i = 1:size(x,1)
    if  x(i,1) < -7
        f(i) = (x(i,1))^2 + (x(i,2))^2 ;
    elseif x(i,1) < -3
        f(i) = -2*sin(x(i,1)) - (x(i,1)*x(i,2)^2)/10 + 15 ;
    elseif x(i,1) < 0
        f(i) = 0.5*x(i,1)^2 + 20 + abs(x(i,2))+ patho(x(i,:));
    elseif x(i,1) >= 0
        f(i) = .3*sqrt(x(i,1)) + 25 +abs(x(i,2)) + patho(x(i,:));
    end
end

%Calculate gradient
g = NaN;
if x(i,1) < -7
    g = 2*[x(i,1); x(i,2)];
elseif x(i,1) < -3
    g = [-2*cos(x(i,1))-(x(i,2)^2)/10; -x(i,1)*x(i,2)/5];
elseif x(i,1) < 0
    [fp,gp] = patho(x(i,:));
    if x(i,2) > 0
        g = [x(i,1)+gp(1); 1+gp(2)];
    elseif x(i,2) < 0
        g =  [x(i,1)+gp(1); -1+gp(2)];
    end
elseif x(i,1) >0
    [fp,gp] = patho(x(i,:));
    if x(i,2) > 0
        g = [.15/sqrt(x(i,1))+gp(1); 1+ gp(2)];
    elseif x(i,2) < 0
        g = [.15/sqrt(x(i,1))+gp(1); -1+ gp(2)];
    end
end

function [f,g] = patho(x)
Max = 500;
f = zeros(size(x,1),1);
g = zeros(size(x));
for k = 1:Max  %k
   arg = sin(pi*k^2*x)/(pi*k^2);
   f = f + sum(arg,2);
   g = g + cos(pi*k^2*x);
end
end
end

To get an idea of the function's behavior, plot the function.

mplier = 0.1; % Scale the control variable
Objfcn = @(x)nonSmoothFcn(mplier*x); % Handle to the objective function
range = [-6 6;-6 6]/mplier; % Range used to plot the objective function
rng default % Reset the global random number generator

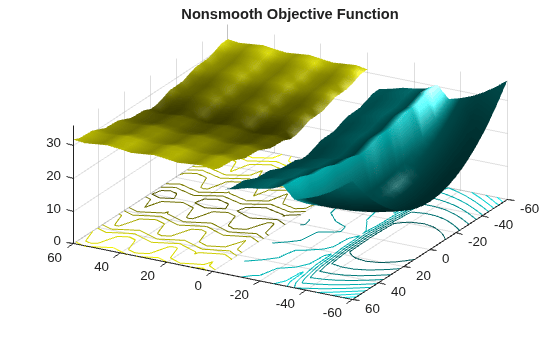

showNonSmoothFcn(Objfcn,range);
title("Nonsmooth Objective Function")
view(-151,44)

See how well surrogateopt does in locating the global minimum within the default number of iterations.

lb = -6*ones(1,2)/mplier;
ub = -lb;
[xs,fvals,eflags,outputs] = surrogateopt(Objfcn,lb,ub);

surrogateopt stopped because it exceeded the function evaluation limit set by
'options.MaxFunctionEvaluations'.

fprintf("Lowest found value = %g.\r",fvals)

Lowest found value = 13.

figure
showNonSmoothFcn(Objfcn,range);
view(-151,44)
hold on

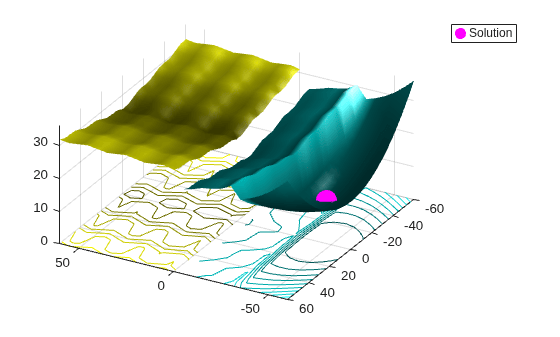

p1 = plot3(xs(1),xs(2),fvals,"om",MarkerSize=15,MarkerFaceColor="m");
legend(p1,"Solution")
hold off

Compare with patternsearch

Set patternsearch options to use the same number of function evaluations, starting from a random point within the bounds.

rng default
x0 = lb + rand(size(lb)).*(ub - lb);
optsps = optimoptions("patternsearch",MaxFunctionEvaluations=200,PlotFcn="psplotbestf");
[xps,fvalps,eflagps,outputps] = patternsearch(Objfcn,x0,[],[],[],[],lb,ub,[],optsps);

patternsearch stopped because the mesh size was less than options.MeshTolerance.

figure
showNonSmoothFcn(Objfcn,range);
view(-151,44)
hold on
p1 = plot3(x0(1),x0(2),Objfcn(x0),"ob",MarkerSize=12,MarkerFaceColor="b");
p2 = plot3(xps(1),xps(2),fvalps,"om",MarkerSize=15,MarkerFaceColor="m");
legend([p1,p2],["Start Point","Solution"])
hold off

patternsearch finds the same solution as surrogateopt.

Restrict the number of function evaluations and try again.

optsurr = optimoptions("surrogateopt",MaxFunctionEvaluations=40);
[xs,fvals,eflags,outputs] = surrogateopt(Objfcn,lb,ub,optsurr);

surrogateopt stopped because it exceeded the function evaluation limit set by
'options.MaxFunctionEvaluations'.

optsps.MaxFunctionEvaluations = 40;
[xps,fvalps,eflagps,outputps] = patternsearch(Objfcn,x0,[],[],[],[],lb,ub,[],optsps);

patternsearch stopped because it exceeded options.MaxFunctionEvaluations.

Again, both solvers find the global solution quickly.

Compare with fmincon

fmincon is efficient at finding a local solution near the start point. However, it can easily get stuck far from the global solution in a nonconvex or nonsmooth problem.

Set fmincon options to use a plot function, the same number of function evaluations as the previous solvers, and the same start point as patternsearch.

opts = optimoptions("fmincon",PlotFcn="optimplotfval",MaxFunctionEvaluations=200);
[fmsol,fmfval,eflag,fmoutput] = fmincon(Objfcn,x0,[],[],[],[],lb,ub,[],opts);

Local minimum possible. Constraints satisfied.

fmincon stopped because the size of the current step is less than
the value of the step size tolerance and constraints are
satisfied to within the value of the constraint tolerance.

<stopping criteria details>

figure
showNonSmoothFcn(Objfcn,range);
view(-151,44)
hold on
p1 = plot3(x0(1),x0(2),Objfcn(x0),"ob",MarkerSize=12,MarkerFaceColor="b");

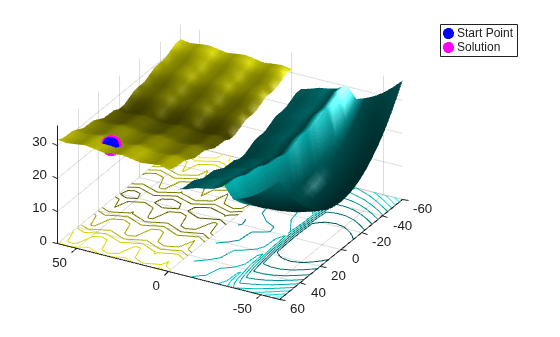

p2 = plot3(fmsol(1),fmsol(2),fmfval,"om",MarkerSize=15,MarkerFaceColor="m");
legend([p1,p2],["Start Point","Solution"])
hold off

fmincon is stuck in a local minimum near the start point.
