idinput
Generate input signals to support system identification
Syntax
Description
The idinput
command generates an
input signal with specified characteristics for your system. You can
use the generated input, and simulate the response of your system
to study system behavior. For example, you can study the system response
to periodic inputs. The system can be an actual physical system or
a model such as a Simulink® model. You can also design optimal
experiments. For example, you can determine which input signals isolate
faults or nonlinearities in your system. You can also use idinput
to
design an input that has sufficient bandwidth to excite the dynamic
range of your system.
[
specifies
the u
,freq
]
= idinput(___,'sine',Band
,Range
,SineData
)Type
as a sum-of-sinusoids signal and specifies
the characteristics of the sine waves used to generate the signal
in SineData
. You can specify characteristics
such as the number of sine waves and their frequency separation. The
frequencies of the sine waves are returned in freq
.
Examples
Generate a Random Binary Input Signal
Generate a single-channel random binary input signal with 200 samples.
N = 200; u = idinput(N);
u
is a column vector of length 200. The values in u
are either -1 or 1.
Create an iddata
object from the generated signal. For this example, specify the sample time as 1 second.
u = iddata([],u,1);
To examine the signal, plot it.
plot(u)

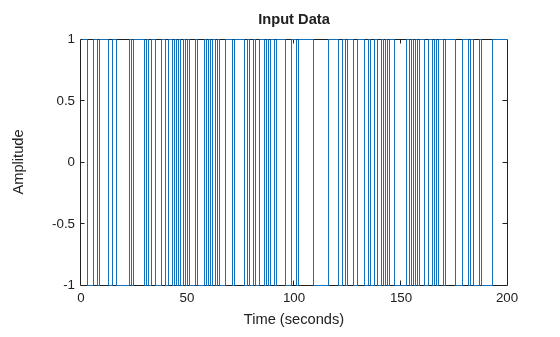

The generated signal is a random binary input signal with values -1 or 1. You can use the generated input signal to simulate the output of your system using the sim
command.
Generate a Multichannel Random Binary Input Signal
Generate a two-channel random binary input signal with 200 samples.
N = 200; u = idinput([N,2]);
u
is a 200-by-2 matrix with values -1 or 1.
Create an iddata
object from the generated signal. For this example, specify the sample time as 1 second.
u = iddata([],u,1);
Plot the signals for the two channels, and examine the signals.
plot(u)

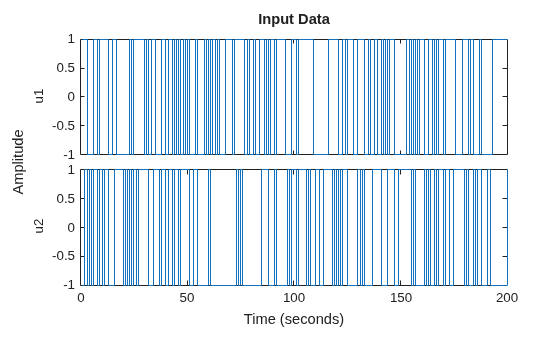

The plot shows the two generated random binary signals with values -1 or 1.
Generate a Periodic Random Binary Input Signal
Generate a single-channel periodic random binary input signal with a period of 10 samples and 5 periods in the signal.
NumChannel = 1; Period = 10; NumPeriod = 5; u = idinput([Period,NumChannel,NumPeriod]);
u
is a column vector of length 50 (= Period*NumPeriod). The values in u
are either -1 or 1.
Create an iddata
object from the generated signal. Specify the sample time as 1 second.
u = iddata([],u,1);
Plot the signal.
plot(u)

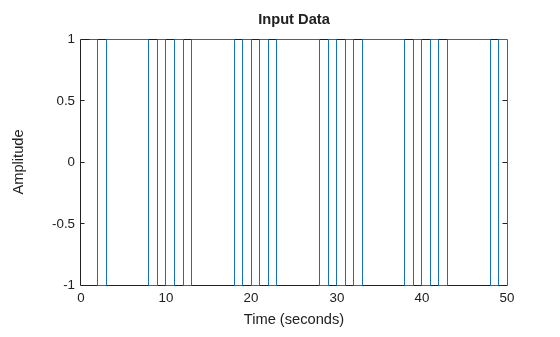

As specified, the generated single-channel periodic random binary input signal has a period of 10 seconds, and there are 5 whole periods in the signal.
Generate a Periodic Random Gaussian Input Signal in Specified Frequency Range
Generate a single-channel periodic random Gaussian input signal with a period of 50 samples and 5 periods in the signal. First generate the signal using the entire frequency range, then specify a passband.
NumChannel = 1;
Period = 50;
NumPeriod = 5;
u = idinput([Period,NumChannel,NumPeriod],'rgs');
u
is a column vector of length 250 (= Period*NumPeriod).
Create an iddata
object from the generated signal, and plot the signal. For this example, specify the sample time as 0.01 seconds.
u = iddata([],u,0.01); plot(u)

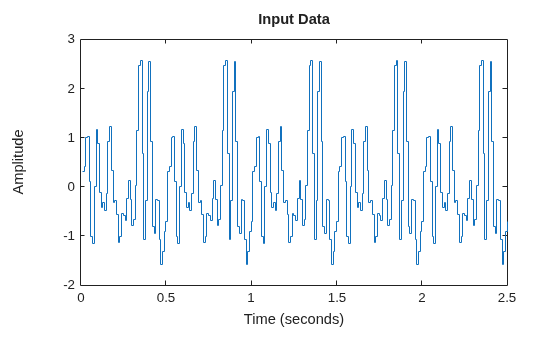

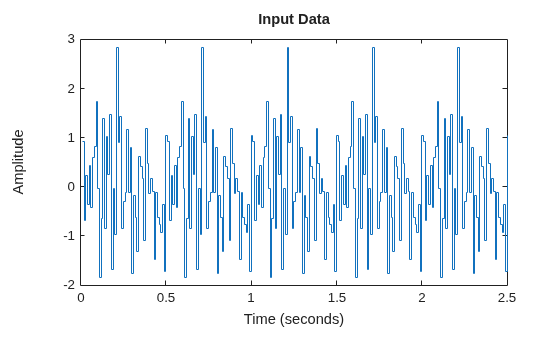

The plot shows that u
contains a random segment of 50 samples, repeated 5 times. The signal is a Gaussian white noise signal with zero mean and variance one.
Since the sample time is 0.01 seconds, the generated signal has a period of 0.5 seconds. The frequency content of the signal spans the entire available range (0-50 Hz).
Now specify a passband between 0 and 25 Hz ( = 0.5 times the Nyquist frequency).
Band = [0 0.5];
u2 = idinput([Period,NumChannel,NumPeriod],'rgs',Band);
Create an iddata
object, and plot the signal.
u2 = iddata([],u2,0.01); plot(u2)
The frequency content of the generated signal u2
is limited to 0-25 Hz.
Generate a Nonperiodic Pseudorandom Binary Input Signal
A pseudorandom binary input signal (PRBS) is a deterministic signal whose frequency properties mimic white noise. A PRBS is inherently periodic with a maximum period length of , where integer n is the order of the PRBS. For more information, see Pseudorandom Binary Signals.
Specify that the single-channel PRBS value switches between -2 and 2.
Range = [-2,2];
Specify the clock period of the signal as 1 sample. That is, the signal value can change at each time step. For PRBS signals, the clock period is specified in Band
= [0 B], where B
is the inverse of the required clock period.
Band = [0 1];
Generate a nonperiodic PRBS of length 100 samples.
u = idinput(100,'prbs',Band,Range);
Warning: The PRBS signal delivered is the 100 first values of a full sequence of length 127.
A PRBS is inherently periodic. To generate a nonperiodic signal, the software generates a maximum length PRBS of length 127 that has a period greater than the required number of samples, 100. The software returns the first 100 samples of the generated PRBS. This action ensures that the generated signal is not periodic, as indicated in the generated warning.
Create an iddata
object from the generated signal. For this example, specify the sample time as 1 second.
u = iddata([],u,1);
Plot, and examine the generated signal.
plot(u);
title('Non-Periodic Signal')

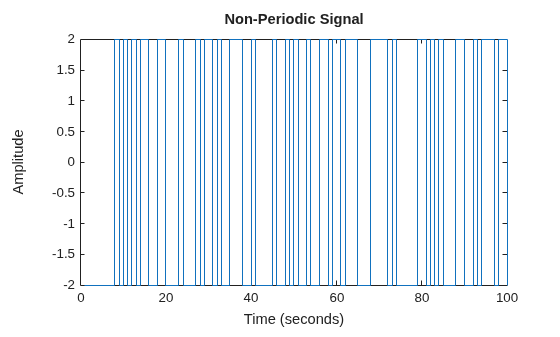

The generated signal is a nonperiodic PRBS of length 100 that switches between -2 and 2.
Generate a Periodic Pseudorandom Binary Input Signal
Specify that the pseudorandom binary input signal (PRBS) switches between -2 and 2.
Range = [-2,2];
Specify the clock period of the signal as 1 sample. That is, the signal value can change at each time step. For PRBS signals, the clock period is specified in Band
= [0 B], where B
is the inverse of the required clock period.
Band = [0 1];
Generate a single-channel, periodic PRBS with a period of 100 samples and 3 periods in the signal.
u1 = idinput([100,1,3],'prbs',Band,Range);
Warning: The period of the PRBS signal was changed to 63. Accordingly, the length of the generated signal will be 189.
A PRBS is inherently periodic with a maximum period length of , where integer n is the order of the PRBS. If the period you specify is not equal to a maximum length PRBS, the software adjusts the period of the generated signal to obtain an integer number of maximum length PRBS, and issues a warning. For more information about maximum length PRBS, see Pseudorandom Binary Signals. In this example, the desired period, 100, is not equal to a maximum length PRBS, thus the software instead generates a maximum length PRBS of order n = floor(log2(Period)) = 6
. Thus, the period of the PRBS signal is 63 ( = ), and the length of the generated signal is 189 (= NumPeriod
*63). This result is indicated in the generated warning.
Create an iddata
object from the generated signal, and plot the signal. Specify the period of the signal as 63 samples.
u1 = iddata([],u1,1,'Period',63); plot(u1) title('Periodic Signal')

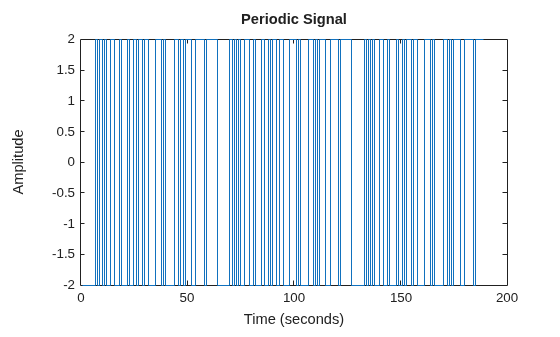

The generated signal is a periodic PRBS with three periods.
Generate Pseudorandom Binary Input Signal with Specified Clock Period
Generate periodic and nonperiodic pseudorandom binary input signals (PRBS) with specified clock period.
Generate a single-channel PRBS that switches between -2 and 2. Specify the clock period of the signal as 4 samples. That is, the signal has to stay constant for at least 4 consecutive samples before it can change. For PRBS signals, the clock period is specified in Band
= [0 B], where B
is the inverse of the required clock period.
Range = [-2,2]; Band = [0 1/4];
First generate a nonperiodic signal of length 100.
u1 = idinput(100,'prbs',Band,Range);
Warning: The PRBS signal delivered is the 100 first values of a full sequence of length 124.
To understand the generated warning, first note that the code is equivalent to generating a single-channel PRBS with a 100-sample period and 1 period.
u1 = idinput([100,1,1],'prbs',Band,Range);
The generated PRBS signal has to remain constant for at least 4 samples before the value can change. To satisfy this requirement, the software first computes the order of the smallest possible maximum length PRBS as n = floor(log2(Period*B)) = 4
and period . For information about maximum length PRBS, see Pseudorandom Binary Signals. The software then stretches this PRBS such that the period of the stretched signal is .
However, since this period is less than the specified length, 100, the software computes instead a maximum length PRBS of order m = n+1 = 5
. The software then stretches this PRBS such that the period is now . The software returns the first 100 samples of this signal as u1
. This result ensures that the generated signal is not periodic but is constant for every 4 samples.
Create an iddata
object from the generated signal. For this example, specify the sample time as 1 second.
u1 = iddata([],u1,1);
Plot, and examine the signal.
plot(u1);
title('Nonperiodic Signal')

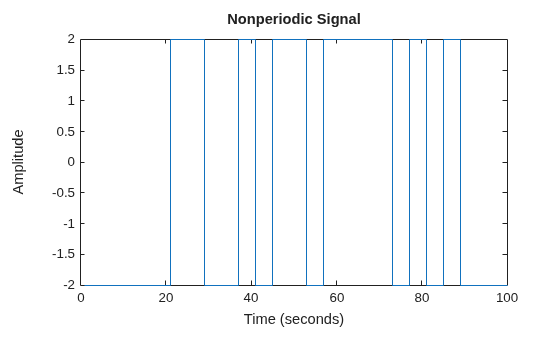

The generated signal is a nonperiodic PRBS of length 100. The signal remains constant for at least 4 samples before each change in value. Thus, the signal satisfies the clock period specified in Band
.
Now generate a periodic signal with a 100-sample period and 3 periods.
u2 = idinput([100,1,3],'prbs',Band,Range);
Warning: The period of the PRBS signal was changed to 60. Accordingly, the length of the generated signal will be 180.
To generate a periodic signal with specified clock period, the software generates u2
as 3 repetitions of the original stretched signal of period P = 60
. Thus, the length of u2
is P*NumPeriod = 60*3 = 180
. This change in period and length of the generated signal is indicated in the generated warning.
Create an iddata
object from the generated signal, and plot the signal. Specify the period of the signal as 60 seconds.
u2 = iddata([],u2,1,'Period',60); plot(u2) title('Periodic Signal')

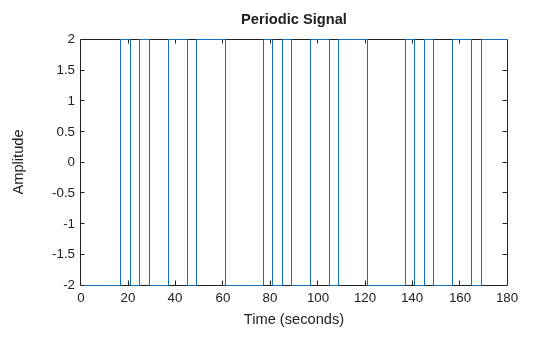

The generated signal is a periodic PRBS with a 60-second period and 3 periods. The signal remains constant for at least 4 samples before each change in value. Thus, the signal satisfies the specified clock period.
Generate a Sum-of-Sinusoids Signal
You can generate a sum-of-sinusoids signal using default characteristics for the sine waves. Alternatively, you configure the number of sine waves, and the frequencies and phases of the sine waves. This example shows both approaches.
Specify that the signal has 50 samples in each period and 3 periods. Also specify that the signal amplitude range is between -1 and 1.
Period = 50; NumPeriod = 3; Range = [-1 1];
Specify the frequency range of the signal. For a sum-of-sinusoids signal, you specify the lower and upper frequencies of the passband in fractions of the Nyquist frequency. In this example, use the entire frequency range between 0 and Nyquist frequency.
Band = [0 1];
First generate the signal using default characteristics for the sine waves. By default, the software uses 10 sine waves to generate the signal. The software assigns a random phase to each sinusoid, and then changes these phases 10 times to get the smallest signal spread. The signal spread is the difference between the minimum and the maximum value of the signal over all samples.
[u,freq] = idinput([Period 1 NumPeriod],'sine',Band,Range);
The software returns the sum-of-sinusoids signal in u
and the frequencies of the sinusoids in freq
. The values in freq
are scaled assuming that the sample time is 1 time unit. Suppose that the sample time is 0.01 hours. To retrieve the actual frequencies in rad/hours, divide the values by the sample time.
Ts = 0.01; % Sample time in hours
freq = freq/Ts;
freq(1)
ans = 12.5664
freq(1)
is the frequency of the first sine wave. To see how the software chooses the frequencies, see the SineData
argument description on the idinput
reference page.
To verify that 10 sine waves were used to generate the signal, you can view the frequency content of the signal. Perform a Fourier transform of the signal, and plot the single-sided amplitude spectrum of the signal.
ufft = fft(u); Fs = 2*pi/Ts; % Sampling frequency in rad/hour L = length(u); w = (0:L-1)*Fs/L; stem(w(1:L/2),abs(ufft(1:L/2))) % Plot until Nyquist frequency title('Single-Sided Amplitude Spectrum of u(t)') xlabel('Frequency (rad/hour)') ylabel('Amplitude')

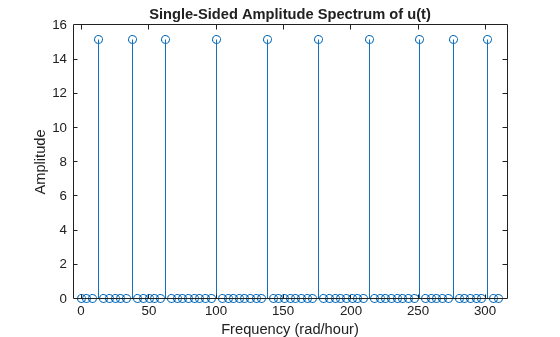

The generated plot shows the frequencies of the 10 sine waves used to generate the signal. For example, the plot shows that the first sine wave has a frequency of 12.57 rad/hour, the same as freq(1)
.
Convert the generated signal into an iddata
object, and plot the signal. Specify the sample time as 0.01 hours.
u = iddata([],u,Ts,'TimeUnit','hours'); plot(u)

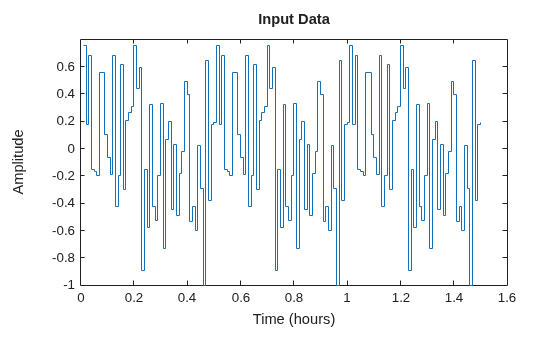

The signal u
is generated using 10 sinusoids and has a period of 0.5 hours and 3 periods.
Now modify the number, frequency, and phase of the sinusoids that are used to generate the sum-of-sinusoids signal. Use 12 sinusoids and try 15 different sets of phases. To set the frequencies of the sinusoids, specify GridSkip
= 2. The software selects the frequencies of the sinusoids from the intersection of the frequency grid 2*pi*[1:GridSkip:fix(Period/2)]/Period
and the passband pi*Band
.
NumSinusoids = 12;
NumTrials = 15;
GridSkip = 2;
SineData = [NumSinusoids,NumTrials,GridSkip];
u2 = idinput([Period 1 NumPeriod],'sine',Band,Range,SineData);
Convert the generated signal into an iddata
object, and plot the signal.
u2 = iddata([],u2,Ts,'TimeUnit','hours'); plot(u2)

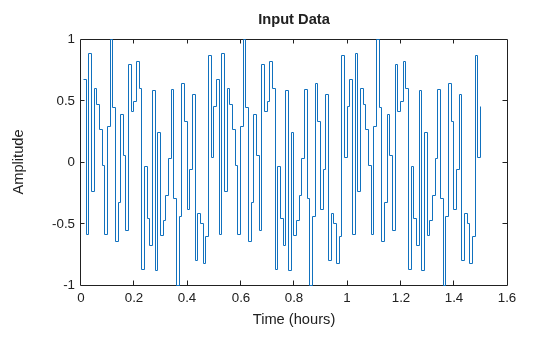

The signal u2
is generated using 12 sinusoids and has a period of 0.5 hours and 3 periods.
Input Arguments
N
— Number of generated input data samples
real positive integer
Nu
— Number of input channels
1
(default) | real positive integer
Number of input channels in generated signal, specified as a real positive integer.
Period
— Number of samples in each period
real positive integer
Number of samples in each period of generated signal, specified
as a real positive integer. Use this input to specify a periodic signal.
Also specify the number of periods in NumPeriod
.
Each generated input channel signal has NumPeriod*Period
samples.
NumPeriod
— Number of periods in generated signal
1
(default) | real positive integer
Number of periods in generated signal, specified as a real positive
integer. Use this input to specify a periodic signal. Also specify
the signal Period
. Each generated input channel
signal has NumPeriod*Period
samples.
Type
— Type of generated signal
'rbs'
(default) | 'rgs'
| 'prbs'
| 'sine'
Type of generated signal, specified as one of the following values:
'rbs'
— Generates a random binary signal. A random binary signal is a random process that assumes only two values. You can specify these values usingRange
. To generate a band-limited signal, specify the passband inBand
. To generate a periodic signal, specifyPeriod
andNumPeriod
.'rgs'
— Generates a random Gaussian signal. The generated Gaussian signal has mean μ and standard deviation σ such that [μ-σ, μ+σ] equalsRange
. To generate a band-limited Gaussian signal, specify the passband inBand
. To generate a periodic Gaussian signal with ann
samples period that repeats itselfm
times, specifyPeriod
asn
andNumPeriod
asm
.'prbs'
— Generates a pseudorandom binary signal (PRBS). A PRBS is a periodic, deterministic signal with white-noise-like properties that shifts between two values. You can specify these two values usingRange
. You can also specify the clock period, the minimum number of sampling intervals for which the value of the signal does not change. You specify the inverse of the clock period inBand
.The length of the generated signal is not always the same as what you specify. The length depends on whether you require a periodic or nonperiodic signal and also on the clock period you specify. For more information, see Pseudorandom Binary Signals.
'sine'
— Generates a signal that is a sum-of-sinusoids. The software selects the frequencies of the sinusoids to be equally spread over a chosen grid and assigns each sinusoid a random phase. The software then tries several random phases for each sinusoid and selects the phases that give the smallest signal spread. The signal spread is the difference between the minimum and the maximum value of the signal over all samples. The amplitude of the generated sum-of-sinusoids signal is scaled to satisfy theRange
you specify.You can specify the characteristics of the sine waves used to generate the signal, such as the number of sine waves and their frequency separation, in the
SineData
argument.
Band
— Frequency range of generated signal
[0 1]
(default) | 1-by-2 row vector
Frequency range of generated signal, specified as a 1-by-2 row vector containing minimum and maximum frequency values.
If
Type
is'rgs'
,'rbs'
, or'sine'
— SpecifyBand
as a passband[wlow whigh]
. Where,wlow
andwhigh
are the lower and upper frequencies of the passband, expressed in fractions of the Nyquist frequency. For example, to generate an input with white noise characteristics, useBand = [0 1]
.The software achieves the frequency contents for a random Gaussian signal (
'rgs'
) usingidfilt
with an eighth-order Butterworth, noncausal filter. For generating a random binary signal ('rbs'
), the software uses the same filter and then makes the signal binary. Thus, the frequency content in the generated random binary signal may not match the specified passband.For
'sine'
signals, the frequencies of the sinusoids are selected to be equally spread over a chosen grid in the specified passband. For more information, see theSineData
argument description.If
Type
is'prbs'
— SpecifyBand
as[0 B]
, whereB
is the inverse of the clock period of the signal. The clock period is the minimum number of sampling intervals for which the value of the signal does not change. Thus, the generated signal is constant over intervals of length1/B
samples. If1/B
is not an integer, the software usesfloor(1/B)
as the clock period.
Range
— Generated input signal range
[-1,1]
(default) | two-element row vector
Generated input signal range, specified as a two-element row
vector of the form [umin,umax]
.
If
Type
is'rbs'
or'prbs'
— The generated signalu
has valuesumin
orumax
.If
Type
is'sine'
— The generated signalu
has values betweenumin
andumax
.If
Type
is'rgs'
— The generated Gaussian signal has mean μ and standard deviation σ such thatumin
andumax
are equal to μ-σ and μ+σ, respectively. For example,Range = [-1,1]
returns a Gaussian white noise signal with zero mean and variance one.
SineData
— Characterization of sinusoids
[10,10,1]
(default) | three-element row vector [NumSinusoids,NumTrials,GridSkip]
Characterization of sinusoids used to generate a sum-of-sinusoids
signal, specified as a three-element row vector [NumSinusoids,NumTrials,GridSkip]
.
Where,
NumSinusoids
is the number of sinusoids used to generate the signal. The default value is10
.NumTrials
is the number of different random relative phases of the sinusoids that the software tries to find the lowest signal spread. The signal spread is the difference between the minimum and the maximum value of the signal over all samples.The maximum amplitude of the sum-of-sinusoids signal depends on the relative phases of the different sinusoids. To find the phases that give the smallest signal spread, the software tries
NumTrials
different random choices of phases to find the best phase values. For example, suppose thatNumSinusoids
is20
andNumTrials
is5
. The software tries 5 different sets of relative phases for the 20 sinusoids, and selects the phases that give the smallest signal spread. The default value forNumTrials
is10
.GridSkip
is used to characterize the frequency of the sinusoids. The software selects the frequency of the sinusoids from the intersection of the frequency grid2*pi*[1:GridSkip:fix(Period/2)]/Period
and the pass bandpi*[Band(1) Band(2)]
. For multichannel input signals, the software uses different frequencies from this frequency grid to generate the different input channels. You can useGridSkip
for controlling odd and even frequency multiples, for example, to detect nonlinearities of different kinds.To extract the frequencies
freq
that are selected by the software to generate the signal, use the following syntax.[u,freq] = idinput(__)
Output Arguments
u
— Generated input signal
column vector | matrix
Generated input signal, returned as a column vector of length N
for
a single-channel input or an N
-by-Nu
matrix
for an Nu
-channel signal. You use the generated
signal to simulate the response of your system using sim
.
You can create an iddata
object
from u
by specifying output data as []
.
u = iddata([],u);
In the iddata
object, you can also specify
the properties of the signal such as sample time, input names, and
periodicity.
freq
— Frequencies of sine waves
column vector | matrix
Frequencies of sine waves used for sum-of-sinusoids signal,
returned as a column vector of length equal to the number of sinusoids, NumSinusoids
.
You specify NumSinusoids
in the SineData
argument.
The frequency values are scaled assuming the sample time is 1 time
unit. To retrieve the actual frequencies, divide the values by the
sample time. For an example, see Generate a Sum-of-Sinusoids Signal.
For multichannel input signals, freq
is
an Nu
-by-NumSinusoids
matrix
where the kth row contains the frequencies corresponding
to the kth channel. For information about how the
software selects the frequencies, see the SineData
argument
description.
More About
Pseudorandom Binary Signals
A pseudorandom binary signal (PRBS) is a periodic, deterministic signal with white-noise-like properties that shifts between two values.
A PRBS is generated as:
Here, is
the vector of past inputs, n is the PRBS order,
and rem
denotes the remainder when is
divided by 2. Thus, a PRBS can only take the values 0 and 1. The software
scales these values according to the Range
you
specify. In addition, the vector of past inputs can
only take 2n
values.
Out of these values, the state with all zeros is ignored because it
will result in future signals equal to zero. Thus, a PRBS is an inherently
periodic signal with a maximum period length of 2n-1
.
The following table lists the maximum length possible for different
orders n of the PRBS.
Order n | Maximum length PRBS (2n-1 ) |
---|---|
2 | 3 |
3 | 7 |
4 | 15 |
5 | 31 |
6 | 63 |
7 | 127 |
⋮ | ⋮ |
32 | 4294967295 |
Note
The software does not generate signals with period greater than
232-1
.
Since PRBS are inherently periodic, the length and period of
the generated signal depends on the clock period that you specify
and whether you require a periodic or nonperiodic signal. The clock
period is the minimum number of sampling intervals for which the value
of the signal does not change. You specify the clock period in Band
.
Clock period = 1 sample (Band = [0 B] = [0
1]
):
To generate a nonperiodic signal of length
N
, (NumPeriod
= 1), the software first computes a maximum length PRBS with a period greater thanN
. The software then returns the firstN
samples of the PRBS asu
. This action ensures thatu
is not periodic. For example, ifN
is 100, the software creates a maximum length PRBS of period 127 (order 7), and returns the first 100 samples asu
.For an example, see Generate a Nonperiodic Pseudorandom Binary Input Signal.
To generate a periodic signal (
NumPeriod
> 1), the software adjusts the period of the signal to obtain an integer number of maximum length PRBS. To do so, the software computes a PRBS of ordern = floor(log2(Period))
and periodP = 2n-1
. The signalu
is then generated asNumPeriod
repetitions of this PRBS signal of periodP
. Thus, the length ofu
isP*NumPeriod
.For an example, see Generate a Periodic Pseudorandom Binary Input Signal.
In the multiple-input channel case, the signals are maximally shifted. That is, the overlap between the different inputs is minimized. This means
Period/NumPeriod
is an upper bound for the model orders that you can estimate using such a signal.
Clock period > 1 sample (Band = [0 B],
where B<1
):
The generated signal has to remain constant for at least 1/B
samples.
To satisfy this requirement, the software first computes the order
of the smallest possible maximum length PRBS as n = floor(log2(Period*B))
and
period 2n-1
. The software
then stretches the PRBS such that period of the stretched signal is P
= B-1(2n-1)
.
To generate a nonperiodic signal of length
N
, if the periodP
of the stretched signal is greater than or equal toN
, the software returns the firstN
samples of the stretched signal asu
. This ensures thatu
is nonperiodic but constant for every1/B
samples. Note that for a nonperiodic signal,Period
is equal toN
.If the period
P
is less thanN
, the software computes instead a maximum length PRBS of ordern2 = n+1
. The software then stretches this PRBS such that the period is nowP2 = B-1(2n2-1)
. The software then returns the firstN
samples of this signal asu
.To generate a periodic signal, the software generates
u
asNumPeriod
repetitions of the stretched signal of periodP
. Thus, the length ofu
isP*NumPeriod
.
For an example, see Generate Pseudorandom Binary Input Signal with Specified Clock Period.
References
[1] Söderström, T. and P. Stoica., Chapter C5.3 in System Identification, Prentice Hall, 1989.
[2] Ljung, L., Section 13.3 in System Identification: Theory for the User, Prentice Hall PTR, 1999.
Version History
Introduced before R2006a
Comando de MATLAB
Ha hecho clic en un enlace que corresponde a este comando de MATLAB:
Ejecute el comando introduciéndolo en la ventana de comandos de MATLAB. Los navegadores web no admiten comandos de MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
