imshowpair

Compare differences between images

Syntax

obj = imshowpair(A,B)

obj = imshowpair(A,RA,B,RB)

obj = imshowpair(___,method)

obj = imshowpair(___,Name,Value)

Description

obj = imshowpair(A,B) creates a composite RGB image showing A and B overlaid in different color bands. To choose another type of visualization of the two images, use the method argument. If A and B are different sizes, imshowpair pads the smaller dimensions with zeros on the bottom and right edges so that the two images are the same size. By default, imshowpair scales the intensity values of A and B independently from each other. imshowpair returns obj, an image object.

obj = imshowpair(A,RA,B,RB) displays the differences between images A and B, using the spatial referencing information provided in RA and RB. RA and RB are spatial referencing objects.

obj = imshowpair(___,method) uses the visualization method specified by method.

obj = imshowpair(___,Name,Value) specifies additional options with one or more Name,Value pair arguments, using any of the previous syntaxes.

Examples

Display Two Images That Differ by Rotation Offset

Display a pair of grayscale images with two different visualization methods, 'diff' and 'blend'.

Load an image into the workspace. Create a copy with a rotation offset applied.

A = imread('cameraman.tif');
B = imrotate(A,5,'bicubic','crop');

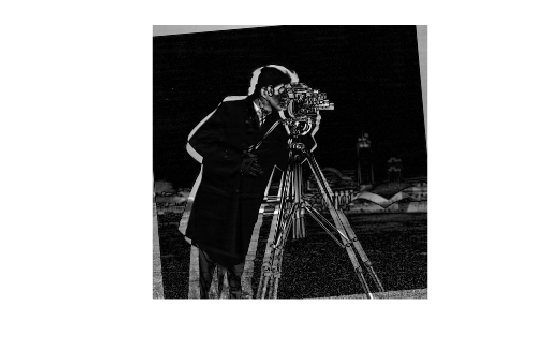

Display the difference of A and B.

imshowpair(A,B,'diff')

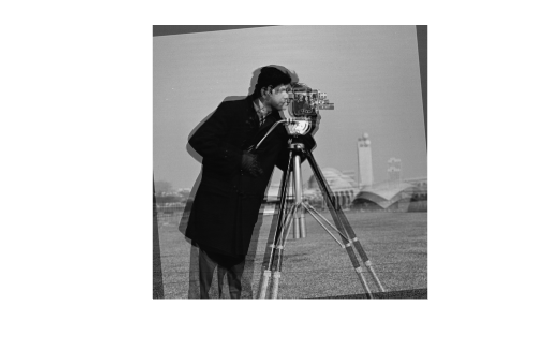

Display a blended overlay of A and B.

figure
imshowpair(A,B,'blend','Scaling','joint')

Display Two Spatially Referenced Images with Different Brightness Ranges

Read an image. Create a copy and apply rotation and a brightness adjustment.

A = dicomread('CT-MONO2-16-ankle.dcm');
B = imrotate(A,10,'bicubic','crop');
B = B * 0.2;

In this example, we know that the resolution of images A and B is 0.2mm. Provide this information using two spatial referencing objects.

RA = imref2d(size(A),0.2,0.2);
RB = imref2d(size(B),0.2,0.2);

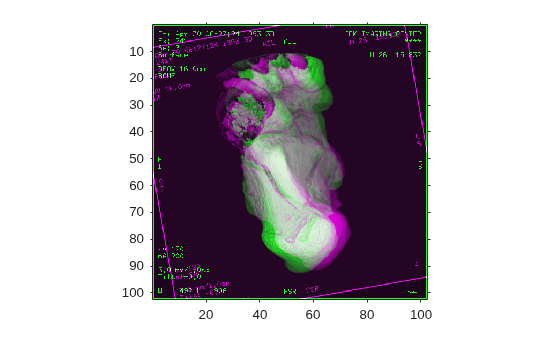

Display the images with the default method ('falsecolor') and apply brightness scaling independently to each image. Specify the axes that will be the parent of the image object created by imshowpair.

figure;
hAx = axes;
imshowpair(A,RA,B,RB,'Scaling','independent','Parent',hAx);

Input Arguments

A — Image to be displayed

grayscale image | truecolor image | binary image

Image to be displayed, specified as a grayscale, truecolor, or binary image.

B — Image to be displayed

grayscale image | truecolor image | binary image

Image to be displayed, specified as a grayscale, truecolor, or binary image.

RA — Spatial referencing information about an input image

spatial referencing object

Spatial referencing information about an input image, specified as spatial referencing object, of class imref2d.

RB — Spatial referencing information about an input image

spatial referencing object

Spatial referencing information about an input image, specified as spatial referencing object, of class imref2d.

method — Visualization method to display combined images

'falsecolor' (default) | 'blend' | 'diff' | 'montage'

Visualization method to display combined images, specified as one of the following values.

Value	Description
'falsecolor'	Creates a composite RGB image showing A and B overlaid in different color bands. Gray regions in the composite image show where the two images have the same intensities. Magenta and green regions show where the intensities are different. This is the default method.
'blend'	Overlays A and B using alpha blending.
'checkerboard'	Creates an image with alternating rectangular regions from A and B.
'diff'	Creates a difference image from A and B.
'montage'	Places A and B next to each other in the same image.

Data Types: char | string

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'Scaling','joint' scales the intensity values of A and B together as a single data set.

ColorChannels — Output color channel for each input image

'green-magenta' (default) | [R G B] | 'red-cyan'

Output color channel for each input image, specified as one of the following values:

[R G B]	A three element vector that specifies which image to assign to the red, green, and blue channels. The R, G, and B values must be 1 (for the first input image), 2 (for the second input image), and 0 (for neither image).
'red-cyan'	A shortcut for the vector [1 2 2], which is suitable for red/cyan stereo anaglyphs.
'green-magenta'	A shortcut for the vector [2 1 2], which is a high contrast option, ideal for people with many kinds of color blindness.

Interpolation — Interpolation technique

'nearest' (default) | 'bilinear'

Interpolation technique used when scaling an image, specified as the comma-separated pair consisting of 'Interpolation' and one of the following values.

Value	Description
'nearest'	Nearest neighbor interpolation (default)
'bilinear'	Bilinear interpolation

Parent — Parent of image object

axes object

Parent of image object created by imshowpair, specified as an axes object.

Scaling — Intensity scaling option

'independent' (default) | 'joint' | 'none'

Intensity scaling option, specified as one of the following values.

'independent'	Scales the intensity values of A and B independently from each other.
'joint'	Scales the intensity values in the images jointly as if they were together in the same image. This option is useful when you want to visualize registrations of monomodal images, where one image contains fill values that are outside the dynamic range of the other image.
'none'	No additional scaling.

Data Types: char | string

Output Arguments

obj — Visualization of two images

image object

Visualization of two images, returned as an image object.

Tips

• Use imfuse to create composite visualizations that you can save to a file. Use imshowpair to display composite visualizations to the screen.

Version History

Introduced in R2012a
