Controladores plug&play IVI y VXI

Comunicarse con instrumentos que utilizan un controlador IVI^® o VXIplug&play

Conéctese y comuníquese con instrumentos, incluidos osciloscopios, generadores de funciones, generadores de señales y analizadores de espectro, utilizando controladores IVI y VXIplug&play estándar de la industria de proveedores de instrumentos como Keysight^® y Tektronix^®. El soporte para estos controladores está disponible a través del Instrument Control Toolbox™ Paquete de soporte para controladores IVI y VXIplug&play.

Funciones

expandir todo

Descubra y conéctese a los instrumentos

`ividriverlist`	List installed IVI-C and VXIplug&play drivers (desde R2022a)
`ividevlist`	List physically connected IVI-C and VXIplug&play instruments (desde R2022a)
`ividev`	Instrument connection using MATLAB driver (desde R2022a)

Configurar el almacén de configuración IVI

`iviconfigurationstore`	Create IVI configuration store object
`add`	Add entry to IVI configuration store object
`commit`	Save IVI configuration store object to data file
`remove`	Remove entry from IVI configuration store object
`update`	Update entry of IVI configuration store object

Apps

Instrument Explorer

Connect to and communicate with instruments using MATLAB driver (desde R2024a)

Temas

Install Instrument Control Toolbox Support Package for IVI and VXIplug&play Drivers
Install required software and install Instrument Control Toolbox Support Package for IVI and VXIplug&play Drivers.
Use IVI-C Class-Compliant Drivers
Use IVI-C class-compliant MATLAB^® drivers to interface with MATLAB for instruments running on IVI-C class-compliant drivers.
Use NI-RFSA and NI-RFSG Instrument Drivers
Use NI-RFSA and NI-RFSG MATLAB drivers to interface with MATLAB for VST, VSA, and VSG instruments.
Supported IVI Drivers
Use these IVI drivers from the Instrument Control Toolbox Support Package for IVI and VXIplug&play Drivers.
Transition Your Code to ividev Interface
Connect to an IVI instrument using ividev instead of icdevice.
IVI Drivers Overview
Communicate with instruments using Interchangeable Virtual Instrument (IVI) drivers and IVI-C drivers, provided by various instrument manufacturers.
IVI Configuration Store
Examine and configure your IVI configuration store.

Solución de problemas

Troubleshooting IVI and Quick-Control Interfaces

Try these tips if you have problems using the toolbox with the IVI and Quick-Control interfaces. Includes information about supported platforms, adaptor requirements, configuration and connection, and other interface-specific tips.

Ejemplos destacados

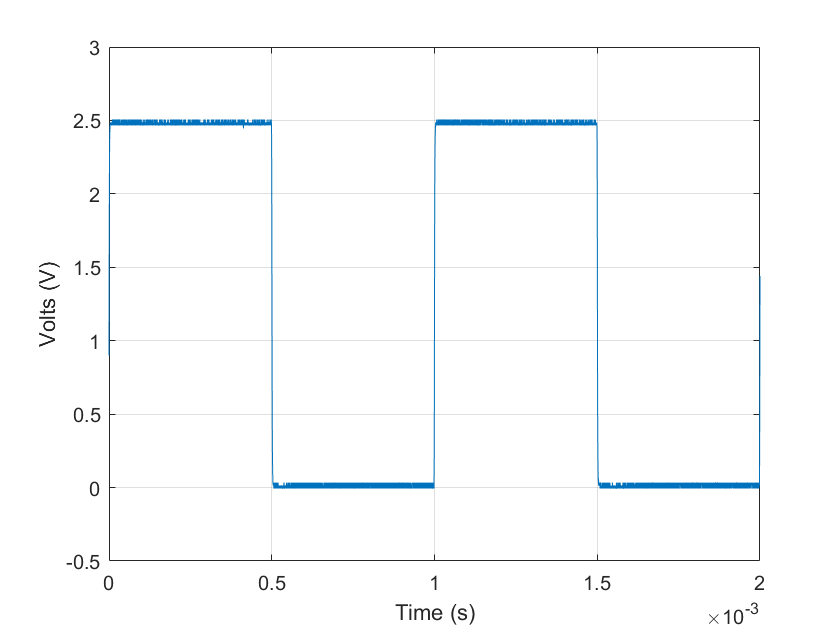

Read Waveform Data from Keysight DSO-X 1204A Oscilloscope Using IVI-C Driver

Use the AgInfiniiVision driver to acquire waveform data from an oscilloscope and output the result.

Abrir script en vivo

Generate AM Waveforms on Keysight 3352x Waveform Generator Using IVI-C Driver

Use the Ag3352x driver to generate waveforms with a waveform generator and output the result.

Abrir script en vivo

Configure Output Signal on Keysight RF Signal Generator Using IVI-C Driver

Use the AgRfSigGen driver to configure an output signal with a signal generator and output the result.

Abrir script en vivo

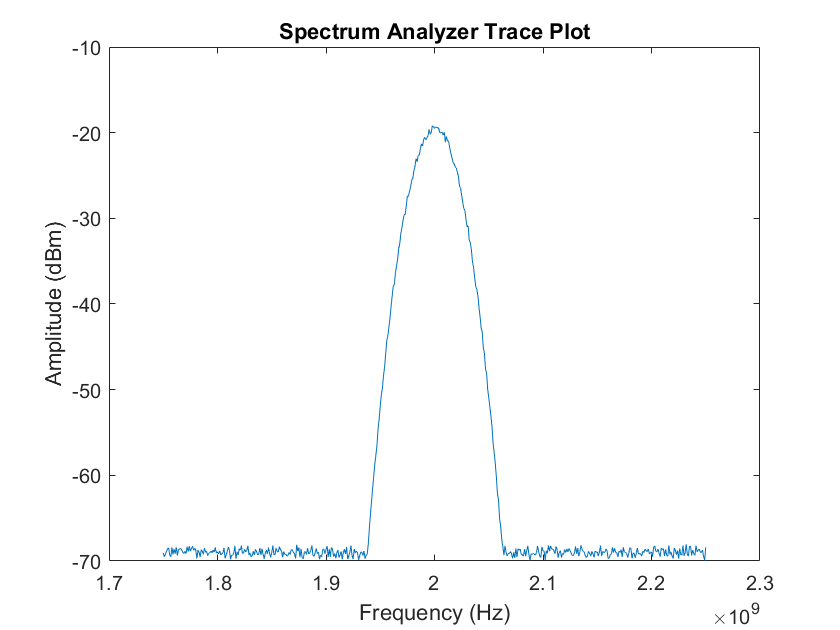

Acquire Signal Spectrum on Rohde & Schwarz Spectrum Analyzer Using IVI-C Driver

Use the rsspecan driver to acquire a signal spectrum from a spectrum analyzer and visualize it in MATLAB.

Abrir script en vivo

Set Output Voltage and Make Measurements on Keysight AC6801A Power Supply Using IVI-C Driver

Use the AgAC6800 driver to make measurements from an AC power supply and output the result.

Abrir script en vivo

Set Output Voltage and Make Measurements from Keysight AgE3633A DC Power Supply Using IVI-C Driver

Use the AgE36xx driver to make measurements from a DC power supply and output the results.

Abrir script en vivo

Read Waveforms from Keysight L4534A Digitizer Using IVI-C Driver

Use the agl453xdni driver to acquire a waveform from a digitzer and visualize it in MATLAB.

Abrir script en vivo

Measure AC Voltage on Keysight 34460A Digital Multimeter Using IVI-C Driver

Use the Ag3446x driver to measure AC voltage from a digital multimeter and output the result.

Abrir script en vivo

Fetch Waveform Through NI-SCOPE MATLAB Instrument Driver in Simulation Mode

Use the niScope driver to acquire digital waveforms from an oscilloscope and visualize them in MATLAB.

Abrir script en vivo

Generate Sine Wave Using NI-FGEN Instrument Driver

Use the NIFGEN driver to generate a sine wave on a function generator.

Abrir script en vivo

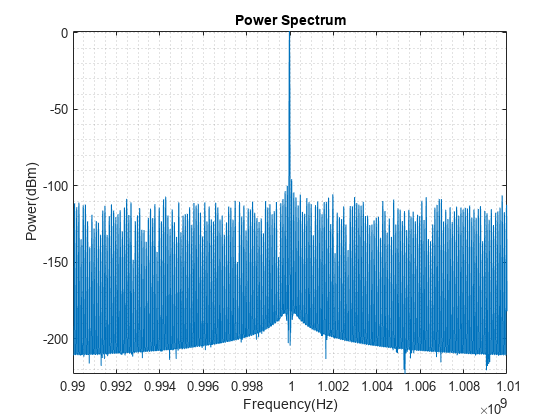

Acquire Spectral Data from Vector Signal Transceiver Using NI-RFSA Instrument Driver

Connect to a simulated NI PXIe-5841 Vector Signal Transceiver and acquire a finite amount of spectral data from it.

Abrir script en vivo

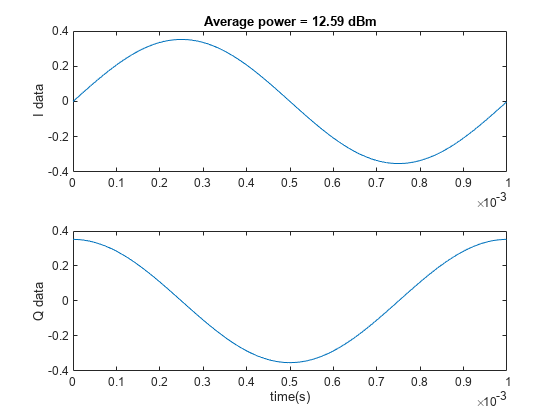

Acquire I/Q Data from Vector Signal Transceiver Using NI-RFSA Instrument Driver

Connect to a simulated NI PXIe-5841 Vector Signal Transceiver and acquire a finite amount of I/Q data from it.

Abrir script en vivo

Generate I/Q Data from Vector Signal Transceiver Using NI-RFSG Instrument Driver

Connect to a simulated NI PXIe-5841 Vector Signal Transceiver and use it to generate a finite amount of I/Q data.

Abrir script en vivo

Generate I/Q Data from Vector Signal Transceiver Using NI-RFSG Scripting

Connect to a simulated NI PXIe-5841 Vector Signal Transceiver and use it to generate I/Q data using NI-RFSG scripts.

Abrir script en vivo

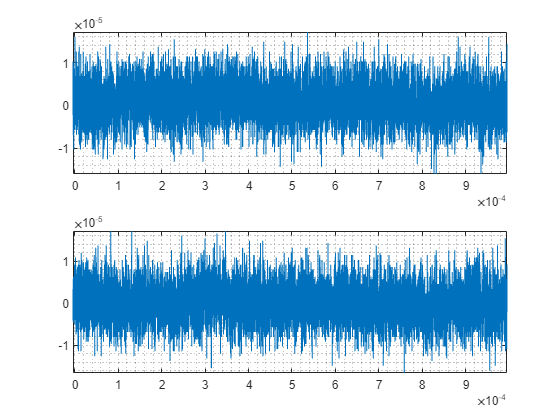

Acquire Parameterized I/Q Data from Vector Signal Transceiver by Parameter Sweeping

Connect to a simulated NI PXIe-5841 Vector Signal Transceiver and configure it to return a list of time-triggered frequency and power sweeps.

Abrir script en vivo

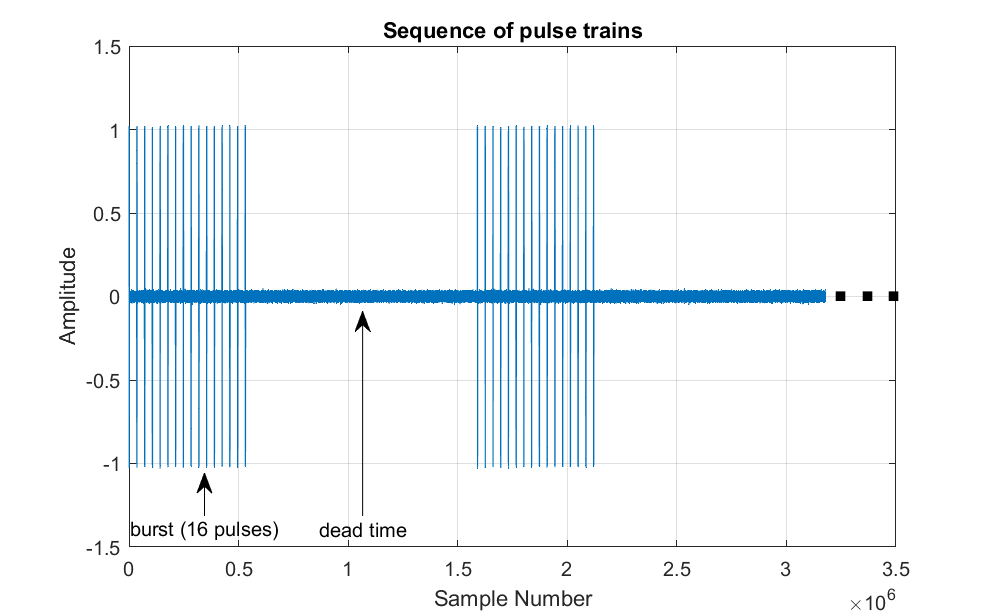

Getting Started with Radar Signal Generation Using NI-RFSG Scripting

Generate a realistic pulse train using an NI-VST.

Abrir script en vivo
