Parula colormap array
c = parula returns the parula colormap as a three-column array with the
same number of rows as the colormap for the current figure. If no figure exists,
then the number of rows is equal to the default length of 256. Each row in the array
contains the red, green, and blue intensities for a specific color. The intensities
are in the range [0,1], and the color scheme looks like this image.

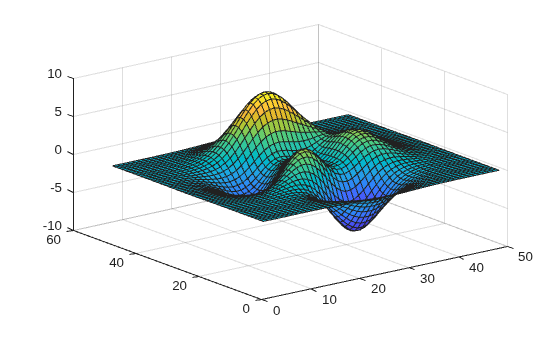

Plot a surface with the default parula colormap.

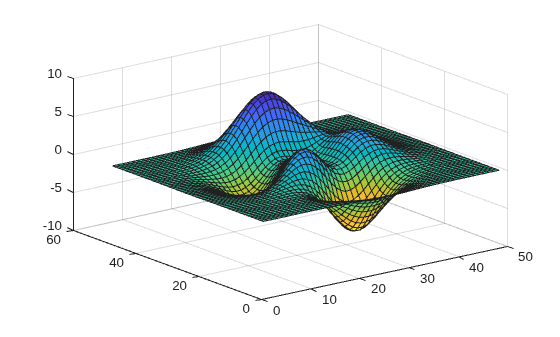

Get the parula colormap array and reverse the order. Then apply the modified colormap to the surface.
c = parula; c = flipud(c); colormap(c);

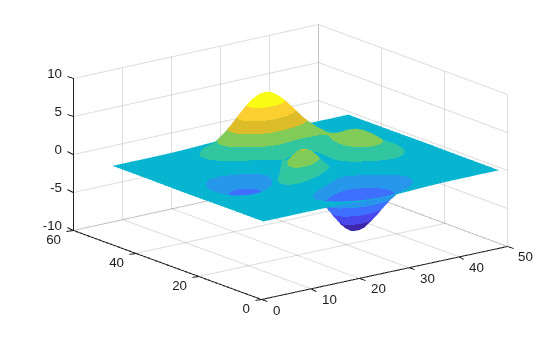

Get a downsampled version of the parula colormap containing only ten colors. Then display the contours of the peaks function by applying the colormap and interpolated shading.
c = parula(10); surf(peaks); colormap(c); shading interp;
Behavior changed in R2019b
Starting in R2019b, colormaps have 256 colors by default.
In R2019a and previous releases, the default size is 64. If you have code that
depends on a colormap having 64 colors, specify the number of colors when you set
the colormap for the figure, axes, or chart. For example,
colormap(parula(64)) sets the figure's colormap to the
Alternatively, you can change the default colormap for all figures within your MATLAB® session:
Behavior changed in R2017a
Starting in R2017a, the colors in the
parula colormap are
slightly different than in previous releases. This table shows a comparison between
the R2017a and earlier versions of the colormap. The visual change is subtle;
however, you might notice more colorful colors and smoother transitions between
|R2017a and later|
|R2016b and earlier|
