scale

Scale polyshape

collapse all in page

Syntax

polyout = scale(polyin,s)
polyout = scale(polyin,s,refpoint)

Description

polyout = scale(polyin,s) returns a polyshape object defined by scaling polyin by a factor s with respect to the reference point (0,0). If s is a scalar, then scale applies it to both the x and y directions. If s is a two-element row vector, then the first element is the scale factor in the x direction and the second element is the scale factor in the y direction.

example

polyout = scale(polyin,s,refpoint) specifies a reference point to scale with respect to.

example

Examples

collapse all

Open Live Script

Create a polygon and scale it by a factor of 2.

polyin = polyshape([0 0 1 1],[1 0 0 1]);
poly1 = scale(polyin,2);

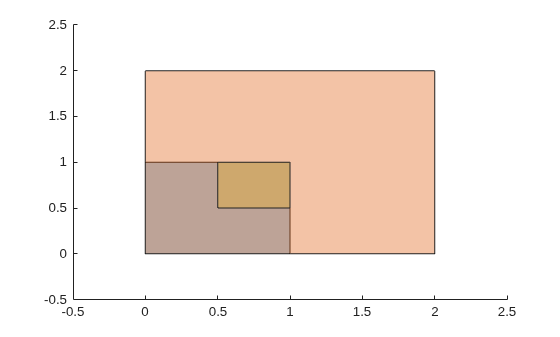

Scale polyin by a factor of 0.5 with respect to the point (1,1). Plot all three polygons.

poly2 = scale(polyin,0.5,[1 1]);
plot(polyin)
hold on
plot(poly1)
plot(poly2)

Figure contains an axes object. The axes object contains 3 objects of type polygon.

Input Arguments

collapse all

Input polyshape, specified as a scalar, vector, matrix, or multidimensional array.

Data Types: polyshape

Scale factor, specified as a scalar or a two-element row vector. The elements of s must be positive.

  • If s is a scalar, then scale applies it to both the x and y directions.

  • If s is a two-element row vector, then the first element is the scale factor in the x direction and the second element is the scale factor in the y direction.

When the input polyshape is an array, scale applies s to each element of the array.

Data Types: double | single | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Reference point, specified as a two-element row vector containing the x-coordinate and y-coordinate of the point to scale with respect to. When the input polyshape is an array, each element of the array is scaled with respect to refpoint.

Data Types: double | single | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Extended Capabilities

expand all

Version History

Introduced in R2017b
