read

Read entire TIFF image

collapse all in page

Syntax

imageData = read(t)
[Y,Cb,Cr] = read(t)

Description

imageData = read(t) reads the image data from the current image file directory (IFD) in the TIFF file associated with the Tiff object t.

example

[Y,Cb,Cr] = read(t) reads the YCbCr component data from the current image file directory in the TIFF file. Use this syntax only with images that have a YCbCr photometric interpretation.

Depending upon the values of the YCbCrSubSampling tag, the size of the Cb and Cr components can differ from the Y component.

example

Examples

collapse all

Open Live Script

Create a Tiff object and read data from the TIFF file.

t = Tiff('peppers_RGB_tiled.tif','r');
imageData = read(t);

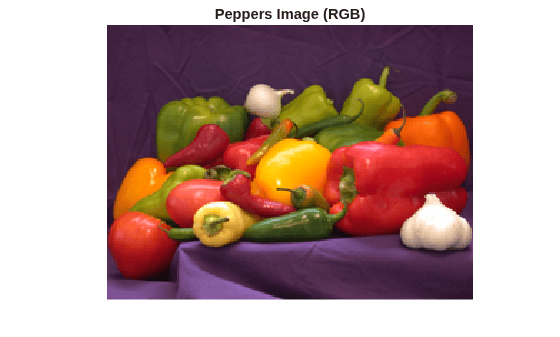

Display the image.

imshow(imageData);
title('Peppers Image (RGB)')

Figure contains an axes object. The hidden axes object with title Peppers Image (RGB) contains an object of type image.

Close the Tiff object.

close(t);
Open Live Script

Create a Tiff object for a file, get image data, and display the image.

t = Tiff('peppers_YCbCr_tiled.tif','r');
[Y,Cb,Cr] = read(t);

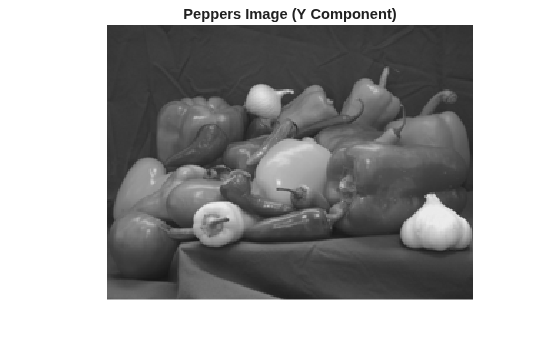

Display the Y component of the image.

imshow(Y);
title('Peppers Image (Y Component)');

Figure contains an axes object. The hidden axes object with title Peppers Image (Y Component) contains an object of type image.

Close the Tiff object.

close(t);

Input Arguments

collapse all

Tiff object representing a TIFF file. Use the Tiff function to create the object.

Output Arguments

collapse all

Image data, returned as a numeric array. For example, for an RGB image imageData is an M-by-N-by-3 array. Where M and N are the height and width of the image, respectively.

Luma component of the image data, returned as a two-dimensional numeric array.

Blue-difference chroma component of the image data, returned as a two-dimensional numeric array.

Red-difference chroma component of the image data, returned as a two-dimensional numeric array.

Limitations

  • read returns image data from SVS files as RGB data only, even for SVS files with YCbCr photometric interpretation.

Version History

Introduced in R2009b
