tilenum

Tile location numbers in tiled chart layout

Since R2022b

    Description

    example

    num = tilenum(t,row,col) returns the tile number for the specified row and column in the tiled chart layout t. Specify row and col scalars or as arrays of row and column numbers.

    This syntax does not support layouts that use the "flow", "vertical", or "horizontal" tile arrangements.

    example

    num = tilenum(obj) returns the tile numbers for the specified objects in a tiled chart layout. For example, you can use this syntax to get the tile number for a specified axes object.

    This syntax supports layouts that use any tile arrangement.

    Examples

    collapse all

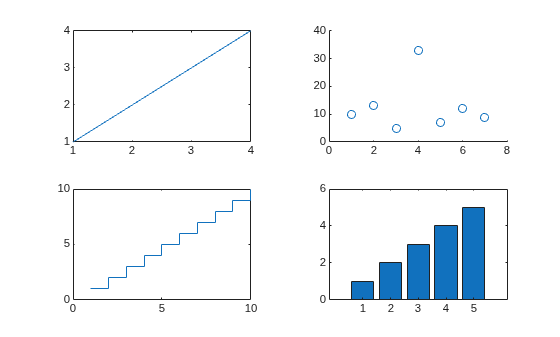

    Create a 2-by-2 tiled chart layout containing four plots.

    t = tiledlayout(2,2);

    nexttile
    plot([1 2 3 4])

    nexttile
    scatter(1:7,[10 13 5 33 7 12 9])

    nexttile
    stairs(1:10)

    nexttile
    bar(1:5)

    Get the number of the tile in the second row and first column.

    num = tilenum(t,2,1)
    num = 3


    Get the tile numbers for all the rows and columns.

    nums = tilenum(t,[1 1 2 2],[1 2 1 2])
    nums = 1×4

         1     2     3     4



    Create a 2-by-2 tiled chart layout containing four plots.

    t = tiledlayout(2,2);

    nexttile
    plot([1 2 3 4])

    nexttile
    scatter(1:7,[10 13 5 33 7 12 9])

    nexttile
    stairs(1:10)

    nexttile
    bar(1:5)

    The Children property of the TiledChartLayout contains all the top-level objects in the layout. In this case, the top-level objects are axes. Note that the objects in the Children property are in the opposite order of their creation. To get the tile numbers in the order of creation, call the flipud function and pass the reordered array to the tilenum function.

    nums = tilenum(flipud(t.Children))
    nums = 4×1

         1
         2
         3
         4

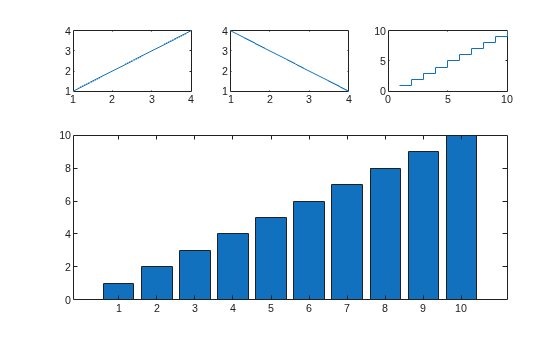

    Create a 3-by-3 tiled chart layout containing three plots in the first row. Then create an axes object that spans across the remaining empty tiles (a 2-by-3 region). Create a bar chart in the spanned axes.

    tiledlayout(3,3)

    nexttile
    plot([1 2 3 4])

    nexttile
    plot([4 3 2 1])

    nexttile
    stairs(1:10)

    % Create spanned axes and bar chart
    spax = nexttile([2 3]);
    bar(spax,1:10)

    Get the tile number for the spanned axes. tilenum returns the number of the tile at the upper-left corner of the axes, not the entire set of spanned tiles.

    num = tilenum(spax)
    num = 4


    You can use the tilenum function to customize the axes in a particular row or column of the layout's grid. For example, you can locate the axes in the first column or first row, and add labels only to those axes.

    Create a grid of 15 plots that show the crop yields of a family farm over five months. Create a 4-by-15 matrix of data. Each column in the matrix contains the data for a particular month.

    scalefactors = (1:15) * 70;
    data = rand(4,15) .* scalefactors;

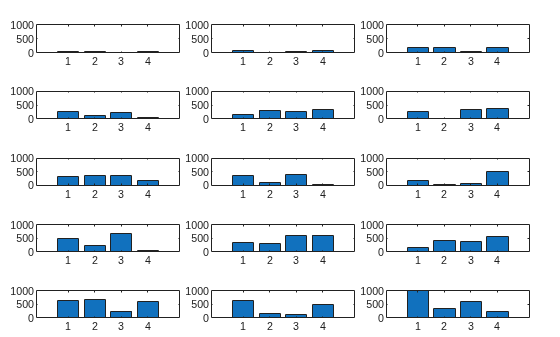

    Create string vectors monthnames and crops, which contain the labels for the left column and top row, respectively. Then create a 5-by-3 tiled chart layout, and plot each column of the data in a separate tile.

    monthnames = ["May" "June" "July" "August" "September"];
    crops = ["Asparagus" "Tomatoes" "Lettuce"];

    t = tiledlayout(5,3,TileSpacing="compact",Padding="compact");
    for i = 1:length(monthnames)*length(crops)
        nexttile
        bar(data(:,i))
        ylim([0 1000])
    end

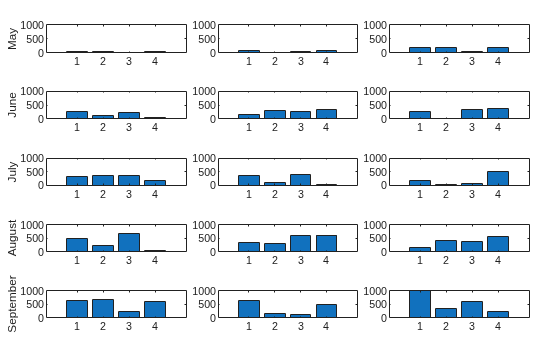

    Display the month names along the y-axes of the plots in the first column. Use the Children property of the TiledChartLayout object to get all the axes in the layout but in the opposite order of creation. Call the flipud function to reorder the axes.

    For each axes you want to add a label to, get the tile number by calling the tilenum function. Then index into the Children property with the tile number, and pass the resulting axes object to the ylabel function along with the month name.

    t.Children = flipud(t.Children);
    for i = 1:length(monthnames)
        num = tilenum(t,i,1);
        ylabel(t.Children(num),monthnames(i))
    end

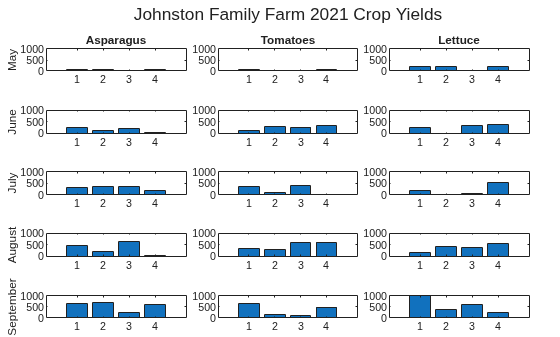

    Display the crop names as titles of the axes in the first row. Locate and add titles to the appropriate axes by using the tilenum function and the Children property. Then add an overall title to the layout.

    for i = 1:length(crops)
        num = tilenum(t,1,i);
        title(t.Children(num),crops(i))
    end

    title(t,"Johnston Family Farm 2021 Crop Yields")

    Input Arguments

    collapse all

    Tiled chart layout containing the tiles you want to locate. Use the tiledlayout function to create the TiledChartLayout object.

    The TileArrangement property of the TiledChartLayout object must be set to "fixed", which is the default value when you call tiledlayout(m,n) to create a fixed number of tiles.

    Row numbers, specified as a scalar, vector, or array of positive integer values the same size as col. If a row number is greater than the number of rows in the layout, tilenum returns NaN for that row.

    Column numbers, specified as a scalar, vector, or array of positive integer values the same size as row. If a column number is greater than the number of columns in the layout, tilenum returns NaN for that column.

    Graphics object or an array of graphics objects that are children of a tiled chart layout. The types of objects you can specify include:

    • Axes, such as Axes, PolarAxes, or GeographicAxes objects

    • Standalone visualizations, such as heatmap charts

    • Legends

    • Colorbars

    • TiledChartLayout objects that are nested within the tiles of a tiled chart layout

    If a specified object is in one of the "north", "south", "east", or "west" tiles, tilenum returns NaN for that object.

    Output Arguments

    collapse all

    Tile numbers, returned as a scalar, vector, or array of tile numbers. If you query multiple rows and columns (or multiple objects) by specifying a vector or an array of inputs, tilenum returns the output as vectors or arrays of the same size.

    tilenum returns NaN values if you specify a row or column that does not exist, or if obj is a graphics object in one of the "north", "south", "east", or "west" tiles.

    Version History

    Introduced in R2022b
