# yscale

Set or query y-axis scale (linear or logarithmic)

Since R2023b

## Syntax

``yscale(scale)``
``yscale(ax,___)``
``ys = yscale``

## Description

````yscale(scale)` sets the scale of the y-axis to be linear or logarithmic in the current axes. Specify `scale` as `"linear"` or `"log"`. You can also omit the parentheses and quotation marks when using this syntax. For example, `yscale log` is equivalent to `yscale("log")`.```

example

````yscale(ax,___)` sets the scale for the specified axes object. This syntax is useful when you are working with multiple plots, either in a tiled chart layout or in different figures.```

example

````ys = yscale` returns the current y-axis scale value as `'linear'` or `'log'`.```

## Examples

collapse all

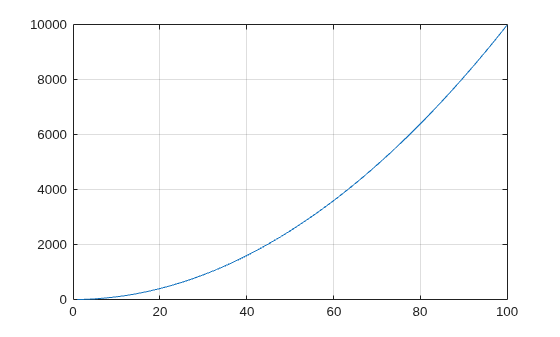

Create vectors x and y and plot them. Then display the axes grid.

```x = 1:100; y = x.^2; plot(x,y) grid on```

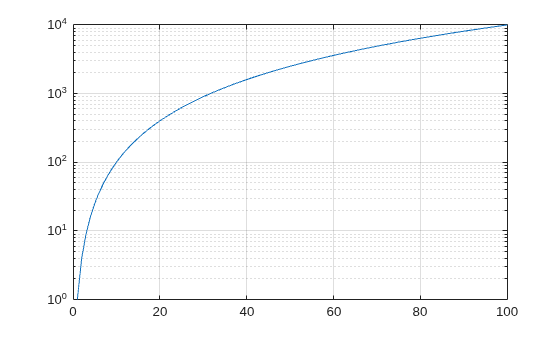

Change the scale of the y-axis to logarithmic.

`yscale log`

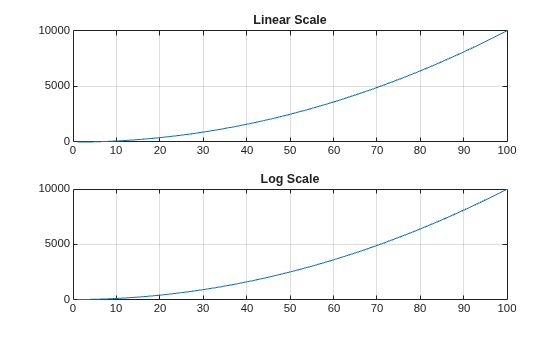

Create the same line plot twice in a tiled chart layout. This code calls the `nexttile` function to create a tiled chart layout with one axes object. The second call to `nexttile` creates and returns the second axes object.

```x = 1:100; y = x.^2; nexttile; plot(x,y) grid on title("Linear Scale") ax2 = nexttile; plot(x,y) grid on title("Log Scale")```

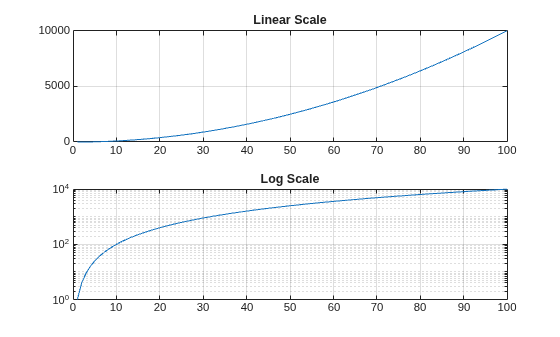

Change the y-axis scale of the bottom plot to logarithmic.

`yscale(ax2,"log")`

## Input Arguments

collapse all

Scale value, specified as `"linear"` or `"log"`. When you change the scale, MATLAB® changes the `YScale` property of the axes object to the value you specify.

Note

When you specify a logarithmic scale, the axes might exclude coordinates in some cases:

• If the coordinates include positive and negative values, only the positive values are displayed.

• If the coordinates are all negative, all of the values are displayed on a logarithmic scale with the appropriate sign.

• Zero values are not displayed.

Target `Axes` object. If you do not specify the target axes, `yscale` uses the current axes.

## Version History

Introduced in R2023b
