getAxesHandle
Syntax
Description
Examples
Get Handle to Axes in Slice Viewer
Run this code to download a data set from the MathWorks® website and unzip the downloaded folder. The data set contains three CT volumes that are each saved as a directory of DICOM files. The size of the entire data set is approximately 81 MB. The scan used by this example, LungCT01
, is stored in the folder specified by dataFolder
.
zipFile = matlab.internal.examples.downloadSupportFile("medical","MedicalVolumeDICOMData.zip"); filepath = fileparts(zipFile); unzip(zipFile,filepath) dataFolder = fullfile(filepath,"MedicalVolumeDICOMData","LungCT01");
Create a medical image volume object that contains the image data and spatial referencing information for the CT volume. The Orientation
property indicates that the primary slice direction is "transverse"
.
medVol = medicalVolume(dataFolder);

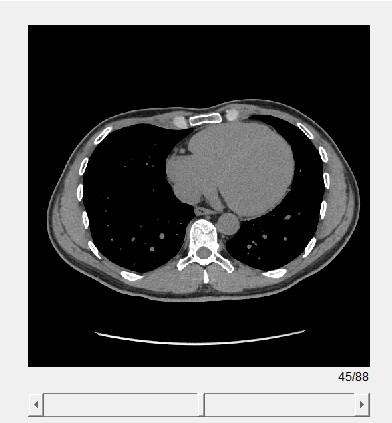

View the transverse slices of the volume in the slice viewer. By default, the viewer uses the properties of medVol
to scale anisotropic voxels, set the intensity display range, and orient the slices. The viewer opens on the center slice. Use the scroll bar to navigate to other slices.
sv = sliceViewer(medVol,Parent=figure);
Get the handle to the axes that contains the image slices in the slice viewer.
hAx = getAxesHandle(sv)
hAx = Axes with properties: XLim: [0.5000 512.5000] YLim: [0.5000 512.5000] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [30 57.5000 512 512] Units: 'pixels' Show all properties
Input Arguments
s
— Slice viewer
sliceViewer
object
Slice viewer, specified as a sliceViewer
object.
Output Arguments
hAx
— Axes in slice viewer
Axes
object
Axes in the slice viewer window, returned as an Axes
object.
Version History
Introduced in R2023a
