# Use `parfor` to Speed Up Monte-Carlo Code

This example shows how to speed up Monte-Carlo code by using `parfor`-loops. Monte-Carlo methods are found in many fields, including physics, mathematics, biology, and finance. Monte-Carlo methods involve executing a function many times with randomly distributed inputs. With Parallel Computing Toolbox, you can replace a `for`-loop with a `parfor`-loop to easily speed up code.

This example runs a simple stochastic simulation based on the dollar auction. Run multiple simulations to find the market value for a one dollar bill using a Monte-Carlo method. In this example, the dollar auction is treated as a black-box function that produces outputs that depend on random processes. To find out more about the model, see The Dollar Auction. To see how to speed up Monte-Carlo code in general, see Use a parfor-loop to Estimate Market Value.

### The Dollar Auction

The dollar auction is a non-zero-sum game first introduced by Martin Shubik in 1971. In the game, players bid for a one dollar bill. After a player makes a bid, every other player can choose to make a bid higher than the previous bidder. The auction ends when no more players decide to place a bid. The highest bidder receives the one dollar bill, however, unlike a typical auction both the highest and second-highest bidder give their bid to the auctioneer.

#### Stochastic Model

You can model games similar to the dollar auction using a stochastic model. The state (current bid and number of active players) can be modeled using Markov processes, and therefore outcomes (market value) can be expected to have well-defined statistics. The outcomes are drawn from a conditional distribution, and therefore the dollar auction is ideal for Monte-Carlo analysis. The market value is influenced by the following factors:

• Number of players, (`nPlayers`)

• Actions players take

In this example, the following algorithm determines what actions players take (bidding or dropping out) depending on the state.

1. Set the bid to the previous bid plus `incr`.

2. Select a player at random from players who are not the previous bidder.

3. If no bids have previously been placed, go to 8.

4. If the previous bid is less than 1, generate a random number between 0 and 1. If the random number is less than `dropoutRate`, go to 7.

5. Calculate how much money `gain` can be gained if the player makes a winning bid.

6. Calculate how much money `loss` the player loses if they are the second highest bidder. If `gain` is greater than `loss`, go to 8.

7. The player drops out. Remove the player from the set of players, then go to 9.

8. The player places a bid.

9. If there are 2 or more players remaining, go to step 1.

The supporting function `dollarAuction` simulates a dollar auction. To view the code, see `dollarAuction.m`. The function takes three inputs: `nPlayers`, `incr`, and `dropoutRate`. Set each of the values.

```nPlayers = 20; incr = 0.05; dropoutRate = 0.01;```

Run a random scenario by executing the `dollarAuction` function. Store the outputs `bids` and `dropouts`.

`[bids,dropouts] = dollarAuction(nPlayers,incr,dropoutRate);`

As the game continues, some players place bids and some drop out. If the bid exceeds 1, the players are locked in a "bidding war" until only one player remains.

The table `dropouts` contains two variables: `Player`, a unique number assigned to each player; `Epoch`, the round of bidding when `Player` dropped out. Use `findgroups` to group `dropouts.Epoch`, and use `splitapply` to get the number of players who drop out in each of the unique rounds in `dropouts.Epoch`.

```[G,epochs] = findgroups(dropouts.Epoch); numberDropouts = splitapply(@numel,dropouts.Epoch,G);```

Initially, there are no dropouts. Add this information to `epochs` and `numberDropouts` by prepending `1` and `0`.

```epochs = [1;epochs]; numberDropouts = [0;numberDropouts];```

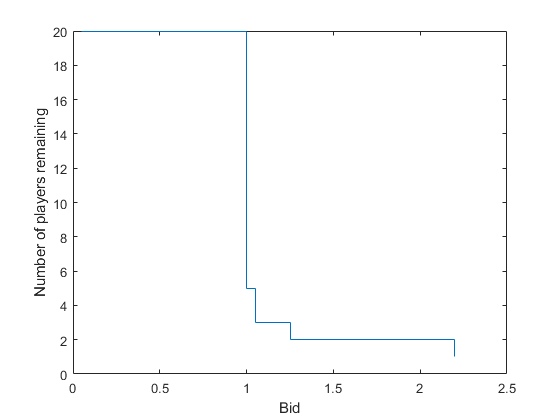

Use `nPlayers` and `cumsum` to calculate the number of players remaining from `numberDropouts`. Calculate the bids using `incr` and `epochs`. Use `stairs` to plot the bid against the cumulative sum of `numberDropouts`.

```playersRemaining = nPlayers - cumsum(numberDropouts); stairs(incr*epochs,playersRemaining) xlabel('Bid') ylabel('Number of players remaining')``` ### Estimate Market Value Using Monte-Carlo Methods

You can estimate the market value of the bill with value `origValue` by using Monte-Carlo methods. Here, you produce a Monte-Carlo model and compare the speed with and without Parallel Computing Toolbox. Set the number of trials `nTrials` used to randomly sample the outcomes.

`nTrials = 10000;`

You can sample the possible outcomes by executing the supporting function `dollarAuction` multiple times. Use a `for`-loop to produce `nTrials` samples, storing the last bid from each trial in `B`. Each time you run the `dollarAuction` function, you get different results. However, when you run the function many times, the results you produce from all of the runs will have well-defined statistics.

Record the time taken to compute `nTrials` simulations. To reduce statistical noise in the elapsed time, repeat this process five times, then take the minimum elapsed time.

```t = zeros(1,5); for j = 1:5 tic B = zeros(1,nTrials); for i = 1:nTrials bids = dollarAuction(nPlayers,incr,dropoutRate); B(i) = bids.Bid(end); end t(j) = toc; end forTime = min(t)```
```forTime = 21.4323 ```

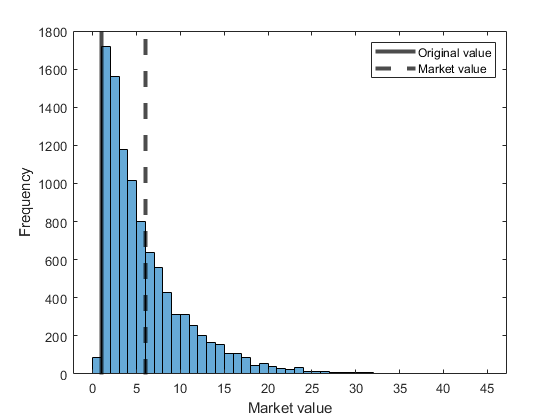

Use `histogram` to plot a histogram of the final bids `B`. Use `xline` to overlay the plot with the original value (one dollar) and the average market value given by `mean`.

```histogram(B); origLine = xline(1,'k','LineWidth',3); marketLine = xline(mean(B),'k--','LineWidth',3); xlabel('Market value') ylabel('Frequency') legend([origLine, marketLine],{'Original value','Market value'},'Location','NorthEast')``` With the given algorithm and input parameters, the average market value is greater than the original value.

#### Use `parfor`-loop to Estimate Market Value

You can use Parallel Computing Toolbox to easily speed up your Monte-Carlo code. First, create a parallel pool with four workers using the `'local'` profile.

`p = parpool('local',4);`
```Starting parallel pool (parpool) using the 'local' profile ... Connected to the parallel pool (number of workers: 4). ```

Replace the `for`-loop with a `parfor`-loop. Record the time taken to compute `nTrials` simulations. To reduce statistical noise in the elapsed time, repeat this process 5 times then take the minimum elapsed time.

```t = zeros(1,5); for j = 1:5 tic parfor i = 1:nTrials bids = dollarAuction(nPlayers,incr,dropoutRate); B(i) = bids.Bid(end); end t(j) = toc; end parforTime = min(t)```
```parforTime = 5.9174 ```

With four workers, the results indiciate that the code can runs over three times faster when you use a `parfor`-loop.

#### Produce Reproducible Results with Random Numbers in `parfor`-loops

When you generate random numbers in a `parfor`-loop, each run of the loop can produce different results. To create reproducible results, each iteration of the loop must have a deterministic state for the random number generator. For more information, see Repeat Random Numbers in parfor-Loops.

The supporting function `dollarAuctionStream` takes a fourth argument, `s`. This supporting function uses a specified stream to produce random numbers. To view the code, see `dollarAuctionStream.m`.

When you create a stream, substreams of that stream are statistically independent. For more information, see `RandStream`. To ensure that your code produces the same distribution of results each time, create a random number generator stream in each iteration of the loop, then set the `Substream` property to the loop index. Replace `dollarAuction` with `dollarAuctionStream`, then use `s` to run `dollarAuctionStream` on a worker.

Record the time taken to compute `nTrials` simulations. To reduce statistical noise in the elapsed time, repeat this process five times, then take the minimum elapsed time.

```t = zeros(1,5); for j = 1:5 tic parfor i = 1:nTrials s = RandStream('Threefry'); s.Substream = i; bids = dollarAuctionStream(nPlayers,incr,dropoutRate,s); B(i) = bids.Bid(end); end t(j) = toc; end parforTime = min(t)```
```parforTime = 8.7355 ```

### Scale Up from Desktop to Cluster

You can scale your code from your desktop to a cluster with more workers. For more information about scaling up from desktop to a cluster, see Scale Up from Desktop to Cluster.

Use `delete` to shut down the existing parallel pool.

`delete(p);`

Compute the supporting function `dollarAuctionStream` in a `parfor`-loop. Run the same `parfor`-loop with different numbers of workers, and record the elapsed times. To reduce statistical noise in the elapsed time, run the `parfor`-loop five times, then take the minimum elapsed time. Record the minimum times in the array `elapsedTimes`. In the following code, replace `MyCluster` with the name of your cluster profile.

```workers = [1 2 4 8 16 32]; elapsedTimes = zeros(1,numel(workers)); % Create a pool using the 'MyCluster' cluster profile p = parpool('MyCluster', 32);```
```Starting parallel pool (parpool) using the 'MyCluster' profile ... Connected to the parallel pool (number of workers: 32). ```
```for k = 1:numel(workers) t = zeros(1,5); for j = 1:5 tic parfor (i = 1:nTrials, workers(k)) s = RandStream('Threefry'); s.Substream = i; bids = dollarAuctionStream(nPlayers,incr,dropoutRate,s); B(i) = bids.Bid(end); end t(j) = toc; end elapsedTimes(k) = min(t); end```
```Analyzing and transferring files to the workers ...done. ```

Calculate the computational speedup by dividing `elapsedTimes(1)` by the times in `elapsedTimes`. Examine strong scaling by plotting the speedup against the number of workers.

```speedup = elapsedTimes(1) ./ elapsedTimes; plot(workers,speedup) xlabel('Number of workers') ylabel('Computational speedup')``` The computational speedup increases with the number of workers.
