pdemesh

Plot PDE mesh

Syntax

pdemesh(fegeometry)

pdemesh(mesh)

pdemesh(model)

pdemesh(___,u)

pdemesh(nodes,elements)

pdemesh(___,Name,Value)

pdemesh(p,e,t)

pdemesh(p,e,t,u)

pdemesh(ax,___)

h = pdemesh(___)

Description

pdemesh(fegeometry) plots the mesh represented by the Mesh property of an fegeometry object.

pdemesh(mesh) plots the mesh represented by an FEMesh object.

pdemesh(model) plots the mesh contained in a 2-D or 3-D model object.

pdemesh(___,u) plots solution data u along the z-direction for a 2-D geometry or as a colormap for a 3-D geometry. You can specify the solution data after the fegeometry, mesh, or model argument.

pdemesh(nodes,elements) plots the mesh defined by nodes and elements.

pdemesh(___,Name,Value) plots the mesh or solution data using any of the arguments in the previous syntaxes and one or more Name,Value pair arguments.

pdemesh(p,e,t) plots the mesh specified by the mesh data p,e,t.

pdemesh(p,e,t,u) plots PDE node or triangle data u using a mesh plot. The function plots the node data if u is a column vector , and triangle data if u is a row vector.

If you want to have more control over your mesh plot, use pdeplot or pdeplot3D instead of pdemesh.

In R2026a: pdemesh(ax,___) creates a mesh plot in target axes.

h = pdemesh(___) returns handles to the graphics.

Examples

Mesh Plot for L-Shaped Membrane

Create a mesh plot and display the node and element labels of the mesh.

Import the geometry represented by the built-in function lshapeg.

gm = fegeometry(@lshapeg);

Generate and plot a mesh.

gm = generateMesh(gm,Hmax=0.3, ...
                  GeometricOrder="linear");
pdemesh(gm)

Alternatively, you can plot a mesh by using the mesh itself as an input argument.

mesh = gm.Mesh;
pdemesh(mesh)

Another approach is to use the nodes and elements of the mesh as input arguments for pdemesh.

pdemesh(mesh.Nodes,mesh.Elements)

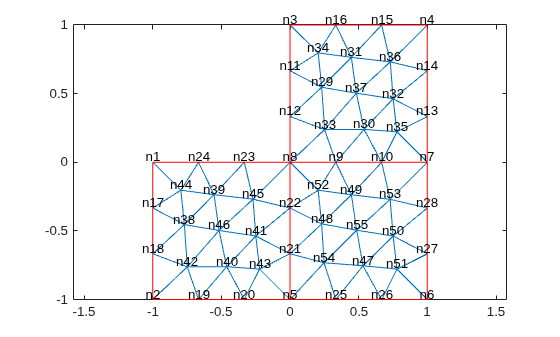

Display node labels.

pdemesh(gm,NodeLabels="on")

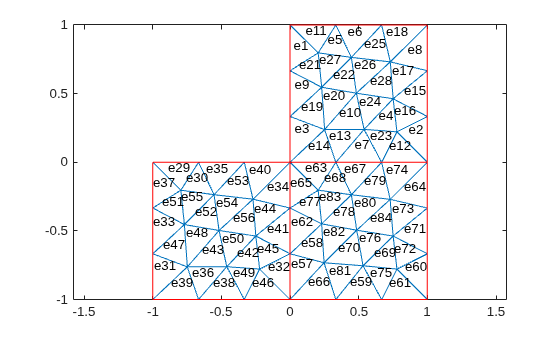

Display element labels.

pdemesh(gm,ElementLabels="on")

Transparency for 3-D Mesh

Import a geometry of a plate.

gm = fegeometry("Plate10x10x1.stl");

Generate a mesh.

gm = generateMesh(gm,Hmax=5);

Plot the mesh setting the transparency to 0.5.

pdemesh(gm,FaceAlpha=0.5)

Elements Associated with Particular Face

Find the elements associated with a geometric region.

Import and plot the geometry of the built-in function lshapeg.

gm = fegeometry(@lshapeg);
pdegplot(gm,FaceLabels="on",EdgeLabels="on")

Generate a mesh.

gm = generateMesh(gm,Hmax=0.5);

Find the elements associated with face 2.

mesh = gm.Mesh;
Ef2 = findElements(mesh,"region",Face=2);

Highlight these elements in green on the mesh plot.

figure
pdemesh(mesh,ElementLabels="on")
hold on
pdemesh(mesh.Nodes,mesh.Elements(:,Ef2),EdgeColor="green")

Specify Target Axes for Mesh and Geometry Plots

Since R2026a

Position two Axes objects in a figure. Add the mesh plot to one object and the geometry plot to another object.

Create an fegeometry object from an STL file representing a block.

gm = fegeometry("Block.stl");

Generate a mesh for the block geometry.

gm = generateMesh(gm);

Specify the position of the first Axes object so that it has a lower left corner at the point (0.1 0.1) with a width and height of 0.7. Specify the position of the second Axes object so that it has a lower left corner at the point (0.35 0.7) with a width and height of 0.3. By default, the values are normalized to the figure. Return the Axes objects as ax1 and ax2.

ax1 = axes(Position=[0.1 0.1 0.7 0.7]);
ax2 = axes(Position=[0.35 0.7 0.3 0.3]);

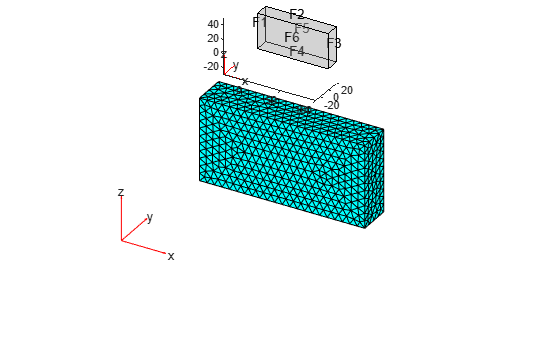

Plot the mesh and the geometry adding the mesh plot to ax1 and the geometry plot to ax2.

pdemesh(ax1,gm)
pdegplot(ax2,gm,FaceLabels="on",FaceAlpha=0.3)

Input Arguments

fegeometry — Geometry object for finite element analysis

fegeometry object

Geometry object for finite element analysis, specified as an fegeometry object. The pdemesh function plots the mesh from the Mesh property of the fegeometry object.

mesh — Mesh description

FEMesh object

Mesh description, specified as an FEMesh object.

model — Model container

femodel object | PDEModel object

Model container, specified as an femodel object or PDEModel object.

nodes — Nodal coordinates

2-by-NumNodes matrix | 3-by-NumNodes matrix

Nodal coordinates, specified as a 2-by-NumNodes matrix for a 2-D mesh and 3-by-NumNodes matrix for a 3-D mesh. NumNodes is the number of nodes.

elements — Element connectivity matrix in terms of node IDs

NodesPerElem-by-NumElements matrix

Element connectivity matrix in terms of node IDs, specified as an NodesPerElem-by-NumElements matrix. NodesPerElem is the number of nodes per element. Linear meshes contain only corner nodes, so there are three nodes per a 2-D element and four nodes per a 3-D element. Quadratic meshes contain corner nodes and nodes in the middle of each edge of an element. For quadratic meshes, there are six nodes per a 2-D element and 10 nodes per a 3-D element.

u — Solution

vector | matrix

Solution, specified as a vector or matrix. When you use this argument, pdemesh ignores any specified Name,Value arguments, except FaceAlpha, which is only applicable for a 3-D plot.

Example: results = solvepde(model); u = results.NodalSolution;

ax — Target axes

handle to a MATLAB^® Axes object

Since R2026a

Target axes for a mesh plot, specified as a handle to a MATLAB Axes object. See Axes Properties.

p — Mesh points

matrix

Mesh points, specified as a 2-by-Np matrix of points, where Np is the number of points in the mesh. For a description of the (p,e,t) matrices, see Mesh Data as [p,e,t] Triples.

Typically, you use the p, e, and t data exported from the PDE Modeler app, or generated by initmesh or refinemesh.

Example: [p,e,t] = initmesh(gd)

Data Types: double

e — Mesh edges

matrix

Mesh edges, specified as a 7-by-Ne matrix of edges, where Ne is the number of edges in the mesh. For a description of the (p,e,t) matrices, see Mesh Data as [p,e,t] Triples.

Typically, you use the p, e, and t data exported from the PDE Modeler app, or generated by initmesh or refinemesh.

Example: [p,e,t] = initmesh(gd)

Data Types: double

t — Mesh triangles

matrix

Mesh triangles, specified as a 4-by-Nt matrix of triangles, where Nt is the number of triangles in the mesh. For a description of the (p,e,t) matrices, see Mesh Data as [p,e,t] Triples.

Typically, you use the p, e, and t data exported from the PDE Modeler app, or generated by initmesh or refinemesh.

Example: [p,e,t] = initmesh(gd)

Data Types: double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: pdemesh(model,NodeLabels="on")

NodeLabels — Node labels

"off" (default) | "on"

Node labels, specified as "off" or "on".

pdemesh ignores NodeLabels when you plot solution data as a 3-D plot.

Example: NodeLabels="on"

Data Types: char | string

ElementLabels — Element labels

"off" (default) | "on"

Element labels, specified as "off" or "on".

pdemesh ignores ElementLabels when you plot solution data as a 3-D plot.

Example: ElementLabels="on"

Data Types: char | string

FaceAlpha — Surface transparency for 3-D geometry

1 (default) | real number from 0 through 1

Surface transparency for 3-D geometry, specified as a real number from 0 through 1. The default value 1 indicates no transparency. The value 0 indicates complete transparency.

Example: FaceAlpha=0.5

Data Types: double

EdgeColor — Color of mesh edges

short color name | long color name | RGB triplet

Color of mesh edges, specified as a short or long color name or an RGB triplet. By default, for 2-D meshes the edges within one face are blue (RGB triplet [0 0 1]) and the edges between faces are red (RGB triplet [1 0 0]). For 3-D meshes, the default edge color is black (RGB triplet [0 0 0]).

The short names and long names are character vectors that specify one of eight predefined colors. The RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color; the intensities must be in the range [0 1]. The following table lists the predefined colors and their RGB triplet equivalents.

RGB Triplet	Short Name	Long Name
[1 1 0]	y	yellow
[1 0 1]	m	magenta
[0 1 1]	c	cyan
[1 0 0]	r	red
[0 1 0]	g	green
[0 0 1]	b	blue
[1 1 1]	w	white
[0 0 0]	k	black

Example: EdgeColor="green"

Data Types: double | char | string

FaceColor — Color of mesh faces for 3-D meshes

[0 1 1] | short color name | long color name | RGB triplet

Color of mesh faces for 3-D meshes, specified as a short or long color name or an RGB triplet. The default face color is cyan (RGB triplet [0 1 1]). For details about available colors, see EdgeColor.

Example: FaceColor="green"

Data Types: double | char | string

Output Arguments

h — Handles to graphics objects

vector

Handles to graphics objects, returned as a vector.

Version History

Introduced before R2006a

R2026a: Specify target axes for the plot

pdemesh accepts a handle to a MATLAB Axes object enabling you to specify the target axes for a plot.

R2025a: To be removed: structural, thermal, and electromagnetic analysis models

pdemesh will no longer accept StructuralModel, ThermalModel, and ElectromagneticModel. These objects will be removed.

pdemesh will continue accepting fegeometry, femodel, PDEModel, FEMesh, mesh nodes and elements and p,e,t meshes.

The unified finite element model workflow defines the type of a problem and all of its parameters as the properties of an femodel object. This object enables you to specify physical parameters for structural, thermal, and electromagnetic types of analyses. The solver in the unified workflow uses only the parameters (properties) appropriate for the current analysis type while ignoring all other properties. If you switch the analysis type by setting the AnalysisType property of the model, the solver uses the appropriate set of properties corresponding to the new analysis type.

For more help migrating your existing code that uses StructuralModel, ThermalModel, or ElectromagneticModel to the unified finite element workflow, see Migration from Domain-Specific to Unified Workflow.

R2023a: Finite element model

pdemesh accepts femodel and fegeometry objects as input arguments.

R2020a: Improved performance for plots with many text labels

pdemesh shows faster rendering and better responsiveness for plots that display many text labels. Code containing findobj(fig,'Type','Text') no longer returns labels on figures produced by pdemesh.

R2018a: Highlighting particular nodes and elements on mesh plots

pdemesh accepts node and element IDs as input arguments, letting you highlight particular nodes and elements on mesh plots.

R2016b: Transparency, node and element labels

You can now set plot transparency by using FaceAlpha, and display node and element labels by using NodeLabels and ElementLabels, respectively.
