pdeplot

Plot solution or mesh for 2-D problem

Description

example

pdeplot(results.Mesh,XYData=results.NodalSolution) plots the solution at nodal locations as a colored surface plot using the default "cool" colormap.

example

pdeplot(results.Mesh,XYData=results.Temperature,ColorMap="hot") plots the temperature at nodal locations for a 2-D thermal analysis problem. This syntax creates a colored surface plot using the "hot" colormap.

example

pdeplot(results.Mesh,XYData=results.VonMisesStress,Deformation=results.Displacement) plots the von Mises stress and shows the deformed shape for a 2-D structural analysis problem.

example

pdeplot(results.Mesh,XYData=results.ModeShapes.ux) plots the x-component of the modal displacement for a 2-D structural modal analysis problem.

example

pdeplot(results.Mesh,XYData=results.ElectricPotential) plots the electric potential at nodal locations for a 2-D electrostatic analysis problem.

example

pdeplot(mesh) plots the mesh.

example

pdeplot(nodes,elements) plots the mesh defined by its nodes and elements.

example

pdeplot(model) plots the mesh specified in model. This syntax does not work with an femodel object.

example

pdeplot(p,e,t) plots the mesh described by p,e, and t.

example

pdeplot(___,Name,Value) plots the mesh, the data at the nodal locations, or both the mesh and the data, depending on the Name,Value pair arguments. Use any arguments from the previous syntaxes.

Specify at least one of the FlowData (vector field plot), XYData (colored surface plot), or ZData (3-D height plot) name-value pairs. Otherwise, pdeplot plots the mesh with no data. You can combine any number of plot types.

  • For a thermal analysis, you can plot temperature or gradient of temperature.

  • For a structural analysis, you can plot displacement, stress, strain, and von Mises stress. In addition, you can show the deformed shape and specify the scaling factor for the deformation plot.

  • For an electromagnetic analysis, you can plot electric or magnetic potentials, fields, and flux densities.

example

h = pdeplot(___) returns a handle to a plot, using any of the previous syntaxes.

Examples

collapse all

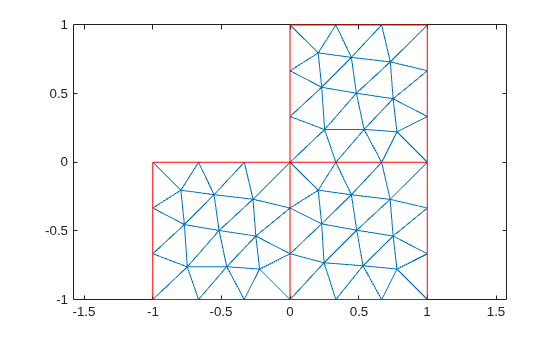

Create a PDE model. Include the geometry of the built-in function lshapeg. Mesh the geometry and plot the mesh.

model = createpde;
geometryFromEdges(model,@lshapeg);
mesh = generateMesh(model);
pdeplot(mesh)

Figure contains an axes object. The axes object contains 2 objects of type line.

Alternatively, you can plot a mesh by using model as an input argument.

pdeplot(model)

Figure contains an axes object. The axes object contains 2 objects of type line.

Another approach is to use the nodes and elements of the mesh as input arguments for pdeplot.

pdeplot(mesh.Nodes,mesh.Elements)

Figure contains an axes object. The axes object contains an object of type line.

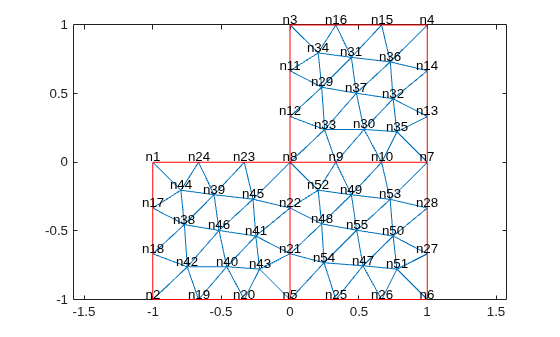

Display the node labels. Use xlim and ylim to zoom in on particular nodes.

pdeplot(mesh,NodeLabels="on")
xlim([-0.2,0.2])
ylim([-0.2,0.2])

Figure contains an axes object. The axes object contains 2 objects of type line.

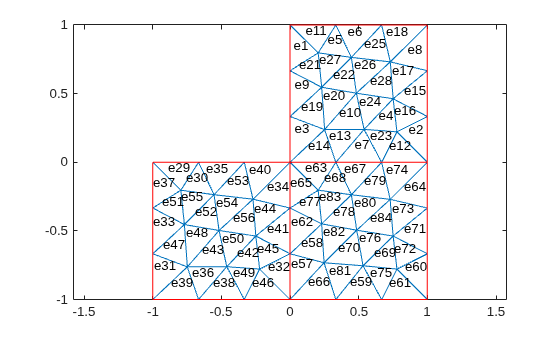

Display the element labels.

pdeplot(mesh,ElementLabels="on")
xlim([-0.2,0.2])
ylim([-0.2,0.2])

Figure contains an axes object. The axes object contains 2 objects of type line.

Create colored 2-D and 3-D plots of a solution to a PDE model.

Create a PDE model. Include the geometry of the built-in function lshapeg. Mesh the geometry.

model = createpde;
geometryFromEdges(model,@lshapeg);
generateMesh(model);

Set the zero Dirichlet boundary conditions on all edges.

applyBoundaryCondition(model,"dirichlet", ...
                             Edge=1:model.Geometry.NumEdges, ...
                             u=0);

Specify the coefficients and solve the PDE.

specifyCoefficients(model,m=0, ...
                          d=0, ...
                          c=1, ...
                          a=0, ...
                          f=1);
results = solvepde(model)
results =
  StationaryResults with properties:

    NodalSolution: [1141x1 double]
       XGradients: [1141x1 double]
       YGradients: [1141x1 double]
       ZGradients: []
             Mesh: [1x1 FEMesh]

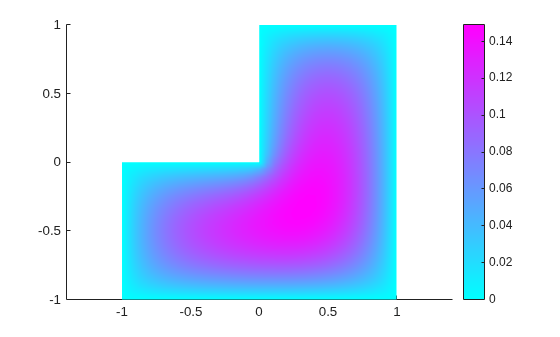

Plot the 2-D solution at the nodal locations.

u = results.NodalSolution;
msh = results.Mesh;
pdeplot(msh,XYData=u)

Figure contains an axes object. The axes object contains an object of type patch.

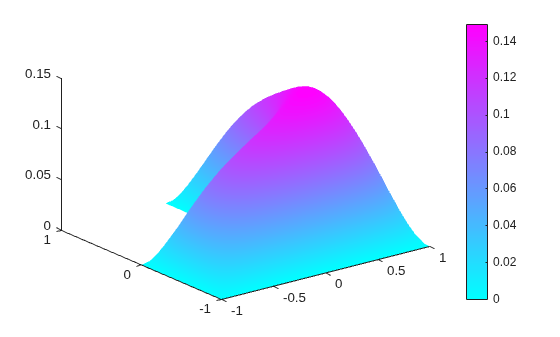

Plot the 3-D solution.

pdeplot(msh,XYData=u,ZData=u)

Figure contains an axes object. The axes object contains an object of type patch.

Plot the gradient of a PDE solution as a quiver plot.

Create a PDE model. Include the geometry of the built-in function lshapeg. Mesh the geometry.

model = createpde;
geometryFromEdges(model,@lshapeg);
generateMesh(model);

Set the zero Dirichlet boundary conditions on all edges.

applyBoundaryCondition(model,"dirichlet", ...
                             Edge=1:model.Geometry.NumEdges, ...
                             u=0);

Specify coefficients and solve the PDE.

specifyCoefficients(model,m=0, ...
                          d=0, ...
                          c=1, ...
                          a=0, ...
                          f=1);
results = solvepde(model)
results =
  StationaryResults with properties:

    NodalSolution: [1141x1 double]
       XGradients: [1141x1 double]
       YGradients: [1141x1 double]
       ZGradients: []
             Mesh: [1x1 FEMesh]

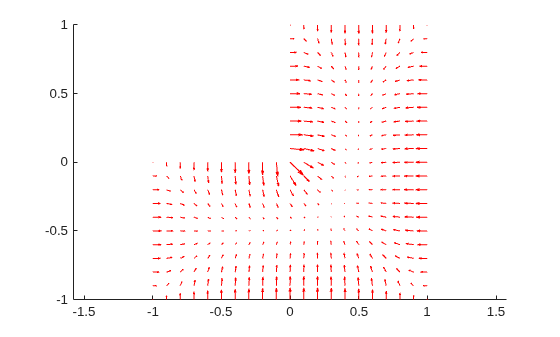

Plot the gradient of the solution at the nodal locations as a quiver plot.

ux = results.XGradients;
uy = results.YGradients;
msh = results.Mesh;
pdeplot(msh,FlowData=[ux,uy])

Figure contains an axes object. The axes object contains an object of type quiver.

Plot the solution of a 2-D PDE in 3-D with the "jet" coloring and a mesh, and include a quiver plot. Get handles to the axes objects.

Create a PDE model. Include the geometry of the built-in function lshapeg. Mesh the geometry.

model = createpde;
geometryFromEdges(model,@lshapeg);
generateMesh(model);

Set zero Dirichlet boundary conditions on all edges.

applyBoundaryCondition(model,"dirichlet", ...
                             Edge=1:model.Geometry.NumEdges, ...
                             u=0);

Specify coefficients and solve the PDE.

specifyCoefficients(model,m=0, ...
                          d=0, ...
                          c=1, ...
                          a=0, ...
                          f=1);
results = solvepde(model)
results =
  StationaryResults with properties:

    NodalSolution: [1141x1 double]
       XGradients: [1141x1 double]
       YGradients: [1141x1 double]
       ZGradients: []
             Mesh: [1x1 FEMesh]

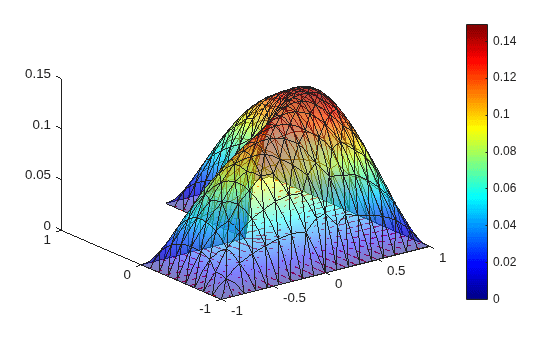

Plot the solution in 3-D with the "jet" coloring and a mesh, and include the gradient as a quiver plot.

u = results.NodalSolution;
ux = results.XGradients;
uy = results.YGradients;
msh = results.Mesh;
h = pdeplot(msh,XYData=u,ZData=u, ...
                FaceAlpha=0.5, ...
                FlowData=[ux,uy], ...
                ColorMap="jet", ...
                Mesh="on");

Figure contains an axes object. The axes object contains 2 objects of type patch, quiver.

Solve a 2-D transient thermal problem.

Create a transient thermal model for this problem.

thermalmodel = createpde(thermal="transient");

Create the geometry and include it in the model.

SQ1 = [3; 4; 0; 3; 3; 0; 0; 0; 3; 3];
D1 = [2; 4; 0.5; 1.5; 2.5; 1.5; 1.5; 0.5; 1.5; 2.5];
gd = [SQ1 D1];
sf = 'SQ1+D1';
ns = char('SQ1','D1');
ns = ns';
dl = decsg(gd,sf,ns);
geometryFromEdges(thermalmodel,dl);
pdegplot(thermalmodel,EdgeLabels="on",FaceLabels="on")
xlim([-1.5 4.5])
ylim([-0.5 3.5])
axis equal

Figure contains an axes object. The axes object contains 11 objects of type line, text.

For the square region, assign these thermal properties:

  • Thermal conductivity is 10W/(mC)

  • Mass density is 2kg/m3

  • Specific heat is 0.1J/(kgC)

thermalProperties(thermalmodel,ThermalConductivity=10, ...
                               MassDensity=2, ...
                               SpecificHeat=0.1, ...
                               Face=1);

For the diamond region, assign these thermal properties:

  • Thermal conductivity is 2W/(mC)

  • Mass density is 1kg/m3

  • Specific heat is 0.1J/(kgC)

thermalProperties(thermalmodel,ThermalConductivity=2, ...
                               MassDensity=1, ...
                               SpecificHeat=0.1, ...
                               Face=2);

Assume that the diamond-shaped region is a heat source with a density of 4W/m2.

internalHeatSource(thermalmodel,4,Face=2);

Apply a constant temperature of 0 °C to the sides of the square plate.

thermalBC(thermalmodel,Temperature=0,Edge=[1 2 7 8]);

Set the initial temperature to 0 °C.

thermalIC(thermalmodel,0);

Generate the mesh.

generateMesh(thermalmodel);

The dynamics for this problem are very fast. The temperature reaches a steady state in about 0.1 second. To capture the most active part of the dynamics, set the solution time to logspace(-2,-1,10). This command returns 10 logarithmically spaced solution times between 0.01 and 0.1.

tlist = logspace(-2,-1,10);

Solve the equation.

thermalresults = solve(thermalmodel,tlist);

Plot the solution with isothermal lines by using a contour plot.

T = thermalresults.Temperature;
msh = thermalresults.Mesh;
pdeplot(msh,XYData=T(:,10),Contour="on",ColorMap="hot")

Figure contains an axes object. The axes object contains 12 objects of type patch, line.

Create a structural analysis model for a static plane-strain problem.

structuralmodel = createpde(structural="static-planestrain");

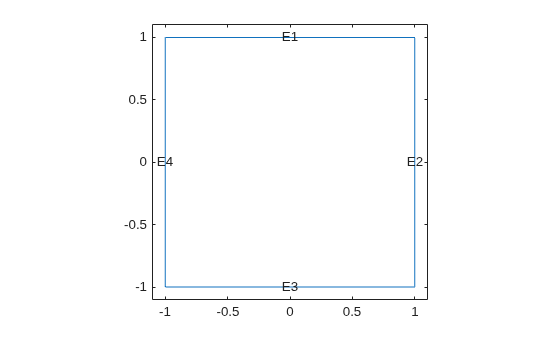

Create the geometry and include it in the model. Plot the geometry.

geometryFromEdges(structuralmodel,@squareg);
pdegplot(structuralmodel,EdgeLabels="on")
axis equal

Figure contains an axes object. The axes object contains 5 objects of type line, text.

Specify Young's modulus and Poisson's ratio.

structuralProperties(structuralmodel,PoissonsRatio=0.3, ...
                                     YoungsModulus=210E3);

Specify the x-component of the enforced displacement for edge 1.

structuralBC(structuralmodel,XDisplacement=0.001,Edge=1);

Specify that edge 3 is a fixed boundary.

structuralBC(structuralmodel,Constraint="fixed",Edge=3);

Generate a mesh and solve the problem.

generateMesh(structuralmodel);
structuralresults = solve(structuralmodel);

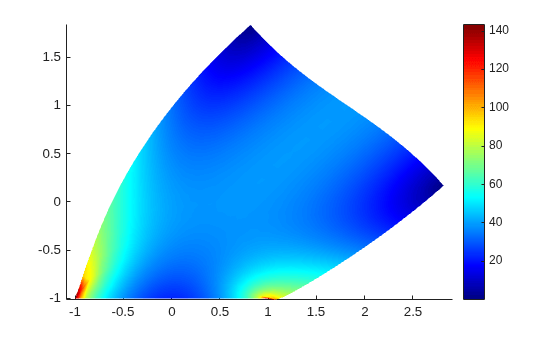

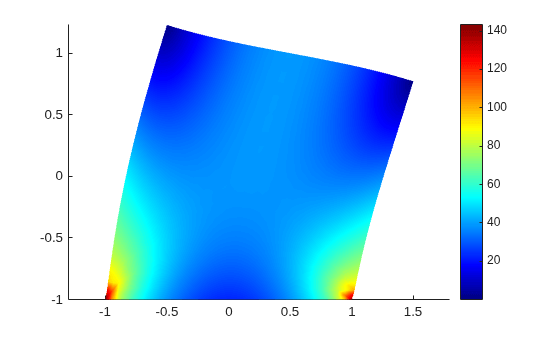

Plot the deformed shape using the default scale factor. By default, pdeplot internally determines the scale factor based on the dimensions of the geometry and the magnitude of deformation.

pdeplot(structuralresults.Mesh, ...
        XYData=structuralresults.VonMisesStress, ...
        Deformation=structuralresults.Displacement, ...
        ColorMap="jet")

Figure contains an axes object. The axes object contains an object of type patch.

Plot the deformed shape with the scale factor 500.

pdeplot(structuralresults.Mesh, ...
        XYData=structuralresults.VonMisesStress, ...
        Deformation=structuralresults.Displacement, ...
        DeformationScaleFactor=500,...
        ColorMap="jet")

Figure contains an axes object. The axes object contains an object of type patch.

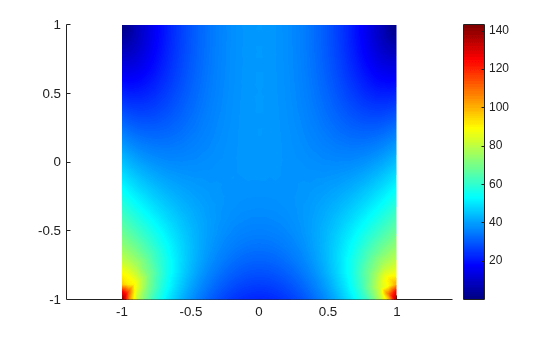

Plot the deformed shape without scaling.

pdeplot(structuralresults.Mesh, ...
        XYData=structuralresults.VonMisesStress, ...
        ColorMap="jet")

Figure contains an axes object. The axes object contains an object of type patch.

Find the fundamental (lowest) mode of a 2-D cantilevered beam, assuming prevalence of the plane-stress condition.

Specify geometric and structural properties of the beam, along with a unit plane-stress thickness.

length = 5;
height = 0.1;
E = 3E7;
nu = 0.3;
rho = 0.3/386;

Create a modal plane-stress model, assign a geometry, and generate a mesh.

structuralmodel = createpde(structural="modal-planestress");
gdm = [3;4;0;length;length;0;0;0;height;height];
g = decsg(gdm,'S1',('S1')');
geometryFromEdges(structuralmodel,g);

Define a maximum element size (five elements through the beam thickness).

hmax = height/5;
msh=generateMesh(structuralmodel,Hmax=hmax);

Specify the structural properties and boundary constraints.

structuralProperties(structuralmodel,YoungsModulus=E, ...
                                     MassDensity=rho, ...
                                     PoissonsRatio=nu);
structuralBC(structuralmodel,Edge=4,Constraint="fixed");

Compute the analytical fundamental frequency (Hz) using the beam theory.

I = height^3/12;
analyticalOmega1 = 3.516*sqrt(E*I/(length^4*(rho*height)))/(2*pi)
analyticalOmega1 = 126.9498

Specify a frequency range that includes an analytically computed frequency and solve the model.

modalresults = solve(structuralmodel,FrequencyRange=[0,1e6])
modalresults =
  ModalStructuralResults with properties:

    NaturalFrequencies: [32x1 double]
            ModeShapes: [1x1 FEStruct]
                  Mesh: [1x1 FEMesh]

The solver finds natural frequencies and modal displacement values at nodal locations. To access these values, use modalresults.NaturalFrequencies and modalresults.ModeShapes.

modalresults.NaturalFrequencies/(2*pi)
ans = 32×1
105 ×

    0.0013
    0.0079
    0.0222
    0.0433
    0.0711
    0.0983
    0.1055
    0.1462
    0.1930
    0.2455
      ⋮

modalresults.ModeShapes
ans =
  FEStruct with properties:

           ux: [6511x32 double]
           uy: [6511x32 double]
    Magnitude: [6511x32 double]

Plot the y-component of the solution for the fundamental frequency.

pdeplot(modalresults.Mesh,XYData=modalresults.ModeShapes.uy(:,1))
title(['First Mode with Frequency ', ...
        num2str(modalresults.NaturalFrequencies(1)/(2*pi)),' Hz'])
axis equal

Figure contains an axes object. The axes object with title First Mode with Frequency 126.9416 Hz contains an object of type patch.

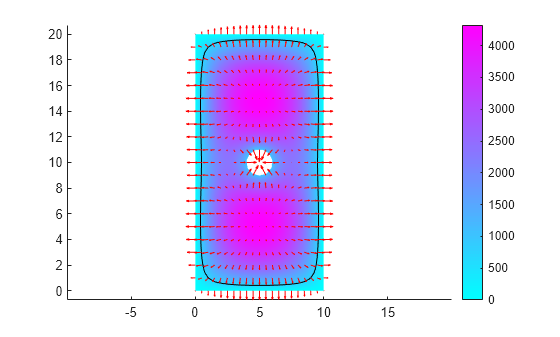

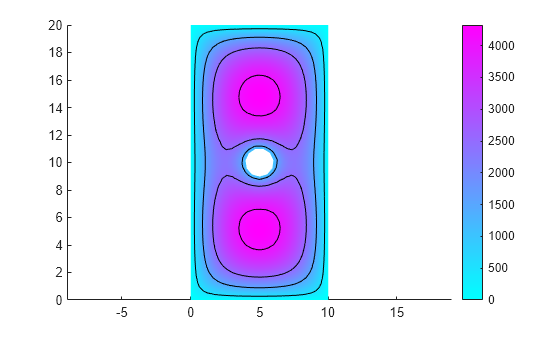

Solve an electromagnetic problem and find the electric potential and field distribution for a 2-D geometry representing a plate with a hole.

Create an electromagnetic model for electrostatic analysis.

emagmodel = createpde(electromagnetic="electrostatic");

Import and plot the geometry representing a plate with a hole.

importGeometry(emagmodel,"PlateHolePlanar.stl");
pdegplot(emagmodel,EdgeLabels="on")

Figure contains an axes object. The axes object contains an object of type line.

Specify the vacuum permittivity value in the SI system of units.

emagmodel.VacuumPermittivity = 8.8541878128E-12;

Specify the relative permittivity of the material.

electromagneticProperties(emagmodel,RelativePermittivity=1);

Apply the voltage boundary conditions on the edges framing the rectangle and the circle.

electromagneticBC(emagmodel,Voltage=0,Edge=1:4);
electromagneticBC(emagmodel,Voltage=1000,Edge=5);

Specify the charge density for the entire geometry.

electromagneticSource(emagmodel,ChargeDensity=5E-9);

Generate the mesh.

generateMesh(emagmodel);

Solve the model.

R = solve(emagmodel)
R =
  ElectrostaticResults with properties:

      ElectricPotential: [1218x1 double]
          ElectricField: [1x1 FEStruct]
    ElectricFluxDensity: [1x1 FEStruct]
                   Mesh: [1x1 FEMesh]

Plot the electric potential and field.

pdeplot(R.Mesh,XYData=R.ElectricPotential, ...
               FlowData=[R.ElectricField.Ex ...
                         R.ElectricField.Ey])
axis equal

Figure contains an axes object. The axes object contains 2 objects of type patch, quiver.

Plot the p,e,t mesh. Display the solution using 2-D and 3-D colored plots.

Create the geometry, mesh, boundary conditions, PDE coefficients, and solution.

[p,e,t] = initmesh('lshapeg');
u = assempde("lshapeb",p,e,t,1,0,1);

Plot the mesh.

pdeplot(p,e,t)

Figure contains an axes object. The axes object contains 2 objects of type line.

Plot the solution as a 2-D colored plot.

pdeplot(p,e,t,XYData=u)

Figure contains an axes object. The axes object contains an object of type patch.

Plot the solution as a 3-D colored plot.

pdeplot(p,e,t,XYData=u,ZData=u)

Figure contains an axes object. The axes object contains an object of type patch.

Input Arguments

collapse all

Mesh description, specified as an FEMesh object. See FEMesh Properties.

Nodal coordinates, specified as a 2-by-NumNodes matrix. NumNodes is the number of nodes.

Element connectivity matrix in terms of the node IDs, specified as a 3-by-NumElements or 6-by-NumElements matrix. Linear meshes contain only corner nodes. For linear meshes, the connectivity matrix has three nodes per 2-D element. Quadratic meshes contain corner nodes and nodes in the middle of each edge of an element. For quadratic meshes, the connectivity matrix has six nodes per 2-D element.

A linear triangular element with a node in each corner and a quadratic triangular element with an additional node in the middle of each edge

Model object, specified as a PDEModel object, ThermalModel object, StructuralModel object, or ElectromagneticModel object.

Mesh points, specified as a 2-by-Np matrix of points, where Np is the number of points in the mesh. For a description of the (p,e,t) matrices, see Mesh Data as [p,e,t] Triples.

Typically, you use the p, e, and t data exported from the PDE Modeler app, or generated by initmesh or refinemesh.

Example: [p,e,t] = initmesh(gd)

Data Types: double

Mesh edges, specified as a 7-by-Ne matrix of edges, where Ne is the number of edges in the mesh. For a description of the (p,e,t) matrices, see Mesh Data as [p,e,t] Triples.

Typically, you use the p, e, and t data exported from the PDE Modeler app, or generated by initmesh or refinemesh.

Example: [p,e,t] = initmesh(gd)

Data Types: double

Mesh triangles, specified as a 4-by-Nt matrix of triangles, where Nt is the number of triangles in the mesh. For a description of the (p,e,t) matrices, see Mesh Data as [p,e,t] Triples.

Typically, you use the p, e, and t data exported from the PDE Modeler app, or generated by initmesh or refinemesh.

Example: [p,e,t] = initmesh(gd)

Data Types: double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: pdeplot(results.Mesh,XYData=u,ZData=u)

When you use an FEMesh object, pdeplot(results.Mesh,XYData=u,ZData=u) sets surface plot coloring to the solution u, and sets the heights for a 3-D plot to u. Here u is a NodalSolution property of the PDE results returned by solvepde or solvepdeeig.

When you use a [p,e,t] representation, pdeplot(p,e,t,XYData=u,ZData=u) sets surface plot coloring to the solution u and sets the heights for a 3-D plot to the solution u. Here u is a solution returned by a legacy solver, such as assempde.

Tip

Specify at least one of the FlowData (vector field plot), XYData (colored surface plot), or ZData (3-D height plot) name-value pairs. Otherwise, pdeplot plots the mesh with no data.

Data Plots

collapse all

Colored surface plot data, specified as a vector. If you use a [p,e,t] representation, specify data for points in a vector of length size(p,2), or specify data for triangles in a vector of length size(t,2).

  • Typically, you set XYData to the solution u. The pdeplot function uses XYData for coloring both 2-D and 3-D plots.

  • pdeplot uses the colormap specified in the ColorMap name-value pair, using the style specified in the XYStyle name-value pair.

  • When the Contour name-value pair is "on", pdeplot also plots level curves of XYData.

  • pdeplot plots the real part of complex data.

To plot the kth component of a solution to a PDE system, extract the relevant part of the solution. For example, when using an FEMesh object, specify:

results = solvepde(model);
u = results.NodalSolution; % each column of u has one component of u
pdeplot(results.Mesh,XYData=u(:,k)) % data for column k

When using a [p,e,t] representation, specify:

np = size(p,2); % number of node points
uk = reshape(u,np,[]); % each uk column has one component of u
pdeplot(p,e,t,XYData=uk(:,k)) % data for column k

Example: XYData=u

Data Types: double

Coloring choice, specified as one of the following values:

  • "off" — No shading, only mesh is displayed.

  • "flat" — Each triangle in the mesh has a uniform color.

  • "interp" — Plot coloring is smoothly interpolated.

The coloring choice relates to the XYData name-value pair.

Example: XYStyle="flat"

Data Types: char | string

Data for the 3-D plot heights, specified as a matrix. If you use a [p,e,t] representation, provide data for points in a vector of length size(p,2) or data for triangles in a vector of length size(t,2).

  • Typically, you set ZData to u, the solution. The XYData name-value pair sets the coloring of the 3-D plot.

  • The ZStyle name-value pair specifies whether the plot is continuous or discontinuous.

  • pdeplot plots the real part of complex data.

To plot the kth component of a solution to a PDE system, extract the relevant part of the solution. For example, when using an FEMesh object, specify:

results = solvepde(model);
u = results.NodalSolution; % each column of u has one component of u
pdeplot(results.Mesh,XYData=u(:,k),ZData=u(:,k)) % data for column k

When using a [p,e,t] representation, specify:

np = size(p,2); % number of node points
uk = reshape(u,np,[]); % each uk column has one component of u
pdeplot(p,e,t,XYData=uk(:,k),ZData=uk(:,k)) % data for column k

Example: ZData=u

Data Types: double

3-D plot style, specified as one of these values:

  • "off" — No 3-D plot.

  • "discontinuous" — Each triangle in the mesh has a uniform height in a 3-D plot.

  • "continuous" — 3-D surface plot is continuous.

If you use ZStyle without specifying the ZData name-value pair, then pdeplot ignores ZStyle.

Example: ZStyle="discontinuous"

Data Types: char | string

Data for the quiver plot, specified as an M-by-2 matrix, where M is the number of mesh nodes. FlowData contains the x and y values of the field at the mesh points.

When you use an FEMesh object, set FlowData as follows:

results = solvepde(model);
gradx = results.XGradients;
grady = results.YGradients;
msh = results.Mesh;
pdeplot(msh,FlowData=[gradx grady])

When you use a [p,e,t] representation, set FlowData as follows:

[gradx,grady] = pdegrad(p,t,u); % Calculate gradient
pdeplot(p,e,t,FlowData=[gradx;grady])

When you use ZData to represent a 2-D PDE solution as a 3-D plot and you also include a quiver plot, the quiver plot appears in the z = 0 plane.

pdeplot plots the real part of complex data.

Example: FlowData=[ux uy]

Data Types: double

Indicator to show the quiver plot, specified as "arrow" or "off". Here, "arrow" displays the quiver plot specified by the FlowData name-value pair.

Example: FlowStyle="off"

Data Types: char | string

Indicator to convert the mesh data to x-y grid before plotting, specified as "off" or "on".

Note

This conversion can change the geometry and lessen the quality of the plot.

By default, the grid has about sqrt(size(t,2)) elements in each direction.

Example: XYGrid="on"

Data Types: char | string

Customized x-y grid, specified as a matrix [tn;a2;a3]. For example:

[~,tn,a2,a3] = tri2grid(p,t,u,x,y);
pdeplot(p,e,t,XYGrid="on",GridParam=[tn;a2;a3],XYData=u)

For details on the grid data and its x and y arguments, see tri2grid. The tri2grid function does not work with PDEModel objects.

Example: GridParam=[tn;a2;a3]

Data Types: double

Mesh Plots

collapse all

Node labels, specified as "off" or "on".

pdeplot ignores NodeLabels when you use it with ZData.

Example: NodeLabels="on"

Data Types: char | string

Element labels, specified as "off" or "on".

pdeplot ignores ElementLabels when you use it with ZData.

Example: ElementLabels="on"

Data Types: char | string

Structural Analysis Plots

collapse all

Data for plotting the deformed shape for a structural analysis model, specified as the Displacement property of the StaticStructuralResults object.

In an undeformed shape, center nodes in quadratic meshes are always added at half-distance between corners. When you plot a deformed shape, the center nodes might move away from the edge centers.

Example: Deformation = structuralresults.Displacement

Scaling factor for plotting the deformed shape, specified as a real number. Use this argument with the Deformation name-value pair. The default value is defined internally, based on the dimensions of the geometry and the magnitude of the deformation.

Example: DeformationScaleFactor=100

Data Types: double

Annotations and Appearance

collapse all

Indicator to include a color bar, specified as "on" or "off". Specify "on" to display a bar giving the numeric values of colors in the plot. For details, see colorbar. The pdeplot function uses the colormap specified in the ColorMap name-value pair.

Example: ColorBar="off"

Data Types: char | string

Colormap, specified as a value representing a built-in colormap, or a colormap matrix. For details, see colormap.

ColorMap must be used with the XYData name-value pair.

Example: ColorMap="jet"

Data Types: double | char | string

Indicator to show the mesh, specified as "on" or "off". Specify "on" to show the mesh in the plot.

Example: Mesh="on"

Data Types: char | string

Title of plot, specified as a string scalar or character vector.

Example: Title="Solution Plot"

Data Types: char | string

Surface transparency for 3-D geometry, specified as a real number from 0 through 1. The default value 1 indicates no transparency. The value 0 indicates complete transparency.

Example: FaceAlpha=0.5

Data Types: double

Indicator to plot level curves, specified as "off" or "on". Specify "on" to plot level curves for the XYData data. Specify the levels with the Levels name-value pair.

Example: Contour="on"

Data Types: char | string

Levels for contour plot, specified as a positive integer or a vector of level values.

  • Positive integer — Plot Levels as equally spaced contours.

  • Vector — Plot contours at the values in Levels.

To obtain a contour plot, set the Contour name-value pair to "on".

Example: Levels=16

Data Types: double

Output Arguments

collapse all

Handles to graphics objects, returned as a vector.

More About

collapse all

Quiver Plot

A quiver plot is a plot of a vector field. It is also called a flow plot.

Arrows show the direction of the field, with the lengths of the arrows showing the relative sizes of the field strength. For details on quiver plots, see quiver.

Version History

Introduced before R2006a

expand all
