jigglemesh

(Not recommended) Jiggle internal points of triangular mesh

    This page describes the legacy workflow. New features might not be compatible with the legacy workflow. For the corresponding step in the recommended workflow, see generateMesh.

    Description

    example

    p1 = jigglemesh(p,e,t) jiggles the triangular mesh by adjusting the node point positions. Typically, the quality of the mesh increases after jiggling.

    example

    p1 = jigglemesh(p,e,t,Name,Value) jiggles the mesh using one or more Name,Value arguments.

    Examples

    collapse all

    Create a triangular mesh of the square geometry by using initmesh. To avoid jiggling, call initimesh with the Jiggle value set to off.

    [p,e,t] = initmesh("lshapeg","Jiggle","off");

    Evaluate quality of the mesh elements using the pdetriq function.

    q = pdetriq(p,t);

    Plot the mesh.

    pdeplot(p,e,t,"XYData",q,"ColorBar","on","XYStyle","flat")

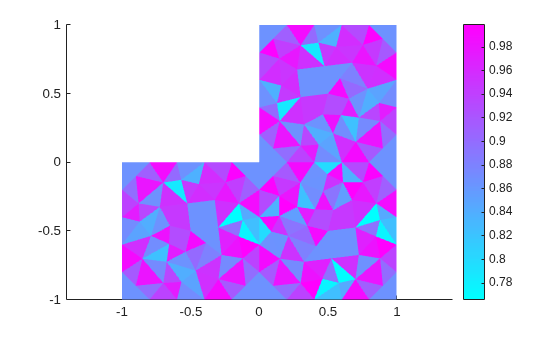

    Figure contains an axes object. The axes object contains an object of type patch.

    Jiggle the mesh using the default parameter values. Plot the result.

    p1 = jigglemesh(p,e,t);
    q = pdetriq(p1,t);
    pdeplot(p1,e,t,"XYData",q,"ColorBar","on","XYStyle","flat")

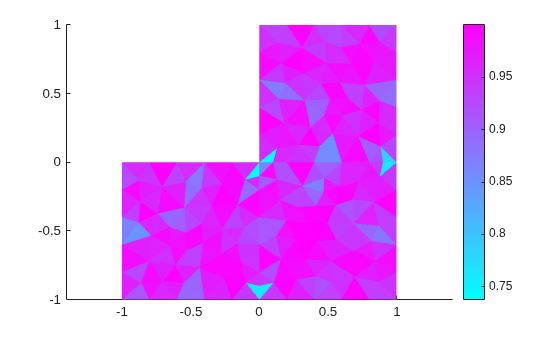

    Figure contains an axes object. The axes object contains an object of type patch.

    Now jiggle the original mesh again, this time using 50000 iterations.

    p2 = jigglemesh(p,e,t,"Opt","off","Iter",5e4);
    q = pdetriq(p2,t);
    pdeplot(p2,e,t,"XYData",q,"ColorBar","on","XYStyle","flat")

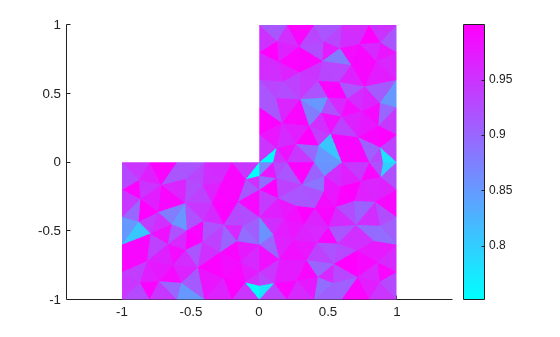

    Figure contains an axes object. The axes object contains an object of type patch.

    Input Arguments

    collapse all

    Mesh points, specified as a 2-by-Np matrix. Np is the number of points (nodes) in the mesh. Column k of p consists of the x-coordinate of point k in p(1,k) and the y-coordinate of point k in p(2,k). For details, see Mesh Data as [p,e,t] Triples.

    Mesh edges, specified as a 7-by-Ne matrix, where Ne is the number of edges in the mesh. An edge is a pair of points in p containing a boundary between subdomains, or containing an outer boundary. For details, see Mesh Data as [p,e,t] Triples.

    Mesh elements, specified as a 4-by-Nt matrix. Nt is the number of triangles in the mesh.

    The t(i,k), with i ranging from 1 through end - 1, contain indices to the corner points of element k. For details, see Mesh Data as [p,e,t] Triples. The last row, t(end,k), contains the subdomain number of the element.

    Name-Value Arguments

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

    Example: p1 = jigglemesh(p,e,t,"Iter",Inf)

    Optimization method, specified as the comma-separated pair consisting of "Opt" and "mean", "minimum", or "off".

    Jiggling a mesh moves each mesh point not located on an edge segment towards the center of mass of the polygon formed by the adjacent triangles. The optimization method controls how many times jigglemesh repeats this process:

    • If Opt is "off", jigglemesh repeats this process Iter times. The default value of Iter in this case is 1.

    • If Opt is "mean", jigglemesh repeats this process until the mean triangle quality stops increasing significantly or until the maximum number of iterations is reached. The default value of Iter in this case is 20.

    • If Opt is "minimum", jigglemesh repeats this process until the minimum triangle quality stops increasing significantly or until the maximum number of iterations is reached. The default value of Iter in this case is 20.

    Example: p1 = jigglemesh(p,e,t,"Opt","off","Iter",1000);

    Data Types: char | string

    Maximum number of iterations, specified as the comma-separated pair consisting of "Iter" and a positive number. The default value depends on the Opt argument value. If Opt is set to "mean" (default) or "minimum", the default maximum number of iterations is 20. If Opt is set to "off", the default maximum number of iterations is 1.

    Example: p1 = jigglemesh(p,e,t,"Opt","off","Iter",1000);

    Data Types: double

    Output Arguments

    collapse all

    Modified mesh points, returned as a 2-by-Np matrix. Np is the number of points (nodes) in the mesh. Column k of p consists of the x-coordinate of point k in p(1,k) and the y-coordinate of point k in p(2,k). For details, see Mesh Data as [p,e,t] Triples.
