Radar Equations
R2026bRadar equations for searching and tracking, synthetic aperture radar (SAR) form of
the radar equation, signal-to-noise ratio versus range plot, probability of detection
versus range plot
Compute the maximum detectable range, SNR versus range, peak-power versus required SNR, minimum power-aperture product versus SNR.
Functions
bistaticClutterSurfaceFIR | Bistatic surface clutter finite impulse response (FIR) (Since R2026b) |
bistaticConstantSNR | Create bistatic constant SNR contours or surfaces (Since R2024b) |
radareqpow | Peak power estimate from radar equation |
radareqrng | Maximum theoretical range estimate |
radareqsnr | SNR estimate from radar equation |
radareqsarsnr | Signal-to-noise ratio of SAR image |
radareqsarpow | Minimum peak transmit power using SAR equation |
radareqsarrng | Maximum detectable range using SAR equation |
radareqsearchpap | Power-aperture product using search radar equation |
radareqsearchrng | Maximum detectable range using search radar equation |
radareqsearchsnr | Range-dependent SNR using search radar equation |
radarmetricplot | Plot radar performance metric against target range |
Apps
| Radar Designer | Model radar gains and losses and assess performance in different environments |
Topics
- Radar Equation
Solve the radar equation for peak power, range, and SNR in monostatic and bistatic configurations.
Featured Examples

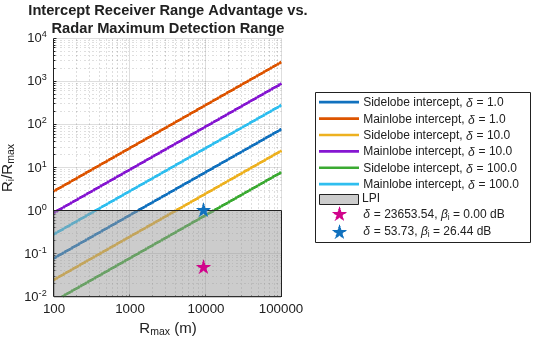

Analysis and Simulation of a Low Probability of Intercept Radar System
Model a low probability of intercept radar system and a non-cooperative receiver that aims to intercept signals transmitted by the radar.
Passive Bistatic Radar Performance Assessment
Evaluate the performance of a passive bistatic radar using a typical FM radio transmitter as the illuminator of opportunity.
