customSurface

Custom surface with complex scattering belonging to a radar scenario

Since R2024a

expand all in page

    Description

    Add custom surface objects that support complex scattering to a radarScenario. Manager surfaces in a radar scenario using SurfaceManager.

    Use customSurface function to define the full polarization scattering matrix of the surface by setting the scattering matrices Shh, Svv, Shv, and Svh. CustomSurface objects are compatible with I/Q generated by radarTransceiver and require that the scenario sensor, surface, and targets are polarized. Scattering matrices are specific to a single frequency and viewing geometry and are therefore relevant to a single sensor attached to the radarScenario. Effects due to occlusion should be modeled within the surface scattering matrix. If IsEarthCentered is set to true and UseOcclusion is also true for the radar scenario, occlusion due to Earth's curvature will be simulated.

    Creation

    Syntax

    srf = customSurface(scenario)
    srf = customSurface(scenario,PropertyName=Value)

    Description

    srf = customSurface(scenario) adds a CustomSurface object, srf, to the radarScenario object scenario.

    srf = customSurface(scenario,PropertyName=Value) adds a CustomSurface, srf, object with each specified PropertyName set to the corresponding Value. The boundary extent (Boundary), polarization type (CrossPolarization), polarization scattering matrices (Shh, Svv, Shv, and Svh), and other properties can be defined. You can specify additional pairs of arguments in any order as PropertyName1=Value1,...,PropertyNameN=ValueN.

    example

    Properties

    expand all

    Extent of the rectangular custom surface, specified as a 2-by-2 finite matrix in units of degrees. The bounding rectangle is defined by two 2-dimensional points in either Cartesian or geodetic scenario coordinates. When the IsEarthCentered property of the radarScenario object is specified as:

    • false — Scenario coordinates are Cartesian. Specify the bounding rectangle as [minX, maxX, minY maxY]. minX and maxX are the minimum and maximum values in the x-direction of the reference frame, where minX < maxX. minY and maxY are the minimum and maximum values in the y-direction of the reference frame, where minY < maxY.

    • true — Scenario coordinates are geodetic. Specify the bounding rectangle as [startLat, endLat, startLon endLon]. startLat and endLat are the minimum and maximum latitudes of the geodetic frames, where startLat and endLat must lie in the interval [–90,90] and startLat < endLat. startLon and endLon are the minimum and maximum longitudes of the geodetic frame and must lie in the interval [–180,180]. If endLon < startLon, the object wraps endLon to startLon + 360°. Units are in degrees.

    The resolution of surface patches within Boundary is given by resX = lengthX / numX for the x-dimension. Similarly, the resolution for the y-dimension is resY = lengthY / numY. lengthX and lengthY are calculated as the differences of the Boundary coordinates in the x- and y- dimensions, respectively. The number of surface patches within the boundary is determined by the size of the scattering matrix component Shh. For the x-dimension, numX = size(Shh,1) and for the y-dimension, numY = size(Shh,2). Note, the clutterGenerator Resolution property for the radarScenario should match the resolution of the custom surface to prevent resampling of the surface. For example, if you have a surface that is 500-by-1 km in Cartesian space with a clutterGenerator Resolution set to 50 m, the Boundary could be specified as [–200 300; 100 1100]. For this case, the polarization scattering matrix components (Shh, Svv, Shv, and Svh) should be of size 20-by-10 m because numX = (maxX – minX) / resX, and numY = (maxY – minY) / resY.

    Data Types: double

    Specify the polarization scattering matrix as either full or symmetric. If CrossPolarization is full, the polarization matrix components Shh, Svv, Shv, and Svh must all be specified. If CrossPolarization is set to symmetric, reciprocity is assumed (monostatic geometry), and the cross-polarization terms are considered to be equivalent (Shv = Svh). Therefore, Shv is automatically set to the same value as Svh and cannot be modified.

    Data Types: char | string

    Specify the complex-valued polarization scattering matrix co-polarized HH component, where HH represents horizontal transmission and horizontal reception, as an M-by-N-by-P matrix. M indicates the number of components in the x-direction, N indicates the number of components in the y-direction, and P corresponds to the number of elements in the Frequency vector. The matrix is bounded in space by the Boundary property limits.

    Data Types: double
    Complex Number Support: Yes

    Specify the complex-valued polarization scattering matrix co-polarized VV component, where VV represents vertical transmission and vertical reception, as an M-by-N-by-P matrix. M indicates the number of components in the x-direction, N indicates the number of components in the y-direction, and P corresponds to the number of elements in the Frequency vector. The matrix is bounded in space by the Boundary property limits.

    Data Types: double
    Complex Number Support: Yes

    Specify the complex-valued polarization scattering matrix cross-polarized HV component, where HV represents horizontal transmission and vertical reception, as an M-by-N-by-P matrix. M indicates the number of components in the x-direction, N indicates the number of components in the y-direction, and P corresponds to the number of elements in the Frequency vector. The matrix is bounded in space by the Boundary property limits.

    Data Types: double
    Complex Number Support: Yes

    Specify the complex-valued polarization scattering matrix cross-polarized VH component, where VH represents vertical transmission and horizontal reception, as an M-by-N-by-P matrix. M indicates the number of components in the x-direction, N indicates the number of components in the y-direction, and P corresponds to the number of frequencies in Frequency. The matrix is bounded in space by the Boundary property limits.

    Dependencies

    To enable this property, set the CrossPolarization property to "full".

    Data Types: double
    Complex Number Support: Yes

    Valid frequencies for the scattering matrix components specified as a length-P row vector, where P is the number of frequencies. Frequency units are in hertz (Hz).

    Data Types: double

    Reference height of surface height data, specified as a scalar. Surface heights are relative to the reference height. Units are in meters.

    Data Types: double

    Object Functions

    updateScatteringMatrixUpdate scattering matrices
    heightHeight of point on surface
    occlusionTest for occlusion of point by a surface

    Examples

    collapse all

    Open Live Script

    This example shows how to create a custom surface and update the polarization scattering matrices. Co-polarized and cross-polarized surfaces are compared.

    Create Custom Surface

    Create a co-polarized custom surface.

    % Create a radar scenario
rng('default');
scenario = radarScenario(IsEarthCentered=false);

% Create a co-polarized custom surface
bnds = [-600 570; 0 1.17e3];
Shh  = zeros(40,40,2);
Svv  = ones(40,40,2);
Shv  = zeros(size(Shh));
srf  = customSurface(scenario,Boundary=bnds, ...
     CrossPolarization='symmetric',Shh=Shh,Svv=Svv,Shv=Shv);

    Collect I/Q Data

    Create a vertically polarized radar I/Q sensor and collect data.

    % Create a vertically polarized radar IQ sensor and attach to
% a platform
freq = 500e6;
sweepBW = 5e6;
fs = 2*sweepBW;
wav = phased.LinearFMWaveform(SampleRate=fs, ...
    SweepBandwidth=sweepBW);
rdr = radarTransceiver(Waveform=wav, ...
    MountingAngles=[-90 10 0], ...
    RangeLimits=[0 1.2e3]);
element = phased.ShortDipoleAntennaElement;
ula     = phased.ULA(Element=element);
configureAntennas(rdr,Combined=ula);
rdr.TransmitAntenna.OperatingFrequency = freq;
rdr.ReceiveAntenna.OperatingFrequency = freq;
rdr.Receiver.SampleRate = fs;
rdrplat = platform(scenario,Position=[0 0 10],Sensors=rdr);

% Create clutter generator
cluttergen = clutterGenerator(scenario,rdr,Resolution=30, ...
    RangeLimit=1.2e3);

% Advance scenario and collect IQ
advance(scenario);
iq = receive(scenario);

% Pulse compress
mf = getMatchedFilter(rdr.Waveform);
rngresp = phased.RangeResponse(SampleRate=fs);
[iqPC,rngGrid] = rngresp(iq{1}(:,1),mf);
figure
nexttile
plot(rngGrid,mag2db(abs(iqPC)))
title(['Pulse 1, Element 1' newline 'Co-Polarized Surface'])
xlabel('Range (m)')
ylabel('Magnitude (dB)')
grid on
axis tight
ylim([-80 60])

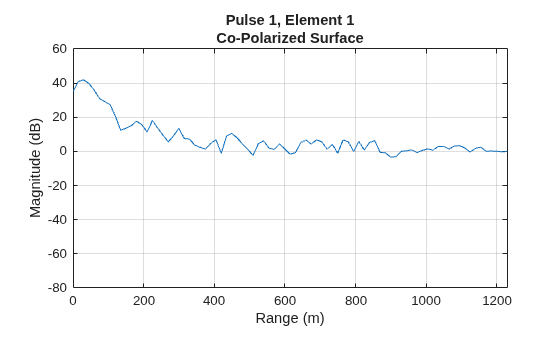

    Figure contains an axes object. The axes object with title Pulse 1, Element 1 Co-Polarized Surface, xlabel Range (m), ylabel Magnitude (dB) contains an object of type line.

    Update Scattering Matrix Values

    Update scattering matrix values for HH and VV components to make the surface cross-polarized and collect I/Q data.

    % Update scattering matrix values for HH and VV components.
% Make the surface cross-polarized.
Shh  = ones(40,40,2);
Svv  = zeros(40,40,2);
updateScatteringMatrix(srf,Shh=Shh,Svv=Svv)

% Collect IQ
reset(rdr);
iq = receive(scenario);
[iqPC,rngGrid] = rngresp(iq{1}(:,1),mf);
nexttile
plot(rngGrid,mag2db(abs(iqPC)))
title(['Pulse 2, Element 1' newline ...
    'Cross-Polarized Surface'])
xlabel('Range (m)')
ylabel('Magnitude (dB)')
grid on
axis tight
ylim([-80 60])

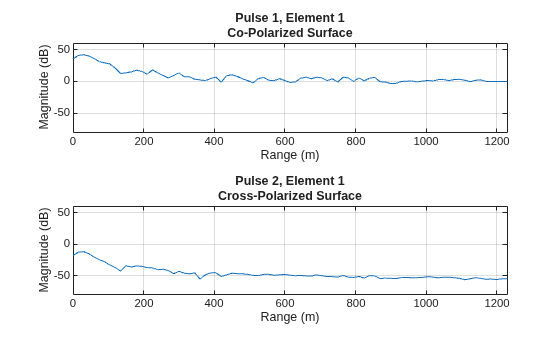

    Figure contains 2 axes objects. Axes object 1 with title Pulse 1, Element 1 Co-Polarized Surface, xlabel Range (m), ylabel Magnitude (dB) contains an object of type line. Axes object 2 with title Pulse 2, Element 1 Cross-Polarized Surface, xlabel Range (m), ylabel Magnitude (dB) contains an object of type line.
