amplifier
Create two-port amplifier element
Description
Use the amplifier
object to create a two-port amplifier
element or to analyze a commercial off-the-shelf (COTS) amplifier. You can also use the
amplifier
object to model an amplifier in an RF system created
using an rfbudget
object
or the RF Budget Analyzer app and, then export this element to RF
Blockset™ or to rfsystem
System object™ for circuit envelope analysis.
Creation
Properties
Name
— Name of amplifier
'Amplifier'
(default) | character vector | string scalar
Name of amplifier, specified as a character vector. All names must be valid MATLAB® variable names.
Example: Name='amp'
Model
— Amplifier model
'cubic'
(default) | 'sparam'
| 'ampm'
Since R2024b
Amplifier model, specified as one of the following:
'cubic'
— Cubic polynomial model. When you set this value, theamplifier
object uses theGain
,Zin
,Zout
, andNF
properties to compute gain, matching, and noise.'sparam'
— S-parameter model. When you set this value, theamplifier
object uses theNetworkData
andNoiseData
properties to compute gain, matching, and noise. Input the S-parameter data using the NetworkData or FileName property.'ampm'
— AM/PM-AM/PM model. When you set this value, theamplifier
object uses AM/AM–AM/PM data to characterize the amplifier. Input AM/AM–AM/PM data using the AMPMTable property.
Example: Model='ampm'
Gain
— Available power gain
0
(default) | real finite scalar
Available power gain, specified as a real finite scalar in dB.
Example: Gain=10
NF
— Noise figure
0
(default) | real finite nonnegative scalar
Noise figure, specified as a real finite nonnegative scalar dB.
Example: NF=-10
OIP2
— Second-order output-referred intercept point
Inf
(default) | real scalar
Second-order output-referred intercept point, specified as a real scalar in dBm.
Example: OIP2=8
OIP3
— Third-order output-referred intercept point
Inf
(default) | real scalar
Third-order output-referred intercept point, specified as a real scalar in dBm.
Example: OIP3=10
Zin
— Input impedance
50
(default) | positive real part finite scalar
Input impedance, specified as a positive real part finite scalar in ohms. You can also use a complex value with a positive real part.
Example: Zin=40
Zout
— Output impedance
50
(default) | positive real part finite scalar
Output impedance, specified as a scalar in ohms. You can also use a complex value with a positive real part.
Example: Zout=40
FileName
— Name of two-port Touchstone file
''
(default) | string scalar | character vector
Name of the two-port Touchstone file from which to extract the
NetworkData
and the NoiseData
properties, specified as a string scalar or character vector.
Example: FileName='default.s2p'
NetworkData
— Network Data
network parameter object
Network data of the amplifier, specified as a two-port network parameter object. The network parameter objects are of the type:
Network parameter object defines the frequency-dependent gain and
impedance matching for the amplifier, typically, a
sparameters
object from a two-port Touchstone file. To
specify a frequency-independent network data, set the
NetworkData
property to []
. This
resets network data to a frequency-independent two-port network object
defined by the Gain
, Zin
, and
Zout
properties.
Example: NetworkData=nd
NoiseData
— Noise Data
noiseParameter
object
Noise data of the amplifier, specified as a noiseParameters
object. The noiseParameter
object contains a frequency-dependent noise figure loaded from a two-port
Touchstone file or built at the MATLAB® command line. To specify a
frequency-independent noise figure, set the NoiseData
to []
.
Example: NoiseData=np
AMPMTable
— Lookup table entries
[ -25, 5, -1; -10, 20, -2; 0, 27, 5; 5, 28, 12
]
(default) | real M-by-3 matrix
Since R2023b
Lookup table entries, specified as a real M-by-3 matrix. M must be a positive scalar. The first column of the matrix represents the input power, and the values in this column must increase monotonically. The second column of the matrix represents the output power in dBm in the AM/AM-AM/PM model and the third column represents the phase change in degrees in the model. The values in the second and third columns are related to the absolute value of the power of the input signal represented in the first column.
To enable the AMPMTable
property, set
Model
to ampm
.
Example: AMPMTable=[ -25, 5, 0; -10, 20, -2; 0, 27, 5; 5, 28, 12
]
NumPorts
— Number of ports
2
(default) | scalar integer
This property is read-only.
Number of ports, returned as a scalar integer.
Terminals
— Names of port terminals
{'p1+' 'p2+' 'p1-' 'p2-'}
(default) | cell vector
This property is read-only.
Names of port terminals, returned as a cell vector.
Object Functions
Examples
Analyze COTS Amplifier
Use the RF Toolbox amplifier
object to model a Qorvo CMD240 COTS amplifier. First, use the sparameter
object to capture the S-parameter data from the CMD240 data file (Copyright (c) Qorvo, Inc., reproduced with permission).
S = sparameters('cmd240-sparameters.s2p');
rfplot(S)
Then use the noiseParameters
object to build the noise data.
NF = [4 2.9 2.2 1.8 2.2 2 2.1 2.3 2.4 3.1 3.7]; freqs = (2:2:22)*1e9; nd = noiseParameters(NF,freqs,50)
nd = noiseParameters with properties: Frequencies: [11x1 double] Fmin: [11x1 double] GammaOpt: [11x1 double] Rn: [11x1 double]
Create an amplifier using the CMD240 data file and add the noise data to the amplifier.
a1 = amplifier('FileName','cmd240-sparameters.s2p','OIP3',27.8); a1.NoiseData = nd % clears FileName since there is no noise in the file.
a1 = amplifier: Amplifier element Name: 'Amplifier' Model: 'sparam' FileName: '' NetworkData: [1x1 sparameters] NoiseData: [1x1 noiseParameters] OIP2: Inf OIP3: 27.8000
Alternatively, you can use the nport
object to hold both the S-parameter and the noise data and then use the rfwrite
function to create a Touchstone file.
n = nport(NetworkData=S,NoiseData=nd); rfwrite(n,'CMD240withNF.s2p','Format','RI') a = amplifier('FileName','CMD240withNF.s2p','OIP3',27.8);
Use the rfbudget
object to compare harmonic balance analysis with Friis analysis.
b = rfbudget(a,10e9,-30,1e3,'Solver','HarmonicBalance'); b.Friis
ans = struct with fields:
OutputPower: -15.0349
TransducerGain: 14.9651
NF: 2.2000
IIP2: []
OIP2: []
IIP3: 12.7828
OIP3: 27.8000
SNR: 111.7752
b.HarmonicBalance
ans = struct with fields:
OutputPower: -15.0353
TransducerGain: 14.9647
NF: 2.1995
IIP2: Inf
OIP2: Inf
IIP3: 12.7825
OIP3: 27.7990
SNR: 111.7756
OneToneSolutions: {[1x1 rf.internal.rfengine.analyses.solution]}
TwoToneSolutions: {[1x1 rf.internal.rfengine.analyses.solution]}
Gain is about 15 dB and noise figure is about 2.2 dB. This matches the product data sheet. For more information, see CMD240 product data sheet. You can verify this in RF Budget Analyzer app.

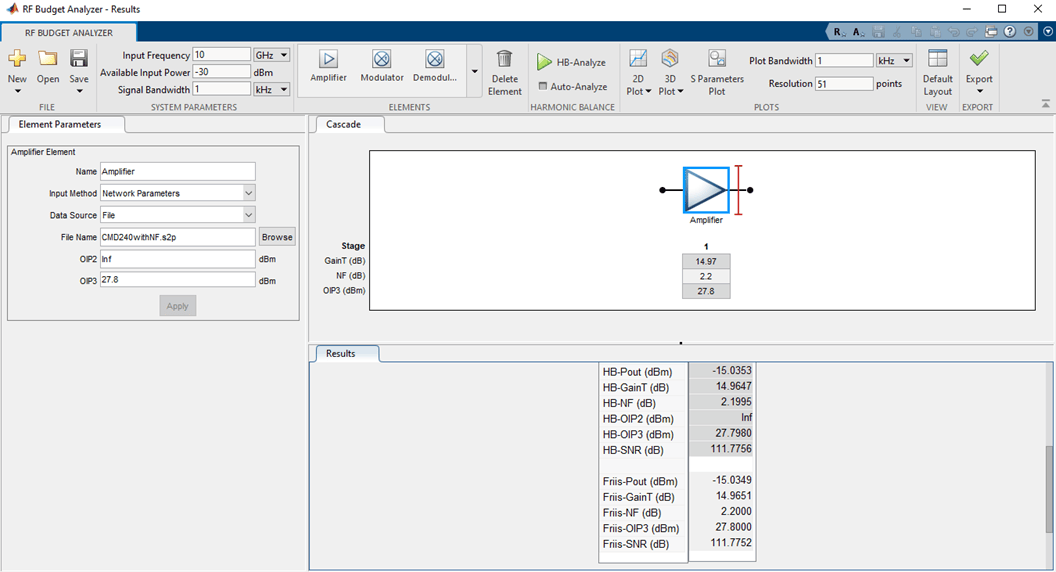

show(b)
You can also use the exportTestbench
function to verify with RF Blockset simulation. Type exportTestbench(b)
command at the command line to open measurement testbench from RF budget object.
exportTestbench(b)

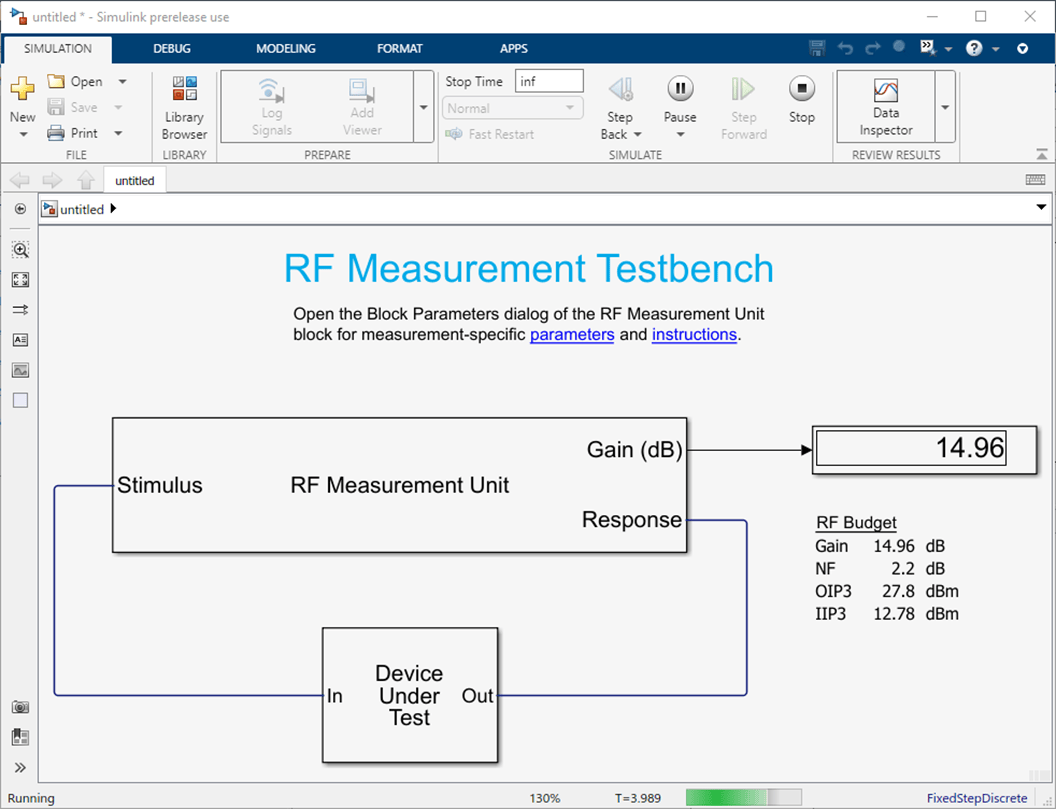

Click Run to see the Gain is about 15 dB.

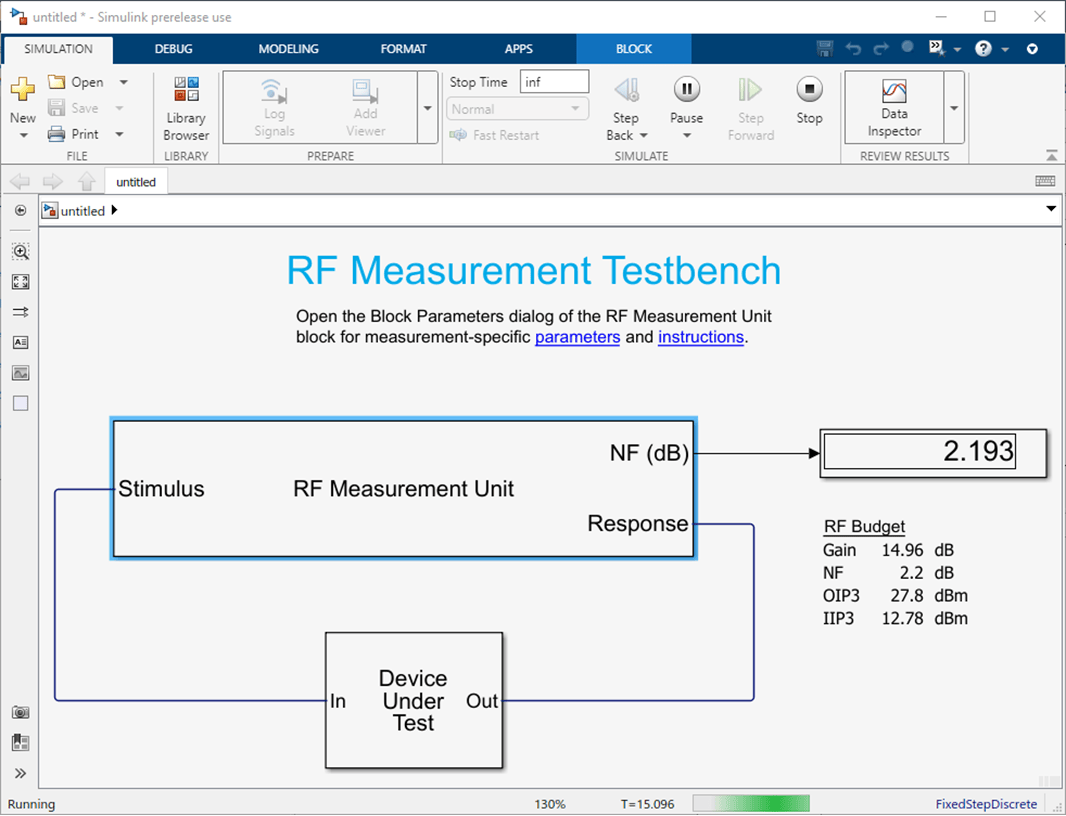

Set the Measured quantity of the RF Measurement Unit to NF
and then click Run to see the noise figure is about 2.2 dB.

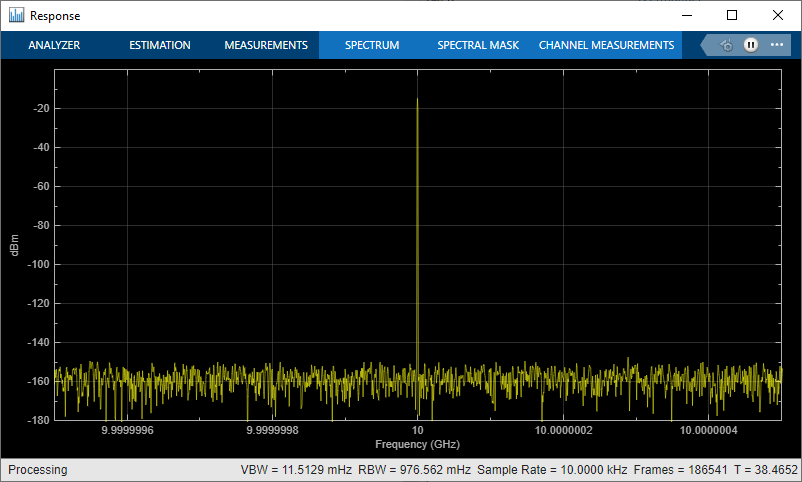

The amplifier response is displayed in the Spectrum Analyzer window.
Plot Amplifier Characteristics
Since R2023a
Create an amplifier
object.
amp = amplifier;
Plot the amplifier power characteristics at 2.1 GHz.
rfplot(amp,2.1e9)
Set OIP3 of amplifier to 25 dBm.
amp.OIP3 = 25;
Plot the amplifier power characteristics at 2.1 GHz with nonlinearity.
rfplot(amp,2.1e9)
Plot the amplifier power characteristics on the axes specified in ax
instead of the current axes.
f = figure; ax = axes(f); rfplot(ax,amp,2.1e9)
Create Amplifier Element from Touchstone File Containing Noise Data
Create an amplifier from the default.s2p
Touchstone file.
a = amplifier(FileName='default.s2p')
a = amplifier: Amplifier element Name: 'Amplifier' Model: 'sparam' FileName: 'default.s2p' NetworkData: [1x1 sparameters] NoiseData: [1x1 noiseParameters] OIP2: Inf OIP3: Inf
Define a measured noise figure, noise frequencies, and the reference impedance data.
NF = [4 3 2 2 2 2 2 2.5 2.5 3 3.5]; freqs = (2:2:22)*1e9; z0 = 50;
Build the noise parameters from the measured NF data.
np = noiseParameters(NF,freqs,z0);
Add this noise data to the amplifier
object.
a = amplifier(FileName='default.s2p',NoiseData=np)
a = amplifier: Amplifier element Name: 'Amplifier' Model: 'sparam' FileName: '' NetworkData: [1x1 sparameters] NoiseData: [1x1 noiseParameters] OIP2: Inf OIP3: Inf
Create Amplifier Element
Create an amplifier
object named 'LNA
' and has a gain of 10 dB.
a = amplifier(Name='LNA',Gain=10)
a = amplifier: Amplifier element Name: 'LNA' Model: 'cubic' Gain: 10 NF: 0 OIP2: Inf OIP3: Inf Zin: 50 Zout: 50
Amplifier Circuit
Create an amplifier object with a gain of 4 dB. Create another amplifier object that has an output third-order intercept (OIP3) 13 dBm.
amp1 = amplifier('Gain',4); amp2 = amplifier('OIP3',13);
Build a 2-port circuit using the amplifiers.
c = circuit([amp1 amp2])
c = circuit: Circuit element ElementNames: {'Amplifier' 'Amplifier_1'} Elements: [1x2 amplifier] Nodes: [0 1 2 3] Name: 'unnamed'
RF Budget Analysis of Series of RF Elements
Create an amplifier with a gain of 4 dB.
a = amplifier(Gain=4);
Create a modulator with an OIP3 of 13 dBm.
m = modulator(OIP3=13);
Create an N-port element using passive.s2p
.
n = nport('passive.s2p');
Create an RF element with a gain of 10 dB.
r = rfelement(Gain=10);
Calculate the RF budget of a series of RF elements at an input frequency of 2.1 GHz, an available input power of –30 dBm, and a bandwidth of 10 MHz.
b = rfbudget([a m r n],2.1e9,-30,10e6)
b = rfbudget with properties: Elements: [1x4 rf.internal.rfbudget.Element] InputFrequency: 2.1 GHz AvailableInputPower: -30 dBm SignalBandwidth: 10 MHz Solver: Friis AutoUpdate: true Analysis Results OutputFrequency: (GHz) [ 2.1 3.1 3.1 3.1] OutputPower: (dBm) [ -26 -26 -16 -20.6] TransducerGain: (dB) [ 4 4 14 9.4] NF: (dB) [ 0 0 0 0.1392] IIP2: (dBm) [] OIP2: (dBm) [] IIP3: (dBm) [ Inf 9 9 9] OIP3: (dBm) [ Inf 13 23 18.4] SNR: (dB) [73.98 73.98 73.98 73.84]

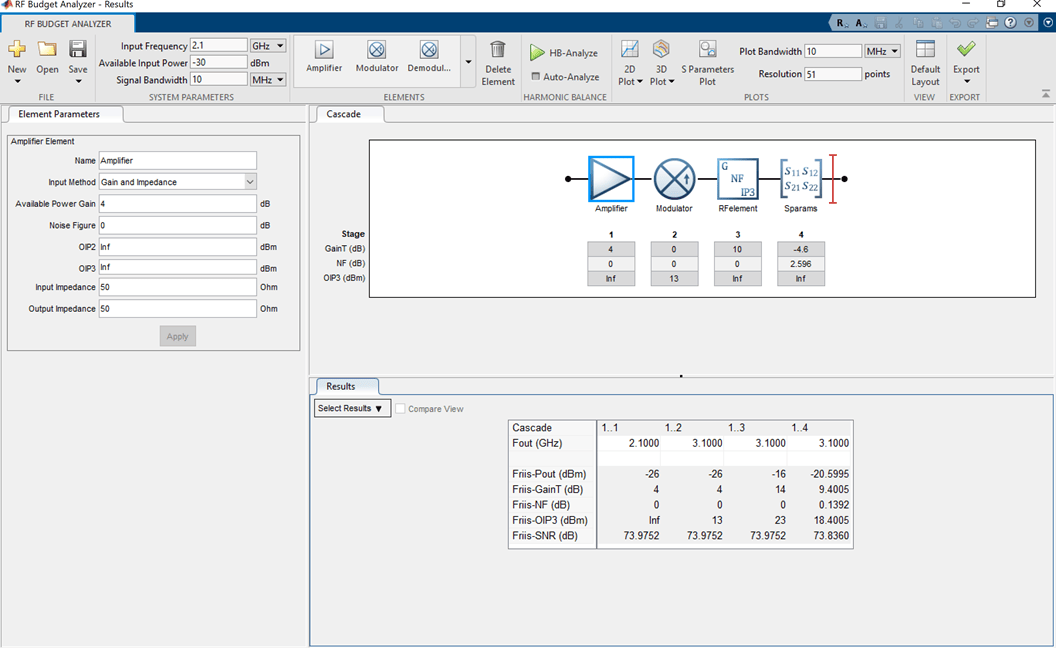

Type the show
command at the command window to display the analysis in the RF Budget Analyzer app.
show(b)
Version History
Introduced in R2017aR2024b: Design amplifier using cubic polynomial model, AM/AM-AM/PM data, or S-parameter data
Use the new Model
property in the amplifier
object to design an amplifier using the cubic polynomial model, AM/AM-AM/PM data, or
S-parameter data.
R2024b: UseNetworkData
and UseAMPMData
properties will be removed in future release
The UseNetworkData
and UseAMPMData
properties of the amplifier
object will be removed in a future
release. Use the new Model
property instead.
When executing code with the amplifier
object that uses the
UseNetworkData
and UseAMPMData
properties, the software will replace these properties with the new
Model
property. The software assigns the
Model
property an sparam
value if the
original property is UseNetworkData
and
anampm
value if the original property is
UseAMPMData
.
R2023b: Characterize amplifiers using AM/AM-AM/PM data
R2023b: Recommended over rfckt.amplifier
, rfdata.ip3
rfdata.power
, and
rfdata.nf
amplifier
is recommended over rfckt.amplifer
,
rfdata.ip3
, rfdata.power
and
rfdata.nf
because it enables you to:
Create a two-port amplifier element.
Analyze a commercial off-the-shelf (COTS) amplifier.
Specify third-order intercept points and noise figure.
Characterize amplifiers using AM/AM-AM/PM data.
Build a
circuit
object with an amplifier element.Model an amplifier in an RF chain created using an
rfbudget
object or the RF Budget Analyzer app, and then export this element to RF Blockset or torfsystem
System object for circuit envelope analysis.
R2022a: Model RF amplifier using network parameters from two-port Touchstone file
To model an RF amplifier element using network parameters from a two-port Touchstone file, specify the name of the file in the FileName property. The object extracts the values of the NetworkData and the NoiseData properties from this file.
See Also
modulator
| nport
| circuit
| noiseParameters
| add
