Circuit Design and Analysis
Use the RF Budget Analyzer app for designing
RF transmitters and receivers using data sheet parameters. You can
subsequently perform full circuit envelope or time domain simulation on your
RF system using an
rfsystem system object.
Design RF filters, matching networks, or circuits with arbitrary configurations using RF circuit elements. Alternatively, you can use RFCKT objects to construct series, parallel, cascade, hybrid, and inverse hybrid configurations. You can perform frequency domain analysis on these networks, calculate S-parameters, and group delay.
You can also use the Matching Network Designer app to design, visualize, and compare 1-port narrowband matching networks.
- RF Network Construction
Create RF circuits for frequency domain analysis

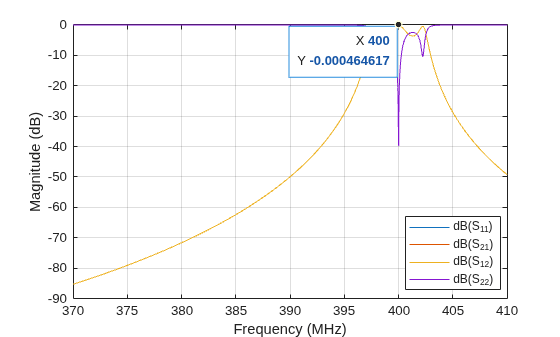

- RF Filter Design
Design RF filters such as Butterworth, Chebyshev, Inverse Chebyshev

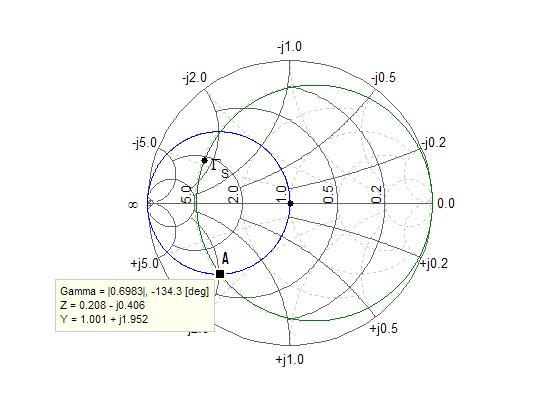

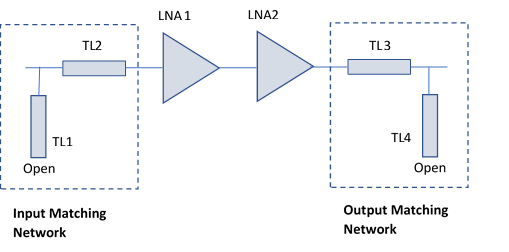

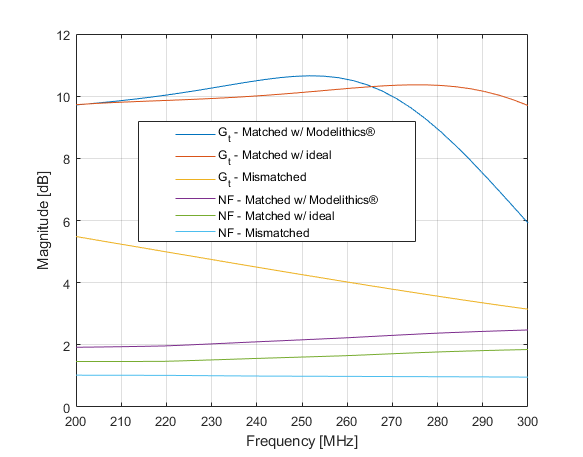

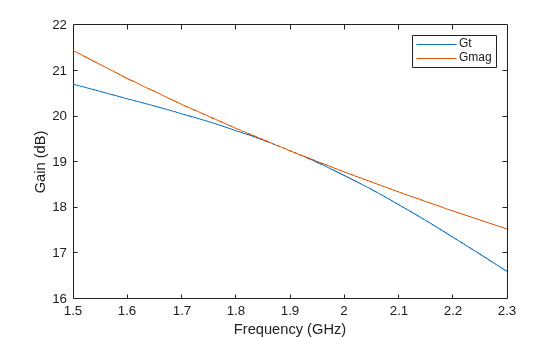

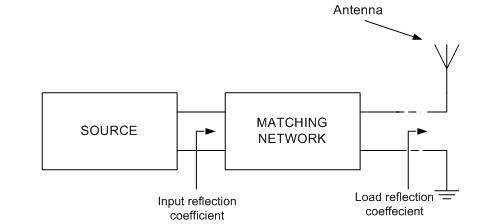

- Matching Network Design
Design narrowband matching networks
- Frequency Domain Analysis
Group delay, power gain, VSWR, and stability reflection coefficients
- RF Budget Analysis
Calculate power, gain, noise, and intermodulation budget for RF cascade elements
