mirrorY

Mirror shape along Y-axis

Since R2022a

collapse all in page

Syntax

mirroredshape = mirrorY(shape)

Description

mirroredshape = mirrorY(shape) mirrors a shape along the Y-axis.

example

Examples

collapse all

Mirror Curved Bend Shape Along Y-Axis

Open Live Script

Create a curved bend and view it.

shape = bendCurved;
show(bendCurved)

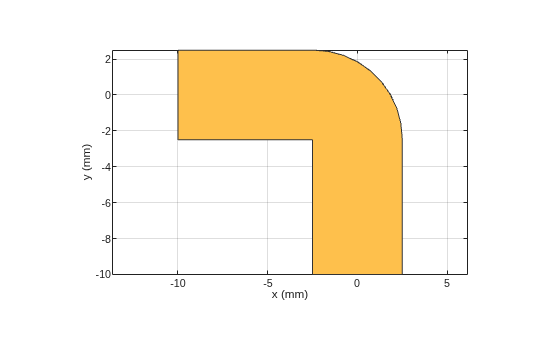

Figure contains an axes object. The axes object with xlabel x (mm), ylabel y (mm) contains 2 objects of type patch. These objects represent PEC, myCurvedbend.

Mirror the shape along the Y-axis.

mirrorY(shape)

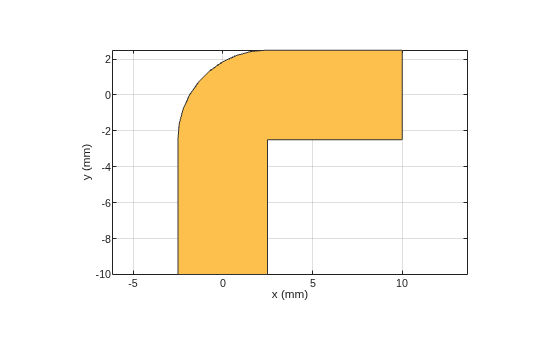

Figure contains an axes object. The axes object with xlabel x (mm), ylabel y (mm) contains 2 objects of type patch. These objects represent PEC, myCurvedbend.
