Comparison of Lumped and Distributed EM Models for Low Pass Filters
This example shows how to compare lumped and distributed electromagnetic (EM) model for low pass filters.
rffilterobject from the RF Toolbox to create a lumped element implementation for the low pass filter.
Use Richards and Kurodas identities to convert the lumped element filter into distributed element filter by calculating the line impedances.
microstripLinedesign function to calculate the length and width of the transmission lines having different impedance
filterStubcatalog in RF PCB Toolbox is used to create and analyze this filter.
You will observe that the results from the RF Toolbox and RF PCB Toolbox are matching very well.
designFreq = 4e9; freqRange = linspace(1e9,2*designFreq,51);
Create RF Filter
rffilter object to create an RF filter with a
filterOrder 3 and with a 3 dB equal ripple passband response.
filt = rffilter('FilterOrder',3,'FilterType','Chebyshev'); filt.PassbandFrequency = designFreq; filt.PassbandAttenuation = 2;

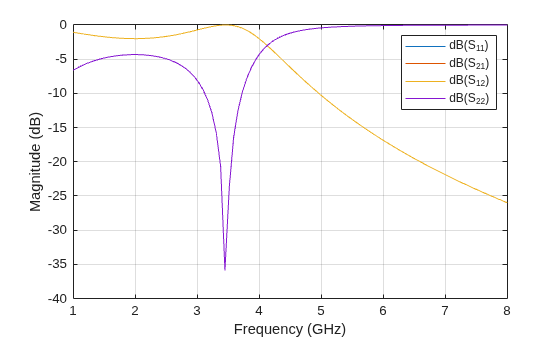

Use the sparameters function to compute the S-Parameters of the low pass filter and plot them using the rfplot function.
spar = sparameters(filt,linspace(1e9,8e9,101)); figure,rfplot(spar);
rffilter computes the values of L and C for the required response. You can access these values from the
DesignData property of the RF filter.
ans = struct with fields: FilterOrder: 3 Inductors: [5.3927e-09 5.3927e-09] Capacitors: 6.6261e-13 Topology: 'lclowpasstee' PassbandFrequency: 4.0000e+09 PassbandAttenuation: 2
Transform the L and C values into normalized low pass filter element values. In order to construct the distributed form of this filter, you need to convert the lumped elements into distributed transmissions lines using Richards transformations and Kuroda identities. Using these g1, g2 and g3 values compute the line impedances for the series lines and the open stubs
L = filt.DesignData.Inductors; C = filt.DesignData.Capacitors; % Computation % normalized low-pass element values g1 = 2*pi*filt.PassbandFrequency*L(1)/filt.Zin; g3 = g1; g2 = 2*pi*filt.PassbandFrequency*C*filt.Zin; % Richard's transformation and Kuroda's 2nd identity n2 = 1+(1/g1); Zshunt1 = n2*filt.Zin; Zseries1 = n2*g1*filt.Zin; Zshunt2 = (1/g2)*filt.Zin; Zseries2 = n2*g3*filt.Zin; %#ok<*NASGU> Zshunt3 = n2*filt.Zin;
After calculating the impedances of transmission lines, use the design function from the
microstripLine catalog to calculate the lengths and widths of the respective impedance.
obj = microstripLine; portline = design(obj,designFreq,'Z0',50,'LineLength',1/8); seriesLine1 = design(obj,designFreq,'Z0',Zseries1,'LineLength',1/8); seriesLine2 = design(obj,designFreq,'Z0',Zseries2,'LineLength',1/8); stub1 = design(obj,designFreq,'Z0',Zshunt1,'LineLength',1/8); stub2 = design(obj,designFreq,'Z0',Zshunt2,'LineLength',1/8); stub3 = design(obj,designFreq,'Z0',Zshunt3,'LineLength',1/8);
Comparison with EM Simulation

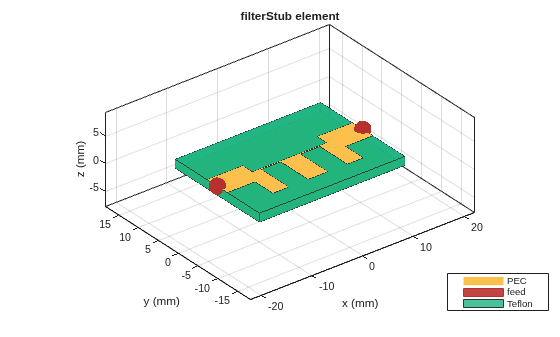

filterStub object and create the filter using the dimensions from the RF filter.
filterEM = filterStub; filterEM.PortLineLength = portline.Length; filterEM.PortLineWidth = portline.Width; filterEM.SeriesLineLength = [seriesLine1.Length seriesLine2.Length]; filterEM.SeriesLineWidth = [seriesLine1.Width seriesLine2.Width]; filterEM.StubLength = [stub1.Length stub2.Length stub3.Length]; filterEM.StubWidth = [stub1.Width stub2.Width stub3.Width]; filterEM.StubDirection = [0 0 0]; filterEM.StubShort = [0 0 0]; filterEM.StubOffsetX= [-seriesLine1.Length 0 seriesLine2.Length]; filterEM.GroundPlaneWidth = max(filterEM.StubLength)*3; show(filterEM);

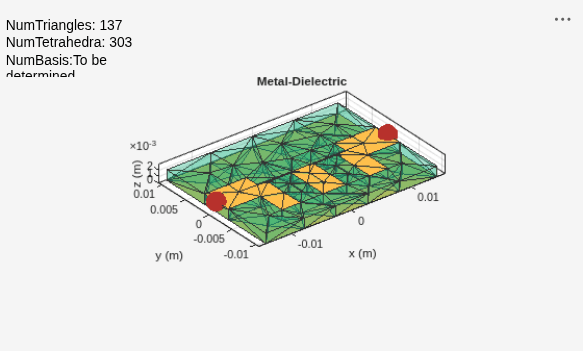

mesh function and set the
MaxEdgeLength to 5 mm to ensure 15 triangles per wavelength.
sparameters function to calculate the S-parameters and plot it using the
spar = sparameters(filterEM,linspace(1e9,8e9,51)); figure,rfplot(spar);
