slreportgen.report.MATLABFunction Class

Namespace: slreportgen.report
Superclasses: slreportgen.report.Reporter

MATLAB Function block or Stateflow MATLAB function reporter

Description

Use an object of the slreportgen.report.MATLABFunction class to report on a Simulink^® MATLAB Function block or Stateflow^® MATLAB^® function.

By default, a MATLABFunction reporter adds this information to a report:

• Simulink MATLAB Function block or Stateflow MATLAB function properties

• A summary of the function input and output arguments

• The MATLAB code used by the function to compute its outputs from its inputs

Use the reporter properties to include other information, such as detailed argument properties, function symbol properties, and supporting functions.

Note

To use a MATLABFunction reporter in a report, you must create the report using the slreportgen.report.Report class.

The slreportgen.report.MATLABFunction class is a handle class.

Class Attributes

HandleCompatible

true

For information on class attributes, see Class Attributes.

Creation

Description

reporter = slreportgen.report.MATLABFunction creates an empty MATLABFunction reporter based on the default template. Use the Object property to specify the Simulink MATLAB Function block or Stateflow MATLAB function to report.

reporter = slreportgen.report.MATLABFunction(mlfcnObj) sets the Object property to the MATLAB Function block or Stateflow MATLAB function specified by mlfcnObj.

reporter = MATLABFunction(PropertyName=Value) sets MATLABFunction reporter properties using name-value arguments. You can specify multiple name-value arguments in any order.

Properties

Object — MATLAB function block or Stateflow MATLAB function

[] (default) | character vector | string scalar | function handle

MATLAB function block or Stateflow MATLAB function to report, specified as one of these values:

• Character vector or string scalar that contains the path to a MATLAB Function block

• Handle to a MATLAB Function block or Stateflow MATLAB function

Note

If you use a finder to find a MATLAB Function block or Stateflow MATLAB function and add the result directly to a report, an slreportgen.report.MATLABFunction reporter is used instead of a Simulink object property reporter.

Attributes:

GetAccess	public
SetAccess	public

Data Types: char | string | function_handle

IncludeObjectProperties — Whether to include object properties

1 (true) (default) | 0 (false)

Whether to include object properties, specified as a logical 1 (true) or 0 (false). When you specify:

• 1 (true) — Include a table of the properties of the Simulink or Stateflow object that corresponds to the MATLAB Function block or Stateflow MATLAB function being reported.

• 0 (false) — Do not include a table of the object properties.

Attributes:

GetAccess	public
SetAccess	public

ObjectPropertiesReporter — Object properties reporter

mlreportgen.report.BaseTable object

Object properties reporter, specified as an mlreportgen.report.BaseTable object. The MATLABFunction reporter uses the specified reporter to create a table of the properties of the Simulink or Stateflow object that corresponds to the MATLAB Function block or Stateflow MATLAB function being reported.

For a Simulink MATLAB Function block, these properties are reported:

• Update Method

• Sample Time

• Support variable-size arrays

• Saturate on integer overflow

• Treat these inherited Simulink signal types as fi objects

• MATLAB Function block fimath

• Input fi math

• Description

For a Stateflow MATLAB function, these properties are reported:

• Saturate on integer overflow

• MATLAB function fimath

• Input fi math

• Description

To customize the appearance of the function property table and its title, customize the default BaseTable reporter or replace it with a custom version of the BaseTable reporter. To customize the title of the function property table, specify the contents in the Title property of the default or replacement reporter. The content you specify is placed at the front of the default title.

Attributes:

GetAccess	public
SetAccess	public

IncludeArgumentSummary — Include summary of arguments

1 (true) (default) | 0 (false)

Whether to include an argument summary table, specified as a logical 1 (true) or 0 (false). When you specify:

• 1 (true) — Include a summary table of the properties of the arguments of the reported function.

• 0 (false) — Do not include a summary table of the properties of the arguments of the reported function.

Attributes:

GetAccess	public
SetAccess	public

ArgumentSummaryProperties — Argument properties to include

{"Name" "Scope" "Port" "Compiled Type" "Compiled Size"} (default) | cell array of character vectors | string array

Argument properties to include in the argument summary table, specified as a cell array of character vectors or a string array. If the model is not already compiled, the MATLABFunction reporter compiles the model to obtain Compiled Type, Compiled Size, and Variable Size data. When the report is closed, the model is uncompiled.

Specify any combination of these properties:

• Name

• Scope

• Port

• Compiled Type (Data Type)

• Compiled Size (Size)

• Complexity

• Description

• Maximum (Max Value)

• Minimum (Min Value)

• Tunable

• Variable Size

Attributes:

GetAccess	public
SetAccess	public

ArgumentSummaryReporter — Argument summary reporter

mlreportgen.report.BaseTable object

Argument summary reporter, specified as an mlreportgen.report.BaseTable object. The MATLABFunction reporter uses this reporter to create a table of the arguments of the MATLAB function. The table includes a summary of the arguments and the argument properties specified by the ArgumentSummaryProperties property.

To customize the appearance of the argument summary table and the content of its title, customize the default BaseTable object or replace it with a custom version of the BaseTable object.

Attributes:

GetAccess	public
SetAccess	public

IncludeArgumentProperties — Whether to Include details for each argument

0 (false) (default) | 1 (true)

Whether to include a property table with detailed information for each argument, specified as a logical 1 (true) or 0 (false). When you specify:

• 1 (true) — Include a property table for each argument of the MATLAB function. If the model is not already compiled, the MATLABFunction reporter compiles the model. When the report is closed, the model is uncompiled.

• 0 (false) — Do not include a property table for each argument of the MATLAB function.

If the value is true, the report

Attributes:

GetAccess	public
SetAccess	public

ArgumentPropertiesReporter — Argument properties reporter

mlreportgen.report.BaseTable object

Argument properties reporter, specified as an mlreportgen.report.BaseTable object. The MATLABFunction reporter uses the specified reporter to create a table of the properties of each argument of the MATLAB function. The default value of this property is a BaseTable object with the TableStyleName property set to the MATLABFunctionArgumentPropertiesTable style, which is defined in the default template for a MATLABFunction reporter.

To customize the appearance of the argument property table, customize the default BaseTable reporter or replace it with a custom BaseTable reporter.

Attributes:

GetAccess	public
SetAccess	public

IncludeFunctionScript — Whether to include function script

true (default) | 0 (false)

Whether to include the script of the MATLAB function, specified as a logical 1 (true) or 0 (false). When you specify:

• 1 (true) — Include the code that computes the output of the MATLAB function from its inputs.

• 0 (false) — Do not nclude the code that computes the output of the MATLAB function from its inputs.

Attributes:

GetAccess	public
SetAccess	public

FunctionScript — Function code formatter

mlreportgen.dom.Paragraph object

Function code formatter, specified as an mlreportgen.dom.Paragraph object. The Paragraph object controls the formatting, such as the font family, font size, and alignment, of the code in the MATLAB function. It does not control whether the reporter highlights code syntax. The default Style property is set to mlreportgen.dom.WhiteSpace. To control the highlighting, use the HighlightScriptSyntax property.

To customize the code appearance, modify the properties of the default Paragraph reporter or replace the reporter with a custom reporter. If you add content to the default or replacement Paragraph reporter, the content is placed before the MATLAB Function script in the generated report.

Attributes:

GetAccess	public
SetAccess	public

FunctionScriptTitle — Function script section title

mlreportgen.dom.Paragraph object

Function script section title, specified as an mlreportgen.dom.Paragraph object. The Paragraph object contains the title for the section that contains the MATLAB function code. The default title is the MATLAB Function block name followed by Function Script. For example, for a MATLAB Function block named Covariance Derivative, the title is Covariance Derivative Function Script. The properties of the paragraph specify the appearance of the title.

To customize the title appearance, modify the properties of the default Paragraph object or replace it with another paragraph object. If you add content to the default or replacement title paragraph, the content you specify is placed at the front of the default title.

Attributes:

GetAccess	public
SetAccess	public

HighlightScriptSyntax — Whether to highlight script syntax keywords

1 (true) (default) | 0 (false)

Whether to highlight script syntax keywords, specified as a logical 1 (true) or 0 (false). When you specify:

• 1 (true) — Use color to highlight the function code syntax keywords.

• 0 (false) — Do not use color to highlight the function code syntax keywords.

Attributes:

GetAccess	public
SetAccess	public

IncludeFunctionSymbolData — Whether to include function symbol data

0 (false) (default) | 1 (true)

Whether to include function symbol data, specified as a logical 1 (true) or 0 (false). When you specify:

• 1 (true) — Include information about the symbols that appear in the main MATLAB function code. If the IncludeSupportingFunctions property is true, the report also contains information about symbols that appear in the code of the supporting functions. Function symbol data is reported only if the Object property of specifies a MATLAB Function block.

• 0 (false) — Do not include information about the symbols that appear in the main MATLAB function code.

Note

If you include function symbol data, report generation can be slower than if you do not include it.

Attributes:

GetAccess	public
SetAccess	public

FunctionSymbolReporter — Function symbol data reporter

mlreportgen.report.BaseTable object

Function symbol data reporter, specified as an mlreportgen.report.BaseTable object. The MATLABLFunction reporter uses this reporter to create tables of the properties of each symbol that appears in the main MATLAB function code and optionally in the supporting functions code. The symbols in the generated report are grouped by types, which are variable, operation, and function-call site. The tables for each symbol type appear after the function properties. The reported function and symbol properties are listed in the following tables. The default value of this property is a BaseTable object with the TableStyleName property set to the MATLABFunctionFunctionSymbolTable style, which is defined in the default template for a MATLABFunction reporter.

Function Properties	Description
Function Name	Name of the function
Function ID	ID of the function. Simulink assigns a unique ID to every MATLAB Function in a model and to every supporting function. A built-in or user-defined supporting function uses its same ID, regardless of how many functions it supports in a given model.
Path	Path of the function, which is the model path of the MATLAB Function block or Stateflow block that contains it. The path of a supporting function is the path of the MATLAB file that defines it.

Variable Properties	Description
Name	Name of the variable
Data type	Data type and the size of the variable
Start position	Line and column number of the first character of the variable name in the script in which it appears

Operation Properties	Description
Name	Character or characters that represent the operation type. For example, +
Data type	Data type and size of the value produced by the operation
Start position	Line and column number of the first character of the operation in the script in which it appears

Function Call Site Properties	Description
Name	Name of the called function
Data type	Data type and the size of the value returned by the called function
ID	ID of the called function
Start position	Line and column number of the first character of the call site in the script in which it appears

To customize the appearance of the function symbol data tables, customize the default BaseTable reporter or replace it with a custom BaseTable reporter. If you specify the Title property in the default or replacement BaseTable reporter, the content is placed at the front of the default title in the generated report.

Attributes:

GetAccess	public
SetAccess	public

IncludeSupportingFunctions — Whether to include supporting functions

0 (false) (default) | 1 (true)

Whether to include a list of the user-defined functions called directly or indirectly by the main function of the MATLAB Function block being reported, specified as a logical 1 (true) or 0 (false). When you specify:

• 1 (true) — Include a list of the user-defined functions called directly or indirectly by the main function of the MATLAB Function block being reported.

• 0 (false) — Do not include a list of the user-defined functions called directly or indirectly by the main function of the MATLAB Function block being reported.

Attributes:

GetAccess	public
SetAccess	public

SupportingFunctionsType — Supporting function types

{"MATLAB" "user-defined"} (default) | cell array of character vectors | string array

Supporting function types to be reported, specified as a cell array of character vectors or a string array. The cell array or string array can specify one or both of these types.

• MATLAB — Include MATLAB supporting functions

• user-defined — Include user-defined supporting functions

Attributes:

GetAccess	public
SetAccess	public

SupportingFunctionsReporter — Supporting functions reporter

slreportgen.report.BaseTable

Supporting functions reporter, specified as an mlreportgen.report.BaseTable object. The BaseTable object reports the functions invoked directly or indirectly by the main MATLAB function. The functions are sorted by function name. The default value of this property is a BaseTable object with the TableStyleName property set to the MATLABFunctionSupportingFunctionsTable style, which is defined in the default template for a MATLABFunction reporter.

To customize the appearance of the supporting functions table, customize the default BaseTable reporter or replace it with a customized version of the BaseTable reporter.

Attributes:

GetAccess	public
SetAccess	public

IncludeSupportingFunctionsCode — Whether to include code of user-defined supporting functions

0 (false) (default) | 1 (true)

Whether to include the code of user-defined supporting functions, specified as a logical 1 (true) or 0 (false). When you specify:

• 1 (true) — Include the code of user-defined supporting functions.

• 0 (false) — Do not include the code of user-defined supporting functions.

If the value is true, the report includes the code for the user-defined functions called directly or indirectly by the main function.

Attributes:

GetAccess	public
SetAccess	public

SupportingFunctionsCode — User-defined supporting functions code formatter

mlreportgen.dom.Paragraph object

User-defined supporting functions code formatter, specified as an mlreportgen.dom.Paragraph object. The Paragraph object controls the formatting, such as the font family, font size, and alignment, of the code in the report. The MATLABFunction reporter highlights the syntax of the function text (code) and appends the highlighted text to the paragraph object.

To customize the code appearance, modify the properties of the default Paragraph reporter or replace the reporter with a custom reporter. If you add content to the default or replacement Paragraph reporter, the content is placed before the supporting function code in the generated report.

Attributes:

GetAccess	public
SetAccess	public

SupportingFunctionsCodeTitle — User-defined supporting function section title

mlreportgen.dom.Paragraph

User-defined supporting function section title, specified as an mlreportgen.dom.Paragraph object. The MATLABFunction reporter uses the formatter to create a title for each user-defined supporting function. The default value of this property is an empty paragraph with properties that specify the appearance of the function title. By default, the MATLABFunction reporter appends the supporting function name to the paragraph. You can customize the title appearance by modifying the properties of the default paragraph object or by replacing it with another paragraph object. Any content that you add to the default or replacement paragraph appears before each title in the generated report.

Attributes:

GetAccess	public
SetAccess	public

TemplateSrc — Source of template for this reporter

character vector | string scalar | reporter or report | DOM document or document part

Source of the template for this reporter, specified in one of these ways:

• Character vector or string scalar that specifies the path of the file that contains the template for this reporter

• Reporter or report whose template this reporter uses or whose template library contains the template for this reporter

• Document Object Model (DOM) document or document part whose template this reporter uses or whose template library contains the template for this reporter

The specified template must be the same type as the report to which you append this reporter. For example, for a Microsoft^® Word report, TemplateSrc must be a Word reporter template. If the TemplateSrc property is empty, this reporter uses the default reporter template for the output type of the report.

Attributes:

GetAccess	public
SetAccess	public
NonCopyable	true
Dependent	true

TemplateName — Name of template for this reporter

character vector | string scalar

Name of the template for this reporter, specified as a character vector or string scalar. The template for this reporter must be in the template library of the template specified by the TemplateSrc property of this reporter.

Attributes:

GetAccess	public
SetAccess	public

Data Types: char | string

LinkTarget — Hyperlink target for this reporter

[] (default) | character vector | string scalar | mlreportgen.dom.LinkTarget object

Hyperlink target for this reporter, specified as a character vector or string scalar that specifies the link target ID, or an mlreportgen.dom.LinkTarget object. A character vector or string scalar value converts to a LinkTarget object. The link target immediately precedes the content of this reporter in the output report.

Attributes:

GetAccess	public
SetAccess	public

Methods

Public Methods

Method	Purpose
slreportgen.report.MATLABFunction.createTemplate	Create reporter template template = createTemplate(templatePath,templateType) creates a copy of the default template for the report type specified by templateType at the location specified by templatePath. You can use the copied template as a starting point to design a custom reporter template for your report. Input Arguments templatePath — Target path and file name for template file, specified as a character vector or a string scalar. templateType — Template type, specified as "html", "docx", or "pdf" Return Values template — Path and file name of the template copy, returned as a string scalar For more information, see the method for the Reporter class, slreportgen.report.Reporter.createTemplate.
slreportgen.report.MATLABFunction.customizeReporter	Create reporter from slreportgen.report.MATLABFunction class classPathOut = customizeReporter(classPath) creates a reporter class definition file that defines a subclass of slreportgen.report.MATLABFunction at the location specified by classPath. The method copies the default reporter templates to the resources/templates subfolder of the folder that contains the class definition file. You can use the class definition file as a starting point to design a custom reporter class. Input Arguments classPath — Path and name of the new class definition file, specified as a character vector or string scalar Return Values classPathOut — Path and file name of the new class, returned as a string scalar For more information, see the method for the slreportgen.report.Reporter class, slreportgen.report.Reporter.customizeReporter.
slreportgen.report.MATLABFunction.getClassFolder	Get location of folder that contains slreportgen.report.MATLABFunction class definition file path = getClassFolder returns the path of the folder that contains the class definition file. Return Values path — Class definition file location, returned as a character vector For more information, see the method for the Reporter class, slreportgen.report.Reporter.getClassFolder.
copy	Create copy of reporter object and make deep copies of property values copiedObj = copy(reporterObj) returns a copy of the specified reporter object. The returned copy contains a deep copy of any property value of reporterObj that references a reporter, DOM object, or slreportgen.report.ReporterLayout object.As a result, you can modify the properties of the original or new object without affecting the other object. Input Arguments reporterObj — Reporter object to copy, specified as an object of a reporter class Return Values copiedObj — Copy of reporter, returned as an object of a reporter class For more information, see the method for the slreportgen.report.Reporter class, copy.
getImpl	Get implementation of reporter impl = getImpl(reporter,report) returns the Document Object Model (DOM) object that implements the reporter, reporter, when you append it to the report, report. Note You cannot add content to the reporter after calling this method. Input Arguments reporterObj— Reporter object, specified as an object of slreportgen.report.Reporter or an object of a subclass of slreportgen.report.Reporter report — Report, specified as a mlreportgen.report.Report object Return Values impl — Implementation object, returned as a DOM object. For more information, see the method for the slreportgen.report.Reporter class, getImpl.

Examples

Report a MATLAB Function block

To include information about a MATLAB Function block in a report, use an slreportgen.report.MATLABFunction reporter. By default, the report includes a table of object properties, a table of input and output arguments, and the function script.

import slreportgen.report.*
import mlreportgen.report.*

model_name = "slrgex_radar_eml";
load_system(model_name);
mlfcnObj = "slrgex_radar_eml/MATLAB Function";

rpt = slreportgen.report.Report("MyReport","pdf");
chapter = Chapter(mlfcnObj);
rptr = MATLABFunction(mlfcnObj);
add(chapter,rptr);
add(rpt,chapter);

close(rpt);
close_system(model_name);
rptview(rpt);

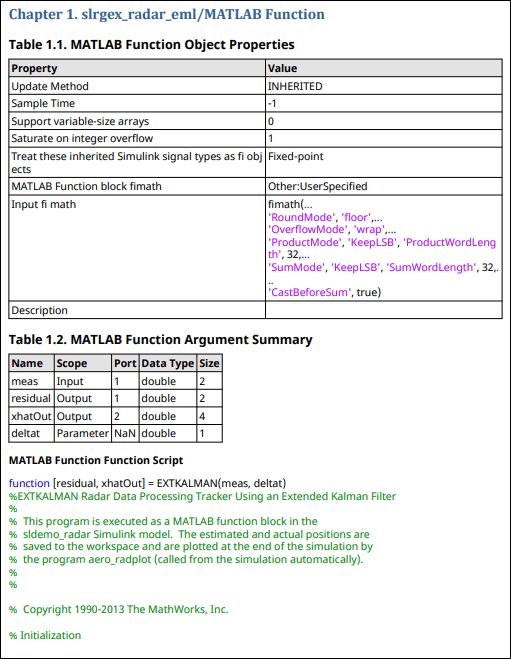

Here is the first page of the report:

Include MATLAB Function Argument Details in Report

To include the MATLAB function argument details in a report, use the IncludeArgumentProperties property of the MATLABFunction reporter.

import slreportgen.report.*
import mlreportgen.report.*

model_name = "slrgex_radar_eml";
load_system(model_name);
mlfcnObj = "slrgex_radar_eml/MATLAB Function";

rpt = slreportgen.report.Report("myReport","pdf");
chapter = Chapter(mlfcnObj);
rptr = MATLABFunction(mlfcnObj);
rptr.IncludeArgumentProperties = true;

add(chapter,rptr);
add(rpt,chapter);

close(rpt);
close_system(model_name);
rptview(rpt);

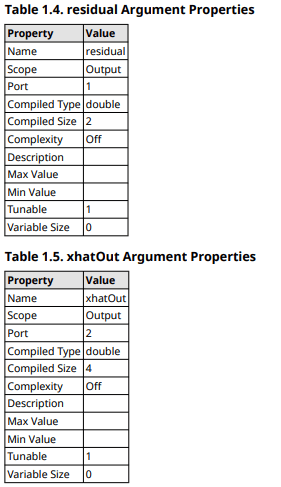

Here are some of the argument detail tables in the generated report:

Change the MATLAB Function Script Formatting and Title

To customize the title of the function script section, use the FunctionScriptTitle property. To change the formatting of the code, create a DOM paragraph that specifies the font family, size, and color and assign the paragraph to the FunctionScript property.

import slreportgen.report.*
import mlreportgen.report.*

model_name = "slrgex_radar_eml";
load_system(model_name);
mlfcnObj = "slrgex_radar_eml/MATLAB Function";

rpt = slreportgen.report.Report("myReport","html");
chapter = Chapter(mlfcnObj);
rptr = MATLABFunction(mlfcnObj);

paraTitle = mlreportgen.dom.Paragraph("SCRIPT: ");
rptr.FunctionScriptTitle = paraTitle;

paraScript = mlreportgen.dom.Paragraph;
paraScript.FontFamilyName = "Arial";
paraScript.FontSize = "12pt";
paraScript.Color = "blue";
rptr.FunctionScript = paraScript;

add(chapter,rptr);
add(rpt,chapter);

close(rpt);
close_system(model_name);
rptview(rpt);

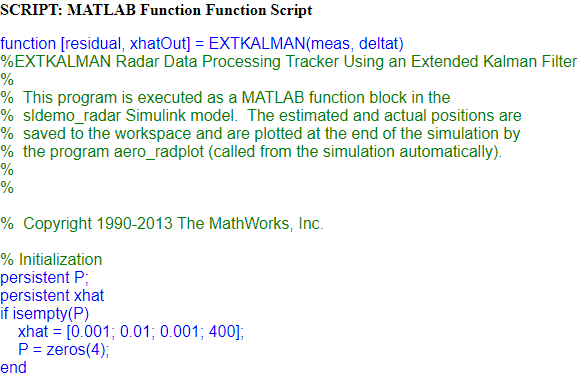

Here is a portion of the function script section, which shows the title and some of the code:

Include Code of User-Defined Supporting Functions in Report

By default, a MATLABFunction reporter includes the code of the main function, but not the code of the user-defined supporting functions that the main function calls. To include the code of the user-defined functions, use the IncludeSupportingFunctionsCode property.

import slreportgen.report.*
import mlreportgen.report.*

model_name = "slrgex_stats";
load_system(model_name);
mlfcnObj = "slrgex_stats/MATLAB Function";
rpt = slreportgen.report.Report("myReport","pdf");
chapter = Chapter(mlfcnObj);
rptr = MATLABFunction(mlfcnObj);
rptr.IncludeSupportingFunctionsCode = true;
add(chapter,rptr);
add(rpt,chapter);
close(rpt);
close_system(model_name);
rptview(rpt);

Here is the MATLAB function script section, which shows the code for both the main function and the user-defined supporting function, avg.

Version History

Introduced in R2018a
