Check Dynamic Range

Check that signal falls inside range of amplitudes that varies from time step to time step

•

Libraries:
Simulink / Model Verification
HDL Coder / Model Verification

Description

The Check Dynamic Range block checks that a signal falls inside a range of values at each time step and executes an assertion after comparison. The width of the range can vary from time step to time step. The u port is the tested input signal. The min and max ports are the lower and upper bounds of the range, respectively. If u is between max and min, the assertion is true (1) and the block does nothing. If not, the block halts the simulation and returns an error message by default.

The input signals can be scalars, vectors, or matrices. All three input signals must be the same data type. The block compares the value of u to the bounds differently depending on the signal.

• When comparing scalars to vectors or matrices, the block compares the scalar signal to each element of the non-scalar signal.

• When comparing vectors or matrix signals to other vectors or matrices, the block checks the inputs element-by-element.

• For models with more than one vector or matrix input signal, the vectors or matrices must have the same dimensions.

Examples

Check Signal Range with Check Dynamic Range Block

You can check if an input signal falls outside of a dynamic upper and lower bound by using the Check Dynamic Range block.

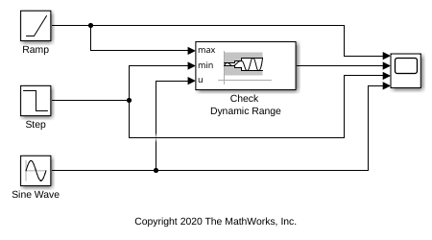

This model uses a Sine Wave block as a dynamic test signal. The Check Dynamic Range block determines if the value of the sine wave exceeds the signal from the Ramp block or falls below the signal from the Step block at each time step. In the Check Dynamic Range block, the Output assertion signal parameter is selected, so the output signal indicates if the assertion condition is true (1) or false (0). Press Run to observe the model output.

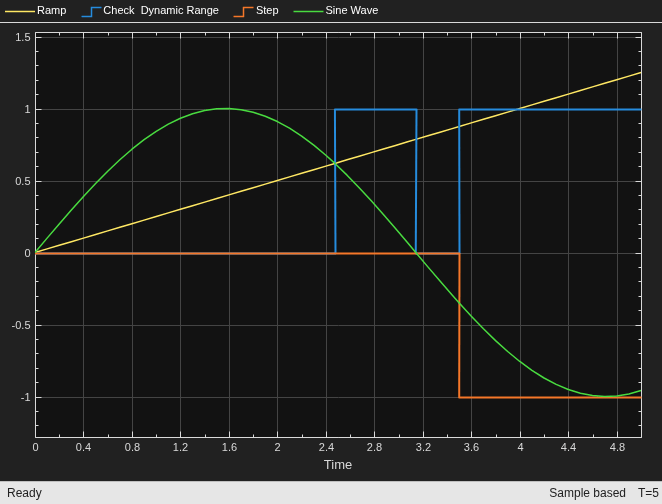

In the Scope block, you can see that the Check Dynamic Range block outputs 0 until the sine wave falls below the value of the Ramp block when the simulation time is 2.47. The block output stays at 1 until the simulation time reaches 3.14, when the sine wave falls below the value of the Step block. The Step block activates when the simulation time reaches 3.5, placing the sine wave between the bounds. The Check Dynamic Range block recognizes this change and outputs 1.

Ports

Input

max — Upper bound of dynamic range check

scalar | vector | matrix

Signal specifying the upper bound of the range.

Data Types: half | single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point | enumerated

min — Lower bound of dynamic range check

scalar | vector | matrix

Signal specifying the lower bound of the range.

Data Types: half | single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point | enumerated

u — Input signal checked against range

scalar | vector | matrix

Signal checked against the range specified by the max and min ports.

Data Types: half | single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point | enumerated

Output

Port_1 — Assertion output signal

scalar

Output signal that is true (1) if the assertion succeeds and false (0) if the assertion fails. If, in the Configuration Parameters window, in the Math and Data Types section, under Advanced parameters, you select Implement logic signals as Boolean data, then the output data type is Boolean. Otherwise, the data type of the signal is double.

Dependencies

To enable this port, select the Output assertion signal parameter.

Data Types: double | Boolean

Parameters

Enable assertion — Enable or disable check

on (default) | off

Clearing this parameter disables the block and causes the model to behave as if the block does not exist. To enable or disable all verification blocks, regardless of the setting of this option, go to the Configuration Parameters window, click Diagnostics > Data Validity, expand the Advanced parameters section, and set Model Verification block enabling to Enable all or Disable all.

Programmatic Use

Parameter: enabled

Type: string scalar or character vector

Values: "on" | "off"

Default: "on"

Simulation callback when assertion fails (optional) — Expression to evaluate when assertion fails

"" (default) | MATLAB expression

Specify a MATLAB^® expression to evaluate when the assertion fails. Because the expression is evaluated in the MATLAB workspace, define all variables used in the expression in that workspace.

Dependencies

To enable this parameter, select Enable assertion.

Programmatic Use

Parameter: callback

Type: string scalar or character vector

Default: ""

Stop simulation when assertion fails — Whether to stop simulation when check fails

on (default) | off

Select this parameter to stop the simulation when the check fails. Clear this parameter to display a warning and continue the simulation.

Programmatic Use

Parameter: stopWhenAssertionFail

Type: string scalar or character vector

Values: "on" | "off"

Default: "on"

Output assertion signal — Create output signal

off (default) | on

Select this parameter to enable the output port.

Programmatic Use

Parameter: export

Type: string scalar or character vector

Values: "on" | "off"

Default: "off"

Select icon type — Select icon type

graphic (default) | text

Specify the style of the block icon. The graphic option displays a graphical representation of the assertion condition on the icon. The text option displays a mathematical expression that represents the assertion condition.

Programmatic Use

Parameter: icon

Type: string scalar or character vector

Values: "graphic" | "text"

Default: "graphic"

Block Characteristics

Data Types	Boolean | double | enumerated | fixed point | half | integer | single
Direct Feedthrough	no
Multidimensional Signals	yes
Variable-Size Signals	no
Zero-Crossing Detection	no

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

For information about how Simulink^® Coder™ generated code handles Model Verification blocks, see Configure Model for Debugging (Simulink Coder).

HDL Code Generation

Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.

HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.

HDL Architecture

Architecture	Description
No HDL	Do not generate HDL code for this block.

HDL Block Properties

PreserveUpstreamLogic

Control the removal of unconnected logic. The default is off, which means unconnected logic is not preserved in HDL code. For more details, see PreserveUpstreamLogic (HDL Coder).

PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.

Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.
