sim3d.Light

Create light actor

Since R2024a

expand all in page

    Description

    Use the sim3d.Light object to create an actor object with N number of light elements in the 3D environment for custom lighting. After you create a sim3d.Light object, you can modify aspects of the light actor by setting property values.

    Creation

    Syntax

    light = sim3d.Light()
    light = sim3d.Light(Name=Value)

    Description

    light = sim3d.Light() creates a default light actor object in the 3D environment.

    light = sim3d.Light(Name=Value) specifies options using one or more optional name-value arguments. For example, to create three lights in the 3D environment, set NumberOfLights to 3.

    example

    Name-Value Arguments

    expand all

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Example: light = sim3d.Light(ActorName='Light',Translation=[3 4 3],Rotation=[0 pi/2 -pi/4]) creates an actor object with one light element at the specified position.

    Example: lights = sim3d.Light(ActorName='Lights',NumberOfLights=3,LightType='PointLight',Translation=[27 -15 0; 27 0 4; 27 15 -2],Rotation=[0 0 0; 0 -pi/2 0; 0 -pi/2 0]) creates an actor object with three light elements of the type point light at the specified positions. You cannot see the light actors themselves, but their effects on nearby surfaces are visible.

    Name of actor, specified as a character array or string. If you do not specify an actor name, then the software assigns the actor an autogenerated name. Use this argument to set the name of the sim3d.Light object.

    Note

    If you specify the same name as an actor that already exists, then the software appends actor name you specify with a unique identifier.

    Total number of lights, specified as a real positive scalar. Use this argument to create N number of light elements in the 3D environment.

    Example: NumberOfLights=3

    Data Types: double

    Type of light, specified as 'PointLight', 'SpotLight', 'RectLight', or 'DirectionalLight'. Use this argument to simulate various lighting effects.

    Light TypeDescription

    'PointLight'

    • A light source that emits light equally in all directions.

    • Use for light sources such as lamps or bulbs.

    • Example: Light = sim3d.Light(LightType= 'PointLight',Translation=[9.5 0 -1.5])

    Point Light

    'SpotLight'

    • A light source that emits light within a cone shaped region. You can control the cone angle.

    • Use for light sources such as spotlights or flashlights.

    • Example: Light = sim3d.Light(LightType= 'SpotLight',Translation=[9.5 0 0],Rotation=[pi/2 -pi/2 pi/2])

    Spot light

    'RectLight'

    • A light source that emits light from a rectangular surface. You can control the size of the light source.

    • Use for light sources such as light panels or area lights.

    • Example: Light = sim3d.Light(LightType= 'RectLight',Translation=[9.5 0 0],Rotation=[0 -pi/2 0])

    Rectangular light

    'DirectionalLight'

    • A light source that provides uniform lighting across the scene. The Rotation argument changes the angle of the light rays. The properties, AttenuationRadius and IntensityUnit do not apply for directional light.

    • Use for light sources such as sunlight, moonlight, or other environment lighting.

    • Example: Light = sim3d.Light(LightType= 'DirectionalLight',Rotation=[0 0 pi])

    Directional light

    Example: LightType='SpotLight'

    Data Types: string

    Relative translation (x,y,z) of the actor object to its parent actor, specified as a real N-by-3 array, in m. N specifies the number of elements created using the sim3d.Light object. When you add an actor to the 3D environment, the default parent actor is the Scene Origin at (0,0,0).

    Example: Translation=[3 4 3]

    Example: Translation=[0 -1 0; 0 0 0; 0 1 0]

    Data Types: double

    Relative rotation (roll, pitch, yaw) of the actor object to its parent actor, specified as a real N-by-3 array, in rad. When you add an actor to the 3D environment, the default parent actor is the Scene Origin at (0,0,0). The rotation order is roll, then pitch, then yaw. When you update any of the three rotation values and leave others unchanged, the software reapplies all three rotations in the same order.

    Example: Rotation=[0 pi/2 -pi/4]

    Example: Rotation=[0 pi -pi/2; 0 pi -pi/2; 0 pi -pi/2]

    Data Types: double

    Type of actor mobility to respond to physics, move the actor during simulation, or both, specified as one of these options.

    • 'Static' – Actors do not move or update during simulation, and the software uses precomputed lighting.

    • 'Stationary' – Actors do not move or update during simulation, and the software uses dynamic lighting such as casting shadows.

    • 'Movable' – Actors can move or update during simulation, and the software uses dynamic lighting.

    When the Mobility is 'Movable', all the properties become run-time configurable, allowing for programmatic interaction. For more details on programmatic interaction, see Programmatic Interaction.

    The light actor must be movable to allow for dynamic changes such as casting shadows and applying textures with the LightFunction property during simulation.

    Example: Mobility='Movable'

    Output Arguments

    expand all

    Actor object, returned as a sim3d.Light object.

    Properties

    expand all

    All the properties are run-time configurable and can also be used for programmatic interaction during simulation.

    Base Attributes

    Parent of actor, specified as a handle to the parent actor object. After you add an actor to the sim3d.World object, the default parent actor is the Scene Origin at (0,0,0). Use this property to set any actor in the 3D environment as the parent actor of a sim3d.Light object.

    This property is read-only.

    Children of actor, specified as a structure. Each field of the structure contains a handle to the child of a sim3d.Light object.

    Parent world, specified as a handle to the parent sim3d.World object. You can use this property only if the sim3d.Light object is added to the parent sim3d.World object.

    Coordinate system that the actor uses for translation and rotation in the 3D environment, specified as one of these listed values:

    • 'Default' – World coordinate system

    • 'MATLAB' – MATLAB® coordinate system

    • 'ISO8855' – ISO 8855 standard coordinate system

    • 'AERO' – SAE coordinate system

    • 'VRML' – X3D ISO standard coordinate system

    • 'SAE' – SAE coordinate system

    For more details on the different coordinate systems, see Coordinate Systems in Simulink 3D Animation.

    Data Types: string

    Relative translation (x,y,z) of the actor object to its parent actor, specified as a real N-by-3 array, in m. N specifies the number of elements created using the sim3d.Light object. When you add an actor to the 3D environment, the default parent actor is the Scene Origin at (0,0,0).

    Example: light.Translation = [1 2 1]

    Example: lights.Translation = [1 4 2; 1 3 2; 1 2 2]

    Relative rotation (roll, pitch, yaw) of the actor object to its parent actor, specified as a real N-by-3 array, in rad. When you add an actor to the 3D environment, the default parent actor is the Scene Origin at (0,0,0). The rotation order is roll, then pitch, then yaw. When you update any of the three rotation values and leave others unchanged, the software reapplies all three rotations in the same order.

    Example: light.Rotation = [0 pi/2 pi/8]

    Example: lights.Rotation = [pi/2 pi/4 pi/2; 0 pi/4 pi/2; pi pi/2 0]

    Type of actor mobility to respond to physics, move the actor during simulation, or both, specified as one of these options.

    • 'Static' – Actors do not move or update during simulation, and the software uses precomputed lighting.

    • 'Stationary' – Actors do not move or update during simulation, and the software uses dynamic lighting such as casting shadows.

    • 'Movable' – Actors can move or update during simulation, and the software uses dynamic lighting.

    When the Mobility is 'Movable', all the properties become run-time configurable, allowing for programmatic interaction. For more details on programmatic interaction, see Programmatic Interaction.

    The light actor must be movable to allow for dynamic changes such as casting shadows and applying textures with the LightFunction property during simulation.

    Example: light.Mobility = 'Movable'

    Status of light in the 3D environment, specified as 1 (true) to turn on the light or 0 (false) to turn off the light. For N number of lights, specify as a logical N-by-1 vector.

    Example: light.LightState = 1

    Example: lights.LightState = [1; 1; 1]

    Data Types: logical

    Color of light, specified as real N-by-3 array of RGB triplet values. An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0, 1].

    Example: light.LightColor = [ 0.5 0.7 0.4]

    Example: lights.LightColor = [ 1 0 0; 0 1 0; 0 0 1]

    Data Types: double

    Brightness of light, specified as real positive N-by-1 vector.

    Example: light.Intensity = 4000

    Example: lights.Intensity = [4500; 4500; 4500]

    Data Types: double

    Light intensity unit name, specified as 'Lumens', or 'Candelas'. The default value for this property is an empty string ' '.

    Example: light.IntensityUnit = 'Lumens'

    Example: lights.IntensityUnit = ['Candelas'; 'Candelas'; 'Candelas']

    Dependencies

    This property cannot be set when LightType is 'DirectionalLight'

    Data Types: string

    Range of light, specified as real positive N-by-1 vector, in m. Use this property to reduce computational load by limiting illumination to necessary areas of the environment.

    Example: light.AttenuationRadius = 20

    Example: lights.AttenuationRadius = [30; 35; 40]

    Dependencies

    This property cannot be set when LightType is 'DirectionalLight'

    Data Types: double

    Temperature of emitted light, specified as real positive N-by-1 vector, in K. As temperature value increases, the appearance of the light changes from a warmer tone to a cooler tone.

    Example: light.Temperature = 4500

    Example: lights.Temperature = [6000; 6000; 6000]

    Data Types: double

    Source file for IES texture, specified as string N-by-1array. After you import an IES texture file you can modify other aspects of the light by setting additional properties.

    Note

    If you import an IES texture file, LightType does not impact the light actor.

    Example: light.IESFilePath = fullfile(pwd,"file.ies")

    Example: lights.IESFilePath = fullfile(pwd,["file.ies";"file.ies";"file.ies"])

    Data Types: string

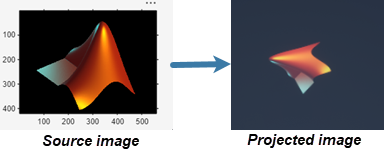

    Source file for projection, specified as a string N-by-1array. The supported file types are JPEG, PNG, and BMP. The file path should be absolute. This property allows you to project a pattern, texture, or image onto surfaces using the light source as a projector. You can set additional properties to modify other aspects of the light. For more information on projection, see Image Projection.

    Example: light.LightFunction = fullfile(pwd,"file.jpg")

    Example: lights.LightFunction = fullfile(pwd,["file.jpg";"file.jpg";"file.jpg"])

    Dependencies

    Set the Mobility property to sim3d.utils.MobilityTypes.Movable.

    Data Types: string

    Projection scale, specified as a real N-by-3 array. This property controls the overall size and aspect ratio of the projected image along the X-, Y-, and Z-axes. You can create stretching or squashing effects by using different values along the X-, Y-, and Z-axes. Use this property to correct the appearance of the projection if it looks small, large, or if it appears stretched. For more information on projection, see Image Projection.

    Example: light.LightFunctionScale = [2 2 2]

    Example: lights.LightFunctionScale = [2 2 2; 2 2 2; 2 2 2]

    Data Types: double

    Point Light Attributes

    Radius of light source, specified as real positive N-by-1 vector, in m. A larger value creates a diffused spherical light. A smaller value creates a focused spherical light.

    Example: light.SourceRadius = 0.5

    Example: lights.SourceRadius = [0.5; 0.4; 0.3]

    Dependencies

    Set LightType to 'PointLight'.

    Data Types: double

    Length of light source along the Z axis, specified as real positive N-by-1 vector, in m. A larger value spreads the light over a longer area. A smaller value creates a directional light.

    Example: light.SourceLength = 1

    Example: lights.SourceLength = [2; 2; 2]

    Dependencies

    Set LightType to 'PointLight'.

    Data Types: double

    Spot Light Attributes

    Angle of light beam, specified as real positive N-by-1 vector, in deg. This property represents the angle between the center axis of the spot light and the outer edge of the light cone.

    Example: light.ConeAngle = 30

    Example: lights.ConeAngle = [25; 25; 25]

    Dependencies

    Set LightType to 'SpotLight'.

    Data Types: double

    Rectangular Light Attributes

    Width of rectangular light source along the Y axis, specified as real positive N-by-1 vector, in m. A larger value provides a wide light source with a broad coverage area. A smaller value provides a narrow light source with focused illumination.

    Example: light.SourceWidth = 0.7

    Example: lights.SourceWidth = [0.8; 0.8; 0.8]

    Dependencies

    Set LightType to 'RectLight'.

    Data Types: double

    Height of rectangular light source along the Z axis, specified as real positive N-by-1 vector, in m. A larger value provides a taller light source with a larger coverage area. A smaller value provides a shorter light source with focused illumination.

    Example: light.SourceHeight = 0.7

    Example: lights.SourceHeight = [0.8; 0.8; 0.8]

    Dependencies

    Set LightType to 'RectLight'.

    Data Types: double

    Examples

    collapse all

    Open Live Script

    This example shows how to create custom lighting using a sim3d.Light object in the 3D environment. First, create a room. Next, create and place three actors inside the room. Then, create a point light, a spot light, and a rectangular light and place them above each actor inside the room. Finally, view the room and the actors illuminated by the different types of light in the Simulation 3D Viewer window.

    Create 3D Environment

    Create a world object using sim3d.World.

    world = sim3d.World();

    Create Room

    Create a room using the sim3d.Actor object. Set the properties of the room to visualize the light and add the room to the world.

    room = sim3d.Actor(ActorName='Room');
createShape(room,'box',[60 60 20]);
room.Shadows = 1;
room.TwoSided = 1;
room.Flat = 1;
room.Metallic = 0;
room.Shininess = 0;
room.Color = [0.1 0.1 0.1];
add(world,room);

    Create Actors

    Create actors inside the room using the sim3d.Actor object. Set the properties of the actors and add the actors to the world.

    % Create box actor
box = sim3d.Actor(ActorName='Box');
createShape(box,'box',[3 3 3]);
box.Translation = [27 -15 -6];
box.Shadows = 1;
box.Metallic = 0;
box.Shininess = 0;
add(world,box);

% Create sphere actor
sphere = sim3d.Actor(ActorName='Sphere');
createShape(sphere,'sphere',[3 3 3]);
sphere.Translation = [27 0 -6];
sphere.Shadows = 1;
sphere.Metallic = 0;
sphere.Shininess = 0;
add(world,sphere);

% Create cone actor
cone = sim3d.Actor(ActorName='Cone');
createShape(cone,'cone',[3 3 3]);
cone.Translation = [27 15 -6];
cone.Shadows = 1;
cone.Metallic = 0;
cone.Shininess = 0;
add(world,cone);

    Create Point Light

    Create a point light, set the light properties, and place the light above the box actor.

    pointlight = sim3d.Light( ...
    ActorName='PointLight', ...
    LightType='PointLight');
pointlight.SourceRadius = 0.5;
pointlight.Intensity = 50000;
pointlight.AttenuationRadius = 20;
pointlight.Translation = [27 -15 0];
pointlight.LightColor = [1 1 0];
add(world,pointlight);

    Create Spot Light

    Create a spot light, set the light properties, and place the light above the sphere actor.

    spotlight = sim3d.Light( ...
    ActorName='SpotLight', ...
    LightType='SpotLight');
spotlight.Intensity = 500000;
spotlight.Translation = [27 0 4];
spotlight.Rotation = [0, -pi/2, 0];
spotlight.AttenuationRadius = 20;
spotlight.LightColor = [1 1 0];
spotlight.ConeAngle = 30;
add(world,spotlight);

    Create Rectangular Light

    Create a rectangular light, set the light properties, and place the light above the cone actor.

    rectlight = sim3d.Light( ...
    ActorName='RectLight', ...
    LightType='RectLight');
rectlight.Intensity = 50000;
rectlight.Translation = [27 15 -2];
rectlight.Rotation = [0, -pi/2, 0];
rectlight.AttenuationRadius = 20;
rectlight.LightColor = [1 1 0];
rectlight.SourceWidth = 3;
add(world,rectlight);

    Run Simulation

    Set the Simulation 3D Viewer window point of view using createViewpoint function and setView function and run the simulation. You can visualize the reflections of each light type on the wall behind the actors.

    view = createViewpoint(world);
view.Translation = [3 0 -2];
setView(world,view);

sampletime = 0.01;
stoptime = 5;
run(world,sampletime,stoptime);

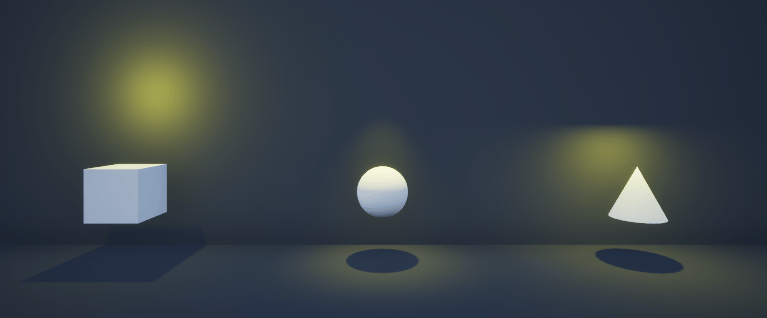

    An unlit room featuring a box on the left, a sphere in the center, and a cone on the right. The box is illuminated by a point light, the sphere is illuminated by a spotlight, and the cone is illuminated by a rectangular light.

    delete(world);
    Open Live Script

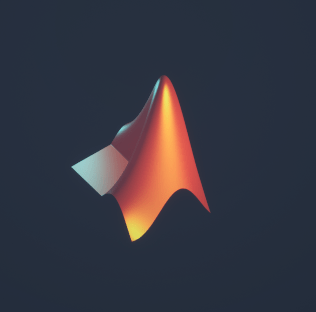

    Project an image using the LightFunction property of the sim3d.Light object.

    Create 3D Environment

    Create a world object using the sim3d.World object.

    world = sim3d.World();

    Create Room

    Create a room using the sim3d.Actor object. Set the properties of the room to visualize the projection and add the room to the world.

    room = sim3d.Actor(ActorName='Room');
createShape(room,'box',[20 20 20]);
room.Shadows = 1;
room.TwoSided = 1;
room.Flat = 1;
room.Metallic = 0;
room.Shininess = 0;
room.Color = [0.1 0.1 0.1];
add(world,room);

    Create Light Actor

    Create a light actor using the sim3d.Light object. By default, the light actor is movable, which allows dynamic changes to the light during the simulation. To project the RGB image, create three light elements and assign red, green, and blue colors to each light element. To align the projection, rotate the light actor by pi/2 radians about the X-axis. Set the Intensity property of the light elements to make sure the projection is bright and visible. Use the ConeAngle property to control the spread of the projection.

    spotlight = sim3d.Light(ActorName='SpotLight', ...
    LightType="SpotLight", ...
    Rotation=[pi/2 0 0], ...
    NumberOfLights=3);
spotlight.Translation = repmat([7 0 0], 3, 1);
spotlight.LightColor = [1 0 0; 0 1 0; 0 0 1];
spotlight.Intensity = repmat(1000000, 3, 1);
spotlight.ConeAngle = repmat(44,3,1);

    Use the LightFunction property to specify the source file for projection and add the light to the world. You can also use the LightFunctionScale property to scale the source image for projection.

    spotlight.LightFunction = repmat(string(fullfile(pwd,'LShapedMembrane.png')),3,1);
world.add(spotlight);

    Run Simulation

    Run the simulation. You can visualize the projection of the image on the wall.

    sampletime = 0.01;
stoptime = 2;
run(world,sampletime,stoptime);

    L shaped membrane

    delete(world);

    More About

    expand all

    Version History

    Introduced in R2024a

    expand all

    See Also

    | | | |

    Topics
