rmi

Interact programmatically with Requirements Management Interface

Syntax

reqlinks = rmi('createEmpty')

reqlinks = rmi('get',object)

reqlinks = rmi('get',sig_builder,group_idx)

rmi('set',model,reqlinks)

rmi('set',sig_builder,reqlinks,group_idx)

rmi('cat',model,reqlinks)

cnt = rmi('count',object)

rmi('clearAll',object)

rmi('clearAll',object,'deep')

rmi('clearAll',object,'noprompt')

rmi('clearAll',object,'deep','noprompt')

cmdStr = rmi('navCmd',object)

[cmdStr,titleStr] = rmi('navCmd',object)

object = rmi('guidlookup',model,guidStr)

rmi('highlightModel',object)

rmi('unhighlightModel',object)

rmi('view',object,index)

dialog = rmi('edit',object)

guidStr = rmi('guidget',object)

rmi('report',model)

rmi('report',matlabFilePath)

rmi('report',dictionaryFile)

rmi('projectreport')

rmi('setup')

rmi('setup','doors',false)

rmi register typename

rmi unregister typename

rmi('linktypelist')

number_problems = rmi('checkdoc')

number_problems = rmi('checkdoc',docName)

rmi('check',matlabFilePath)

rmi('check',dictionaryFile)

rmi('doorssync',model)

[objHs,parentIdx,isSf,objSIDs] = rmi('getObjectsInModel',model)

[objName,objType] = rmi('getObjLabel',object)

rmi('setDoorsLabelTemplate',template)

template = rmi('getDoorsLabelTemplate')

label = rmi('doorsLabel',moduleID,objectID)

totalModifiedLinks = rmi('updateDoorsLabels',model)

rmi httpLink

status = rmi("httpLink","status")

Description

reqlinks = rmi('createEmpty') creates an empty instance of the requirement links data structure.

reqlinks = rmi('get',object) returns the requirement links data structure for object.

reqlinks = rmi('get',sig_builder,group_idx) returns the requirement links data structure for the Signal Builder group specified by the index group_idx.

rmi('set',model,reqlinks) sets reqlinks as the requirements links for model.

rmi('set',sig_builder,reqlinks,group_idx) sets reqlinks as the requirements links for the signal group group_idx in the Signal Builder block sig_builder.

rmi('cat',model,reqlinks) adds the requirements links in reqlinks to existing requirements links for model.

cnt = rmi('count',object) returns the number of requirements links for object.

rmi('clearAll',object) deletes all requirements links for object.

rmi('clearAll',object,'deep') deletes all requirements links in the model containing object.

rmi('clearAll',object,'noprompt') deletes all requirements links for object and does not prompt for confirmation.

rmi('clearAll',object,'deep','noprompt') deletes all requirements links in the model containing object and does not prompt for confirmation.

cmdStr = rmi('navCmd',object) returns the MATLAB^® command cmdStr used to navigate to object.

[cmdStr,titleStr] = rmi('navCmd',object) returns the MATLAB command cmdStr and the title titleStr that provides descriptive text for object.

object = rmi('guidlookup',model,guidStr) returns the object name in model that has the globally unique identifier guidStr.

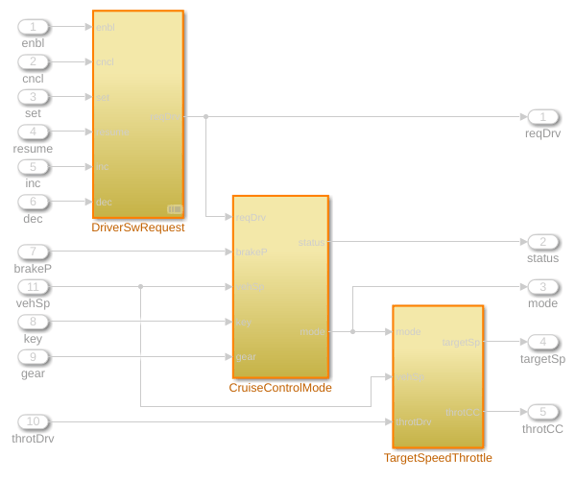

rmi('highlightModel',object) highlights all of the objects in the parent model of object that have requirement links.

rmi('unhighlightModel',object) removes highlighting of objects in the parent model of object that have requirement links.

rmi('view',object,index) accesses the requirement numbered index in the requirements document associated with object.

dialog = rmi('edit',object) displays the Requirements dialog box for object and returns the handle of the dialog box.

guidStr = rmi('guidget',object) returns the globally unique identifier for object. A globally unique identifier is created for object if it lacks one.

rmi('report',model) generates a Requirements Traceability report in HTML format for model.

rmi('report',matlabFilePath) generates a Requirements Traceability report in HTML format for the MATLAB code file specified by matlabFilePath.

rmi('report',dictionaryFile) generates a Requirements Traceability report in HTML format for the Simulink^® data dictionary specified by dictionaryFile.

rmi('projectreport') generates a Requirements Traceability report in HTML format for the current project. The top-level page of this report has HTTP links to reports for each project item that has requirements traceability associations. For more information, see Create Requirements Traceability Report for A Project.

rmi('setup') configures RMI for use with MATLAB and installs the interface for use with IBM^® DOORS^®.

rmi('setup','doors',false) configures RMI for use with MATLAB and installs the interface for use with IBM DOORS without using the interactive setup.

rmi register typename registers the custom link type or custom document domain type name specified by the function typename. For more information, see Define Custom Document Interface for Direct Linking to Requirements and Define Custom Document Interface for Importing Requirements.

rmi unregister typename removes the custom link type or custom document domain type name specified by the function typename. For more information, see Define Custom Document Interface for Direct Linking to Requirements and Define Custom Document Interface for Importing Requirements.

rmi('linktypelist') displays a list of the currently registered link types. The list indicates whether each link type is built-in or custom, and provides the path to the function used for its registration.

number_problems = rmi('checkdoc') checks validity of links to Simulink from a requirements document in Microsoft^® Word, Microsoft Excel^®, or IBM DOORS. It prompts for the requirements document name, returns the total number of problems detected, and opens an HTML report in the MATLAB Web browser. For more information, see Validate Requirements Links in a Requirements Document.

number_problems = rmi('checkdoc',docName) checks validity of links to Simulink from the requirements document specified by docName. It returns the total number of problems detected and opens an HTML report in the MATLAB Web browser. For more information, see Validate Requirements Links in a Requirements Document.

rmi('check',matlabFilePath) checks consistency of traceability links associated with MATLAB code lines in the .m file matlabFilePath, and opens an HTML report in the MATLAB Web browser.

rmi('check',dictionaryFile) checks consistency of traceability links associated with the Simulink data dictionary dictionaryFile, and opens an HTML report in the MATLAB Web browser.

rmi('doorssync',model) opens the DOORS synchronization settings dialog box, where you can customize the synchronization settings and synchronize your model with an open project in an IBM DOORS database.

[objHs,parentIdx,isSf,objSIDs] = rmi('getObjectsInModel',model) returns a list of Simulink objects that may be considered for inclusion in the IBM DOORS surrogate module.

[objName,objType] = rmi('getObjLabel',object) returns Simulink object Name and Type information for the Simulink object that you link to with a third-party requirements management application.

rmi('setDoorsLabelTemplate',template) specifies a new custom template for labels of requirements links to IBM DOORS. The default label template contains the section number and object heading for the DOORS requirement link target. To revert the link label template back to the default, enter rmi('setDoorsLabelTemplate','') at the MATLAB command prompt.

template = rmi('getDoorsLabelTemplate') returns the currently specified custom template for labels of requirements links to IBM DOORS.

label = rmi('doorsLabel',moduleID,objectID) generates a label for the requirements link to the IBM DOORS object specified by objectID in the DOORS module specified by moduleID, according to the current template.

totalModifiedLinks = rmi('updateDoorsLabels',model) updates all IBM DOORS requirements links labels in model according to the current template.

rmi httpLink activates the internal HTTP server that you can use to navigate to linked items in MATLAB or Simulink from backlinks in a browser-based third-party requirements tool that uses HTTP protocol. Backlink navigation on the HTTPS server is enabled by default.

Note

Alternatively, you can active the internal HTTP server by using the rmipref function to set the UnsecureHttpRequests preference to true. When the UnsecureHttpRequests preference is true, MATLAB activates the internal HTTP server on startup.

status = rmi("httpLink","status") returns the port numbers for the internal HTTP server. If the port number is 0, the server is not active.

Examples

Requirements Links Management in Example Model

Get a requirement associated with a block in the slvnvdemo_fuelsys_officereq model, change its description, and save the requirement back to that block. Define a new requirement link and add it to the existing requirements links in the block.

Get requirement link associated with the Airflow calculation block in the slvnvdemo_fuelsys_officereq example model.

openExample("slvnvdemo_fuelsys_officereq.slx")
blk_with_req = ['slvnvdemo_fuelsys_officereq/fuel rate controller/'...
'Airflow calculation']
reqts = rmi('get',blk_with_req);

Change the description of the requirement link.

reqts.description = 'Mass airflow estimation';

Save the changed requirement link description for the Airflow calculation block.

rmi('set',blk_with_req,reqts);

Create new requirement link to example document fuelsys_requirements2.htm.

new_req = rmi('createempty');
new_req.doc = 'fuelsys_requirements2.htm';
new_req.description = 'New requirement';

Add new requirement link to existing requirements links for the Airflow calculation block.

rmi('cat',blk_with_req, new_req);

Requirements Traceability Report for Example Model

Create HTML report of requirements traceability data in example model.

Create an HTML requirements report for the slvnvdemo_fuelsys_officereq example model.

openExample("slvnvdemo_fuelsys_officereq.slx")
rmi('report','slvnvdemo_fuelsys_officereq');

The MATLAB Web browser opens, showing the report.

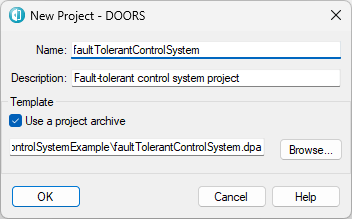

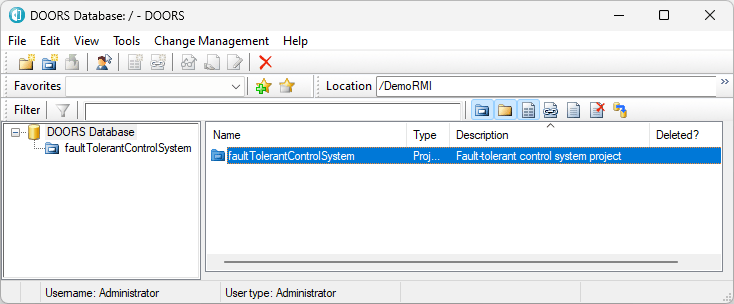

Labels for Requirements Links to IBM DOORS

Specify a new label template for links to requirements in DOORS, and update labels of all DOORS requirements links in your model to fit the new template.

Specify a new label template for requirements links to IBM DOORS so that new links to DOORS objects are labeled with the corresponding module ID, object absolute number, and the value of the ‘Backup’ attribute.

rmi('setDoorsLabelTemplate','%m:%n [backup=%<Backup>]');

Specify a new label template for requirements links to IBM DOORS and set the maximum label length to (for example) 200 characters.

rmi('setDoorsLabelTemplate','%h %200');

Update existing DOORS requirements link labels to match the new specified template in your model example_model. When updating labels, DOORS must be running and all linked modules must be accessible for reading.

rmi('updateDoorsLabels',example_model);

Get Internal HTTP Server Status and Activate Server

Get the internal HTTP server status.

status = rmi("httpLink","status")

status = struct with fields:
     httpPort: 0
    httpsPort: 31515

Activate the internal HTTP server.

rmi httpLink

Get the internal HTTP server status.

status = rmi("httpLink","status")

status = struct with fields:
     httpPort: 31415
    httpsPort: 31515

Input Arguments

model — Simulink model or Stateflow^® chart with which requirements can be associated

name | handle

Simulink model or Stateflow chart with which requirements can be associated, specified as a character vector or handle.

Example: 'slvnvdemo_officereq'

Data Types: char

object — Model object with which requirements can be associated

name | handle

Model object with which requirements can be associated, specified as a character vector or handle.

Example: 'slvnvdemo_fuelsys_officereq/fuel rate controller/Airflow calculation'

Data Types: char

sig_builder — Signal Builder block containing signal group with requirements traceability associations

name | handle

Signal Builder block containing signal group with requirements traceability associations, specified as a character vector or handle.

Data Types: char

group_idx — Signal Builder group index

integer

Signal Builder group index, specified as a scalar.

Example: 2

Data Types: char

matlabFilePath — MATLAB code file with requirements traceability associations

path

MATLAB code file with requirements traceability associations, specified as the path to the file.

Data Types: char

dictionaryFile — Simulink data dictionary with requirements traceability associations

character vector

Simulink data dictionary with requirements traceability associations, specified as a character vector containing the file name and, optionally, path of the dictionary.

Data Types: char

guidStr — Globally unique identifier for model object

character vector

Globally unique identifier for model object object, specified as a character vector.

Example: GIDa_59e165f5_19fe_41f7_abc1_39c010e46167

Data Types: char

index — Index number of requirement linked to model object

integer

Index number of requirement linked to model object, specified as an integer.

docName — Requirements document in external application

file name | path

Requirements document in external application, specified as a character vector that represents one of the following:

• IBM DOORS module ID.

• path to Microsoft Word requirements document.

• path to Microsoft Excel requirements document.

For more information, see Validate Requirements Links in a Requirements Document.

label — Label for links to requirements in IBM DOORS

character vector

Label for links to requirements in IBM DOORS, specified as a character vector.

Data Types: char

template — Template label for links to requirements in IBM DOORS

character vector

Template label for links to requirements in IBM DOORS, specified as a character vector.

You can use the following format specifiers to include the associated DOORS information in your requirements links labels:

%h	Object heading
%t	Object text
%p	Module prefix
%n	Object absolute number
%m	Module ID
%P	Project name
%M	Module name
%U	DOORS URL
%<ATTRIBUTE_NAME>	Other DOORS attribute you specify

Example: '%m:%n [backup=%<Backup>]'

Data Types: char

moduleID — IBM DOORS module

DOORS module ID

IBM DOORS module, specified as the unique DOORS module ID.

Data Types: char

objectID — IBM DOORS object

DOORS object ID

IBM DOORS object in the DOORS module moduleID, specified as the locally unique DOORS ID.

Data Types: char

Output Arguments

reqlinks — Requirement links data

struct

Requirement links data, returned as a structure array with the following fields:

doc	Character vector identifying requirements document
id	Character vector defining location in requirements document. The first character specifies the identifier type: First Character Identifier Example ? Search text, the first occurrence of which is located in requirements document '?Requirement 1' @ Named item, such as bookmark in a Microsoft Word file or an anchor in an HTML file '@my_req' # Page or item number '#21' > Line number '>3156' $ Worksheet range in a spreadsheet '$A2:C5'
linked	Boolean value specifying whether the requirement link is accessible for report generation and highlighting: 1 (default). Highlight model object and include requirement link in reports. 0
description	Character vector describing the requirement
keywords	Optional character vector supplementing description
reqsys	Character vector identifying the link type registration name; 'other' for built-in link types

cmdStr — Command used to navigate to model object

character vector

Command used to navigate to model object object, returned as a character vector.

Example: rmiobjnavigate('slvnvdemo_fuelsys_officereq.slx', 'GIDa_59e165f5_19fe_41f7_abc1_39c010e46167');

titleStr — Textual description of model object with requirements links

character vector

Textual description of model object with requirements links, returned as a character vector.

Example: slvnvdemo_fuelsys_officereq/.../Airflow calculation/Pumping Constant (Lookup2D)

guidStr — Globally unique identifier for model object

character vector

Globally unique identifier for model object object, returned as a character vector.

Example: GIDa_59e165f5_19fe_41f7_abc1_39c010e46167

dialog — Requirements dialog box for model object

handle

Requirements dialog box for model object object, returned as a handle to the dialog box.

number_problems — Total count of invalid links detected in external document

integer

Total count of invalid links detected in external document docName.

For more information, see Validate Requirements Links in a Requirements Document.

totalModifiedLinks — Total count of DOORS requirements links updated with new label template

integer

Total count of DOORS requirements links updated with new label template.

objHs — Numeric handles

array

List of numeric handles, returned as an array.

parentIdx — Model hierarchy indices

array

Model hierarchy indices, returned as an array.

isSf — List position to Stateflow object correspondence

array

Logical array that indicates which list positions correspond to which Stateflow objects.

objSIDs — Simulink IDs

array

Session-independent Simulink IDs, returned as an array.

status — Internal HTTP and HTTPS server status

structure

Internal HTTP and HTTPS server status, returned as a structure with these fields:

httpPort — HTTP port number

double

HTTP port number, returned as a double. If the HTTP port number is 0, the service is not active.

httpsPort — HTTPS port number

double

HTTPS port number, returned as a double.

Version History

Introduced in R2006b

R2024a: Get internal HTTP server port numbers

Return the internal HTTP server port numbers as the status output by using this syntax:

status = rmi("httpLink","status");
