Flujo de trabajo de extracción de características

Este ejemplo muestra un flujo de trabajo completo para la extracción de entidades a partir de datos de imagen.

Obtener datos

En este ejemplo se utilizan los datos de imagen MNIST, que constan de imágenes de dígitos escritos a mano. Las imágenes son de 28 por 28 píxeles en escala de grises. Cada imagen tiene una etiqueta asociada de 0 a 9, que es el dígito que representa la imagen.

Empiece obteniendo datos de imagen y etiqueta de

http://yann.lecun.com/exdb/mnist/

Descomprima los archivos. Para obtener un mejor rendimiento en este ejemplo largo, use los datos de prueba como datos de entrenamiento y los datos de entrenamiento como datos de prueba.

imageFileName = 't10k-images.idx3-ubyte'; labelFileName = 't10k-labels.idx1-ubyte';

Procese los archivos para cargarlos en el espacio de trabajo. El código para esta función de procesamiento aparece al final de este ejemplo. Para ejecutar el código, agregue el directorio de la función a la ruta de búsqueda.

addpath(fullfile(matlabroot,'examples','stats')); [Xtrain,LabelTrain] = processMNISTdata(imageFileName,labelFileName);
 Read MNIST image data... Number of images in the dataset:  10000 ... Each image is of 28 by 28 pixels... The image data is read to a matrix of dimensions:  10000 by  784... End of reading image data.  Read MNIST label data... Number of labels in the dataset:  10000 ... The label data is read to a matrix of dimensions:  10000 by  1... End of reading label data.

Ver algunas de las imágenes.

rng('default') % For reproducibility numrows = size(Xtrain,1); ims = randi(numrows,4,1); imgs = Xtrain(ims,:); for i = 1:4     pp{i} = reshape(imgs(i,:),28,28); end ppf = [pp{1},pp{2};pp{3},pp{4}]; imshow(ppf);

Elija nuevas cotas de operación

Hay varias consideraciones en la elección del número de características a extraer:

  • Más características utilizan más memoria y tiempo de cálculo.

  • Menos entidades pueden producir un clasificador deficiente.

Para este ejemplo, elija 100 características.

q = 100;

Extraer características

Hay dos funciones de extracción de características y.sparsefiltrica Comience con la función.sparsefilt Establezca el número de iteraciones en 10 para que la extracción no tome demasiado tiempo.

Normalmente, obtiene buenos resultados al ejecutar el algoritmo para unas cuantas iteraciones a unos pocos cientos de iteraciones.sparsefilt Ejecutar el algoritmo para demasiadas iteraciones puede provocar una disminución de la precisión de la clasificación, un tipo de problema de sobreajuste.

Se utiliza para obtener el modelo de filtrado disperso mientras se utilizan 10 iteraciones.sparsefilt

Mdl = sparsefilt(Xtrain,q,'IterationLimit',10);
Warning: Solver LBFGS was not able to converge to a solution.

advierte que el optimizador interno LBFGS no convergen.sparsefilt El optimizador no convergen porque se establece el límite de iteración en 10. Sin embargo, puede utilizar el resultado para entrenar a un clasificador.

Crear clasificador

Transforme los datos originales en la nueva representación de entidades.

NewX = transform(Mdl,Xtrain);

Entrenar un clasificador lineal basado en los datos transformados y en las etiquetas de clasificación correctas.LabelTrain La precisión del modelo aprendido es sensible al parámetro de regularización.fitcecocLambda Intente encontrar el mejor valor para utilizar el par nombre-valor.LambdaOptimizeHyperparameters Tenga en cuenta que esta optimización lleva tiempo. Si tiene una licencia de Parallel Computing Toolbox™, utilice la computación paralela para una ejecución más rápida. Si no tiene una licencia paralela, quite las llamadas antes de ejecutar este script.UseParallel

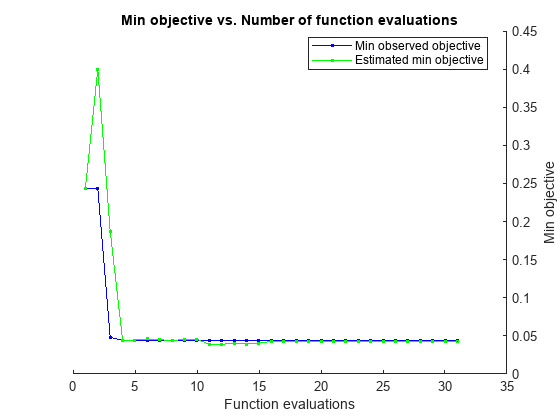

t = templateLinear('Solver','lbfgs'); options = struct('UseParallel',true); Cmdl = fitcecoc(NewX,LabelTrain,'Learners',t, ...     'OptimizeHyperparameters',{'Lambda'}, ...     'HyperparameterOptimizationOptions',options);
Starting parallel pool (parpool) using the 'local' profile ... Preserving jobs with IDs: 1 2 because they contain crash dump files. You can use 'delete(myCluster.Jobs)' to remove all jobs created with profile local. To create 'myCluster' use 'myCluster = parcluster('local')'. connected to 6 workers. Copying objective function to workers... Done copying objective function to workers. |================================================================================================| | Iter | Active  | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   |       Lambda | |      | workers | result |             | runtime     | (observed)  | (estim.)    |              | |================================================================================================| |    1 |       6 | Best   |      0.5777 |      7.4007 |      0.5777 |      0.5777 |      0.20606 | |    2 |       5 | Accept |      0.8865 |       8.203 |      0.2041 |     0.27206 |       8.8234 | |    3 |       5 | Best   |      0.2041 |      8.7958 |      0.2041 |     0.27206 |     0.026804 | |    4 |       6 | Best   |      0.1077 |      14.377 |      0.1077 |     0.10773 |   1.7309e-09 | |    5 |       6 | Best   |      0.0962 |      14.766 |      0.0962 |    0.096203 |    0.0002442 | |    6 |       6 | Accept |         0.2 |      6.4864 |      0.0962 |    0.096221 |     0.024847 | |    7 |       6 | Accept |      0.2077 |      6.5173 |      0.0962 |    0.096222 |     0.029081 | |    8 |       6 | Accept |      0.0977 |      22.173 |      0.0962 |    0.096215 |   8.0495e-06 | |    9 |       6 | Accept |      0.1238 |      8.6482 |      0.0962 |    0.096199 |     0.002979 | |   10 |       6 | Accept |      0.1082 |      12.894 |      0.0962 |    0.096198 |   4.3382e-09 | |   11 |       6 | Accept |      0.1085 |      10.829 |      0.0962 |    0.096211 |   0.00085219 | |   12 |       6 | Accept |       0.105 |      15.564 |      0.0962 |     0.09621 |   1.4124e-07 | |   13 |       6 | Accept |      0.1058 |      12.765 |      0.0962 |    0.096187 |    2.079e-08 | |   14 |       6 | Best   |      0.0936 |      16.633 |      0.0936 |    0.093558 |   6.2283e-05 | |   15 |       6 | Accept |      0.1026 |      18.202 |      0.0936 |    0.093551 |   1.4023e-06 | |   16 |       6 | Accept |      0.0961 |      19.011 |      0.0936 |    0.093666 |   2.2152e-05 | |   17 |       6 | Accept |      0.1084 |      12.674 |      0.0936 |    0.093663 |   1.0003e-09 | |   18 |       6 | Accept |      0.1031 |      16.265 |      0.0936 |    0.093671 |   4.4527e-07 | |   19 |       6 | Accept |      0.0937 |      14.016 |      0.0936 |    0.093696 |   0.00013015 | |   20 |       6 | Best   |      0.0914 |      15.769 |      0.0914 |    0.092549 |   8.6862e-05 | |================================================================================================| | Iter | Active  | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   |       Lambda | |      | workers | result |             | runtime     | (observed)  | (estim.)    |              | |================================================================================================| |   21 |       6 | Accept |      0.8865 |      5.3391 |      0.0914 |    0.092543 |       1.6582 | |   22 |       6 | Accept |      0.0942 |      17.642 |      0.0914 |     0.09256 |   4.7242e-05 | |   23 |       6 | Accept |       0.093 |      15.341 |      0.0914 |    0.092615 |     0.000111 | |   24 |       6 | Accept |      0.0921 |       16.01 |      0.0914 |    0.092512 |   9.8477e-05 | |   25 |       6 | Accept |      0.1473 |      8.1332 |      0.0914 |     0.09247 |    0.0069786 | |   26 |       6 | Accept |      0.1064 |       15.85 |      0.0914 |    0.092473 |   5.1858e-08 | |   27 |       6 | Accept |      0.1009 |      12.464 |      0.0914 |    0.092506 |   0.00047376 | |   28 |       6 | Accept |      0.1072 |      13.731 |      0.0914 |    0.092507 |   9.5565e-09 | |   29 |       6 | Accept |      0.1003 |      21.702 |      0.0914 |    0.092508 |   3.3081e-06 | |   30 |       6 | Accept |      0.1156 |      10.224 |      0.0914 |     0.09251 |    0.0016146 |  __________________________________________________________ Optimization completed. MaxObjectiveEvaluations of 30 reached. Total function evaluations: 30 Total elapsed time: 81.5517 seconds. Total objective function evaluation time: 398.4276  Best observed feasible point:       Lambda       __________      8.6862e-05  Observed objective function value = 0.0914 Estimated objective function value = 0.09251 Function evaluation time = 15.7692  Best estimated feasible point (according to models):       Lambda       __________      9.8477e-05  Estimated objective function value = 0.09251 Estimated function evaluation time = 15.7884

Evaluar clasificador

Compruebe el error del clasificador cuando se aplica a los datos de prueba. En primer lugar, cargue los datos de prueba.

imageFileName = 'train-images.idx3-ubyte'; labelFileName = 'train-labels.idx1-ubyte'; [Xtest,LabelTest] = processMNISTdata(imageFileName,labelFileName);
 Read MNIST image data... Number of images in the dataset:  60000 ... Each image is of 28 by 28 pixels... The image data is read to a matrix of dimensions:  60000 by  784... End of reading image data.  Read MNIST label data... Number of labels in the dataset:  60000 ... The label data is read to a matrix of dimensions:  60000 by  1... End of reading label data.

Calcule la pérdida de clasificación al aplicar el clasificador a los datos de prueba.

TestX = transform(Mdl,Xtest); Loss = loss(Cmdl,TestX,LabelTest)
 Loss =      0.1007

¿Ha resultado esta transformación en un mejor clasificador que uno entrenado en los datos originales? Cree un clasificador basado en los datos de entrenamiento originales y evalúe su pérdida.

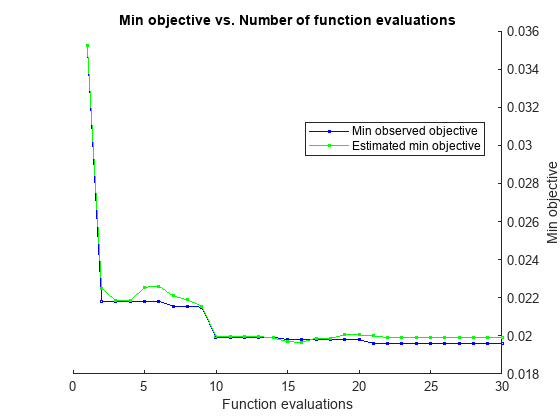

Omdl = fitcecoc(Xtrain,LabelTrain,'Learners',t, ...     'OptimizeHyperparameters',{'Lambda'}, ...     'HyperparameterOptimizationOptions',options); Losso = loss(Omdl,Xtest,LabelTest)
Copying objective function to workers... Done copying objective function to workers. |================================================================================================| | Iter | Active  | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   |       Lambda | |      | workers | result |             | runtime     | (observed)  | (estim.)    |              | |================================================================================================| |    1 |       4 | Best   |      0.0779 |      46.584 |      0.0779 |      0.0779 |   1.3269e-06 | |    2 |       4 | Accept |      0.0779 |      46.572 |      0.0779 |      0.0779 |   3.8643e-09 | |    3 |       4 | Accept |      0.0779 |      46.606 |      0.0779 |      0.0779 |   5.7933e-08 | |    4 |       6 | Accept |      0.0787 |       135.7 |      0.0779 |      0.0779 |     0.011605 | |    5 |       6 | Best   |      0.0775 |      139.22 |      0.0775 |     0.07798 |   0.00020291 | |    6 |       6 | Accept |      0.0775 |       91.03 |      0.0775 |      0.0779 |   6.2603e-05 | |    7 |       6 | Accept |      0.0779 |       45.04 |      0.0775 |      0.0779 |   1.0076e-09 | |    8 |       6 | Best   |      0.0774 |       143.5 |      0.0774 |    0.077458 |   0.00021639 | |    9 |       6 | Accept |      0.0785 |      149.75 |      0.0774 |    0.077911 |    0.0025558 | |   10 |       6 | Best   |      0.0744 |      243.08 |      0.0744 |    0.074408 |        6.805 | |   11 |       6 | Accept |       0.078 |      48.495 |      0.0744 |    0.074407 |   9.1498e-06 | |   12 |       6 | Accept |      0.0782 |      110.37 |      0.0744 |    0.074552 |   8.8714e-05 | |   13 |       6 | Accept |      0.0782 |      137.54 |      0.0744 |    0.074594 |   0.00020355 | |   14 |       6 | Accept |       0.078 |      124.02 |      0.0744 |    0.074578 |   0.00012798 | |   15 |       6 | Accept |      0.0789 |      135.76 |      0.0744 |    0.074558 |    0.0087103 | |   16 |       6 | Accept |      0.0779 |       47.27 |      0.0744 |    0.074543 |   2.7051e-07 | |   17 |       6 | Accept |      0.0767 |      131.38 |      0.0744 |    0.074525 |      0.23863 | |   18 |       6 | Accept |      0.0761 |       214.2 |      0.0744 |    0.075167 |        3.197 | |   19 |       6 | Best   |      0.0729 |      249.91 |      0.0729 |    0.074075 |       9.9885 | |   20 |       6 | Best   |      0.0719 |      264.56 |      0.0719 |    0.073435 |       9.9979 | |================================================================================================| | Iter | Active  | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   |       Lambda | |      | workers | result |             | runtime     | (observed)  | (estim.)    |              | |================================================================================================| |   21 |       6 | Accept |      0.0779 |      45.861 |      0.0719 |    0.073414 |   1.4821e-08 | |   22 |       6 | Accept |      0.0757 |      162.35 |      0.0719 |    0.073399 |      0.98421 | |   23 |       6 | Accept |      0.0734 |      258.31 |      0.0719 |    0.073386 |       9.9794 | |   24 |       6 | Accept |      0.0779 |      45.468 |      0.0719 |    0.073374 |   3.4303e-06 | |   25 |       6 | Accept |      0.0779 |      45.322 |      0.0719 |    0.073363 |   1.7972e-09 | |   26 |       6 | Accept |      0.0784 |      54.892 |      0.0719 |    0.073362 |    2.262e-05 | |   27 |       6 | Accept |      0.0787 |      119.62 |      0.0719 |    0.073333 |     0.061795 | |   28 |       6 | Accept |      0.0779 |      45.514 |      0.0719 |    0.073324 |    1.256e-07 | |   29 |       6 | Accept |      0.0779 |      44.712 |      0.0719 |    0.073316 |   6.0925e-07 | |   30 |       6 | Accept |      0.0779 |      46.147 |      0.0719 |    0.073308 |   2.8315e-08 |  __________________________________________________________ Optimization completed. MaxObjectiveEvaluations of 30 reached. Total function evaluations: 30 Total elapsed time: 685.0741 seconds. Total objective function evaluation time: 3418.7781  Best observed feasible point:     Lambda     ______      9.9979  Observed objective function value = 0.0719 Estimated objective function value = 0.073308 Function evaluation time = 264.5614  Best estimated feasible point (according to models):     Lambda     ______      9.9979  Estimated objective function value = 0.073308 Estimated function evaluation time = 257.1588   Losso =      0.0860

El clasificador basado en el filtrado disperso tiene una pérdida algo mayor que el clasificador basado en los datos originales. Sin embargo, el clasificador utiliza sólo 100 características en lugar de las características 784 en los datos originales, y es mucho más rápido de crear. Trate de hacer un mejor clasificador de filtrado disperso aumentando de 100 a 200, que es todavía mucho menor que 784.q

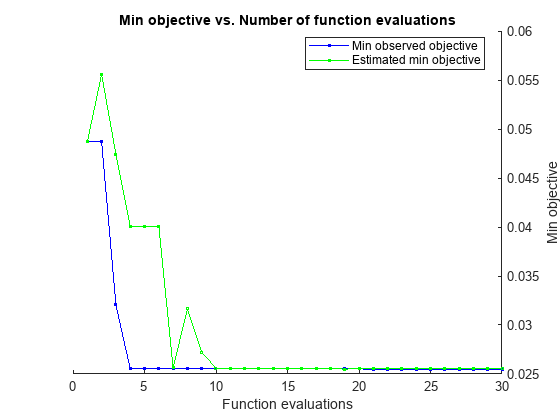

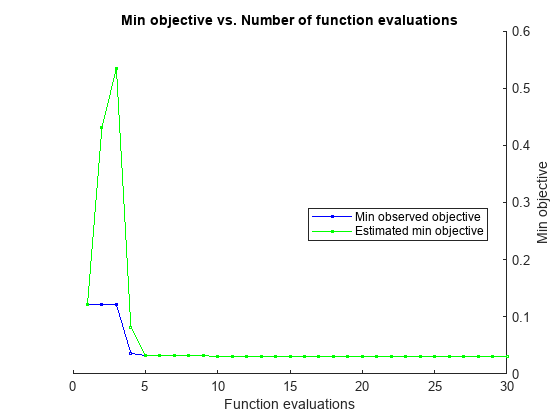

q = 200; Mdl2 = sparsefilt(Xtrain,q,'IterationLimit',10); NewX = transform(Mdl2,Xtrain); TestX = transform(Mdl2,Xtest); Cmdl = fitcecoc(NewX,LabelTrain,'Learners',t, ...     'OptimizeHyperparameters',{'Lambda'}, ...     'HyperparameterOptimizationOptions',options); Loss2 = loss(Cmdl,TestX,LabelTest)
Warning: Solver LBFGS was not able to converge to a solution.  Copying objective function to workers... Done copying objective function to workers. |================================================================================================| | Iter | Active  | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   |       Lambda | |      | workers | result |             | runtime     | (observed)  | (estim.)    |              | |================================================================================================| |    1 |       6 | Best   |       0.752 |       7.076 |       0.752 |       0.752 |      0.51767 | |    2 |       5 | Accept |      0.8848 |      7.1285 |       0.752 |     0.80577 |       1.3049 | |    3 |       5 | Accept |      0.7805 |      7.1223 |       0.752 |     0.80577 |      0.65215 | |    4 |       6 | Best   |      0.0648 |      9.0767 |      0.0648 |    0.064832 |   1.2719e-08 | |    5 |       6 | Accept |      0.0981 |      12.339 |      0.0648 |      0.0648 |    0.0031356 | |    6 |       6 | Accept |      0.8865 |      7.2604 |      0.0648 |    0.064956 |       3.8424 | |    7 |       6 | Accept |       0.067 |      9.6393 |      0.0648 |    0.064907 |   1.0119e-09 | |    8 |       6 | Best   |       0.063 |      14.945 |       0.063 |    0.064454 |     1.08e-07 | |    9 |       6 | Accept |      0.0654 |      9.8684 |       0.063 |    0.063178 |   4.9037e-09 | |   10 |       6 | Accept |      0.0794 |      16.553 |       0.063 |    0.063254 |   0.00099236 | |   11 |       6 | Best   |      0.0589 |      28.416 |      0.0589 |    0.064721 |   6.1292e-06 | |   12 |       6 | Accept |       0.066 |      9.5237 |      0.0589 |    0.059021 |   2.0984e-09 | |   13 |       6 | Accept |      0.0639 |      10.891 |      0.0589 |    0.058997 |   3.3824e-08 | |   14 |       6 | Accept |      0.0649 |      11.456 |      0.0589 |    0.058955 |   4.3995e-08 | |   15 |       6 | Best   |      0.0579 |      28.103 |      0.0579 |    0.058044 |   6.7158e-05 | |   16 |       6 | Accept |      0.0626 |      18.265 |      0.0579 |    0.058045 |   2.8966e-07 | |   17 |       6 | Accept |      0.0621 |      21.254 |      0.0579 |    0.058051 |   8.4821e-07 | |   18 |       6 | Accept |      0.0615 |      25.528 |      0.0579 |     0.05803 |   2.2042e-06 | |   19 |       6 | Accept |      0.0625 |      23.378 |      0.0579 |     0.05767 |   0.00026368 | |   20 |       6 | Accept |      0.0579 |      34.905 |      0.0579 |    0.057878 |   1.6686e-05 | |================================================================================================| | Iter | Active  | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   |       Lambda | |      | workers | result |             | runtime     | (observed)  | (estim.)    |              | |================================================================================================| |   21 |       6 | Best   |      0.0563 |      35.465 |      0.0563 |    0.056888 |    3.384e-05 | |   22 |       6 | Accept |      0.0576 |      34.846 |      0.0563 |    0.057376 |   1.1864e-05 | |   23 |       6 | Best   |      0.0561 |      34.431 |      0.0561 |    0.056574 |   3.6608e-05 | |   24 |       6 | Accept |      0.0596 |      29.375 |      0.0561 |    0.056559 |   8.4588e-05 | |   25 |       6 | Accept |      0.0589 |      26.658 |      0.0561 |    0.056567 |   0.00011552 | |   26 |       6 | Accept |      0.1722 |      9.9144 |      0.0561 |    0.056611 |     0.028611 | |   27 |       6 | Accept |      0.1302 |        11.6 |      0.0561 |     0.05662 |    0.0096846 | |   28 |       6 | Accept |      0.8865 |      8.5102 |      0.0561 |    0.056652 |       9.9923 | |   29 |       6 | Accept |      0.2314 |      8.0709 |      0.0561 |    0.056553 |     0.080409 | |   30 |       6 | Accept |      0.0582 |      30.686 |      0.0561 |     0.05663 |   5.8332e-05 |  __________________________________________________________ Optimization completed. MaxObjectiveEvaluations of 30 reached. Total function evaluations: 30 Total elapsed time: 105.4513 seconds. Total objective function evaluation time: 542.2851  Best observed feasible point:       Lambda       __________      3.6608e-05  Observed objective function value = 0.0561 Estimated objective function value = 0.05663 Function evaluation time = 34.4305  Best estimated feasible point (according to models):       Lambda       __________      3.6608e-05  Estimated objective function value = 0.05663 Estimated function evaluation time = 33.6933   Loss2 =      0.0686

Esta vez la pérdida de clasificación es menor que la del clasificador de datos original.

Pruebe RICA

Pruebe la otra función de extracción de características,.rica Extraiga las características 200, cree un clasificador y examine su pérdida en los datos de prueba. Utilice más iteraciones para la función, porque puede funcionar mejor con más iteraciones que usos.ricaricasparsefilt

A menudo, antes de la extracción de características, se "prewhitin" los datos de entrada como un paso de preprocesamiento de datos. El paso de preblanqueamiento incluye dos transformaciones, decoracion y estandarización, que hacen que los predictores tengan media cero y covarianza de identidad. solo admite la transformación de estandarización.rica Utilice el argumento de par nombre-valor para que los predictores tengan la media cero y la varianza de la unidad.Standardize Alternativamente, puede transformar imágenes para la normalización de contraste individualmente aplicando la transformación antes de llamar o.zscoresparsefiltrica

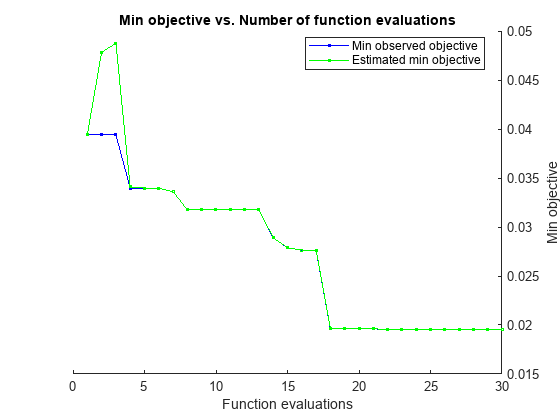

Mdl3 = rica(Xtrain,q,'IterationLimit',400,'Standardize',true); NewX = transform(Mdl3,Xtrain); TestX = transform(Mdl3,Xtest); Cmdl = fitcecoc(NewX,LabelTrain,'Learners',t, ...     'OptimizeHyperparameters',{'Lambda'}, ...     'HyperparameterOptimizationOptions',options); Loss3 = loss(Cmdl,TestX,LabelTest)
Warning: Solver LBFGS was not able to converge to a solution.  Copying objective function to workers... Done copying objective function to workers. |================================================================================================| | Iter | Active  | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   |       Lambda | |      | workers | result |             | runtime     | (observed)  | (estim.)    |              | |================================================================================================| |    1 |       6 | Best   |      0.1161 |      12.033 |      0.1161 |      0.1161 |       7.6382 | |    2 |       6 | Best   |      0.0801 |       13.23 |      0.0801 |    0.081824 |   1.0841e-09 | |    3 |       6 | Best   |      0.0797 |        13.7 |      0.0797 |    0.079717 |   2.1663e-09 | |    4 |       6 | Best   |      0.0788 |      20.336 |      0.0788 |    0.078804 |   3.5739e-05 | |    5 |       6 | Best   |      0.0765 |      21.716 |      0.0765 |     0.07651 |   9.6928e-05 | |    6 |       6 | Best   |      0.0644 |      26.986 |      0.0644 |    0.064403 |     0.055148 | |    7 |       6 | Accept |      0.0808 |       13.69 |      0.0644 |    0.064403 |   1.6951e-08 | |    8 |       6 | Accept |      0.0797 |      13.349 |      0.0644 |    0.064404 |   5.7503e-09 | |    9 |       6 | Accept |       0.079 |      20.276 |      0.0644 |    0.064403 |   2.9526e-06 | |   10 |       6 | Accept |      0.0801 |       13.71 |      0.0644 |    0.064403 |   1.9659e-07 | |   11 |       6 | Accept |       0.066 |        24.9 |      0.0644 |    0.064394 |      0.22353 | |   12 |       6 | Accept |      0.0767 |      31.617 |      0.0644 |    0.064397 |   0.00059309 | |   13 |       6 | Accept |      0.0668 |      27.014 |      0.0644 |    0.064389 |     0.011664 | |   14 |       6 | Accept |      0.0719 |      30.169 |      0.0644 |    0.064387 |    0.0031989 | |   15 |       6 | Accept |      0.0654 |      26.338 |      0.0644 |    0.064399 |     0.026655 | |   16 |       6 | Accept |      0.0733 |      31.345 |      0.0644 |    0.064218 |    0.0016414 | |   17 |       6 | Best   |      0.0643 |      25.532 |      0.0643 |    0.064239 |      0.11145 | |   18 |       5 | Accept |      0.0648 |      26.839 |      0.0624 |    0.063728 |     0.098656 | |   19 |       5 | Best   |      0.0624 |      26.951 |      0.0624 |    0.063728 |     0.077975 | |   20 |       6 | Accept |      0.0859 |      16.207 |      0.0624 |    0.063798 |       1.6125 | |================================================================================================| | Iter | Active  | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   |       Lambda | |      | workers | result |             | runtime     | (observed)  | (estim.)    |              | |================================================================================================| |   21 |       6 | Accept |      0.0628 |      26.359 |      0.0624 |    0.063609 |     0.072374 | |   22 |       6 | Accept |      0.0648 |      25.385 |      0.0624 |    0.063715 |      0.10981 | |   23 |       6 | Accept |      0.0798 |       14.33 |      0.0624 |    0.063713 |   5.9972e-08 | |   24 |       6 | Accept |      0.0802 |      20.475 |      0.0624 |    0.063712 |    7.095e-07 | |   25 |       5 | Accept |      0.0702 |       20.18 |      0.0624 |    0.063739 |      0.47577 | |   26 |       5 | Accept |      0.0782 |      19.979 |      0.0624 |    0.063739 |   9.7848e-06 | |   27 |       6 | Best   |      0.0619 |      26.638 |      0.0619 |    0.063479 |     0.074666 | |   28 |       6 | Accept |      0.0624 |      26.768 |      0.0619 |     0.06335 |     0.073585 | |   29 |       6 | Accept |      0.0992 |      13.079 |      0.0619 |    0.063361 |       3.8651 | |   30 |       6 | Accept |      0.0807 |      13.742 |      0.0619 |    0.063362 |   3.2195e-08 |  __________________________________________________________ Optimization completed. MaxObjectiveEvaluations of 30 reached. Total function evaluations: 30 Total elapsed time: 119.988 seconds. Total objective function evaluation time: 642.8708  Best observed feasible point:      Lambda      ________      0.074666  Observed objective function value = 0.0619 Estimated objective function value = 0.063362 Function evaluation time = 26.6381  Best estimated feasible point (according to models):      Lambda      ________      0.072374  Estimated objective function value = 0.063362 Estimated function evaluation time = 26.6488   Loss3 =      0.0746

El clasificador basado tiene una pérdida de prueba algo mayor en comparación con el clasificador de filtrado disperso.rica

Pruebe más características

Las funciones de extracción de características tienen pocos parámetros de ajuste. Un parámetro que puede afectar a los resultados es el número de características solicitadas. Vea cómo funcionan los clasificadores cuando se basan en características 1000, en lugar de las características 200 previamente probadas, o las características de 784 en los datos originales. El uso de más características que las que aparecen en los datos originales se denomina aprendizaje "sobrecompletado". Por el contrario, el uso de menos características se denomina aprendizaje "insuficiente". El aprendizaje excesivo puede llevar a una mayor precisión de clasificación, mientras que el aprendizaje insuficiente puede ahorrar memoria y tiempo.

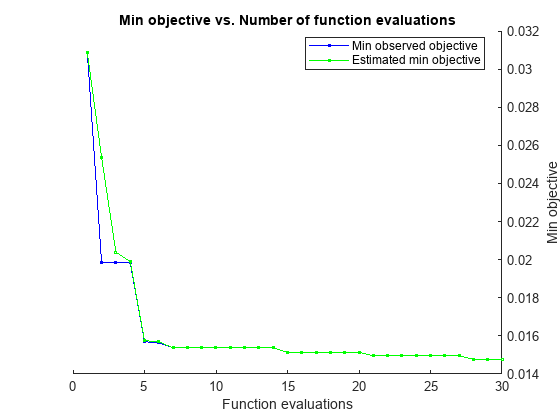

q = 1000; Mdl4 = sparsefilt(Xtrain,q,'IterationLimit',10); NewX = transform(Mdl4,Xtrain); TestX = transform(Mdl4,Xtest); Cmdl = fitcecoc(NewX,LabelTrain,'Learners',t, ...     'OptimizeHyperparameters',{'Lambda'}, ...     'HyperparameterOptimizationOptions',options); Loss4 = loss(Cmdl,TestX,LabelTest)
Warning: Solver LBFGS was not able to converge to a solution.  Copying objective function to workers... Done copying objective function to workers. |================================================================================================| | Iter | Active  | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   |       Lambda | |      | workers | result |             | runtime     | (observed)  | (estim.)    |              | |================================================================================================| |    1 |       6 | Best   |      0.8865 |      45.942 |      0.8865 |      0.8865 |       2.3989 | |    2 |       6 | Accept |      0.8865 |      47.902 |      0.8865 |      0.8865 |       5.1401 | |    3 |       6 | Best   |      0.0432 |      51.794 |      0.0432 |    0.043283 |   2.4208e-08 | |    4 |       6 | Accept |      0.0436 |      54.696 |      0.0432 |    0.042893 |   5.5091e-08 | |    5 |       6 | Accept |      0.4011 |        40.1 |      0.0432 |    0.043226 |      0.14741 | |    6 |       6 | Accept |      0.0958 |      89.542 |      0.0432 |    0.043225 |    0.0050411 | |    7 |       5 | Accept |      0.1911 |      55.344 |      0.0432 |    0.043146 |     0.043771 | |    8 |       5 | Accept |      0.0438 |      51.203 |      0.0432 |    0.043146 |   1.0001e-09 | |    9 |       6 | Best   |       0.043 |      51.389 |       0.043 |     0.04308 |   2.0493e-08 | |   10 |       6 | Accept |      0.0434 |      53.469 |       0.043 |    0.043015 |    3.457e-09 | |   11 |       6 | Best   |      0.0427 |      53.882 |      0.0427 |     0.04302 |   8.2165e-09 | |   12 |       6 | Best   |      0.0425 |      87.783 |      0.0425 |    0.043036 |   1.5128e-07 | |   13 |       6 | Accept |      0.0439 |      53.166 |      0.0425 |    0.043043 |   1.7564e-09 | |   14 |       6 | Accept |      0.0429 |       53.46 |      0.0425 |    0.043086 |   1.2209e-08 | |   15 |       6 | Accept |      0.0425 |       157.2 |      0.0425 |    0.043067 |   6.2143e-07 | |   16 |       6 | Accept |      0.0515 |      163.53 |      0.0425 |    0.043077 |    0.0004333 | |   17 |       6 | Accept |      0.0428 |      53.968 |      0.0425 |    0.042737 |   5.8696e-09 | |   18 |       6 | Accept |      0.0426 |      67.358 |      0.0425 |    0.042733 |   8.9837e-08 | |   19 |       6 | Best   |      0.0399 |      285.58 |      0.0399 |    0.039883 |   1.8692e-05 | |   20 |       6 | Accept |      0.0424 |      128.03 |      0.0399 |    0.039881 |   2.8446e-07 | |================================================================================================| | Iter | Active  | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   |       Lambda | |      | workers | result |             | runtime     | (observed)  | (estim.)    |              | |================================================================================================| |   21 |       6 | Best   |      0.0398 |       216.8 |      0.0398 |    0.039864 |   2.5713e-06 | |   22 |       6 | Accept |      0.0444 |       208.6 |      0.0398 |    0.039835 |   0.00019319 | |   23 |       6 | Accept |      0.0404 |      256.65 |      0.0398 |    0.039847 |    9.324e-05 | |   24 |       6 | Best   |      0.0397 |       276.9 |      0.0397 |    0.039688 |   7.0356e-06 | |   25 |       6 | Accept |       0.041 |      189.17 |      0.0397 |    0.039809 |   1.2113e-06 | |   26 |       6 | Best   |      0.0393 |      299.66 |      0.0393 |    0.039338 |   4.1625e-05 | |   27 |       6 | Best   |      0.0391 |      250.98 |      0.0391 |    0.039321 |   4.0724e-06 | |   28 |       6 | Accept |      0.0391 |      287.08 |      0.0391 |     0.03932 |   1.0931e-05 | |   29 |       6 | Accept |      0.0396 |      239.51 |      0.0391 |    0.039462 |   3.5146e-06 | |   30 |       6 | Accept |      0.0405 |      206.25 |      0.0391 |     0.03952 |   2.1295e-06 |  __________________________________________________________ Optimization completed. MaxObjectiveEvaluations of 30 reached. Total function evaluations: 30 Total elapsed time: 794.8129 seconds. Total objective function evaluation time: 4076.9347  Best observed feasible point:       Lambda       __________      4.0724e-06  Observed objective function value = 0.0391 Estimated objective function value = 0.03952 Function evaluation time = 250.9821  Best estimated feasible point (according to models):       Lambda       __________      3.5146e-06  Estimated objective function value = 0.03952 Estimated function evaluation time = 238.7933   Loss4 =      0.0458

El clasificador basado en el filtrado disperso excesivo con 1000 características extraídas tiene la menor pérdida de prueba de cualquier clasificador aún probado.

Mdl5 = rica(Xtrain,q,'IterationLimit',400,'Standardize',true); NewX = transform(Mdl5,Xtrain); TestX = transform(Mdl5,Xtest); Cmdl = fitcecoc(NewX,LabelTrain,'Learners',t, ...     'OptimizeHyperparameters',{'Lambda'}, ...     'HyperparameterOptimizationOptions',options); Loss5 = loss(Cmdl,TestX,LabelTest)
Warning: Solver LBFGS was not able to converge to a solution.  Copying objective function to workers... Done copying objective function to workers. |================================================================================================| | Iter | Active  | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   |       Lambda | |      | workers | result |             | runtime     | (observed)  | (estim.)    |              | |================================================================================================| |    1 |       6 | Best   |      0.0793 |      45.449 |      0.0793 |      0.0793 |    8.935e-09 | |    2 |       6 | Best   |      0.0787 |      146.84 |      0.0787 |       0.079 |   1.4834e-05 | |    3 |       6 | Best   |      0.0779 |      149.38 |      0.0779 |    0.078633 |   4.1948e-06 | |    4 |       6 | Best   |      0.0777 |      153.15 |      0.0777 |      0.0777 |   2.6573e-06 | |    5 |       6 | Best   |      0.0735 |      171.35 |      0.0735 |      0.0735 |      0.62958 | |    6 |       6 | Accept |      0.1263 |      95.035 |      0.0735 |    0.073503 |       9.9845 | |    7 |       6 | Accept |      0.0786 |      141.65 |      0.0735 |    0.073504 |   7.8708e-06 | |    8 |       6 | Accept |       0.078 |      147.28 |      0.0735 |    0.073504 |   3.4442e-05 | |    9 |       6 | Accept |      0.0788 |      151.31 |      0.0735 |    0.073504 |   7.0238e-07 | |   10 |       6 | Accept |      0.0772 |      260.81 |      0.0735 |    0.073504 |   0.00033302 | |   11 |       6 | Best   |      0.0692 |      310.13 |      0.0692 |    0.069203 |    0.0017533 | |   12 |       6 | Accept |       0.079 |      45.189 |      0.0692 |    0.069203 |   1.0004e-09 | |   13 |       6 | Accept |      0.0791 |      43.562 |      0.0692 |    0.069203 |   6.8221e-08 | |   14 |       6 | Accept |      0.0791 |      44.776 |      0.0692 |    0.069204 |   2.6499e-09 | |   15 |       6 | Accept |        0.09 |      129.34 |      0.0692 |    0.069206 |       2.1641 | |   16 |       6 | Accept |      0.0786 |      49.025 |      0.0692 |    0.069206 |   2.0818e-07 | |   17 |       6 | Best   |      0.0675 |      211.67 |      0.0675 |    0.067494 |      0.21351 | |   18 |       6 | Best   |      0.0651 |      233.43 |      0.0651 |    0.065096 |     0.056995 | |   19 |       6 | Accept |      0.0692 |      252.72 |      0.0651 |    0.065116 |     0.010482 | |   20 |       6 | Accept |      0.0653 |      246.18 |      0.0651 |    0.065116 |     0.099991 | |================================================================================================| | Iter | Active  | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   |       Lambda | |      | workers | result |             | runtime     | (observed)  | (estim.)    |              | |================================================================================================| |   21 |       6 | Accept |      0.0692 |      285.39 |      0.0651 |    0.065109 |    0.0042157 | |   22 |       6 | Accept |      0.0791 |      192.95 |      0.0651 |     0.06511 |   0.00011073 | |   23 |       6 | Accept |      0.0672 |      221.33 |      0.0651 |    0.065121 |     0.024284 | |   24 |       6 | Accept |      0.0796 |      46.336 |      0.0651 |    0.065122 |   2.4318e-08 | |   25 |       6 | Accept |      0.0686 |       265.9 |      0.0651 |    0.065224 |    0.0072737 | |   26 |       6 | Accept |       0.066 |      245.17 |      0.0651 |    0.065462 |     0.069576 | |   27 |       6 | Best   |       0.065 |      233.62 |       0.065 |    0.065338 |     0.070537 | |   28 |       6 | Accept |      0.0652 |      236.22 |       0.065 |    0.065304 |     0.069455 | |   29 |       6 | Accept |       0.079 |      46.072 |       0.065 |    0.065301 |   1.5309e-09 | |   30 |       6 | Accept |      0.0662 |      221.53 |       0.065 |    0.065311 |     0.038733 |  __________________________________________________________ Optimization completed. MaxObjectiveEvaluations of 30 reached. Total function evaluations: 30 Total elapsed time: 985.7708 seconds. Total objective function evaluation time: 5022.8042  Best observed feasible point:      Lambda      ________      0.070537  Observed objective function value = 0.065 Estimated objective function value = 0.065311 Function evaluation time = 233.6229  Best estimated feasible point (according to models):      Lambda      ________      0.070537  Estimated objective function value = 0.065311 Estimated function evaluation time = 239.1365   Loss5 =      0.0741

El clasificador basado en RICA con 1000 características extraídas tiene una pérdida de prueba similar al clasificador de RICA basado en 200 características extraídas.

Optimice los hiperparámetros mediantebayesopt

Las funciones de extracción de características tienen estos parámetros de ajuste:

  • Límite de iteración

  • Función, ya sea oricasparsefilt

  • ParámetroLambda

  • Número de características aprendidasq

El parámetro de regularización también afecta a la precisión del clasificador aprendido.fitcecoc Incluya ese parámetro en la lista de hiperparámetros también.

Para buscar entre los parámetros disponibles eficazmente, pruebe.bayesopt Utilice la función de objetivo siguiente, que incluye los parámetros pasados desde el espacio de trabajo.

 function objective = filterica(x,Xtrain,Xtest,LabelTrain,LabelTest,winit)  initW = winit(1:size(Xtrain,2),1:x.q); if char(x.solver) == 'r'     Mdl = rica(Xtrain,x.q,'Lambda',x.lambda,'IterationLimit',x.iterlim, ...         'InitialTransformWeights',initW,'Standardize',true); else     Mdl = sparsefilt(Xtrain,x.q,'Lambda',x.lambda,'IterationLimit',x.iterlim, ...         'InitialTransformWeights',initW); end  NewX = transform(Mdl,Xtrain); TestX = transform(Mdl,Xtest); t = templateLinear('Lambda',x.lambdareg,'Solver','lbfgs'); Cmdl = fitcecoc(NewX,LabelTrain,'Learners',t); objective = loss(Cmdl,TestX,LabelTest);

Para eliminar las fuentes de variación, corrija una matriz de peso de transformación inicial.

W = randn(1e4,1e3);

Cree hiperparámetros para la función objetiva.

iterlim = optimizableVariable('iterlim',[5,500],'Type','integer'); lambda = optimizableVariable('lambda',[0,10]); solver = optimizableVariable('solver',{'r','s'},'Type','categorical'); qvar = optimizableVariable('q',[10,1000],'Type','integer'); lambdareg = optimizableVariable('lambdareg',[1e-6,1],'Transform','log'); vars = [iterlim,lambda,solver,qvar,lambdareg];

Ejecute la optimización sin las advertencias que se producen cuando las optimizaciones internas no se ejecutan hasta su finalización. Ejecute para 60 iteraciones en lugar del valor predeterminado 30 para dar a la optimización una mejor oportunidad de localizar un buen valor.

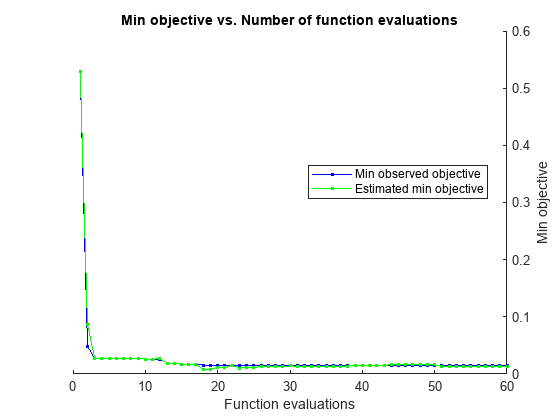

warning('off','stats:classreg:learning:fsutils:Solver:LBFGSUnableToConverge'); results = bayesopt(@(x) filterica(x,Xtrain,Xtest,LabelTrain,LabelTest,W),vars, ...     'UseParallel',true,'MaxObjectiveEvaluations',60); warning('on','stats:classreg:learning:fsutils:Solver:LBFGSUnableToConverge');
Copying objective function to workers... Done copying objective function to workers. |============================================================================================================================================================| | Iter | Active  | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   |      iterlim |       lambda |       solver |            q |    lambdareg | |      | workers | result |             | runtime     | (observed)  | (estim.)    |              |              |              |              |              | |============================================================================================================================================================| |    1 |       6 | Best   |     0.53748 |      25.011 |     0.53748 |     0.53748 |           25 |       6.0656 |            s |          289 |      0.23908 | |    2 |       6 | Best   |    0.090079 |      117.88 |    0.090079 |     0.12404 |           44 |       3.1617 |            r |          805 |   1.1979e-06 | |    3 |       6 | Accept |    0.094795 |       128.8 |    0.090079 |    0.090738 |          166 |       7.5437 |            s |          364 |   3.4071e-05 | |    4 |       6 | Accept |    0.091667 |      140.48 |    0.090079 |    0.090124 |          367 |       7.6065 |            r |          147 |   1.6194e-06 | |    5 |       6 | Accept |    0.092124 |      122.07 |    0.090079 |    0.090351 |          203 |      0.43563 |            r |          216 |   6.6615e-05 | |    6 |       6 | Best   |    0.079954 |      55.372 |    0.079954 |    0.079961 |           59 |       7.9869 |            r |          287 |    0.0082234 | |    7 |       6 | Accept |    0.087518 |      107.37 |    0.079954 |    0.080013 |          196 |       4.2311 |            r |          204 |      0.99846 | |    8 |       6 | Accept |      0.1044 |       262.5 |    0.079954 |    0.079955 |          219 |       5.3425 |            s |          582 |   0.00013924 | |    9 |       6 | Accept |     0.08908 |      236.96 |    0.079954 |    0.079954 |          118 |       4.1448 |            r |          736 |   1.0006e-06 | |   10 |       6 | Best   |    0.073399 |      357.09 |    0.073399 |    0.073454 |          453 |       7.1495 |            r |          312 |      0.11334 | |   11 |       6 | Accept |     0.27723 |      700.19 |    0.073399 |    0.073682 |          492 |       3.3605 |            s |          784 |     0.026698 | |   12 |       6 | Accept |    0.098615 |      495.45 |    0.073399 |    0.073412 |          280 |       2.3508 |            s |          873 |   1.0023e-06 | |   13 |       6 | Accept |     0.26445 |      16.279 |    0.073399 |    0.073415 |          178 |       4.9932 |            s |           25 |   1.0482e-06 | |   14 |       6 | Accept |    0.086335 |      463.99 |    0.073399 |    0.073415 |          436 |       8.1715 |            r |          416 |    0.0010325 | |   15 |       6 | Accept |    0.073897 |      165.19 |    0.073399 |    0.073453 |          156 |        7.901 |            r |          390 |     0.072626 | |   16 |       6 | Best   |      0.0542 |      63.842 |      0.0542 |    0.054204 |           11 |       8.0353 |            s |          646 |   8.8572e-06 | |   17 |       6 | Accept |     0.13236 |      9.7164 |      0.0542 |    0.054172 |          100 |       2.1079 |            r |           14 |     0.060744 | |   18 |       6 | Accept |    0.089937 |      121.57 |      0.0542 |    0.054184 |           38 |         3.14 |            r |         1000 |   1.0338e-06 | |   19 |       6 | Accept |    0.095321 |      26.666 |      0.0542 |    0.054188 |           17 |      0.42316 |            r |          364 |   1.0253e-06 | |   20 |       6 | Accept |    0.075511 |      663.85 |      0.0542 |    0.054177 |          263 |       5.7366 |            r |          964 |     0.030268 | |============================================================================================================================================================| | Iter | Active  | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   |      iterlim |       lambda |       solver |            q |    lambdareg | |      | workers | result |             | runtime     | (observed)  | (estim.)    |              |              |              |              |              | |============================================================================================================================================================| |   21 |       6 | Accept |     0.11003 |      924.74 |      0.0542 |    0.054227 |          495 |      0.46688 |            s |          986 |   1.0927e-05 | |   22 |       6 | Best   |    0.052359 |      73.155 |    0.052359 |    0.052321 |           36 |      0.60555 |            s |          539 |   4.5956e-06 | |   23 |       6 | Accept |     0.12494 |      358.25 |    0.052359 |    0.052541 |          347 |      0.56663 |            s |          509 |   1.0309e-06 | |   24 |       6 | Best   |    0.049896 |      78.397 |    0.049896 |    0.049868 |           27 |       1.2167 |            s |          657 |   1.0109e-05 | |   25 |       6 | Accept |    0.082211 |      88.012 |    0.049896 |    0.049877 |           40 |       9.5342 |            r |          684 |      0.64687 | |   26 |       6 | Accept |     0.13766 |      4.1461 |    0.049896 |    0.049929 |           13 |       7.7307 |            r |           15 |   5.0522e-06 | |   27 |       6 | Accept |    0.091505 |      76.834 |    0.049896 |     0.04993 |            9 |       2.2992 |            r |          998 |   0.00017959 | |   28 |       6 | Accept |    0.083367 |      377.72 |    0.049896 |    0.049922 |          185 |       8.1762 |            r |          745 |    0.0014168 | |   29 |       6 | Accept |    0.050204 |      36.144 |    0.049896 |    0.049954 |            7 |       0.2251 |            s |          508 |   1.1083e-05 | |   30 |       6 | Accept |    0.050111 |       94.69 |    0.049896 |    0.049853 |           13 |      0.53243 |            s |          944 |   5.0925e-06 | |   31 |       6 | Accept |    0.049967 |      80.205 |    0.049896 |    0.049843 |           27 |       2.2348 |            s |          607 |   7.0124e-06 | |   32 |       6 | Accept |    0.051483 |       73.96 |    0.049896 |    0.049913 |            8 |      0.69257 |            s |          764 |   3.1935e-06 | |   33 |       6 | Accept |    0.055065 |      59.315 |    0.049896 |    0.049209 |            6 |       1.8426 |            s |          609 |   7.2764e-06 | |   34 |       6 | Accept |    0.085603 |      646.71 |    0.049896 |    0.049199 |          259 |       8.6047 |            r |          997 |      0.91997 | |   35 |       6 | Accept |    0.055191 |      64.876 |    0.049896 |    0.050181 |            8 |       1.1415 |            s |          657 |   7.3292e-06 | |   36 |       6 | Accept |    0.053131 |       78.86 |    0.049896 |    0.050183 |            9 |       2.6527 |            s |          804 |   6.1887e-06 | |   37 |       6 | Accept |    0.086441 |      972.66 |    0.049896 |    0.050138 |          496 |       4.6939 |            r |          770 |      0.98435 | |   38 |       6 | Accept |     0.11435 |      559.73 |    0.049896 |    0.050126 |          477 |       5.0497 |            s |          584 |   5.5909e-06 | |   39 |       6 | Accept |    0.061942 |      56.196 |    0.049896 |     0.05003 |            6 |       7.0536 |            s |          537 |   1.2679e-05 | |   40 |       6 | Accept |    0.050695 |      146.19 |    0.049896 |    0.049991 |           38 |       0.4489 |            s |          973 |   3.1555e-05 | |============================================================================================================================================================| | Iter | Active  | Eval   | Objective   | Objective   | BestSoFar   | BestSoFar   |      iterlim |       lambda |       solver |            q |    lambdareg | |      | workers | result |             | runtime     | (observed)  | (estim.)    |              |              |              |              |              | |============================================================================================================================================================| |   41 |       6 | Accept |    0.063993 |      67.757 |    0.049896 |     0.04959 |            6 |       7.4843 |            s |          557 |   7.2367e-06 | |   42 |       6 | Accept |    0.052216 |      67.695 |    0.049896 |    0.050079 |            9 |      0.22962 |            s |          590 |     1.13e-05 | |   43 |       6 | Accept |    0.050459 |      106.06 |    0.049896 |     0.05057 |            8 |       9.7543 |            s |          992 |    3.926e-06 | |   44 |       6 | Accept |    0.080488 |      73.663 |    0.049896 |    0.050185 |            8 |       2.7259 |            s |          992 |   5.2108e-05 | |   45 |       6 | Accept |     0.33271 |      3.0724 |    0.049896 |    0.049921 |           10 |       9.3682 |            s |           12 |    0.0053374 | |   46 |       6 | Accept |    0.050062 |      117.69 |    0.049896 |    0.049974 |           14 |       5.7044 |            s |          963 |   4.3362e-06 | |   47 |       6 | Accept |    0.052068 |      84.789 |    0.049896 |    0.050235 |            9 |       1.1243 |            s |          775 |   4.4925e-06 | |   48 |       6 | Accept |      0.2018 |      3.8272 |    0.049896 |    0.049958 |           10 |       1.3355 |            s |           18 |   0.00048666 | |   49 |       6 | Accept |     0.16043 |      4.6847 |    0.049896 |    0.050023 |           11 |        1.695 |            r |           13 |   0.00031978 | |   50 |       6 | Best   |    0.049641 |      114.53 |    0.049641 |    0.049857 |           18 |       1.7006 |            s |          890 |   1.7471e-05 | |   51 |       6 | Accept |      0.7381 |      4.4077 |    0.049641 |    0.049978 |           20 |       1.1795 |            s |           16 |      0.55346 | |   52 |       6 | Best   |    0.049122 |      126.93 |    0.049122 |    0.046892 |           11 |       4.4034 |            s |          997 |   1.2552e-05 | |   53 |       6 | Accept |     0.11509 |      5.5331 |    0.049122 |    0.046928 |           10 |       6.1473 |            r |           32 |      0.66147 | |   54 |       6 | Accept |     0.13896 |      5.3982 |    0.049122 |    0.046931 |           16 |       9.9908 |            r |           14 |   1.0093e-06 | |   55 |       6 | Accept |    0.089654 |        1184 |    0.049122 |    0.047014 |          461 |       9.1226 |            r |          998 |   9.5657e-05 | |   56 |       6 | Accept |     0.13288 |      6.7787 |    0.049122 |     0.04717 |           24 |       5.1783 |            s |           34 |   1.5146e-05 | |   57 |       6 | Accept |    0.088281 |       7.071 |    0.049122 |    0.049622 |           12 |       9.9207 |            r |           46 |    0.0070647 | |   58 |       6 | Accept |     0.14073 |      4.7475 |    0.049122 |     0.05038 |            6 |      0.88866 |            s |           27 |   1.0616e-06 | |   59 |       6 | Accept |     0.10047 |      6.3818 |    0.049122 |    0.050379 |           14 |       9.9281 |            r |           30 |   4.9647e-05 | |   60 |       6 | Accept |    0.049743 |      123.64 |    0.049122 |    0.049364 |           13 |       2.1134 |            s |          985 |   2.6744e-06 |  __________________________________________________________ Optimization completed. MaxObjectiveEvaluations of 60 reached. Total function evaluations: 60 Total elapsed time: 1929.959 seconds. Total objective function evaluation time: 11249.722  Best observed feasible point:     iterlim    lambda    solver     q     lambdareg      _______    ______    ______    ___    __________        11       4.4034      s       997    1.2552e-05  Observed objective function value = 0.049122 Estimated objective function value = 0.049364 Function evaluation time = 126.9278  Best estimated feasible point (according to models):     iterlim    lambda    solver     q     lambdareg      _______    ______    ______    ___    __________        27       1.2167      s       657    1.0109e-05  Estimated objective function value = 0.049364 Estimated function evaluation time = 81.6216

El clasificador resultante no tiene una mejor pérdida (menor) que el clasificador utilizando para 1000 características, entrenado para 10 iteraciones.sparsefilt

Vea los coeficientes de filtro para los mejores hiperparámetros encontrados.bayesopt Las imágenes resultantes muestran las formas de las entidades extraídas. Estas formas son reconocibles como porciones de dígitos escritos a mano.

Xtbl = results.XAtMinObjective; Q = Xtbl.q; initW = W(1:size(Xtrain,2),1:Q); if char(Xtbl.solver) == 'r'     Mdl = rica(Xtrain,Q,'Lambda',Xtbl.lambda,'IterationLimit',Xtbl.iterlim, ...         'InitialTransformWeights',initW,'Standardize',true); else     Mdl = sparsefilt(Xtrain,Q,'Lambda',Xtbl.lambda,'IterationLimit',Xtbl.iterlim, ...         'InitialTransformWeights',initW); end Wts = Mdl.TransformWeights; Wts = reshape(Wts,[28,28,Q]); [dx,dy,~,~] = size(Wts); for f = 1:Q     Wvec = Wts(:,:,f);     Wvec = Wvec(:);     Wvec =(Wvec - min(Wvec))/(max(Wvec) - min(Wvec));     Wts(:,:,f) = reshape(Wvec,dx,dy); end m   = ceil(sqrt(Q)); n   = m; img = zeros(m*dx,n*dy); f   = 1; for i = 1:m     for j = 1:n         if (f <= Q)             img((i-1)*dx+1:i*dx,(j-1)*dy+1:j*dy,:) = Wts(:,:,f);             f = f+1;         end     end end imshow(img);
Warning: Solver LBFGS was not able to converge to a solution.

Quite el directorio de las funciones y de la ruta de búsqueda.processMNISTdatafilterica

rmpath(fullfile(matlabroot,'examples','stats'));

Código para leer datos MNIST

El código de la función que lee los datos en el espacio de trabajo es:

 function [X,L] = processMNISTdata(imageFileName,labelFileName)  [fileID,errmsg] = fopen(imageFileName,'r','b'); if fileID < 0     error(errmsg); end %% % First read the magic number. This number is 2051 for image data, and % 2049 for label data magicNum = fread(fileID,1,'int32',0,'b'); if magicNum == 2051     fprintf('\nRead MNIST image data...\n') end %% % Then read the number of images, number of rows, and number of columns numImages = fread(fileID,1,'int32',0,'b'); fprintf('Number of images in the dataset: %6d ...\n',numImages); numRows = fread(fileID,1,'int32',0,'b'); numCols = fread(fileID,1,'int32',0,'b'); fprintf('Each image is of %2d by %2d pixels...\n',numRows,numCols); %% % Read the image data X = fread(fileID,inf,'unsigned char'); %% % Reshape the data to array X X = reshape(X,numCols,numRows,numImages); X = permute(X,[2 1 3]); %% % Then flatten each image data into a 1 by (numRows*numCols) vector, and  % store all the image data into a numImages by (numRows*numCols) array. X = reshape(X,numRows*numCols,numImages)'; fprintf(['The image data is read to a matrix of dimensions: %6d by %4d...\n',...     'End of reading image data.\n'],size(X,1),size(X,2)); %% % Close the file fclose(fileID); %% % Similarly, read the label data. [fileID,errmsg] = fopen(labelFileName,'r','b'); if fileID < 0     error(errmsg); end magicNum = fread(fileID,1,'int32',0,'b'); if magicNum == 2049     fprintf('\nRead MNIST label data...\n') end numItems = fread(fileID,1,'int32',0,'b'); fprintf('Number of labels in the dataset: %6d ...\n',numItems);  L = fread(fileID,inf,'unsigned char'); fprintf(['The label data is read to a matrix of dimensions: %6d by %2d...\n',...     'End of reading label data.\n'],size(L,1),size(L,2)); fclose(fileID);
