Add new static mesh to UAV scenario


    addMesh(scene,type,geometry,color) adds a static mesh to the UAV scenario scene by specifying the mesh type, geometry, and color.


    addMesh(___,Name,Value) specifies additional options using name-value arguments. Enclose each Name in quotes.


    collapse all

    Create a UAV Scenario.

    scene = uavScenario("UpdateRate",100,"StopTime",1);

    Add the ground and a building as meshes.

    addMesh(scene,"Polygon", {[-50 0; 50 0; 50 50; -50 50], [-3 0]}, [0.3 0.3 0.3]);
    addMesh(scene,"Cylinder", {[10 5 5], [0 10]}, [0 1 1]);

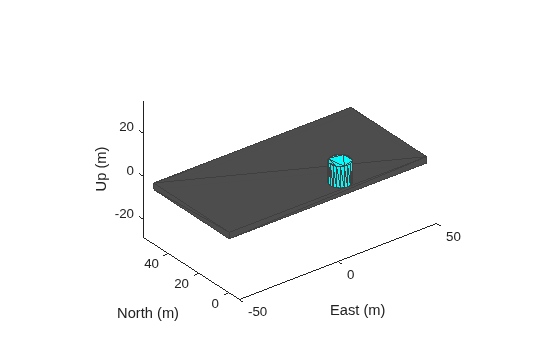

    Visualize the scenario.


    Figure contains an axes object. The axes object contains 2 objects of type patch.

    Input Arguments

    collapse all

    UAV scenario, specified as a uavScenario object.

    Mesh type, specified as "cylinder", "surface", "terrain", "polygon", or "custom". Specify the geometric parameters of the mesh using the geometry input.

    Data Types: string

    Mesh geometry, specified as a cell array of geometry parameters. Depending on the type input, the geometry parameters have different forms:

    type Input ArgumentGeometry ParametersDescription
    "cylinder"{[centerx, centery, radius],[zmin, zmax]}centerx and centery are the x- and y-coordinates of the center of the cylinder, respectively. radius is the radius of the cylinder in meters. zmin and zmax are the minimum and maximum z-axis coordinates of the cylinder in meters, respectively.
    "surface"{meshGridX,meshGridY,z}meshGridX, meshGridY and z are all 2-D matrices of the same size that define the xyz-points of the surface mesh.

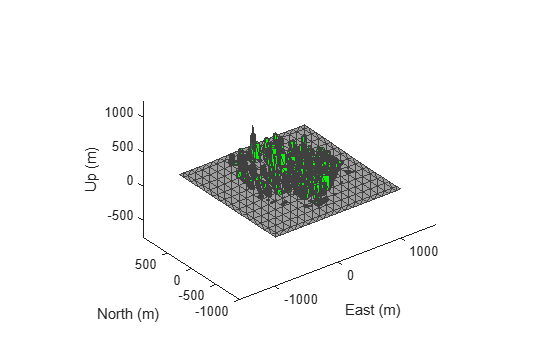

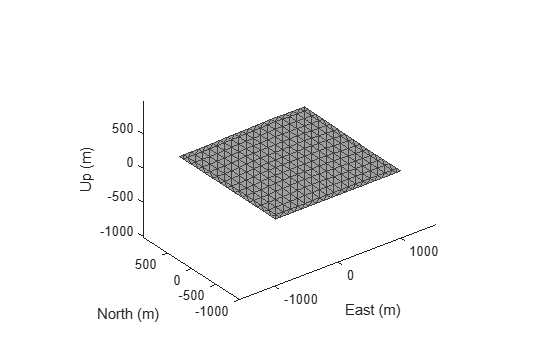

    "terrain"{terrainName,Xlimits,YLimits}You must first call the addCustomTerrain function to load the terrain data and specify a terrain name. Specify the minimum and maximum xy-limits as two separate two-element vectors in local coordinates, or latitude-longitude coordinates if the 'UseLatLon' name-value pair is true. The xy-coordinates must be specified in the ENU reference frame.
    "polygon"{cornerPoints,[zmin, zmax]}zmin and zmax are the minimum and maximum z-axis coordinates of the polygon in meters, respectively. conerPoints contains the corner points of the polygon, specified as a N-by-2 matrix, where N is the number of corner points. The first column contains the x-coordinates and the second column contains the y-coordinates in meters.

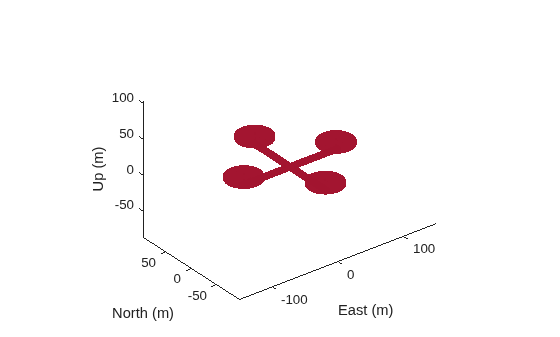

    "custom"{vertices,faces}vertices is an n-by-3 matrix of mesh points in local coordinates. faces is an n-by-3 integer matrix of indexes indicating the triangular faces of the mesh.

    Mesh color, specified as a RGB triplet.

    Example: [1 0 0]

    Name-Value Arguments

    Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

    Example: addMesh(scene,"Cylinder",{[46 42 5],[0 20]},[0 1 0],"UseLatLon",true)

    Enable latitude and longitude coordinates, specified as true or false.

    • When specified as true, the x and y coordinates in the geometry input are interpreted as longitude and latitude, respectively.

    • When specified as false, the x and y coordinates in the geometry input are interpreted as Cartesian coordinates.

    Reference frame of the geometry input, specified as an inertial frame name defined in the InertialFrames property of the uavScenario object scene. You can add new inertial frames to the scenario using the addInertialFrame object function.

    The scenario only accepts frames that have z-axis rotation with respect to the "ENU" frame.

    Introduced in R2020b
