2-D FIR Filter
2-D FIR filter on input matrix
Libraries:
Computer Vision Toolbox /
Filtering
Description
The 2-D FIR Filter block filters a 2-D grayscale image using a 2-D finite impulse response (FIR) filter represented as a 2-D coefficient matrix or a pair of separable filter coefficient vectors.

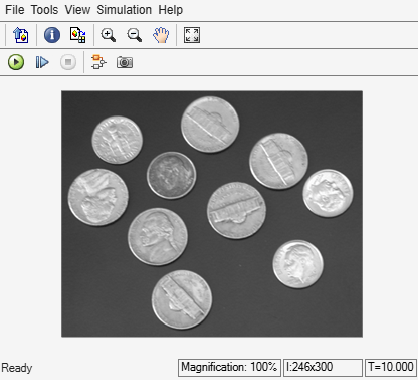

Examples
Ports
Input
I — Input image
matrix
Input image, specified as a numeric matrix.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| fixed point
Complex Number Support: Yes
H — Filter coefficients
matrix
Filter coefficients, specified as a numeric matrix. The input to the H port must have the same data type as the input to the I port.
Dependencies
To enable this port, set the Coefficient source parameter
to Input port
.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| fixed point
Complex Number Support: Yes
HV — Vertical filter coefficients
vector
Vertical filter coefficients, specified as a numeric vector. The input to the HV port must have the same data type as the input to the I port.
Dependencies
To enable this port, specify these parameter values.
Separable filter coefficients —
on
Coefficient source —
Input port
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| fixed point
Complex Number Support: Yes
HH — Horizontal filter coefficients
vector
Horizontal filter coefficients, specified as a numeric vector. The input to the HH port must have the same data type as the input to the I port.
Dependencies
To enable this port, specify these parameter values.
Separable filter coefficients —
on
Coefficient source —
Input port
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| fixed point
Complex Number Support: Yes
PVal — Pad value
scalar
Pad value, specified as a numeric scalar. The input to the PVal port must have the same data type as the input to the I port.
Dependencies
To enable this port, specify these parameter values.
Output size —
Full
orSame as input port I
Padding options —
Constant
Pad value source —
Input port
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| fixed point
Complex Number Support: Yes
Output
Output — Filtered output image
matrix
Filtered output image, returned as a numeric matrix of the same data type as the input image.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| fixed point
Parameters
Main
Separable filter coefficients — Filter coefficients are separable
off
(default) | on
Select this parameter if your filter coefficients are separable. Using separable
filter coefficients reduces the number of calculations the block must perform to
compute the output. You can use isfilterseparable
to check if your filter is separable and compute the
vertical and horizontal filter coefficients.
Coefficient source — Source of filter coefficients
Specify via dialog
(default) | Input port
Specify the source of the filter coefficients as one of these options.
Specify via dialog
— Specify the filter coefficients using the Coefficients parameter or, if you select the Separable filter coefficients parameter, by using the Vertical coefficients (across height) and Horizontal coefficients (across width) parameters.Input port
— Specify the filter coefficients using the H port, or if you select the Separable filter coefficients parameter, by using the HV and HH ports.
Coefficients — Filter coefficients
[1 0; 0 -1]
(default) | numeric matrix
Specify the filter coefficients as a numeric matrix.
Dependencies
To enable this parameter, specify these parameter values.
Separable filter coefficients —
off
Coefficient source —
Specify via dialog
Vertical coefficients (across height) — Vertical filter coefficients
[4 0]
(default) | numeric vector
Specify the vertical filter coefficients as a numeric vector.
Dependencies
To enable this parameter, specify these parameter values.
Separable filter coefficients —
on
Coefficient source —
Specify via dialog
Horizontal coefficients (across height) — Horizontal filter coefficients
[4 0]
(default) | numeric vector
Specify the horizontal filter coefficients as a numeric vector.
Dependencies
To enable this parameter, specify these parameter values.
Separable filter coefficients —
on
Coefficient source —
Specify via dialog
Output size — Size of filtered image
Full
(default) | Same as input port I
| Valid
For an input image having dimensions M-by-N and a filter having dimensions P-by-Q, specify the size of the filtered image as one of these options.
Full
— The block uses padding to return a filtered image with full dimensions (M+P–1)-by-(N+Q–1).Same as input port I
— The block uses padding to return a filtered image with dimensions M-by-N, the same size as the input image.Valid
— The block filters the input image only where the coefficient matrix fits entirely within it without padding, and returns a filtered image with dimensions (M–P+1)-by-(N–Q+1).
Padding options — Padding method
Constant
(default) | Replicate
| Symmetric
| Circular
Specify the padding method as one of these options.
Constant
— Pads the input image with a constant value.Replicate
— Pads the input image by repeating its border values.Symmetric
— Pads the input image by mirror-reflecting the image across its border.Circular
— Pads the input image by assuming the image is periodic.
Dependencies
To enable this parameter, specify the Output size parameter
as either Full
or Same as input port
I
.
Pad value source — Source of padding value
Specify via dialog
(default) | Input port
Specify the source of the padding value as one of these options.
Specify via dialog
— Specify the pad value using the Pad value parameter.Input port
— Specify the pad value using the PVal port.
Dependencies
To enable this parameter, specify these parameter values.
Output size —
Full
orSame as input port I
Padding options —
Constant
Pad value — Padding value
0
(default) | numeric scalar
Specify the padding value as a numeric scalar.
Dependencies
To enable this parameter, specify these parameter values.
Output size —
Full
orSame as input port I
Padding options —
Constant
Pad value source —
Specify via dialog
Filtering based on — Method of filtering
Convolution
(default) | Correlation
Specify the method of filtering as Convolution
or
Correlation
.
Data Types
For details on the fixed-point block parameters, see Specify Fixed-Point Attributes for Blocks (DSP System Toolbox).
Lock data type settings against change by the fixed-point tools — Prevent fixed-point tools from overriding data types
off
(default) | on
Select this parameter to prevent the fixed-point tools from overriding the data types you specify in this block. For more information, see Lock the Output Data Type Setting (Fixed-Point Designer).
Block Characteristics
Data Types |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Version History
Introduced before R2006a
