Find matching features within specified radius

Since R2021a

## Syntax

``indexPairs = matchFeaturesInRadius(features1,features2,points2,centerPoints,radius)``
``````[indexPairs,matchMetric] = matchFeaturesInRadius(___)``````
``````[indexPairs,matchMetric] = matchFeaturesInRadius(___,Name,Value)``````

## Description

example

````indexPairs = matchFeaturesInRadius(features1,features2,points2,centerPoints,radius)` returns the indices of the features most likely to correspond between the input feature sets within the specified radius or radii around each expected match location.```
``````[indexPairs,matchMetric] = matchFeaturesInRadius(___)``` also returns the distance between the features in a matched pair in `indexPairs`.```
``````[indexPairs,matchMetric] = matchFeaturesInRadius(___,Name,Value)``` specifies options using one or more name-value arguments in addition of the input arguments in previous syntaxes.```

## Examples

collapse all

Load a MAT file containing an image and camera data into the workspace.

`data = load('matchInRadiusData.mat');`

Convert the camera pose to extrinsics.

```orientation = data.cameraPose2.Rotation; location = data.cameraPose2.Translation; [rotationMatrix,translationVector] = cameraPoseToExtrinsics(orientation,location);```

Project the 3-D world points associated with feature set one onto the second image.

`centerPoints = worldToImage(data.intrinsics,rotationMatrix,translationVector,data.worldPoints);`

Match features between the two feature sets within spatial constraints.

```indexPairs1 = matchFeaturesInRadius(data.features1,data.features2, ... data.points2,centerPoints,data.radius,'MatchThreshold',40, ... 'MaxRatio',0.9);```

Match features between the two feature sets without using spatial constraints.

```indexPairs2 = matchFeatures(data.features1,data.features2, ... 'MatchThreshold',40,'MaxRatio',0.9);```

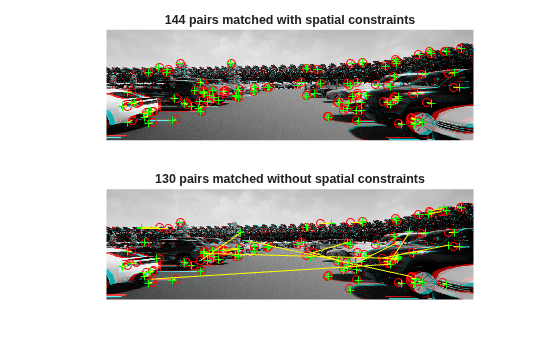

Visualize and compare the results between the two ways of matching features.

```figure subplot(2,1,1) showMatchedFeatures(data.I1,data.I2,data.points1( ... indexPairs1(:,1)),data.points2(indexPairs1(:,2))); title(sprintf('%d pairs matched with spatial constraints',size(indexPairs1,1))); subplot(2,1,2) showMatchedFeatures(data.I1,data.I2,data.points1( ... indexPairs2(:,1)),data.points2(indexPairs2(:,2))); title(sprintf('%d pairs matched without spatial constraints',size(indexPairs2,1)));```

## Input Arguments

collapse all

Feature set one, specified as a `binaryFeatures` object or an M1-by-N matrix. The matrix contains M1 features, and N corresponds to the length of each feature vector.

You can obtain the `binaryFeatures` object using the `extractFeatures` function with the fast retina keypoint (FREAK), oriented fast and rotated brief (ORB), or binary robust invariant scalable keypoints (BRISK) descriptor method.

Data Types: `logical` | `int8` | `uint8` | `int16` | `uint16` | `int32` | `uint32` | `single` | `double` | `binaryFeature object`

Feature set two, specified as a `binaryFeatures` object or an M2-by-N matrix. The matrix contains M2 features, and N corresponds to the length of each feature vector.

You can obtain the `binaryFeatures` object using the `extractFeatures` function with the fast retina keypoint (FREAK), oriented fast and rotated brief (ORB), or binary robust invariant scalable keypoints (BRISK) descriptor method.

Data Types: `logical` | `int8` | `uint8` | `int16` | `uint16` | `int32` | `uint32` | `single` | `double` | `binaryFeature object`

Feature points of feature set two, specified as either an M2-by-2 matrix in the format [x y] or an M2-element feature point array. For a list of point feature types, see Point Feature Types.

Data Types: `single` | `double` | `point feature type`

Expected matched locations in the second image that correspond to the feature points from `features1`, specified as an M1-by-2 matrix of coordinates in the format [x y].

Data Types: `single` | `double`

Search radius associated with the center points, specified as a scalar or an M1-element vector. When you specify the `radius` as a scalar value, the function uses the same search radius for all center points.

Data Types: `single` | `double`

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `'Metric'`,`'SSD'` specifies the sum of squared differences metric for feature matching.

Matching threshold, specified as a scalar value in the range (0,100]. The default values are `10.0` for binary feature vectors or `1.0` for nonbinary feature vectors. You can use the matching threshold to select the strongest matches. The threshold represents a percent of the distance from a perfect match.

Two feature vectors match when the distance between them is less than the threshold set by '`MatchThreshold`'. The function rejects a match when the distance between the features is greater than the value of '`MatchThreshold`'. Increase the value to return more matches.

Inputs that are `binaryFeatures` objects typically require a larger value for the match threshold. The `extractFeatures` function returns a `binaryFeatures` object when extracting FREAK, ORB, or BRISK descriptors.

Ratio threshold, specified as a scalar value in the range (0, 1]. Use the ratio to reject ambiguous matches. Increase this value to return more matches.

Feature matching metric, specified as either `'SAD'` or `'SSD'`.

 `'SAD'` Sum of absolute differences `'SSD'` Sum of squared differences

This property applies when you specify the input feature sets, `features1` and `features2`, as matrices. When you specify the features as `binaryFeatures` objects, the function uses the Hamming distance to compute the similarity metric.

Unique matches, specified as a logical `0` (`false`) or `1` (`true`). Set this value to `true` to return only unique matches between `features1` and `features2`.

When you set `Unique` to `false`, the function returns all matches between `features1` and `features2`. Multiple features in `features1` can match to one feature in `features2`.

When you set `Unique` to `true`, the function performs a forward-backward match to select a unique match. After matching `features1` to `features2`, it matches `features2` to `features1` and keeps the best match.

## Output Arguments

collapse all

Indices of corresponding features between the two input feature sets, returned as a P-by-2 matrix. Pis the number of matched pairs of features. Each index pair corresponds to a matched feature between the `features1` and `features2` inputs. The first element indexes the feature in `features1`. The second element indexes the matching feature in `features2`.

Distance between matching features, returned as a P-by-1 vector. The ith element in `matchMetric` corresponds to the ith row in the `indexPairs` output matrix. The values of the distances are based on the metric selected, but a perfect match is always `0`. When `Metric` is set to either `SAD` or `SSD`, the feature vectors are normalized to unit vectors before computation. The function returns `matchMetric` as a `double` data type when `features1` and `features2` are of type `double`. Otherwise, the returned vector is of type `single`.

MetricRange
SAD[`0`, `2`*`sqrt`(`size`(`features1`,`2`))].
SSD[`0, 4`]
Hamming[`0, features1.NumBits`]

Note

You cannot select the Hamming metric. The metric is selected automatically when the `features1` and `features2` inputs are `binaryFeatures`.

Data Types: `single` | `double`

## Tips

• Use this function when the 3-D world points that correspond to feature set one `features1`, are known. `centerPoints` can be obtained by projecting a 3-D world point onto the second image. You can obtain the 3-D world points by triangulating matched image points from two stereo images.

• You can specify a circular area of points in feature set two to match with feature set one. Specify the origin as `centerPoints` with a radius specified by `radius`. Specify the points to match from feature set two as `points2`

.

## References

[1] Fraundorfer, Friedrich, and Davide Scaramuzza. “Visual Odometry: Part II: Matching, Robustness, Optimization, and Applications.” IEEE Robotics & Automation Magazine 19, no. 2 (June 2012): 78–90. https://doi.org/10.1109/MRA.2012.2182810.

[2] Lowe, David G. “Distinctive Image Features from Scale-Invariant Keypoints.” International Journal of Computer Vision 60, no. 2 (November 2004): 91–110. https://doi.org/10.1023/B:VISI.0000029664.99615.94.

[3] Muja, Marius, and David G. Lowe. “Fast Approximate Nearest Neighbors With Automatic Algorithm Configuration:” In Proceedings of the Fourth International Conference on Computer Vision Theory and Applications, 331–40. Lisboa, Portugal: SciTePress - Science and Technology Publications, 2009. https://doi.org/10.5220/0001787803310340.

[4] Muja, Marius, and David G. Lowe. "Fast Matching of Binary Features." In 2012 Ninth Conference on Computer and Robot Vision, 404–10. New York: Institute of Electrical and Electronics Engineers, 2012. https://doi.org/10.1109/CRV.2012.60.

## Version History

Introduced in R2021a
