# Wavelets and Vanishing Moments

This example shows how the number of vanishing moments can affect wavelet coefficients.

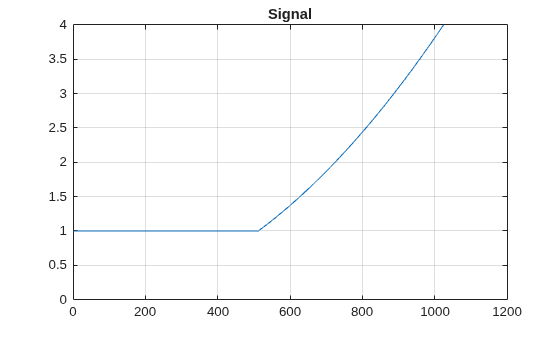

Create a signal defined over the interval $0\le \mathit{x}\le 2$. The signal is constant over the interval $0\le \mathit{x}<1$ and quadratic over the interval $1\le \mathit{x}\le 2$. Plot the signal.

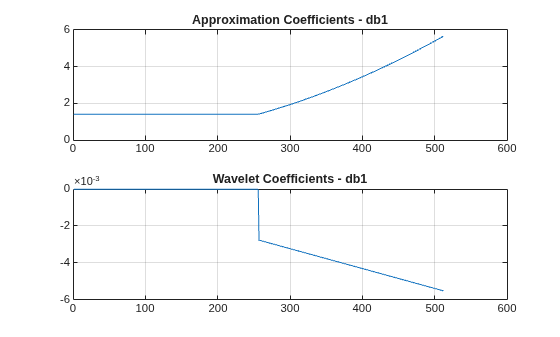

```n = 1024; x = linspace(0,2,n); sig = zeros(1,n); ind0 = (0<=x)&(x<1); ind1 = (1<=x)&(x<=2); sig(ind0) = 1; sig(ind1) = x(ind1).^2; plot(sig) ylim([0 4]) grid on title('Signal')``` Compute a single-level wavelet decomposition of the signal using the `db1` wavelet. This wavelet has one vanishing moment. Plot the approximation coefficients and wavelet coefficients.

```[a1,d1] = dwt(sig,'db1'); figure subplot(2,1,1) plot(a1) ylim([0 6]) grid on title('Approximation Coefficients - db1') subplot(2,1,2) plot(d1) ylim([-6e-3 0]) grid on title('Wavelet Coefficients - db1')``` The wavelet coefficients corresponding with the constant portion of the signal are approximately 0. The magnitude of the wavelet coefficients corresponding with the quadratic portion of the signal are increasing. Because the `db1` wavelet has one vanishing moment, the wavelet is not orthogonal to the quadratic portion of the signal.

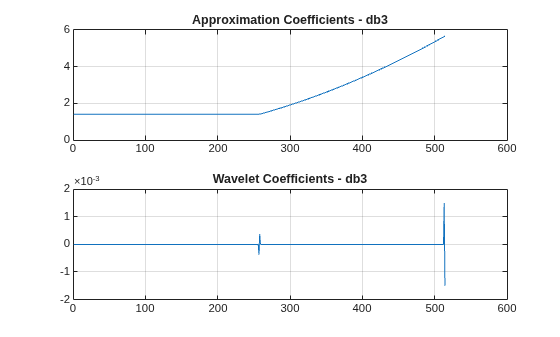

Compute a single-level wavelet decomposition of the signal using the `db3` wavelet. This wavelet has three vanishing moments. Plot the approximation coefficients and wavelet coefficients.

```[a2,d2] = dwt(sig,'db3'); figure subplot(2,1,1) plot(a2) ylim([0 6]) grid on title('Approximation Coefficients - db3') subplot(2,1,2) plot(d2) grid on title('Wavelet Coefficients - db3')``` The wavelet coefficients corresponding with the constant portion of the signal are approximately 0. The spike in the middle corresponds to where the constant and quadratic pieces of the signal meet. The spike at the end is a boundary effect. The magnitude of the wavelet coefficients corresponding with the quadratic portion of the signal are approximately 0. Because the `db3` wavelet has three vanishing moments, the wavelet is orthogonal to the quadratic part of the signal.
