ind2depo

Node index to node depth-position

Syntax

[D,P] = ind2depo(ORD,[D P])

Description

ind2depo is a tree-management utility.

For a tree of order ORD, [D,P] = ind2depo(ORD,N) computes the depths D and the positions P (at these depths D) for the nodes with indices N.

The nodes are numbered from left to right and from top to bottom. The root index is 0.

N must be a column vector of integers (N ≥ 0).

Note that [D,P] = ind2depo(ORD,[D P]).

Examples

collapse all

Create a binary wavelet packet tree with three levels.

Ord = 2;
Lev = 3;
T = ntree(Ord,Lev);

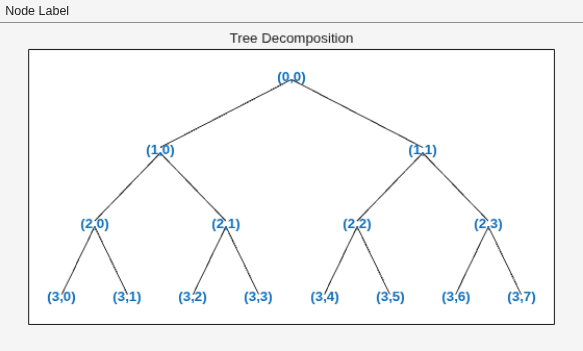

Plot the binary wavelet packet tree.

plot(T)

Obtain the indices of the nodes in linear order.

idx = allnodes(T);

Convert the indices to depth-position format.

[depth,pos] = ind2depo(Ord,idx);
table(depth,pos)
ans=15×2 table
    depth    pos
    _____    ___

      0       0
      1       0
      1       1
      2       0
      2       1
      2       2
      2       3
      3       0
      3       1
      3       2
      3       3
      3       4
      3       5
      3       6
      3       7

See Also

Introduced before R2006a
