nodedesc
Node descendants
Description
nodedesc
is a tree-management utility.
Examples
Node Descendants
Create a binary tree of depth 3.
t = ntree(2,3);
Recompose two of the nodes. Plot the tree.
t = nodejoin(t,5); t = nodejoin(t,4); fig = plot(t);
Programmatically, in Node Label, change the selected item from Depth_Position
to Index
.

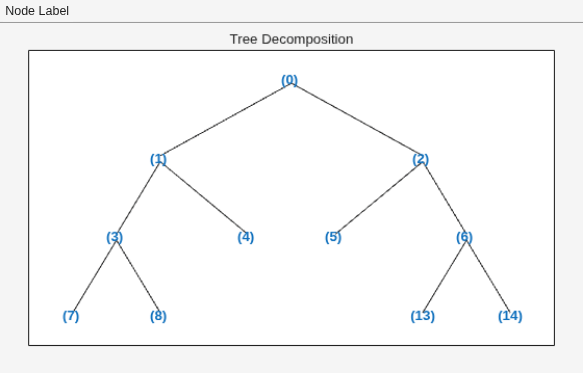

plot(t,"setNodeLabel",fig,"Index")
Obtain the indices of the descendants of the node whose index is 2.
nodedesc(t,2)
ans = 5×1
2
5
6
13
14
Obtain the depths and positions of the descendants of the same node.
nodedesc(t,2,"deppos")
ans = 5×2
1 1
2 2
2 3
3 6
3 7
Obtain the depths and positions of the descendants of the node at depth-position (1,0)
.
nodedesc(t,[1 0],"deppos")
ans = 5×2
1 0
2 0
2 1
3 0
3 1
Obtain the indices of the descendants of the same node.
nodedesc(t,[1 0])
ans = 5×1
1
3
4
7
8
Input Arguments
T
— Tree
dtree
object | ntree
object | wptree
object
Tree, specified as a dtree
, ntree
, or wptree
object.
n
— Tree node
integer | 1-by-2 vector
Tree node, specified as a nonnegative integer or a 1-by-2 vector. You can specify the node by either its index or depth and position.
Data Types: double
Output Arguments
D
— Descendants
vector | matrix
Descendants of the node n
, returned as a column
vector of node indices or a two-column matrix containing the depths and
positions of the descendants.
If
D
is a vector, thenD(1)
is the index of the noden
If
D
is a matrix, the ith row ofD
contains the depth and position of the ith descendant. The first row ofD
is the depth and position of the noden
.
Version History
Introduced before R2006a
