Would like to know what is this symbol and its function

3 visualizaciones (últimos 30 días)
Ying Jie Tan
Ying Jie Tan el 26 de Oct. de 2023
Comentada: Ying Jie Tan el 26 de Oct. de 2023

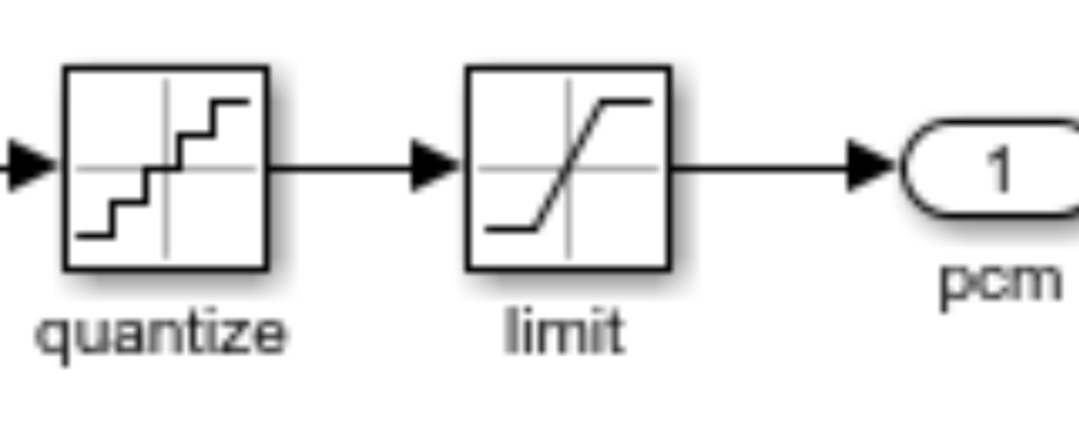

Good day community, can I know what is this symbol could be? It looks like a ramp/ continuous ramp. But I believe it is not both them. I saw someone connect it after a voltage/ current measurement. Can I know what is the function of this symbol too? Much appreciate for the answers given

  2 comentarios
Kilsu Kim
Kilsu Kim el 26 de Oct. de 2023
It looks like "Saturation" block but the direction of the block is opposite.
Ying Jie Tan
Ying Jie Tan el 26 de Oct. de 2023

I've think about this before, but if Im not mistaken, the saturation block came with the y and x axis too right? Or we can hide that axes to become like the block I've attached above?

Iniciar sesión para comentar.

Respuestas (0)

Categorías

Más información sobre Discontinuities en Help Center y File Exchange.
